Anatomist Show Connectivity Profiles of a Specific Cortical Element

Display connectivity from the reduced connectivity matrix

Description

Display reduced connectivity matrix information for a given patch (gyrus). For a viewer using a full (non-reduced) matrix, see Anatomist show connectivity matrix.

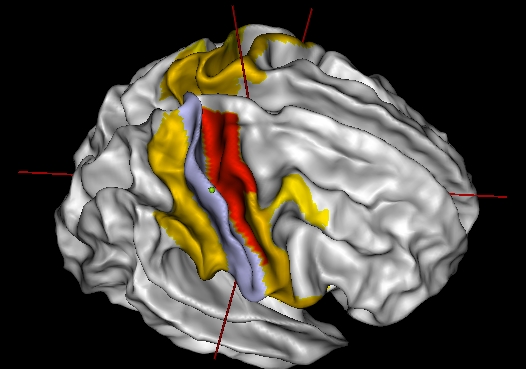

Connectivity from a point of the patch

Simple left-click on the patch in Anatomist view

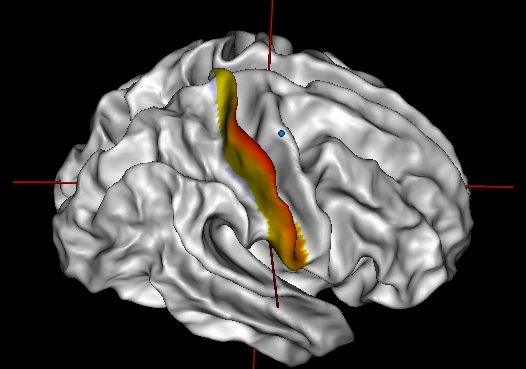

Connectivity to a point outside the patch

Left-click on a point of the cortex outside the patch

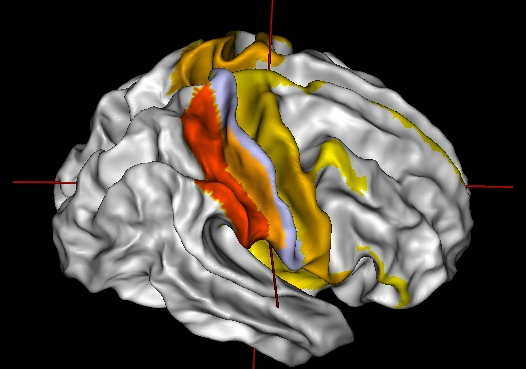

connectivity of a cluster within the patch

This mode only works if the gyrus_texture parameter is a clustering texture of the patch. It may have several timesteps (several numbers of clusters).
Ctrl + left-click on a point in the patch.

Parameters

connectivity_matrix: Connectivity Matrix ( input )

white_mesh: White Mesh ( input )

gyrus_texture: ROI Texture ( input )

basins_texture: Connectivity ROI Texture ( input )

Technical information

Toolbox : Constellation

User level : 2

Identifier : anatomist_show_profiles_specific_element

File name : brainvisa/toolboxes/constellation/processes/viewers/anatomist_show_profiles_specific_element.py

Supported file formats :

connectivity_matrix :

gz compressed NIFTI-1 image, GIS image, NIFTI-1 image, Sparse Matrix, gz compressed NIFTI-1 image

white_mesh :

GIFTI file, GIFTI file, MESH mesh, MNI OBJ mesh, PLY mesh, TRI mesh, Z compressed GIFTI file, Z compressed GIFTI file, Z compressed MESH mesh, Z compressed MNI OBJ mesh, Z compressed PLY mesh, Z compressed TRI mesh, gz compressed GIFTI file, gz compressed GIFTI file, gz compressed MESH mesh, gz compressed MNI OBJ mesh, gz compressed PLY mesh, gz compressed TRI mesh

gyrus_texture :

GIFTI file, GIFTI file, Texture, Z compressed GIFTI file, Z compressed GIFTI file, Z compressed Texture, gz compressed GIFTI file, gz compressed GIFTI file, gz compressed Texture

basins_texture :

GIFTI file, GIFTI file, Texture, Z compressed GIFTI file, Z compressed GIFTI file, Z compressed Texture, gz compressed GIFTI file, gz compressed GIFTI file, gz compressed Texture
