Sulcal Pits Extraction

Extraction of the sulcal pits as described in:
Auzias, G, Brun, L, Deruelle, C, Coulon, O, Deep sulcal landmarks: algorithmic and conceptual improvements in the definition and extraction of sulcal pits, NeuroImage, 2015.

Description

This pipeline computes:

• the depth estimation through the Depth Potential Function, see the documentation of the process Depth Potential Function;

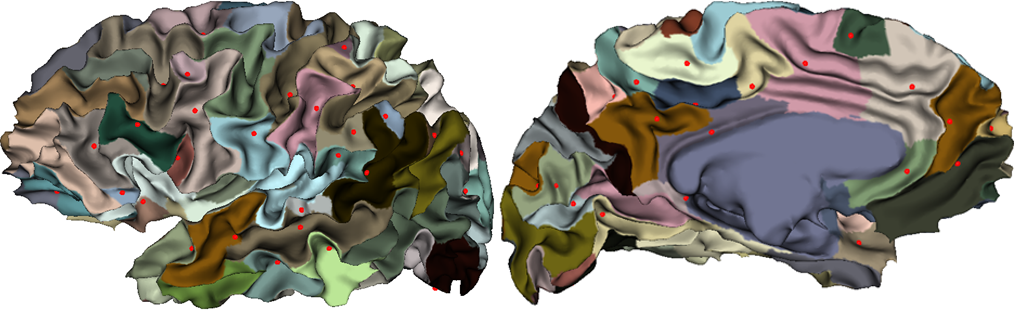

• the sulcal pits are computed by applying a watershed algorithm to this depth map using the process mesh watershed.

Important: default parameters setting
As detailed in Auzias et al., NeuroImage 2015, the parameters have a direct influence on the results. The default values of these parameters have been set using a population of healthy adult individuals. In particular, the value of the parameter group_average_Fidler_length can be computed for your data using the process Average Mesh Fiedler Length; and the value of the parameter group_average_surface_area can be computed for your data using the process Average Mesh area

Paramètres

input_mesh: Maillage de la matière blanche d'un hémisphère ( entrée )

side: Choice ( input )

mask_texture: Cingular pole texture ( optional, entrée )

DPF_alpha: Réel ( input )

thresh_ridge: Réel ( input )

thresh_dist: Réel ( input )

group_average_Fiedler_length: Réel ( input )

thresh_area: Réel ( input )

group_average_surface_area: Réel ( input )

DPF_texture: DPF texture ( sortie )

pits_texture: pits texture ( sortie )

noisypits_texture: noisy pits texture ( sortie )

ridges_texture: ridges texture ( sortie )

basins_texture: basins texture ( sortie )

Informations techniques

Toolbox : Surface corticale

Niveau d'utilisateur : 0

Identifiant : SulcalPitsExtraction

Nom de fichier : brainvisa/toolboxes/cortical_surface/processes/anatomy/SulcalPitsExtraction.py

Supported file formats :

input_mesh :

GIFTI file, GIFTI file, Maillage MESH, MNI OBJ mesh, PLY mesh, Maillage TRI

mask_texture :

GIFTI file, GIFTI file, Texture

DPF_texture :

GIFTI file, GIFTI file, Texture

pits_texture :

GIFTI file, GIFTI file, Texture

noisypits_texture :

GIFTI file, GIFTI file, Texture

ridges_texture :

GIFTI file, GIFTI file, Texture

basins_texture :

GIFTI file, GIFTI file, Texture
