The template class to manage a mesh with time if needed. More...

#include <aims/mesh/surface.h>

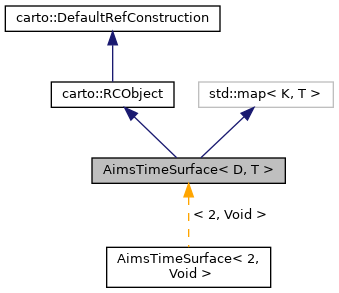

Inheritance diagram for AimsTimeSurface< D, T >:

[legend]

Collaboration diagram for AimsTimeSurface< D, T >:

[legend]

Public Types
typedef std::map< int, AimsSurface< D, T > >::iterator	iterator

typedef std::map< int, AimsSurface< D, T > >::const_iterator	const_iterator

Public Types inherited from carto::RCObject
typedef int	RefCounterType

Public Member Functions
	AimsTimeSurface ()
	Constructor does nothing special. More...

virtual	~AimsTimeSurface ()
	Destructor does nothing. More...

const aims::PythonHeader &	header () const
	Get the header. More...

aims::PythonHeader &	header ()

void	setHeader (const aims::PythonHeader &hdr)
	Set the header. More...

const std::vector< Point3df > &	vertex () const
	Get a const reference to the vector of verteces of the surface of index 0. More...

std::vector< Point3df > &	vertex ()
	Get a non const reference to the vector of verteces of the 0 surface. More...

const std::vector< Point3df > &	normal () const
	Get a const reference to the vector of normals of the 0 surface. More...

std::vector< Point3df > &	normal ()
	Get a non const reference to the vector of normals of the 0 surface. More...

const std::vector< T > &	texture () const
	Get a const reference to the vector of textures of the 0 surface. More...

std::vector< T > &	texture ()
	Get a non const reference to the vector of textures of the 0 surface. More...

const std::vector< AimsVector< uint, D > > &	polygon () const
	Get a const reference to the vector of polygons of the 0 surface. More...

std::vector< AimsVector< uint, D > > &	polygon ()
	Get a non const reference to the vector of polygons of the 0 surface. More...

Point3df	minimum () const
	Get the inferior point of the box containing all the meshes. More...

Point3df	maximum () const
	Get the superior point of the box containing all the meshes. More...

void	setMini ()
	Calculates the inferior point of the box containing all the meshes. More...

void	setMaxi ()
	Calculates the superior point of the box containing all the meshes. More...

void	erase ()
	Clear all the meshes. More...

void	updateNormals ()
	Update/Compute the normals. More...

bool	operator== (const AimsTimeSurface< D, T > &) const

bool	operator!= (const AimsTimeSurface< D, T > &other) const

void	updateNormals ()

void	updateNormals ()

Public Member Functions inherited from carto::RCObject
	RCObject ()

	RCObject (const RCObject &)

RCObject &	operator= (const RCObject &)

virtual	~RCObject ()

Protected Attributes
Data
aims::PythonHeader	_header
	Header. More...

Point3df	_mini
	Inferior point of the box containing all the meshes. More...

Point3df	_maxi
	Inferior point of the box containing all the meshes. More...

Friends
std::ostream &	operator<< (std::ostream &out, const AimsTimeSurface< D, T > &thing)
	Output stream operator. More...

Detailed Description

template<int D, class T>
class AimsTimeSurface< D, T >

The template class to manage a mesh with time if needed.

The first template argument gives the dimension of the polygons of the mesh. The second template argument provides the type of the texture information. AimsTimeSurface is based upon STL maps of AimsSurface<D,T> items. One can get some more details in STL documentation.

Definition at line 315 of file surface.h.

Member Typedef Documentation

◆ const_iterator

template<int D, class T >

typedef std::map< int , AimsSurface<D,T> >::const_iterator AimsTimeSurface< D, T >::const_iterator

Definition at line 321 of file surface.h.

◆ iterator

template<int D, class T >

typedef std::map< int , AimsSurface<D,T> >::iterator AimsTimeSurface< D, T >::iterator

Definition at line 319 of file surface.h.

Constructor & Destructor Documentation

◆ AimsTimeSurface()

template<int D, class T >

AimsTimeSurface< D, T >::AimsTimeSurface ( )

inline

Constructor does nothing special.

Definition at line 323 of file surface.h.

◆ ~AimsTimeSurface()

template<int D, class T >

virtual AimsTimeSurface< D, T >::~AimsTimeSurface ( )

inlinevirtual

Destructor does nothing.

Definition at line 325 of file surface.h.

Member Function Documentation

◆ erase()

template<int D, class T >

void AimsTimeSurface< D, T >::erase

inline

Clear all the meshes.

Definition at line 505 of file surface.h.

Referenced by aims::SurfaceManip::meshMerge(), aims::WavefrontMeshReader< D, T >::read(), and aims::MeshReader< D, T >::read().

◆ header() [1/2]

template<int D, class T >

aims::PythonHeader& AimsTimeSurface< D, T >::header ( )

inline

Definition at line 329 of file surface.h.

◆ header() [2/2]

template<int D, class T >

const aims::PythonHeader& AimsTimeSurface< D, T >::header ( ) const

inline

Get the header.

Definition at line 328 of file surface.h.

Referenced by aims::SurfaceManip::joinTexturedMesh(), aims::SurfaceManip::meshMerge(), AimsTimeSurface< D, T >::operator==(), aims::SurfaceManip::splitTexturedMesh(), aims::MeshWriter< D, T >::write(), aims::PlyWriter< D, T >::write(), aims::WavefrontMeshWriter< D, T >::write(), aims::WavefrontMeshWriter< D, Void >::write(), and aims::GiftiMeshFormat< D, T >::write().

◆ maximum()

template<int D, class T >

Point3df AimsTimeSurface< D, T >::maximum ( ) const

inline

Get the superior point of the box containing all the meshes.

Definition at line 371 of file surface.h.

◆ minimum()

template<int D, class T >

Point3df AimsTimeSurface< D, T >::minimum ( ) const

inline

Get the inferior point of the box containing all the meshes.

Definition at line 369 of file surface.h.

◆ normal() [1/2]

template<int D, class T >

std::vector<Point3df>& AimsTimeSurface< D, T >::normal ( )

inline

Get a non const reference to the vector of normals of the 0 surface.

Definition at line 353 of file surface.h.

◆ normal() [2/2]

template<int D, class T >

const std::vector<Point3df>& AimsTimeSurface< D, T >::normal ( ) const

inline

Get a const reference to the vector of normals of the 0 surface.

Definition at line 350 of file surface.h.

Referenced by aims::SurfaceManip::joinTexturedMesh(), aims::SurfaceManip::meshExtract(), aims::SurfaceManip::meshTransform(), aims::PlyReader< D, T >::read(), aims::GiftiMeshFormat< D, T >::read(), aims::SurfaceManip::splitTexturedMesh(), and aims::PlyWriter< D, T >::write().

◆ operator!=()

template<int D, class T >

bool AimsTimeSurface< D, T >::operator!= ( const AimsTimeSurface< D, T > & other ) const

inline

Definition at line 385 of file surface.h.

◆ operator==()

template<int D, typename T >

bool AimsTimeSurface< D, T >::operator== ( const AimsTimeSurface< D, T > & other ) const

inline

Definition at line 540 of file surface.h.

References AimsTimeSurface< D, T >::header().

◆ polygon() [1/2]

template<int D, class T >

std::vector< AimsVector<uint,D> >& AimsTimeSurface< D, T >::polygon ( )

inline

Get a non const reference to the vector of polygons of the 0 surface.

Definition at line 365 of file surface.h.

◆ polygon() [2/2]

template<int D, class T >

const std::vector< AimsVector<uint,D> >& AimsTimeSurface< D, T >::polygon ( ) const

inline

Get a const reference to the vector of polygons of the 0 surface.

Definition at line 362 of file surface.h.

Referenced by aims::SurfaceManip::joinTexturedMesh(), aims::SurfaceManip::meshExtract(), aims::SurfaceManip::rasterizeMeshWireframe(), aims::PlyReader< D, T >::read(), aims::GiftiMeshFormat< D, T >::read(), aims::SurfaceManip::sortPolygonsAlongDirection(), aims::SurfaceManip::splitTexturedMesh(), aims::SurfaceManip::surfaceNeighbourDistance(), aims::SurfaceManip::surfaceNeighbours(), aims::SurfaceManip::surfaceNeighbours2ndOrder(), aims::PlyWriter< D, T >::write(), aims::WavefrontMeshWriter< D, T >::write(), and aims::WavefrontMeshWriter< D, Void >::write().

◆ setHeader()

template<int D, class T >

void AimsTimeSurface< D, T >::setHeader ( const aims::PythonHeader & hdr )

inline

Set the header.

Definition at line 332 of file surface.h.

Referenced by aims::PlyReader< D, T >::read(), aims::WavefrontMeshReader< D, T >::read(), aims::MeshReader< D, T >::read(), and aims::GiftiMeshFormat< D, T >::read().

◆ setMaxi()

template<int D, class T >

void AimsTimeSurface< D, T >::setMaxi

inline

Calculates the superior point of the box containing all the meshes.

Definition at line 487 of file surface.h.

References AimsVector< class, D >::item().

◆ setMini()

template<int D, class T >

void AimsTimeSurface< D, T >::setMini

inline

Calculates the inferior point of the box containing all the meshes.

Definition at line 469 of file surface.h.

References AimsVector< class, D >::item().

◆ texture() [1/2]

template<int D, class T >

std::vector<T>& AimsTimeSurface< D, T >::texture ( )

inline

Get a non const reference to the vector of textures of the 0 surface.

Definition at line 359 of file surface.h.

◆ texture() [2/2]

template<int D, class T >

const std::vector<T>& AimsTimeSurface< D, T >::texture ( ) const

inline

Get a const reference to the vector of textures of the 0 surface.

Definition at line 356 of file surface.h.

Referenced by aims::SurfaceManip::splitTexturedMesh(), and aims::WavefrontMeshWriter< D, T >::write().

◆ updateNormals() [1/3]

template<int D, class T >

void AimsTimeSurface< D, T >::updateNormals

inline

Update/Compute the normals.

Definition at line 514 of file surface.h.

Referenced by aims::PlyReader< D, T >::read(), and aims::WavefrontMeshReader< D, T >::read().

◆ updateNormals() [2/3]

void AimsTimeSurface< 3, Void >::updateNormals ( )

inline

Definition at line 522 of file surface.h.

◆ updateNormals() [3/3]

void AimsTimeSurface< 4, Void >::updateNormals ( )

inline

Definition at line 531 of file surface.h.

◆ vertex() [1/2]

template<int D, class T >

std::vector<Point3df>& AimsTimeSurface< D, T >::vertex ( )

inline

Get a non const reference to the vector of verteces of the 0 surface.

Definition at line 347 of file surface.h.

◆ vertex() [2/2]

template<int D, class T >

const std::vector<Point3df>& AimsTimeSurface< D, T >::vertex ( ) const

inline

Get a const reference to the vector of verteces of the surface of index 0.

The function was redefined to omit time. It is equivalent to write:\ AimsTimeSurface<D,T> surface; \ Point3df item; surface.vertex().push_back(item); \ \ than to write : \ surface[0].vertex().push_back(item); \ \

Definition at line 344 of file surface.h.

Friends And Related Function Documentation

◆ operator<<

template<int D, class T >

std::ostream& operator<<	(	std::ostream &	out,
		const AimsTimeSurface< D, T > &	thing
	)

friend

Output stream operator.

Definition at line 560 of file surface.h.

Member Data Documentation

◆ _header

template<int D, class T >

aims::PythonHeader AimsTimeSurface< D, T >::_header

protected

Header.

Definition at line 399 of file surface.h.

◆ _maxi

template<int D, class T >

Point3df AimsTimeSurface< D, T >::_maxi

protected

Inferior point of the box containing all the meshes.

Definition at line 403 of file surface.h.

◆ _mini

template<int D, class T >

Point3df AimsTimeSurface< D, T >::_mini

protected

Inferior point of the box containing all the meshes.

Definition at line 401 of file surface.h.

The documentation for this class was generated from the following file:

aims/mesh/surface.h
