AimsEMThreshold< T, U > Class Template Reference

#include <aims/threshold/emthreshold.h>

Inheritance diagram for AimsEMThreshold< T, U >:

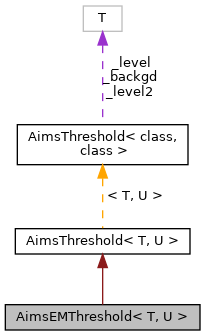

Collaboration diagram for AimsEMThreshold< T, U >:

Public Member Functions
	AimsEMThreshold (threshold_t type, T backgd=0, float foregd=32767, int classes=2, int levelindex=0, int level2index=1, int bins=0, int binstart=0, int binend=0)
virtual	~AimsEMThreshold ()
std::vector< T >	processEMThresholds (const AimsData< T > &image)
AimsData< T >	operator() (const AimsData< T > &image)
	Return the multi-level thresholded image. More...
AimsData< U >	bin (const AimsData< T > &image)
	Return the binary thresholded image. More...

Detailed Description

template<class T, class U>
class AimsEMThreshold< T, U >

Definition at line 28 of file emthreshold.h.

Constructor & Destructor Documentation

AimsEMThreshold()

template<class T , class U >

AimsEMThreshold< T, U >::AimsEMThreshold ( threshold_t  type, T  backgd = 0, float  foregd = 32767, int  classes = 2, int  levelindex = 0, int  level2index = 1, int  bins = 0, int  binstart = 0, int  binend = 0  )

inline

Definition at line 65 of file emthreshold.h.

References AimsThreshold< T, U >::_backgd, AimsThreshold< T, U >::_foregd, AimsThreshold< T, U >::_type, carto::toString(), and carto::verbose.

~AimsEMThreshold()

template<class T , class U >

virtual AimsEMThreshold< T, U >::~AimsEMThreshold ( )

inlinevirtual

Definition at line 43 of file emthreshold.h.

References AimsEMThreshold< T, U >::bin(), AimsEMThreshold< T, U >::operator()(), and AimsEMThreshold< T, U >::processEMThresholds().

Member Function Documentation

bin()

template<class T , class U >

AimsData< U > AimsEMThreshold< T, U >::bin ( const AimsData< T > &  image )

inline

Return the binary thresholded image.

Definition at line 283 of file emthreshold.h.

References AimsThreshold< class, class >::bin(), and AimsEMThreshold< T, U >::processEMThresholds().

Referenced by AimsEMThreshold< T, U >::~AimsEMThreshold().

operator()()

template<class T , class U >

AimsData< T > AimsEMThreshold< T, U >::operator() ( const AimsData< T > &  image )

inline

Return the multi-level thresholded image.

Definition at line 266 of file emthreshold.h.

References AimsThreshold< class, class >::operator()(), and AimsEMThreshold< T, U >::processEMThresholds().

Referenced by AimsEMThreshold< T, U >::~AimsEMThreshold().

processEMThresholds()

template<class T , class U >

std::vector< T > AimsEMThreshold< T, U >::processEMThresholds ( const AimsData< T > &  image )

inline

Definition at line 93 of file emthreshold.h.

References Histogram< T >::data(), aims::RegularBinnedHistogram< T >::doit(), M_PI, AimsData< T >::maximum(), AimsData< T >::minimum(), sum(), carto::toString(), and carto::verbose.

Referenced by AimsEMThreshold< T, U >::bin(), AimsEMThreshold< T, U >::operator()(), and AimsEMThreshold< T, U >::~AimsEMThreshold().

---

The documentation for this class was generated from the following file:

• aims/threshold/emthreshold.h
