BaseHarrisDetector< T > Class Template Referenceabstract

Harris Corner Detector. More...

#include <aims/math/harris.h>

Inheritance diagram for BaseHarrisDetector< T >:
Inheritance graph
[legend]

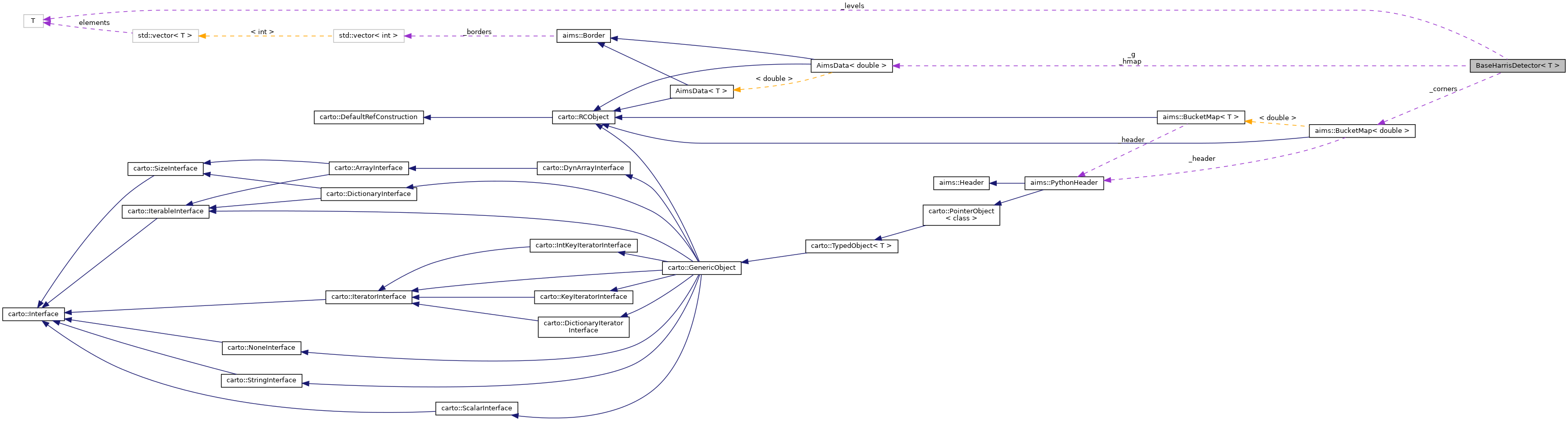

Collaboration diagram for BaseHarrisDetector< T >:
Collaboration graph
[legend]

Public Member Functions

 BaseHarrisDetector (const AimsData< T > &image, const double sigma=1.2, const double k=0.6, const double epsilon=1E-3, const T levels=(T) 255)
 Constructor. More...

virtual double gaussian (const double x, const double y, const double z)
 Gaussian function. More...

virtual void computeDerivatives ()

virtual double harrisMeasure (const int x, const int y, const int z, const int t)=0
 Compute harris measure for a pixel. More...

virtual void computeHarrisMap ()
 Compute the Harris measure for each pixel of the image. More...

virtual bool isSpatialMaxima (const int x, const int y, const int z, const int t)=0
 Check that pixel is a maxima of the Harris map. More...

virtual void computeCorners ()
 Perfom the Harris Corner Detection. More...

virtual void filter (int minDistance)
 Filter detected corners. More...

AimsData< double > harrisMap ()
 Get processed Harris map. More...

aims::BucketMap< Void > corners ()
 Get detected corners. More...


Protected Attributes

double _epsilon

double _k

double _sigma

double _sigma2

double _u

T _levels

double _f

int _radius

int _window

AimsData< T > _image

AimsData< double > _g

AimsData< double > _hmap

aims::BucketMap< double > _corners


Detailed Description

template<class T>
class BaseHarrisDetector< T >

Harris Corner Detector.

k = det(A) - k * trace(A)^2

Where A is the second-moment matrix

      | Lx²(x+dx,y+dy)    Lx.Ly(x+dx,y+dy) |

A = Sum | | * Gaussian(dx, dy) dx,dy | Lx.Ly(x+dx,y+dy) Ly²(x+dx,y+dy) |

and k = a / (1 + a)^2,

where "a" is the mininmum ratio between the two eigenvalues for a point to be considered as a corner.

Definition at line 60 of file harris.h.

Constructor & Destructor Documentation

◆ BaseHarrisDetector()

template<class T >
BaseHarrisDetector< T >::BaseHarrisDetector ( const AimsData< T > &  image,
const double  sigma = 1.2,
const double  k = 0.6,
const double  epsilon = 1E-3,
const T  levels = (T) 255
)

Constructor.

Member Function Documentation

◆ computeCorners()

template<class T >
virtual void BaseHarrisDetector< T >::computeCorners ( )
virtual

Perfom the Harris Corner Detection.

Referenced by BaseHarrisDetector< T >::computeDerivatives().

◆ computeDerivatives()

template<class T >
virtual void BaseHarrisDetector< T >::computeDerivatives ( )
inlinevirtual

Reimplemented in HarrisDetector< T, 2 >.

Definition at line 79 of file harris.h.

References BaseHarrisDetector< T >::computeCorners(), BaseHarrisDetector< T >::computeHarrisMap(), BaseHarrisDetector< T >::corners(), BaseHarrisDetector< T >::filter(), BaseHarrisDetector< T >::harrisMap(), BaseHarrisDetector< T >::harrisMeasure(), and BaseHarrisDetector< T >::isSpatialMaxima().

◆ computeHarrisMap()

template<class T >
virtual void BaseHarrisDetector< T >::computeHarrisMap ( )
virtual

Compute the Harris measure for each pixel of the image.

Referenced by BaseHarrisDetector< T >::computeDerivatives().

◆ corners()

template<class T >
aims::BucketMap<Void> BaseHarrisDetector< T >::corners ( )

Get detected corners.

Referenced by BaseHarrisDetector< T >::computeDerivatives().

◆ filter()

template<class T >
virtual void BaseHarrisDetector< T >::filter ( int  minDistance)
virtual

Filter detected corners.

Parameters
minDistanceminimum distance between corners

Referenced by BaseHarrisDetector< T >::computeDerivatives().

◆ gaussian()

template<class T >
virtual double BaseHarrisDetector< T >::gaussian ( const double  x,
const double  y,
const double  z
)
virtual

Gaussian function.

◆ harrisMap()

template<class T >
AimsData<double> BaseHarrisDetector< T >::harrisMap ( )

Get processed Harris map.

Referenced by BaseHarrisDetector< T >::computeDerivatives().

◆ harrisMeasure()

template<class T >
virtual double BaseHarrisDetector< T >::harrisMeasure ( const int  x,
const int  y,
const int  z,
const int  t
)
pure virtual

Compute harris measure for a pixel.

Implemented in HarrisDetector< T, 2 >.

Referenced by BaseHarrisDetector< T >::computeDerivatives().

◆ isSpatialMaxima()

template<class T >
virtual bool BaseHarrisDetector< T >::isSpatialMaxima ( const int  x,
const int  y,
const int  z,
const int  t
)
pure virtual

Check that pixel is a maxima of the Harris map.

Implemented in HarrisDetector< T, 2 >.

Referenced by BaseHarrisDetector< T >::computeDerivatives().

Member Data Documentation

◆ _corners

template<class T >
aims::BucketMap<double> BaseHarrisDetector< T >::_corners
protected

Definition at line 145 of file harris.h.

◆ _epsilon

template<class T >
double BaseHarrisDetector< T >::_epsilon
protected

Definition at line 128 of file harris.h.

◆ _f

template<class T >
double BaseHarrisDetector< T >::_f
protected

Definition at line 133 of file harris.h.

◆ _g

template<class T >
AimsData<double> BaseHarrisDetector< T >::_g
protected

Definition at line 139 of file harris.h.

◆ _hmap

template<class T >
AimsData<double> BaseHarrisDetector< T >::_hmap
protected

Definition at line 142 of file harris.h.

◆ _image

template<class T >
AimsData<T> BaseHarrisDetector< T >::_image
protected

Definition at line 138 of file harris.h.

◆ _k

template<class T >
double BaseHarrisDetector< T >::_k
protected

Definition at line 129 of file harris.h.

◆ _levels

template<class T >
T BaseHarrisDetector< T >::_levels
protected

Definition at line 132 of file harris.h.

◆ _radius

template<class T >
int BaseHarrisDetector< T >::_radius
protected

Definition at line 134 of file harris.h.

◆ _sigma

template<class T >
double BaseHarrisDetector< T >::_sigma
protected

Definition at line 130 of file harris.h.

◆ _sigma2

template<class T >
double BaseHarrisDetector< T >::_sigma2
protected

Definition at line 130 of file harris.h.

◆ _u

template<class T >
double BaseHarrisDetector< T >::_u
protected

Definition at line 131 of file harris.h.

◆ _window

template<class T >
int BaseHarrisDetector< T >::_window
protected

Definition at line 135 of file harris.h.
