Class excuting a spline-based subsampling. More...

#include <aims/pyramid/splinesubsampler.h>

Inheritance diagram for aims::DirectBSplineSubSampler:

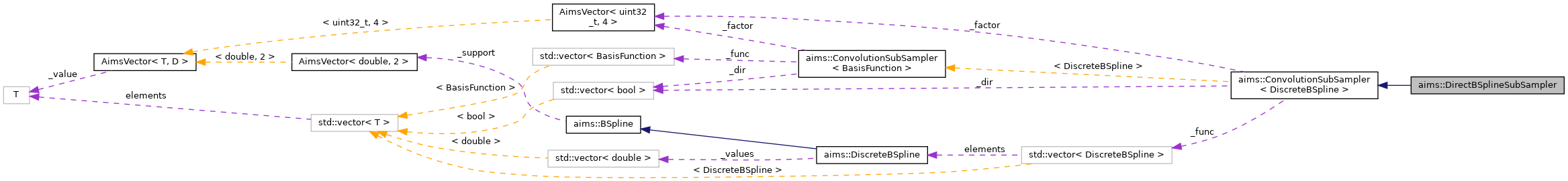

Collaboration diagram for aims::DirectBSplineSubSampler:

[legend]

Public Member Functions

	DirectBSplineSubSampler (unsigned factor=2, bool normalize=false, unsigned spline_order=3)
	Constructor / Copy. More...

	DirectBSplineSubSampler (const Point4du &factor, bool normalize=false, unsigned spline_order=3)

	DirectBSplineSubSampler (const DirectBSplineSubSampler &other)

virtual	~DirectBSplineSubSampler ()

DirectBSplineSubSampler &	operator= (const DirectBSplineSubSampler &other)


unsigned	order () const
	Parameters. More...

bool	normalize () const
	Get normalization mode. More...

void	setOrder (unsigned n)
	Set spline order Updates underlying basis functions. More...

void	setFactor (unsigned r)
	Override ConclutionSubSampler version to update the underlying basis functions. More...

void	setFactor (const Point4du &r)
	Override ConclutionSubSampler version to update the underlying basis functions. More...

void	setNormalize (bool normalize=true)
	Set normalization mode. More...

template<typename OUT , typename IN >
carto::VolumeRef< OUT >	execute (const carto::VolumeRef< IN > &in, carto::VolumeRef< OUT > &out) const
	Execution. More...

Public Member Functions inherited from aims::ConvolutionSubSampler< DiscreteBSpline >
	ConvolutionSubSampler (unsigned r=2)
	Constructor / Destructor / Copy. More...

	ConvolutionSubSampler (const Point4du &r)

	ConvolutionSubSampler (const DiscreteBSpline &bfunc, unsigned r)

	ConvolutionSubSampler (const std::vector< DiscreteBSpline > &bfunc=std::vector< DiscreteBSpline >(), const Point4du &r=Point4du(2, 2, 2, 2))

	ConvolutionSubSampler (const ConvolutionSubSampler &other)

virtual	~ConvolutionSubSampler ()

ConvolutionSubSampler &	operator= (const ConvolutionSubSampler &other)

carto::VolumeRef< OUT >	execute (const carto::VolumeRef< IN > &in) const
	Execution. More...

carto::VolumeRef< OUT >	execute (const carto::VolumeRef< IN > &in, carto::VolumeRef< OUT > &out) const
	Write result in an existing volume. More...

const std::vector< bool > &	directions () const
	Parameters. More...

const Point4du &	factor () const

void	setBasisFunction (const DiscreteBSpline &func)

void	setBasisFunction (const std::vector< DiscreteBSpline > &func)

void	setFactor (unsigned r)

void	setFactor (const Point4du &r)

void	setDirections (const std::vector< bool > &dir)

void	setDirections (bool dirx, bool diry, bool dirz, bool dirt)

void	setVerbose (int verbose=1)

void	setQuiet ()

Protected Member Functions
void	setFunctions (const Point4du &r, unsigned n)

Protected Attributes
bool	_normalize

Protected Attributes inherited from aims::ConvolutionSubSampler< DiscreteBSpline >
std::vector< DiscreteBSpline >	_func

int	_verbose

std::vector< bool >	_dir

Point4du	_factor

Detailed Description

Class excuting a spline-based subsampling.

The behaviour is equivalent to:

The image is convoluted with a b-spline of order N, expanded by a factor R.
The image is decimated by a factor R However, for performances, the convolution is only computed in voxels that will be kept after decimation.

Note that in the case of R = 1, the output image will differ from the input image. The behaviour is thus different from a classical "binning" subsampling.

By default, the kernel is normalized (it sums to 1). Normalization can be deactivated. When using spline subsampling in the frame of least square approximation, normalization should be deactivated. (see LeastSquareSpline)

Definition at line 70 of file splinesubsampler.h.

Constructor & Destructor Documentation

◆ DirectBSplineSubSampler() [1/3]

aims::DirectBSplineSubSampler::DirectBSplineSubSampler	(	unsigned	factor = `2`,
		bool	normalize = `false`,
		unsigned	spline_order = `3`
	)

Constructor / Copy.

Definition at line 57 of file splinesubsampler_d.h.

References setFunctions().

◆ DirectBSplineSubSampler() [2/3]

aims::DirectBSplineSubSampler::DirectBSplineSubSampler	(	const Point4du &	factor,
		bool	normalize = `false`,
		unsigned	spline_order = `3`
	)

Definition at line 66 of file splinesubsampler_d.h.

References setFunctions().

◆ DirectBSplineSubSampler() [3/3]

aims::DirectBSplineSubSampler::DirectBSplineSubSampler ( const DirectBSplineSubSampler & other )

Definition at line 78 of file splinesubsampler_d.h.

◆ ~DirectBSplineSubSampler()

aims::DirectBSplineSubSampler::~DirectBSplineSubSampler ( )

virtual

Definition at line 75 of file splinesubsampler_d.h.

Member Function Documentation

◆ execute()

template<typename OUT , typename IN >

carto::VolumeRef< OUT > aims::DirectBSplineSubSampler::execute	(	const carto::VolumeRef< IN > &	in,
		carto::VolumeRef< OUT > &	out
	)		const

Execution.

Function-like operator that filters a given volume

Write result in an existing volume. If the allocated size differs from the needed resulting size, the volume is reallocated.

DirectBSplineSubSampler overrides the inherited version to add normalization.

Note: 1 copy

Warning: This call risks causing additional precision errors

Definition at line 157 of file splinesubsampler_d.h.

References aims::ConvolutionSubSampler< DiscreteBSpline >::_dir, aims::ConvolutionSubSampler< DiscreteBSpline >::_func, aims::ConvolutionSubSampler< BasisFunction >::execute(), and carto::VolumeRef< T >::getSize().

◆ normalize()

bool aims::DirectBSplineSubSampler::normalize ( ) const

Get normalization mode.

Definition at line 103 of file splinesubsampler_d.h.

References _normalize.

Referenced by setNormalize().

◆ operator=()

DirectBSplineSubSampler & aims::DirectBSplineSubSampler::operator= ( const DirectBSplineSubSampler & other )

Definition at line 84 of file splinesubsampler_d.h.

References _normalize, and aims::ConvolutionSubSampler< BasisFunction >::operator=().

◆ order()

unsigned aims::DirectBSplineSubSampler::order ( ) const

Parameters.

Get spline order

Definition at line 98 of file splinesubsampler_d.h.

References aims::ConvolutionSubSampler< DiscreteBSpline >::_func.

◆ setFactor() [1/2]

void aims::DirectBSplineSubSampler::setFactor ( unsigned r )

Override ConclutionSubSampler version to update the underlying basis functions.

Definition at line 120 of file splinesubsampler_d.h.

References aims::ConvolutionSubSampler< DiscreteBSpline >::_func, and aims::ConvolutionSubSampler< BasisFunction >::setFactor().

◆ setFactor() [2/2]

void aims::DirectBSplineSubSampler::setFactor ( const Point4du & r )

Override ConclutionSubSampler version to update the underlying basis functions.

Definition at line 128 of file splinesubsampler_d.h.

References aims::ConvolutionSubSampler< DiscreteBSpline >::_func, and aims::ConvolutionSubSampler< BasisFunction >::setFactor().

◆ setFunctions()

void aims::DirectBSplineSubSampler::setFunctions	(	const Point4du &	r,
		unsigned	n
	)

protected

Definition at line 141 of file splinesubsampler_d.h.

References aims::ConvolutionSubSampler< BasisFunction >::setBasisFunction().

Referenced by DirectBSplineSubSampler().

◆ setNormalize()

void aims::DirectBSplineSubSampler::setNormalize ( bool normalize = true )

Set normalization mode.

Definition at line 115 of file splinesubsampler_d.h.

References _normalize, and normalize().

◆ setOrder()

void aims::DirectBSplineSubSampler::setOrder ( unsigned n )

Set spline order Updates underlying basis functions.

Definition at line 108 of file splinesubsampler_d.h.

References aims::ConvolutionSubSampler< DiscreteBSpline >::_func.

Member Data Documentation

◆ _normalize

bool aims::DirectBSplineSubSampler::_normalize
