#include <aims/signalfilter/filteringimagealgorithm.h>

Inheritance diagram for aims::singlechannel::LinearFilteringImageAlgorithm< T >:

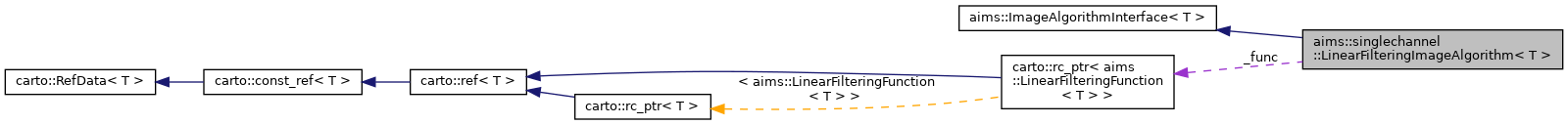

Collaboration diagram for aims::singlechannel::LinearFilteringImageAlgorithm< T >:

[legend]

Public Member Functions
virtual void	execute (const carto::VolumeRef< T > &in, carto::VolumeRef< T > &out) const
	`ImageAlgorithmInterface<T>` Pure virtual method. More...

virtual void	setOptions (const carto::Object &options)

virtual void	updateOptions (const carto::Object &options)

virtual ::aims::singlechannel::LinearFilteringImageAlgorithm< T > *	clone () const
	`ImageAlgorithmInterface<T>` Pure virtual method. More...

	LinearFilteringImageAlgorithm (const LinearFilteringFunction< T > &f)

	LinearFilteringImageAlgorithm (const ::aims::singlechannel::LinearFilteringImageAlgorithm< T > &other)

LinearFilteringImageAlgorithm &	operator= (const LinearFilteringImageAlgorithm &other)

virtual	~LinearFilteringImageAlgorithm ()

Public Member Functions inherited from aims::ImageAlgorithmInterface< T >
virtual Point4dl	getOutputImageDimensions (const Point4dl &dims) const
	Returns the output dimensions of the processed image. More...

virtual Point4df	getOutputImageVoxelSize (const Point4df &voxelsize) const
	Returns the output voxel size of the processed image. More...

virtual Point4dl	getOutputImageDimensions (const long &dx=1, const long &dy=1, const long &dz=1, const long &dt=1) const

virtual Point4df	getOutputImageVoxelSize (const float &vx=1.0, const float &vy=1.0, const float &vz=1.0, const float &vt=1.0) const

virtual carto::VolumeRef< T >	execute (const carto::VolumeRef< T > &in) const

virtual AimsData< T >	execute (const AimsData< T > &in) const

virtual void	setVerbose (int level)

virtual void	setQuiet ()

virtual	~ImageAlgorithmInterface ()

Protected Member Functions
	LinearFilteringImageAlgorithm ()

Protected Member Functions inherited from aims::ImageAlgorithmInterface< T >
	ImageAlgorithmInterface ()

	ImageAlgorithmInterface (const ImageAlgorithmInterface &other)

ImageAlgorithmInterface &	operator= (const ImageAlgorithmInterface &other)

Protected Attributes
carto::rc_ptr< LinearFilteringFunction< T > >	_func

Protected Attributes inherited from aims::ImageAlgorithmInterface< T >
int	_verbose

Additional Inherited Members
Public Types inherited from aims::ImageAlgorithmInterface< T >
typedef T	VoxelType

Detailed Description

template<typename T>
class aims::singlechannel::LinearFilteringImageAlgorithm< T >

Definition at line 62 of file filteringimagealgorithm.h.

Constructor & Destructor Documentation

◆ LinearFilteringImageAlgorithm() [1/3]

template<typename T >

aims::singlechannel::LinearFilteringImageAlgorithm< T >::LinearFilteringImageAlgorithm ( )

protected

Referenced by aims::LinearFilteringImageAlgorithm< T >::clone(), and aims::singlechannel::LinearFilteringImageAlgorithm< T >::clone().

◆ LinearFilteringImageAlgorithm() [2/3]

template<typename T >

aims::singlechannel::LinearFilteringImageAlgorithm< T >::LinearFilteringImageAlgorithm ( const LinearFilteringFunction< T > & f )

inline

Definition at line 242 of file filteringimagealgorithm.h.

◆ LinearFilteringImageAlgorithm() [3/3]

template<typename T >

aims::singlechannel::LinearFilteringImageAlgorithm< T >::LinearFilteringImageAlgorithm ( const ::aims::singlechannel::LinearFilteringImageAlgorithm< T > & other )

inline

Definition at line 247 of file filteringimagealgorithm.h.

◆ ~LinearFilteringImageAlgorithm()

template<typename T >

virtual aims::singlechannel::LinearFilteringImageAlgorithm< T >::~LinearFilteringImageAlgorithm ( )

inlinevirtual

Definition at line 261 of file filteringimagealgorithm.h.

Member Function Documentation

◆ clone()

template<typename T >

virtual ::aims::singlechannel::LinearFilteringImageAlgorithm<T>* aims::singlechannel::LinearFilteringImageAlgorithm< T >::clone ( ) const

inlinevirtual

ImageAlgorithmInterface<T> Pure virtual method.

Clone the object

Implements aims::ImageAlgorithmInterface< T >.

Definition at line 231 of file filteringimagealgorithm.h.

References aims::singlechannel::LinearFilteringImageAlgorithm< T >::LinearFilteringImageAlgorithm().

Referenced by aims::LinearFilteringImageAlgorithm< T >::operator=().

◆ execute()

template<typename T >

void aims::singlechannel::LinearFilteringImageAlgorithm< T >::execute	(	const carto::VolumeRef< T > &	in,
		carto::VolumeRef< T > &	out
	)		const

inlinevirtual

ImageAlgorithmInterface<T> Pure virtual method.

Returns the image processed by an algorithm on the input image into an already allocated output volume.

Parameters

in	Input image to process
out	Output image processed

Implements aims::ImageAlgorithmInterface< T >.

Definition at line 272 of file filteringimagealgorithm.h.

References aims::singlechannel::LinearFilteringImageAlgorithm< T >::_func, aims::ImageAlgorithmInterface< T >::_verbose, carto::VolumeRef< T >::getBorders(), carto::VolumeRef< T >::getSizeT(), carto::VolumeRef< T >::getSizeX(), carto::VolumeRef< T >::getSizeY(), carto::VolumeRef< T >::getSizeZ(), carto::VolumeRef< T >::header(), carto::VolumeRef< T >::setPosInRefVolume(), carto::toString(), and carto::Object::value().

◆ operator=()

template<typename T >

LinearFilteringImageAlgorithm& aims::singlechannel::LinearFilteringImageAlgorithm< T >::operator= ( const LinearFilteringImageAlgorithm< T > & other )
