aims::BaseDiffusionSmoother< T > Class Template Reference

Base class for Heat diffusion. More...

#include <aims/signalfilter/diffusionSmoother.h>

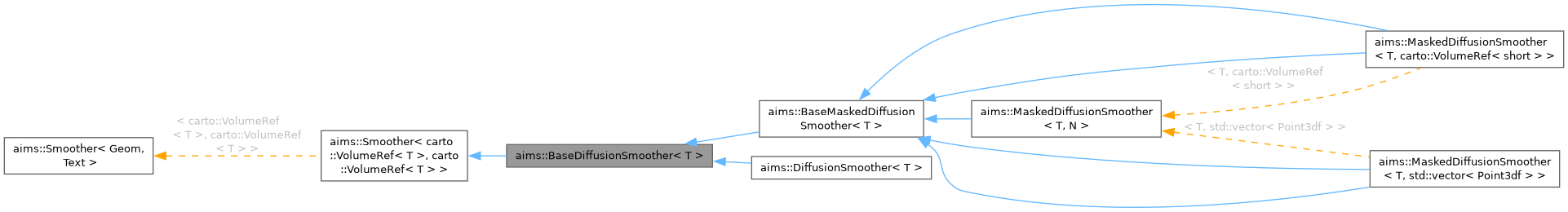

Inheritance diagram for aims::BaseDiffusionSmoother< T >:

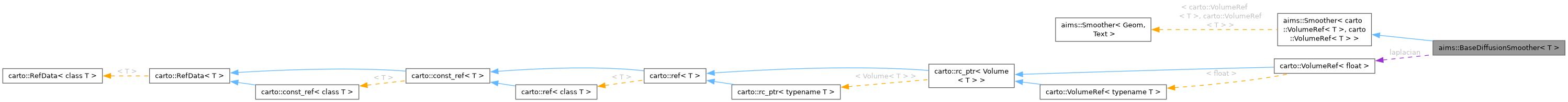

Collaboration diagram for aims::BaseDiffusionSmoother< T >:

Public Member Functions
	BaseDiffusionSmoother (float delta_t)
	~BaseDiffusionSmoother ()
void	check (int maxiter)
bool	optimal ()
void	SetDt (float Delta_t)
virtual carto::VolumeRef< T >	doSmoothing (const carto::VolumeRef< T > &ima, int maxiter, bool verbose=false)=0
float	dt ()
Public Member Functions inherited from aims::Smoother< carto::VolumeRef< T >, carto::VolumeRef< T > >
virtual	~Smoother ()
	Smoother ()
virtual	~Smoother ()

Static Public Member Functions
static carto::VolumeRef< float >	init_laplacian (void)

Static Public Attributes
static carto::VolumeRef< float >	laplacian

Protected Attributes
float	_dt

Detailed Description

template<typename T>
class aims::BaseDiffusionSmoother< T >

Base class for Heat diffusion.

Definition at line 46 of file diffusionSmoother.h.

Constructor & Destructor Documentation

BaseDiffusionSmoother()

template<typename T>

aims::BaseDiffusionSmoother< T >::BaseDiffusionSmoother ( float delta_t )

inline

Definition at line 50 of file diffusionSmoother.h.

References SetDt().

Referenced by aims::BaseMaskedDiffusionSmoother< T >::BaseMaskedDiffusionSmoother(), and aims::DiffusionSmoother< T >::DiffusionSmoother().

~BaseDiffusionSmoother()

template<typename T>

aims::BaseDiffusionSmoother< T >::~BaseDiffusionSmoother ( )

inline

Definition at line 51 of file diffusionSmoother.h.

Member Function Documentation

check()

template<class T>

void aims::BaseDiffusionSmoother< T >::check

(

int

maxiter

)

Definition at line 75 of file diffusionSmoother_d.h.

Referenced by aims::DiffusionSmoother< T >::doSmoothing(), aims::MaskedDiffusionSmoother< T, carto::VolumeRef< short > >::doSmoothing(), and aims::MaskedDiffusionSmoother< T, std::vector< Point3df > >::doSmoothing().

doSmoothing()

template<typename T>

virtual carto::VolumeRef< T > aims::BaseDiffusionSmoother< T >::doSmoothing ( const carto::VolumeRef< T > & ima, int maxiter, bool verbose = false )

pure virtual

Implements aims::Smoother< carto::VolumeRef< T >, carto::VolumeRef< T > >.

Implemented in aims::BaseMaskedDiffusionSmoother< T >, aims::DiffusionSmoother< T >, aims::MaskedDiffusionSmoother< T, N >, aims::MaskedDiffusionSmoother< T, carto::VolumeRef< short > >, aims::MaskedDiffusionSmoother< T, carto::VolumeRef< short > >, aims::MaskedDiffusionSmoother< T, std::vector< Point3df > >, and aims::MaskedDiffusionSmoother< T, std::vector< Point3df > >.

dt()

template<typename T>

float aims::BaseDiffusionSmoother< T >::dt ( )

inlinevirtual

Reimplemented from aims::Smoother< carto::VolumeRef< T >, carto::VolumeRef< T > >.

Definition at line 65 of file diffusionSmoother.h.

References _dt.

Referenced by aims::MaskedDiffusionSmoother< T, carto::VolumeRef< short > >::convolution().

init_laplacian()

template<typename T>

carto::VolumeRef< float > aims::BaseDiffusionSmoother< T >::init_laplacian ( void )

static

Definition at line 55 of file diffusionSmoother_d.h.

References aims::BaseDiffusionSmoother< T >::laplacian.

optimal()

template<typename T>

bool aims::BaseDiffusionSmoother< T >::optimal ( )

inlinevirtual

Reimplemented from aims::Smoother< carto::VolumeRef< T >, carto::VolumeRef< T > >.

Definition at line 54 of file diffusionSmoother.h.

SetDt()

template<typename T>

void aims::BaseDiffusionSmoother< T >::SetDt ( float Delta_t )

inline

Definition at line 55 of file diffusionSmoother.h.

References _dt.

Referenced by BaseDiffusionSmoother().

Member Data Documentation

_dt

template<typename T>

float aims::BaseDiffusionSmoother< T >::_dt

protected

Definition at line 72 of file diffusionSmoother.h.

Referenced by aims::MaskedDiffusionSmoother< T, carto::VolumeRef< short > >::convolution(), aims::DiffusionSmoother< T >::doSmoothing(), aims::MaskedDiffusionSmoother< T, std::vector< Point3df > >::doSmoothing(), dt(), and SetDt().

laplacian

template<typename T>

carto::VolumeRef<float> aims::BaseDiffusionSmoother< T >::laplacian

static

Definition at line 69 of file diffusionSmoother.h.

Referenced by aims::DiffusionSmoother< T >::doSmoothing(), aims::MaskedDiffusionSmoother< T, std::vector< Point3df > >::doSmoothing(), and init_laplacian().

---

The documentation for this class was generated from the following files:

• aims/signalfilter/diffusionSmoother.h
• aims/signalfilter/diffusionSmoother_d.h
