aims::ElementFilteringImageAlgorithm< T > Class Template Reference

#include <aims/signalfilter/filteringimagealgorithm.h>

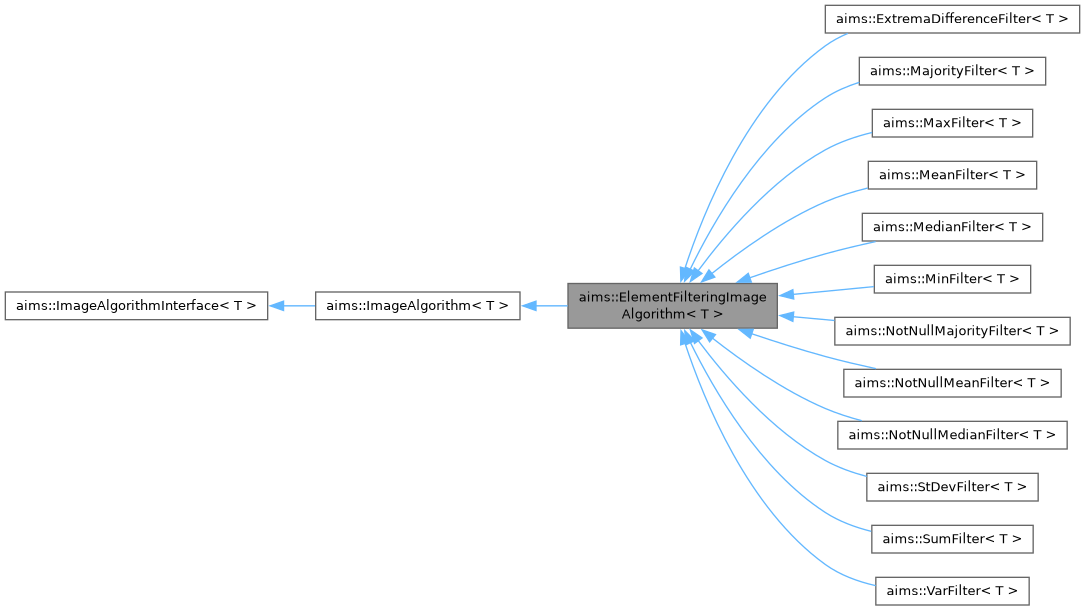

Inheritance diagram for aims::ElementFilteringImageAlgorithm< T >:
Inheritance graph
[legend]
Collaboration diagram for aims::ElementFilteringImageAlgorithm< T >:
Collaboration graph
[legend]

Public Types

typedef T VoxelType

typedef carto::DataTypeTraits< T >::ChannelType ChannelType

typedef singlechannel::ElementFilteringImageAlgorithm< ChannelType > SingleChannelImageAlgorithmType

- Public Types inherited from aims::ImageAlgorithm< T >
typedef T VoxelType

typedef carto::DataTypeTraits< T >::ChannelType ChannelType

- Public Types inherited from aims::ImageAlgorithmInterface< T >
typedef T VoxelType


Public Member Functions

virtual void setOptions (const carto::Object &options)

virtual void updateOptions (const carto::Object &options)

virtual ElementFilteringImageAlgorithm< T > * clone () const
 ImageAlgorithmInterface<T> Pure virtual method.

virtual void setStructuringElement (const StructuringElement &se)

virtual ~ElementFilteringImageAlgorithm ()

- Public Member Functions inherited from aims::ImageAlgorithm< T >
virtual void execute (const carto::VolumeRef< T > &in, carto::VolumeRef< T > &out) const
 ImageAlgorithmInterface<T> Pure virtual method.

virtual Point4dl getOutputImageDimensions (const Point4dl &dims) const
 Returns the output dimensions of the processed image.

virtual Point4df getOutputImageVoxelSize (const Point4df &voxelsize) const
 Returns the output voxel size of the processed image.

virtual void setVerbose (int level)

virtual ~ImageAlgorithm ()

- Public Member Functions inherited from aims::ImageAlgorithmInterface< T >
virtual Point4dl getOutputImageDimensions (const long &dx=1, const long &dy=1, const long &dz=1, const long &dt=1) const

virtual Point4df getOutputImageVoxelSize (const float &vx=1.0, const float &vy=1.0, const float &vz=1.0, const float &vt=1.0) const

virtual carto::VolumeRef< T > execute (const carto::VolumeRef< T > &in) const

virtual void setQuiet ()

virtual ~ImageAlgorithmInterface ()


Protected Member Functions

 ElementFilteringImageAlgorithm (const ElementFilteringFunction< ChannelType > &f, const StructuringElement &se=strel::Cube(1.))

 ElementFilteringImageAlgorithm (const ElementFilteringImageAlgorithm< T > &other)

ElementFilteringImageAlgorithm & operator= (ElementFilteringImageAlgorithm &other)

- Protected Member Functions inherited from aims::ImageAlgorithm< T >
 ImageAlgorithm ()

 ImageAlgorithm (const ImageAlgorithmInterface< ChannelType > &algo)

 ImageAlgorithm (ImageAlgorithmInterface< ChannelType > *algo, bool deepcopy=true)

 ImageAlgorithm (const ImageAlgorithm &other)

ImageAlgorithm & operator= (const ImageAlgorithm &other)

- Protected Member Functions inherited from aims::ImageAlgorithmInterface< T >
 ImageAlgorithmInterface ()

 ImageAlgorithmInterface (const ImageAlgorithmInterface &other)

ImageAlgorithmInterface & operator= (const ImageAlgorithmInterface &other)


Protected Attributes

SingleChannelImageAlgorithmType * _ealgo

- Protected Attributes inherited from aims::ImageAlgorithm< T >
carto::rc_ptr< ImageAlgorithmInterface< ChannelType > > _algo

- Protected Attributes inherited from aims::ImageAlgorithmInterface< T >
int _verbose


Detailed Description

template<typename T>
class aims::ElementFilteringImageAlgorithm< T >

Definition at line 135 of file filteringimagealgorithm.h.

Member Typedef Documentation

◆ ChannelType

template<typename T>
typedef carto::DataTypeTraits<T>::ChannelType aims::ElementFilteringImageAlgorithm< T >::ChannelType

Definition at line 142 of file filteringimagealgorithm.h.

◆ SingleChannelImageAlgorithmType

template<typename T>
typedef singlechannel::ElementFilteringImageAlgorithm<ChannelType> aims::ElementFilteringImageAlgorithm< T >::SingleChannelImageAlgorithmType

Definition at line 143 of file filteringimagealgorithm.h.

◆ VoxelType

template<typename T>
typedef T aims::ElementFilteringImageAlgorithm< T >::VoxelType

Definition at line 141 of file filteringimagealgorithm.h.

Constructor & Destructor Documentation

◆ ElementFilteringImageAlgorithm() [1/2]

template<typename T>
aims::ElementFilteringImageAlgorithm< T >::ElementFilteringImageAlgorithm ( const ElementFilteringFunction< ChannelType > & f,
const StructuringElement & se = strel::Cube(1.) )
inlineprotected

Definition at line 174 of file filteringimagealgorithm.h.

References aims::ImageAlgorithm< T >::_algo, _ealgo, clone(), and aims::ImageAlgorithm< T >::ImageAlgorithm().

Referenced by clone(), ElementFilteringImageAlgorithm(), aims::ExtremaDifferenceFilter< T >::ExtremaDifferenceFilter(), aims::ExtremaDifferenceFilter< T >::ExtremaDifferenceFilter(), aims::ExtremaDifferenceFilter< T >::ExtremaDifferenceFilter(), aims::MajorityFilter< T >::MajorityFilter(), aims::MajorityFilter< T >::MajorityFilter(), aims::MajorityFilter< T >::MajorityFilter(), aims::MaxFilter< T >::MaxFilter(), aims::MaxFilter< T >::MaxFilter(), aims::MaxFilter< T >::MaxFilter(), aims::MeanFilter< T >::MeanFilter(), aims::MeanFilter< T >::MeanFilter(), aims::MeanFilter< T >::MeanFilter(), aims::MedianFilter< T >::MedianFilter(), aims::MedianFilter< T >::MedianFilter(), aims::MedianFilter< T >::MedianFilter(), aims::MinFilter< T >::MinFilter(), aims::MinFilter< T >::MinFilter(), aims::MinFilter< T >::MinFilter(), aims::NotNullMajorityFilter< T >::NotNullMajorityFilter(), aims::NotNullMajorityFilter< T >::NotNullMajorityFilter(), aims::NotNullMajorityFilter< T >::NotNullMajorityFilter(), aims::NotNullMeanFilter< T >::NotNullMeanFilter(), aims::NotNullMeanFilter< T >::NotNullMeanFilter(), aims::NotNullMeanFilter< T >::NotNullMeanFilter(), aims::NotNullMedianFilter< T >::NotNullMedianFilter(), aims::NotNullMedianFilter< T >::NotNullMedianFilter(), operator=(), aims::ExtremaDifferenceFilter< T >::operator=(), aims::MajorityFilter< T >::operator=(), aims::MaxFilter< T >::operator=(), aims::MeanFilter< T >::operator=(), aims::MedianFilter< T >::operator=(), aims::MinFilter< T >::operator=(), aims::NotNullMajorityFilter< T >::operator=(), aims::NotNullMeanFilter< T >::operator=(), aims::NotNullMedianFilter< T >::operator=(), aims::StDevFilter< T >::operator=(), aims::SumFilter< T >::operator=(), aims::VarFilter< T >::operator=(), aims::StDevFilter< T >::StDevFilter(), aims::StDevFilter< T >::StDevFilter(), aims::StDevFilter< T >::StDevFilter(), aims::SumFilter< T >::SumFilter(), aims::SumFilter< T >::SumFilter(), aims::SumFilter< T >::SumFilter(), aims::VarFilter< T >::VarFilter(), aims::VarFilter< T >::VarFilter(), and aims::VarFilter< T >::VarFilter().

◆ ElementFilteringImageAlgorithm() [2/2]

template<typename T>
aims::ElementFilteringImageAlgorithm< T >::ElementFilteringImageAlgorithm ( const ElementFilteringImageAlgorithm< T > & other)
inlineprotected

Definition at line 183 of file filteringimagealgorithm.h.

References aims::ImageAlgorithm< T >::_algo, _ealgo, clone(), ElementFilteringImageAlgorithm(), and aims::ImageAlgorithm< T >::ImageAlgorithm().

◆ ~ElementFilteringImageAlgorithm()

template<typename T>
virtual aims::ElementFilteringImageAlgorithm< T >::~ElementFilteringImageAlgorithm ( )
inlinevirtual

Definition at line 196 of file filteringimagealgorithm.h.

Member Function Documentation

◆ clone()

template<typename T>
virtual ElementFilteringImageAlgorithm< T > * aims::ElementFilteringImageAlgorithm< T >::clone ( ) const
inlinevirtual

ImageAlgorithmInterface<T> Pure virtual method.

Clone the object

Reimplemented from aims::ImageAlgorithm< T >.

Reimplemented in aims::ExtremaDifferenceFilter< T >, aims::MajorityFilter< T >, aims::MaxFilter< T >, aims::MeanFilter< T >, aims::MedianFilter< T >, aims::MinFilter< T >, aims::NotNullMajorityFilter< T >, aims::NotNullMeanFilter< T >, aims::NotNullMedianFilter< T >, aims::StDevFilter< T >, aims::SumFilter< T >, and aims::VarFilter< T >.

Definition at line 158 of file filteringimagealgorithm.h.

References ElementFilteringImageAlgorithm().

Referenced by ElementFilteringImageAlgorithm(), and ElementFilteringImageAlgorithm().

◆ operator=()

template<typename T>
ElementFilteringImageAlgorithm & aims::ElementFilteringImageAlgorithm< T >::operator= ( ElementFilteringImageAlgorithm< T > & other)
inlineprotected

Definition at line 189 of file filteringimagealgorithm.h.

References aims::ImageAlgorithm< T >::_algo, _ealgo, aims::singlechannel::ElementFilteringImageAlgorithm< T >::clone(), and ElementFilteringImageAlgorithm().

Referenced by aims::ExtremaDifferenceFilter< T >::operator=(), aims::MajorityFilter< T >::operator=(), aims::MaxFilter< T >::operator=(), aims::MeanFilter< T >::operator=(), aims::MedianFilter< T >::operator=(), aims::MinFilter< T >::operator=(), aims::NotNullMajorityFilter< T >::operator=(), aims::NotNullMeanFilter< T >::operator=(), aims::NotNullMedianFilter< T >::operator=(), aims::StDevFilter< T >::operator=(), aims::SumFilter< T >::operator=(), and aims::VarFilter< T >::operator=().

◆ setOptions()

template<typename T>
virtual void aims::ElementFilteringImageAlgorithm< T >::setOptions ( const carto::Object & options)
inlinevirtual

Reimplemented from aims::ImageAlgorithmInterface< T >.

Definition at line 148 of file filteringimagealgorithm.h.

References _ealgo.

◆ setStructuringElement()

template<typename T>
virtual void aims::ElementFilteringImageAlgorithm< T >::setStructuringElement ( const StructuringElement & se)
inlinevirtual

Definition at line 165 of file filteringimagealgorithm.h.

References _ealgo.

◆ updateOptions()

template<typename T>
virtual void aims::ElementFilteringImageAlgorithm< T >::updateOptions ( const carto::Object & options)
inlinevirtual

Reimplemented from aims::ImageAlgorithmInterface< T >.

Definition at line 153 of file filteringimagealgorithm.h.

References _ealgo.

Member Data Documentation

◆ _ealgo

template<typename T>
SingleChannelImageAlgorithmType* aims::ElementFilteringImageAlgorithm< T >::_ealgo
protected

Definition at line 202 of file filteringimagealgorithm.h.

Referenced by ElementFilteringImageAlgorithm(), ElementFilteringImageAlgorithm(), operator=(), setOptions(), setStructuringElement(), and updateOptions().

The documentation for this class was generated from the following file:
