aims::MovingAverageCascadeSubSampler Class Reference

#include <aims/pyramid/movingaveragesubsampler.h>

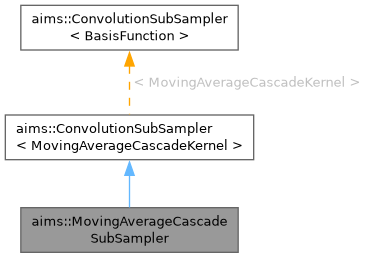

Inheritance diagram for aims::MovingAverageCascadeSubSampler:

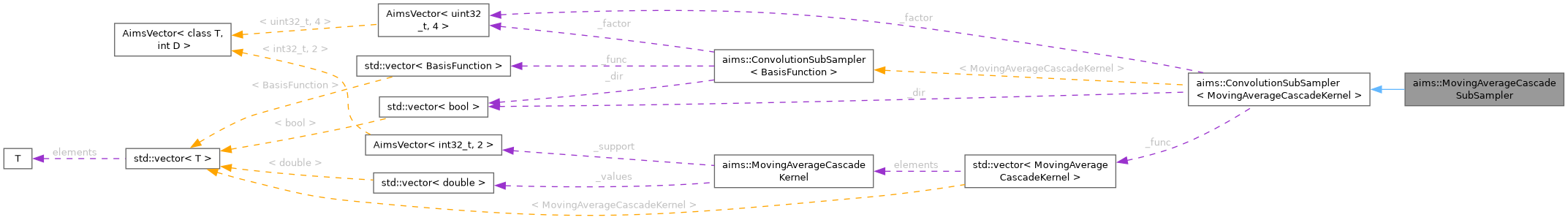

Collaboration diagram for aims::MovingAverageCascadeSubSampler:

Public Member Functions
	MovingAverageCascadeSubSampler (unsigned r=2, unsigned length=3, unsigned n=2, FilterType::Direction symtype=FilterType::Symmetrical)
	Constructor / Copy.
	MovingAverageCascadeSubSampler (const Point4du &r, unsigned length=3, unsigned n=2, FilterType::Direction symtype=FilterType::Symmetrical)
	MovingAverageCascadeSubSampler (const Point4du &r, const Point4du &length, unsigned n=2, FilterType::Direction symtype=FilterType::Symmetrical)
	MovingAverageCascadeSubSampler (const Point4du &r, const Point4du &length, const Point4du &n, FilterType::Direction symtype=FilterType::Symmetrical)
	MovingAverageCascadeSubSampler (const MovingAverageCascadeSubSampler &other)
virtual	~MovingAverageCascadeSubSampler ()
MovingAverageCascadeSubSampler &	operator= (const MovingAverageCascadeSubSampler &other)
Point4du	length () const
	Parameters.
Point4du	cascade () const
FilterType::Direction	type () const
void	setLength (unsigned length)
	Updates underlying basis functions.
void	setLength (const Point4du &length)
	Updates underlying basis functions.
void	setCascade (unsigned length)
	Updates underlying basis functions.
void	setCascade (const Point4du &length)
	Updates underlying basis functions.
void	setType (FilterType::Direction symtype)
	Updates underlying basis functions.
Public Member Functions inherited from aims::ConvolutionSubSampler< MovingAverageCascadeKernel >
	ConvolutionSubSampler (unsigned r=2)
	Constructor / Destructor / Copy.
	ConvolutionSubSampler (const Point4du &r)
	ConvolutionSubSampler (const MovingAverageCascadeKernel &bfunc, unsigned r)
	ConvolutionSubSampler (const std::vector< MovingAverageCascadeKernel > &bfunc=std::vector< MovingAverageCascadeKernel >(), const Point4du &r=Point4du(2, 2, 2, 2))
	ConvolutionSubSampler (const ConvolutionSubSampler &other)
virtual	~ConvolutionSubSampler ()
ConvolutionSubSampler &	operator= (const ConvolutionSubSampler &other)
carto::VolumeRef< OUT >	execute (const carto::VolumeRef< IN > &in) const
	Execution.
carto::VolumeRef< OUT >	execute (const carto::VolumeRef< IN > &in, carto::VolumeRef< OUT > &out) const
	Write result in an existing volume.
const std::vector< bool > &	directions () const
	Parameters.
const Point4du &	factor () const
void	setBasisFunction (const MovingAverageCascadeKernel &func)
void	setBasisFunction (const std::vector< MovingAverageCascadeKernel > &func)
void	setFactor (unsigned r)
void	setFactor (const Point4du &r)
void	setDirections (const std::vector< bool > &dir)
void	setDirections (bool dirx, bool diry, bool dirz, bool dirt)
void	setVerbose (int verbose=1)
void	setQuiet ()

Additional Inherited Members
Protected Attributes inherited from aims::ConvolutionSubSampler< MovingAverageCascadeKernel >
std::vector< MovingAverageCascadeKernel >	_func
int	_verbose
std::vector< bool >	_dir
Point4du	_factor

Detailed Description

Definition at line 109 of file movingaveragesubsampler.h.

Constructor & Destructor Documentation

MovingAverageCascadeSubSampler() [1/5]

aims::MovingAverageCascadeSubSampler::MovingAverageCascadeSubSampler	(	unsigned	r = 2,
		unsigned	length = 3,
		unsigned	n = 2,
		FilterType::Direction	symtype = FilterType::Symmetrical )

Constructor / Copy.

References length(), and aims::FilterType::Symmetrical.

Referenced by MovingAverageCascadeSubSampler(), and operator=().

MovingAverageCascadeSubSampler() [2/5]

aims::MovingAverageCascadeSubSampler::MovingAverageCascadeSubSampler	(	const Point4du &	r,
		unsigned	length = 3,
		unsigned	n = 2,
		FilterType::Direction	symtype = FilterType::Symmetrical )

References length(), and aims::FilterType::Symmetrical.

MovingAverageCascadeSubSampler() [3/5]

aims::MovingAverageCascadeSubSampler::MovingAverageCascadeSubSampler	(	const Point4du &	r,
		const Point4du &	length,
		unsigned	n = 2,
		FilterType::Direction	symtype = FilterType::Symmetrical )

References length(), and aims::FilterType::Symmetrical.

MovingAverageCascadeSubSampler() [4/5]

aims::MovingAverageCascadeSubSampler::MovingAverageCascadeSubSampler	(	const Point4du &	r,
		const Point4du &	length,
		const Point4du &	n,
		FilterType::Direction	symtype = FilterType::Symmetrical )

References length(), and aims::FilterType::Symmetrical.

MovingAverageCascadeSubSampler() [5/5]

aims::MovingAverageCascadeSubSampler::MovingAverageCascadeSubSampler

(

const MovingAverageCascadeSubSampler &

other

)

References MovingAverageCascadeSubSampler().

~MovingAverageCascadeSubSampler()

virtual aims::MovingAverageCascadeSubSampler::~MovingAverageCascadeSubSampler ( )

virtual

Member Function Documentation

cascade()

Point4du aims::MovingAverageCascadeSubSampler::cascade

(

)

const

length()

Point4du aims::MovingAverageCascadeSubSampler::length

(

)

const

Parameters.

Referenced by MovingAverageCascadeSubSampler(), MovingAverageCascadeSubSampler(), MovingAverageCascadeSubSampler(), MovingAverageCascadeSubSampler(), setCascade(), setCascade(), setLength(), and setLength().

operator=()

MovingAverageCascadeSubSampler & aims::MovingAverageCascadeSubSampler::operator=

(

const MovingAverageCascadeSubSampler &

other

)

References MovingAverageCascadeSubSampler().

setCascade() [1/2]

void aims::MovingAverageCascadeSubSampler::setCascade

(

const Point4du &

length

)

Updates underlying basis functions.

References length().

setCascade() [2/2]

void aims::MovingAverageCascadeSubSampler::setCascade

(

unsigned

length

)

Updates underlying basis functions.

References length().

setLength() [1/2]

void aims::MovingAverageCascadeSubSampler::setLength

(

const Point4du &

length

)

Updates underlying basis functions.

References length().

setLength() [2/2]

void aims::MovingAverageCascadeSubSampler::setLength

(

unsigned

length

)

Updates underlying basis functions.

References length().

setType()

void aims::MovingAverageCascadeSubSampler::setType

(

FilterType::Direction

symtype

)

Updates underlying basis functions.

References aims::ConvolutionSubSampler< MovingAverageCascadeKernel >::ConvolutionSubSampler(), and aims::ConvolutionSubSampler< MovingAverageCascadeKernel >::setBasisFunction().

type()

FilterType::Direction aims::MovingAverageCascadeSubSampler::type

(

)

const

---

The documentation for this class was generated from the following file:

• aims/pyramid/movingaveragesubsampler.h
