aims::MovingAverageSubSampler Class Reference

#include <aims/pyramid/movingaveragesubsampler.h>

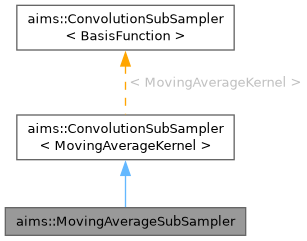

Inheritance diagram for aims::MovingAverageSubSampler:

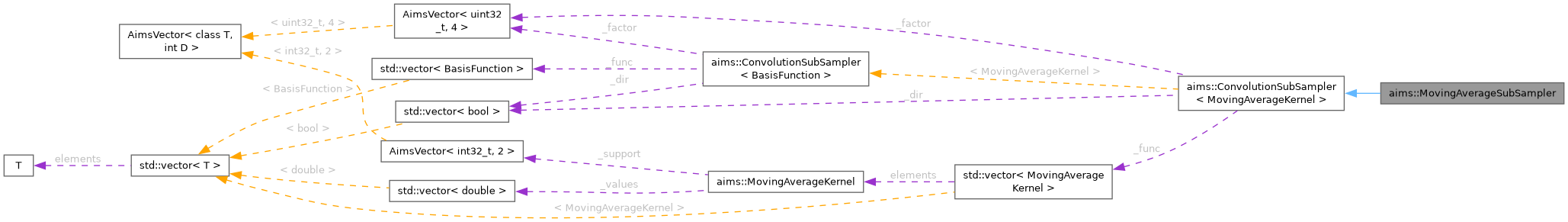

Collaboration diagram for aims::MovingAverageSubSampler:

Public Member Functions
	MovingAverageSubSampler (unsigned r=2, unsigned length=3, FilterType::Direction symtype=FilterType::Symmetrical)
	Constructor / Copy.
	MovingAverageSubSampler (const Point4du &r, unsigned length=3, FilterType::Direction symtype=FilterType::Symmetrical)
	MovingAverageSubSampler (const Point4du &r, const Point4du &length, FilterType::Direction symtype=FilterType::Symmetrical)
	MovingAverageSubSampler (const MovingAverageSubSampler &other)
virtual	~MovingAverageSubSampler ()
MovingAverageSubSampler &	operator= (const MovingAverageSubSampler &other)
Point4du	length () const
	Parameters.
FilterType::Direction	type () const
void	setLength (unsigned length)
	Updates underlying basis functions.
void	setLength (const Point4du &length)
	Updates underlying basis functions.
void	setType (FilterType::Direction symtype)
	Updates underlying basis functions.
Public Member Functions inherited from aims::ConvolutionSubSampler< MovingAverageKernel >
	ConvolutionSubSampler (unsigned r=2)
	Constructor / Destructor / Copy.
	ConvolutionSubSampler (const Point4du &r)
	ConvolutionSubSampler (const MovingAverageKernel &bfunc, unsigned r)
	ConvolutionSubSampler (const std::vector< MovingAverageKernel > &bfunc=std::vector< MovingAverageKernel >(), const Point4du &r=Point4du(2, 2, 2, 2))
	ConvolutionSubSampler (const ConvolutionSubSampler &other)
virtual	~ConvolutionSubSampler ()
ConvolutionSubSampler &	operator= (const ConvolutionSubSampler &other)
carto::VolumeRef< OUT >	execute (const carto::VolumeRef< IN > &in) const
	Execution.
carto::VolumeRef< OUT >	execute (const carto::VolumeRef< IN > &in, carto::VolumeRef< OUT > &out) const
	Write result in an existing volume.
const std::vector< bool > &	directions () const
	Parameters.
const Point4du &	factor () const
void	setBasisFunction (const MovingAverageKernel &func)
void	setBasisFunction (const std::vector< MovingAverageKernel > &func)
void	setFactor (unsigned r)
void	setFactor (const Point4du &r)
void	setDirections (const std::vector< bool > &dir)
void	setDirections (bool dirx, bool diry, bool dirz, bool dirt)
void	setVerbose (int verbose=1)
void	setQuiet ()

Additional Inherited Members
Protected Attributes inherited from aims::ConvolutionSubSampler< MovingAverageKernel >
std::vector< MovingAverageKernel >	_func
int	_verbose
std::vector< bool >	_dir
Point4du	_factor

Detailed Description

Definition at line 53 of file movingaveragesubsampler.h.

Constructor & Destructor Documentation

MovingAverageSubSampler() [1/4]

aims::MovingAverageSubSampler::MovingAverageSubSampler	(	unsigned	r = 2,
		unsigned	length = 3,
		FilterType::Direction	symtype = FilterType::Symmetrical )

Constructor / Copy.

References length(), and aims::FilterType::Symmetrical.

Referenced by MovingAverageSubSampler(), and operator=().

MovingAverageSubSampler() [2/4]

aims::MovingAverageSubSampler::MovingAverageSubSampler	(	const Point4du &	r,
		unsigned	length = 3,
		FilterType::Direction	symtype = FilterType::Symmetrical )

References length(), and aims::FilterType::Symmetrical.

MovingAverageSubSampler() [3/4]

aims::MovingAverageSubSampler::MovingAverageSubSampler	(	const Point4du &	r,
		const Point4du &	length,
		FilterType::Direction	symtype = FilterType::Symmetrical )

References length(), and aims::FilterType::Symmetrical.

MovingAverageSubSampler() [4/4]

aims::MovingAverageSubSampler::MovingAverageSubSampler

(

const MovingAverageSubSampler &

other

)

References MovingAverageSubSampler().

~MovingAverageSubSampler()

virtual aims::MovingAverageSubSampler::~MovingAverageSubSampler ( )

virtual

Member Function Documentation

length()

Point4du aims::MovingAverageSubSampler::length

(

)

const

Parameters.

Referenced by MovingAverageSubSampler(), MovingAverageSubSampler(), MovingAverageSubSampler(), setLength(), and setLength().

operator=()

MovingAverageSubSampler & aims::MovingAverageSubSampler::operator=

(

const MovingAverageSubSampler &

other

)

References MovingAverageSubSampler().

setLength() [1/2]

void aims::MovingAverageSubSampler::setLength

(

const Point4du &

length

)

Updates underlying basis functions.

References length().

setLength() [2/2]

void aims::MovingAverageSubSampler::setLength

(

unsigned

length

)

Updates underlying basis functions.

References length().

setType()

void aims::MovingAverageSubSampler::setType

(

FilterType::Direction

symtype

)

Updates underlying basis functions.

References aims::ConvolutionSubSampler< MovingAverageKernel >::ConvolutionSubSampler(), and aims::ConvolutionSubSampler< MovingAverageKernel >::setBasisFunction().

type()

FilterType::Direction aims::MovingAverageSubSampler::type

(

)

const

---

The documentation for this class was generated from the following file:

• aims/pyramid/movingaveragesubsampler.h
