#include <aims/primalsketch/scalespace.h>

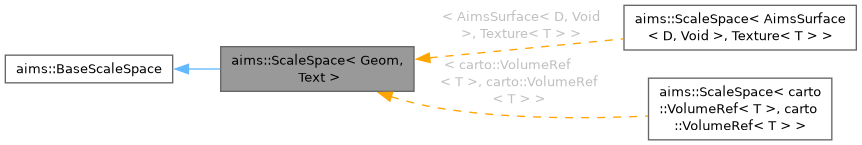

Inheritance diagram for aims::ScaleSpace< Geom, Text >:

[legend]

Collaboration diagram for aims::ScaleSpace< Geom, Text >:

[legend]

Classes
struct	BlobDescriptor

Public Types
enum	MeshShape { Surface , Tore }

enum	BlobSaddleType { Junction , Bottom }

enum	MeshGrowingMode { Translate , Scale , PushNormal }

enum	MergeCode { OK = 0 , PbUp = 1 , PbDown = 2 , PbBoth = 3 }

Public Member Functions
	ScaleSpace ()

virtual	~ScaleSpace ()

void	PutSmoother (Smoother< Geom, Text > *blur)

ScaleLevel< Geom, Text > *	Scale (float t)

Text &	GetScaleImage (float t)

Text &	GetOriginalImage ()

std::map< float, ScaleLevel< Geom, Text > * >	GetScaleLevels ()

void	AddScale (float t)

void	RemoveScale (float t)

void	GenerateDefaultScaleSpace (float tmax)

std::set< float >	GetScaleList ()

void	WriteScale (float t, std::string name)

void	WriteScaleSpace (std::string name)

Texture< int >	meshBlobExtract (const AimsSurface< 3, Void > &mesh, const Texture< float > &inittex, std::map< int, BlobDescriptor > &limits)

int	blobToGraph (Graph &g, const Texture< int > &blobs, const AimsSurfaceTriangle &mesh, const AimsSurfaceTriangle &infl_mesh, const Texture< float > &values, float scale, std::map< int, BlobDescriptor > &limits, int startindex)

void	cleanGraphScale (Graph &g, float scale)

MergeCode	mergeGraphs (Graph &g, Graph &h)

void	createSubMeshes (Graph &g, const AimsSurface< 3, Void > &mesh, float depl=0, float depl0=0, MeshShape ms=Surface, MeshGrowingMode gm=Scale, bool compressedMeshes=true)

void	grayLevel2PrimalSketch (Graph &glevel, Graph &psketch)

std::multimap< float, unsigned >	sortGLB (std::string key, const std::map< unsigned, Vertex * > &nodes, const std::map< unsigned, std::set< Vertex * > > &scblobs)

void	GLBVertexToSSBVertex (Graph &psketch, const std::multimap< float, unsigned > &ordering, const std::map< unsigned, Vertex * > &nodes, const std::map< unsigned, std::set< Vertex * > > &scblobs)

void	GLBEdgeToSSBEdge (Graph &glevel, Graph &psketch, const std::map< Vertex , unsigned > &labels, const std::map< unsigned, Vertex > &nodes)

void	setGraphLabelAndName (const std::multimap< float, unsigned > &ordering, const std::map< unsigned, Vertex * > &nodes, const std::map< unsigned, std::set< Vertex * > > &scblobs)

float	getRepresentativeScale (const std::set< Vertex * > &SSB)

carto::rc_ptr< AimsSurfaceTriangle >	getRepresentativeBlobMesh (float scale0, const std::set< Vertex * > &SSB)

int	adaptiveScaleSpace (Graph &psketch, const AimsSurfaceTriangle &mesh, const AimsSurfaceTriangle &infl_mesh, const Texture1d &inittex, std::map< float, Texture< int > > &tex_blobs, std::map< float, Texture< float > > &tex_curv, int index, float tbegin, float tend, float dt, float dts, float dtmin, const float HMAX, bool logFlag, const std::map< unsigned, std::set< std::pair< unsigned, float > > > &weightLapl)

AimsSurfaceTriangle	surface2Tore (const AimsSurfaceTriangle &)

Public Member Functions inherited from aims::BaseScaleSpace
	BaseScaleSpace ()

virtual	~BaseScaleSpace ()

Protected Member Functions
float	dt ()

Protected Member Functions inherited from aims::BaseScaleSpace
int	get_timediff (float t1, float t2)

Protected Attributes
std::map< float, ScaleLevel< Geom, Text > * >	scales

Smoother< Geom, Text > *	_smoother

Detailed Description

template<typename Geom, typename Text>
class aims::ScaleSpace< Geom, Text >

Definition at line 88 of file scalespace.h.

Member Enumeration Documentation

◆ BlobSaddleType

template<typename Geom, typename Text>

enum aims::ScaleSpace::BlobSaddleType

Enumerator
Junction
Bottom

Definition at line 66 of file meshBlob.h.

◆ MergeCode

template<typename Geom, typename Text>

enum aims::ScaleSpace::MergeCode

Enumerator
OK
PbUp
PbDown
PbBoth

Definition at line 87 of file meshBlob.h.

◆ MeshGrowingMode

template<typename Geom, typename Text>

enum aims::ScaleSpace::MeshGrowingMode

Enumerator
Translate
Scale
PushNormal

Definition at line 72 of file meshBlob.h.

◆ MeshShape

template<typename Geom, typename Text>

enum aims::ScaleSpace::MeshShape

Enumerator
Surface
Tore

Definition at line 60 of file meshBlob.h.

Constructor & Destructor Documentation

◆ ScaleSpace()

template<typename Geom, typename Text>

aims::ScaleSpace< Geom, Text >::ScaleSpace ( )

inline

Definition at line 98 of file scalespace.h.

References _smoother, and aims::BaseScaleSpace::BaseScaleSpace().

Referenced by AddScale().

◆ ~ScaleSpace()

template<typename Geom, typename Text>

virtual aims::ScaleSpace< Geom, Text >::~ScaleSpace ( )

inlinevirtual

Definition at line 100 of file scalespace.h.

References _smoother.

Member Function Documentation

◆ adaptiveScaleSpace()

template<typename Geom, typename Text>

int aims::ScaleSpace< Geom, Text >::adaptiveScaleSpace	(	Graph &	psketch,
		const AimsSurfaceTriangle &	mesh,
		const AimsSurfaceTriangle &	infl_mesh,
		const Texture1d &	inittex,
		std::map< float, Texture< int > > &	tex_blobs,
		std::map< float, Texture< float > > &	tex_curv,
		int	index,
		float	tbegin,
		float	tend,
		float	dt,
		float	dts,
		float	dtmin,
		const float	HMAX,
		bool	logFlag,
		const std::map< unsigned, std::set< std::pair< unsigned, float > > > &	weightLapl )

References dt().

◆ AddScale()

template<int D, typename T>

void aims::ScaleSpace< D, T >::AddScale ( float t )

Definition at line 427 of file scalespace.h.

References _smoother, AddScale(), aims::BaseScaleSpace::get_timediff(), GetOriginalImage(), scales, and ScaleSpace().

Referenced by AddScale(), GenerateDefaultScaleSpace(), aims::ScaleSpace< AimsSurface< D, Void >, Texture< T > >::GenerateDefaultScaleSpace(), aims::ScaleSpace< carto::VolumeRef< T >, carto::VolumeRef< T > >::GenerateDefaultScaleSpace(), Scale(), aims::ScaleSpace< AimsSurface< D, Void >, Texture< T > >::Scale(), aims::ScaleSpace< carto::VolumeRef< T >, carto::VolumeRef< T > >::Scale(), aims::ScaleSpace< AimsSurface< D, Void >, Texture< T > >::uploadPreviouslyComputedScaleSpace(), and aims::ScaleSpace< carto::VolumeRef< T >, carto::VolumeRef< T > >::uploadPreviouslyComputedScaleSpace().

◆ blobToGraph()

template<typename Geom, typename Text>

int aims::ScaleSpace< Geom, Text >::blobToGraph	(	Graph &	g,
		const Texture< int > &	blobs,
		const AimsSurfaceTriangle &	mesh,
		const AimsSurfaceTriangle &	infl_mesh,
		const Texture< float > &	values,
		float	scale,
		std::map< int, BlobDescriptor > &	limits,
		int	startindex )

◆ cleanGraphScale()

template<typename Geom, typename Text>

void aims::ScaleSpace< Geom, Text >::cleanGraphScale	(	Graph &	g,
		float	scale )

◆ createSubMeshes()

template<typename Geom, typename Text>

void aims::ScaleSpace< Geom, Text >::createSubMeshes	(	Graph &	g,
		const AimsSurface< 3, Void > &	mesh,
		float	depl = 0,
		float	depl0 = 0,
		MeshShape	ms = Surface,
		MeshGrowingMode	gm = Scale,
		bool	compressedMeshes = true )

References Scale, and Surface.

◆ dt()

template<typename Geom, typename Text>

float aims::ScaleSpace< Geom, Text >::dt ( )

inlineprotectedvirtual

Implements aims::BaseScaleSpace.

Definition at line 91 of file scalespace.h.

References _smoother.

Referenced by adaptiveScaleSpace().

◆ GenerateDefaultScaleSpace()

template<typename Geom, typename Text>

void aims::ScaleSpace< Geom, Text >::GenerateDefaultScaleSpace ( float tmax )

inline

Definition at line 119 of file scalespace.h.

References AddScale().

◆ GetOriginalImage()

template<typename Geom, typename Text>

Text & aims::ScaleSpace< Geom, Text >::GetOriginalImage ( )

inline

Definition at line 112 of file scalespace.h.

References Scale.

Referenced by AddScale().

◆ getRepresentativeBlobMesh()

template<typename Geom, typename Text>

carto::rc_ptr< AimsSurfaceTriangle > aims::ScaleSpace< Geom, Text >::getRepresentativeBlobMesh	(	float	scale0,
		const std::set< Vertex * > &	SSB )

◆ getRepresentativeScale()

template<typename Geom, typename Text>

float aims::ScaleSpace< Geom, Text >::getRepresentativeScale ( const std::set< Vertex * > & SSB )

◆ GetScaleImage()

template<typename Geom, typename Text>

Text & aims::ScaleSpace< Geom, Text >::GetScaleImage ( float t )

inline

Definition at line 110 of file scalespace.h.

References Scale.

◆ GetScaleLevels()

template<typename Geom, typename Text>

std::map< float, ScaleLevel< Geom, Text > * > aims::ScaleSpace< Geom, Text >::GetScaleLevels ( )

inline

Definition at line 114 of file scalespace.h.

References scales.

◆ GetScaleList()

template<typename Geom, typename Text>

std::set< float > aims::ScaleSpace< Geom, Text >::GetScaleList ( )

◆ GLBEdgeToSSBEdge()

template<typename Geom, typename Text>

void aims::ScaleSpace< Geom, Text >::GLBEdgeToSSBEdge	(	Graph &	glevel,
		Graph &	psketch,
		const std::map< Vertex *, unsigned > &	labels,
		const std::map< unsigned, Vertex * > &	nodes )

◆ GLBVertexToSSBVertex()

template<typename Geom, typename Text>

void aims::ScaleSpace< Geom, Text >::GLBVertexToSSBVertex	(	Graph &	psketch,
		const std::multimap< float, unsigned > &	ordering,
		const std::map< unsigned, Vertex * > &	nodes,
		const std::map< unsigned, std::set< Vertex * > > &	scblobs )

◆ grayLevel2PrimalSketch()

template<typename Geom, typename Text>

void aims::ScaleSpace< Geom, Text >::grayLevel2PrimalSketch	(	Graph &	glevel,
		Graph &	psketch )

◆ mergeGraphs()

template<typename Geom, typename Text>

MergeCode aims::ScaleSpace< Geom, Text >::mergeGraphs	(	Graph &	g,
		Graph &	h )

◆ meshBlobExtract()

template<typename Geom, typename Text>

Texture< int > aims::ScaleSpace< Geom, Text >::meshBlobExtract	(	const AimsSurface< 3, Void > &	mesh,
		const Texture< float > &	inittex,
		std::map< int, BlobDescriptor > &	limits )

◆ PutSmoother()

template<typename Geom, typename Text>

void aims::ScaleSpace< Geom, Text >::PutSmoother ( Smoother< Geom, Text > * blur )

inline

Definition at line 102 of file scalespace.h.

References _smoother.

Referenced by aims::ScaleSpace< AimsSurface< D, Void >, Texture< T > >::ScaleSpace(), and aims::ScaleSpace< carto::VolumeRef< T >, carto::VolumeRef< T > >::ScaleSpace().

◆ RemoveScale()

template<typename Geom, typename Text>

void aims::ScaleSpace< Geom, Text >::RemoveScale ( float t )

◆ Scale()

template<typename Geom, typename Text>

ScaleLevel< Geom, Text > * aims::ScaleSpace< Geom, Text >::Scale ( float t )

inline

Definition at line 104 of file scalespace.h.

References AddScale(), and scales.

◆ setGraphLabelAndName()

template<typename Geom, typename Text>

void aims::ScaleSpace< Geom, Text >::setGraphLabelAndName	(	const std::multimap< float, unsigned > &	ordering,
		const std::map< unsigned, Vertex * > &	nodes,
		const std::map< unsigned, std::set< Vertex * > > &	scblobs )

◆ sortGLB()

template<typename Geom, typename Text>

std::multimap< float, unsigned > aims::ScaleSpace< Geom, Text >::sortGLB	(	std::string	key,
		const std::map< unsigned, Vertex * > &	nodes,
		const std::map< unsigned, std::set< Vertex * > > &	scblobs )

◆ surface2Tore()

template<typename Geom, typename Text>

AimsSurfaceTriangle aims::ScaleSpace< Geom, Text >::surface2Tore ( const AimsSurfaceTriangle & )

◆ WriteScale()

template<typename Geom, typename Text>

void aims::ScaleSpace< Geom, Text >::WriteScale	(	float	t,
		std::string	name )

◆ WriteScaleSpace()

template<typename Geom, typename Text>

void aims::ScaleSpace< Geom, Text >::WriteScaleSpace ( std::string name )

Member Data Documentation

◆ _smoother

template<typename Geom, typename Text>

Smoother<Geom, Text>* aims::ScaleSpace< Geom, Text >::_smoother

protected

Definition at line 94 of file scalespace.h.

Referenced by AddScale(), dt(), PutSmoother(), ScaleSpace(), and ~ScaleSpace().

◆ scales

template<typename Geom, typename Text>

std::map<float, ScaleLevel<Geom, Text>*> aims::ScaleSpace< Geom, Text >::scales

protected

Definition at line 93 of file scalespace.h.

Referenced by AddScale(), GetScaleLevels(), and Scale().

The documentation for this class was generated from the following files:

aims/primalsketch/scalespace.h
aims/scalespace/meshBlob.h
