#include <aims/mesh/texture.h>
#include <aims/mesh/surface.h>
#include <list>

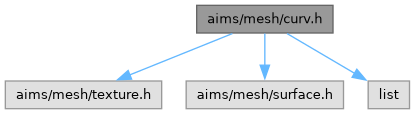

Include dependency graph for curv.h:

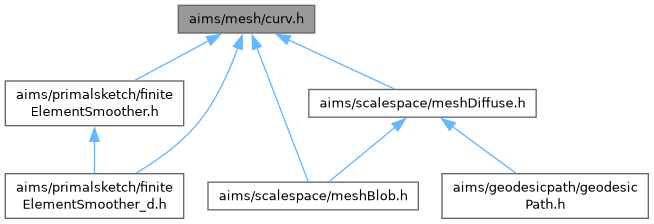

This graph shows which files directly or indirectly include this file:

Namespaces
namespace	aims

Typedefs
typedef std::map< unsigned, std::set< std::pair< unsigned, float > > >	aims::LaplacianWeights

Functions
float	fsign (float x)

Point3df	cross (Point3df a, Point3df b)

TimeTexture< float >	AimsMeshCurvature (const AimsSurface< 3, Void > &mesh)
	obsolete, see Curvature clases in <aims/mesh/geometric.h>

float	AimsMeshFiniteElementDt (const Texture< float > &tex, const Texture< float > &lapl, float tmax)
	obsolete, see Curvature clases in <aims/mesh/geometric.h>

Texture< float >	AimsMeshBoixCurvature (const AimsSurface< 3, Void > &mesh, const std::vector< float > &ALPHA, const std::vector< float > &BETA, const std::vector< std::list< float > > &SURFACE)
	obsolete, see Curvature clases in <aims/mesh/geometric.h>

Texture< float >	AimsRegularizeTexture (const Texture< float > &tex, const AimsSurface< 3, Void > &mesh, float alpha)
	obsolete, see Curvature clases in <aims/mesh/geometric.h>

Texture< float >	AimsRegularizeTexture (const Texture< float > &tex, float ratio)
	obsolete, see Curvature clases in <aims/mesh/geometric.h>

Texture< float >	AimsMeshFiniteElementCurvature (const AimsSurface< 3, Void > &mesh, const std::vector< std::list< unsigned > > &neighbourso, const std::vector< std::list< float > > &PHI, const std::vector< std::list< float > > &THETA, const std::vector< std::list< float > > &SURFACE, const std::vector< std::list< float > > &DOT)
	obsolete, see Curvature clases in <aims/mesh/geometric.h>

std::vector< std::list< float > >	AimsMeshFiniteElementPhi (const AimsSurface< 3, Void > &mesh, const std::vector< std::list< unsigned > > &neighbourso, const std::vector< std::list< float > > &surf)
	obsolete, see Curvature clases in <aims/mesh/geometric.h>

std::vector< std::list< float > >	AimsMeshFiniteElementTheta (const AimsSurface< 3, Void > &mesh, const std::vector< std::list< unsigned > > &neighbourso, const std::vector< std::list< float > > &surf)
	obsolete, see Curvature clases in <aims/mesh/geometric.h>

std::vector< float >	AimsMeshFiniteElementAlpha (const AimsSurface< 3, Void > &mesh, const std::vector< std::list< unsigned > > &neighbourso)
	obsolete, see Curvature clases in <aims/mesh/geometric.h>

std::vector< float >	AimsMeshFiniteElementBeta (const AimsSurface< 3, Void > &mesh, const std::vector< std::list< unsigned > > &neighbourso)
	obsolete, see Curvature clases in <aims/mesh/geometric.h>

std::vector< std::list< float > >	AimsMeshFiniteElementSurface (const AimsSurface< 3, Void > &mesh, const std::vector< std::list< unsigned > > &neighbourso)
	obsolete, see Curvature clases in <aims/mesh/geometric.h>

std::vector< std::list< float > >	AimsMeshFiniteElementDot (const AimsSurface< 3, Void > &mesh, const std::vector< std::list< unsigned > > &neighbourso)
	obsolete, see Curvature clases in <aims/mesh/geometric.h>

std::vector< std::list< unsigned > >	AimsMeshOrderNode (const AimsSurface< 3, Void > &mesh)

std::vector< std::list< unsigned > >	AimsMeshOrderTriangle (const AimsSurface< 3, Void > &mesh)

Texture< float >	AimsMeshLaplacian (const Texture< float > &inittex, const std::map< unsigned, std::set< std::pair< unsigned, float > > > &lapl)

template<typename T>
void	AimsMeshLaplacian (const std::vector< T > &inittex, std::vector< T > &outtex, const std::map< unsigned, std::set< std::pair< unsigned, float > > > &lapl)

std::map< unsigned, std::set< std::pair< unsigned, float > > >	AimsMeshWeightFiniteElementLaplacian (const AimsSurface< 3, Void > &mesh, const float Wmax)

void	aims::makeLaplacianMatrix (const LaplacianWeights &weights, LaplacianWeights &lmat, float dt)

LaplacianWeights *	aims::sparseMult (const LaplacianWeights &in1, const LaplacianWeights &in2, float sparseThresh=0)

template<typename T>
void	aims::applyLaplacianMatrix (const std::vector< T > &inittex, std::vector< T > &outtex, const LaplacianWeights &lapl)

void	aims::laplacianMatrixThreshold (LaplacianWeights &lmat, float threshold)

LaplacianWeights *	aims::makeLaplacianSmoothingCoefficients (const LaplacianWeights &weights, unsigned niter, float dt, float sparseThresh=0)
	Compute Laplacian smoothing coefficients matrix for niter smoothing iterations.

Function Documentation

◆ AimsMeshBoixCurvature()

Texture< float > AimsMeshBoixCurvature	(	const AimsSurface< 3, Void > &	mesh,
		const std::vector< float > &	ALPHA,
		const std::vector< float > &	BETA,
		const std::vector< std::list< float > > &	SURFACE )

obsolete, see Curvature clases in <aims/mesh/geometric.h>

◆ AimsMeshCurvature()

TimeTexture< float > AimsMeshCurvature ( const AimsSurface< 3, Void > & mesh )

obsolete, see Curvature clases in <aims/mesh/geometric.h>

◆ AimsMeshFiniteElementAlpha()

std::vector< float > AimsMeshFiniteElementAlpha	(	const AimsSurface< 3, Void > &	mesh,
		const std::vector< std::list< unsigned > > &	neighbourso )

obsolete, see Curvature clases in <aims/mesh/geometric.h>

◆ AimsMeshFiniteElementBeta()

std::vector< float > AimsMeshFiniteElementBeta	(	const AimsSurface< 3, Void > &	mesh,
		const std::vector< std::list< unsigned > > &	neighbourso )

obsolete, see Curvature clases in <aims/mesh/geometric.h>

◆ AimsMeshFiniteElementCurvature()

Texture< float > AimsMeshFiniteElementCurvature	(	const AimsSurface< 3, Void > &	mesh,
		const std::vector< std::list< unsigned > > &	neighbourso,
		const std::vector< std::list< float > > &	PHI,
		const std::vector< std::list< float > > &	THETA,
		const std::vector< std::list< float > > &	SURFACE,
		const std::vector< std::list< float > > &	DOT )

obsolete, see Curvature clases in <aims/mesh/geometric.h>

◆ AimsMeshFiniteElementDot()

std::vector< std::list< float > > AimsMeshFiniteElementDot	(	const AimsSurface< 3, Void > &	mesh,
		const std::vector< std::list< unsigned > > &	neighbourso )

obsolete, see Curvature clases in <aims/mesh/geometric.h>

◆ AimsMeshFiniteElementDt()

float AimsMeshFiniteElementDt	(	const Texture< float > &	tex,
		const Texture< float > &	lapl,
		float	tmax )

obsolete, see Curvature clases in <aims/mesh/geometric.h>

◆ AimsMeshFiniteElementPhi()

std::vector< std::list< float > > AimsMeshFiniteElementPhi	(	const AimsSurface< 3, Void > &	mesh,
		const std::vector< std::list< unsigned > > &	neighbourso,
		const std::vector< std::list< float > > &	surf )

obsolete, see Curvature clases in <aims/mesh/geometric.h>

◆ AimsMeshFiniteElementSurface()

std::vector< std::list< float > > AimsMeshFiniteElementSurface	(	const AimsSurface< 3, Void > &	mesh,
		const std::vector< std::list< unsigned > > &	neighbourso )

obsolete, see Curvature clases in <aims/mesh/geometric.h>

◆ AimsMeshFiniteElementTheta()

std::vector< std::list< float > > AimsMeshFiniteElementTheta	(	const AimsSurface< 3, Void > &	mesh,
		const std::vector< std::list< unsigned > > &	neighbourso,
		const std::vector< std::list< float > > &	surf )

obsolete, see Curvature clases in <aims/mesh/geometric.h>

◆ AimsMeshLaplacian() [1/2]

template<typename T>

void AimsMeshLaplacian	(	const std::vector< T > &	inittex,
		std::vector< T > &	outtex,
		const std::map< unsigned, std::set< std::pair< unsigned, float > > > &	lapl )

◆ AimsMeshLaplacian() [2/2]

Texture< float > AimsMeshLaplacian	(	const Texture< float > &	inittex,
		const std::map< unsigned, std::set< std::pair< unsigned, float > > > &	lapl )

Referenced by aims::FiniteElementSmoother< D, T >::doSmoothing().

◆ AimsMeshOrderNode()

std::vector< std::list< unsigned > > AimsMeshOrderNode ( const AimsSurface< 3, Void > & mesh )

◆ AimsMeshOrderTriangle()

std::vector< std::list< unsigned > > AimsMeshOrderTriangle ( const AimsSurface< 3, Void > & mesh )

◆ AimsMeshWeightFiniteElementLaplacian()

std::map< unsigned, std::set< std::pair< unsigned, float > > > AimsMeshWeightFiniteElementLaplacian	(	const AimsSurface< 3, Void > &	mesh,
		const float	Wmax )

◆ AimsRegularizeTexture() [1/2]

Texture< float > AimsRegularizeTexture	(	const Texture< float > &	tex,
		const AimsSurface< 3, Void > &	mesh,
		float	alpha )

obsolete, see Curvature clases in <aims/mesh/geometric.h>

◆ AimsRegularizeTexture() [2/2]

Texture< float > AimsRegularizeTexture	(	const Texture< float > &	tex,
		float	ratio )

obsolete, see Curvature clases in <aims/mesh/geometric.h>

◆ cross()

Point3df cross	(	Point3df	a,
		Point3df	b )

inline

◆ fsign()

float fsign ( float x )

inline
