aims::ConvolutionFilter< BasisFunction > Class Template Reference

Convolution Filter. More...

#include <aims/signalfilter/convolutionfilter.h>

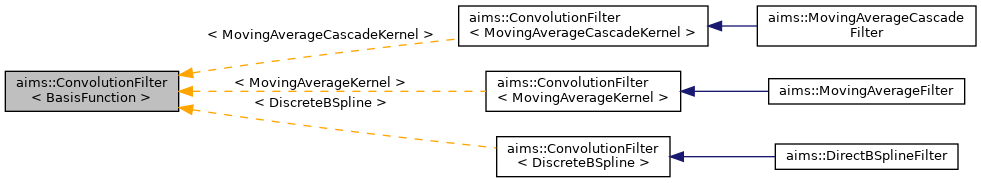

Inheritance diagram for aims::ConvolutionFilter< BasisFunction >:

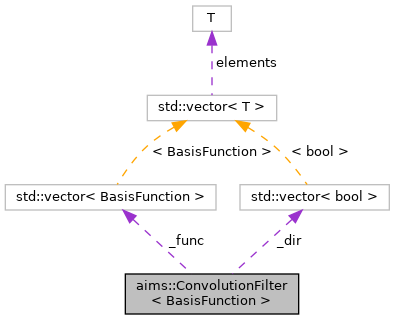

Collaboration diagram for aims::ConvolutionFilter< BasisFunction >:

Public Member Functions
	ConvolutionFilter (const BasisFunction &bfunc)
	Constructor / Destructor / Copy. More...
	ConvolutionFilter (const std::vector< BasisFunction > &bfunc=std::vector< BasisFunction >())
	A different basis function is used in each direction. More...
	ConvolutionFilter (const ConvolutionFilter &other)
virtual	~ConvolutionFilter ()
ConvolutionFilter &	operator= (const ConvolutionFilter &other)
template<typename OUT , typename IN >
carto::VolumeRef< OUT >	execute (const carto::VolumeRef< IN > &in) const
	Execution. More...
template<typename OUT , typename IN >
carto::VolumeRef< OUT >	execute (const carto::VolumeRef< IN > &in, carto::VolumeRef< OUT > &out) const
	Write result in an existing volume. More...
const std::vector< bool > &	directions () const
	Parameters. More...
void	setBasisFunction (const BasisFunction &func)
	Change the basis functions. More...
void	setBasisFunction (const std::vector< BasisFunction > &func)
	Change the basis functions. More...
void	setDirections (const std::vector< bool > &dir)
	Set the directions along which the filter is applied. More...
void	setDirections (bool dirx, bool diry, bool dirz, bool dirt)
	Set the directions along which the filter is applied. More...
void	setVerbose (int verbose=1)
	Verbosity level. More...
void	setQuiet ()
	Equivalent to setVerbose(0) More...

Protected Attributes
std::vector< BasisFunction >	_func
int	_verbose
std::vector< bool >	_dir

Detailed Description

template<typename BasisFunction>
class aims::ConvolutionFilter< BasisFunction >

Convolution Filter.

Interpolate a discrete signal with a separable kernel of finite support. The basis function must possess:

• U operator() ( T )
• V support() with:
  • support()[0] the lower support boundary
  • support()[1] the upper support boundary

Definition at line 55 of file convolutionfilter.h.

Constructor & Destructor Documentation

ConvolutionFilter() [1/3]

template<typename BasisFunction >

aims::ConvolutionFilter< BasisFunction >::ConvolutionFilter

(

const BasisFunction &

bfunc

)

Constructor / Destructor / Copy.

The same basis function is used in all directions

ConvolutionFilter() [2/3]

template<typename BasisFunction >

aims::ConvolutionFilter< BasisFunction >::ConvolutionFilter

(

const std::vector< BasisFunction > &

bfunc = std::vector< BasisFunction >()

)

A different basis function is used in each direction.

ConvolutionFilter() [3/3]

template<typename BasisFunction >

aims::ConvolutionFilter< BasisFunction >::ConvolutionFilter

(

const ConvolutionFilter< BasisFunction > &

other

)

~ConvolutionFilter()

template<typename F >

aims::ConvolutionFilter< F >::~ConvolutionFilter

virtual

Definition at line 74 of file convolutionfilter_d.h.

Member Function Documentation

directions()

template<typename F >

const std::vector< bool > & aims::ConvolutionFilter< F >::directions

Parameters.

4D vector giving directions along which the filter is applied.

Definition at line 225 of file convolutionfilter_d.h.

execute() [1/2]

template<typename F >

template<typename OUT , typename IN >

carto::VolumeRef< OUT > aims::ConvolutionFilter< F >::execute

(

const carto::VolumeRef< IN > &

in

)

const

Execution.

Function-like operator that filters a given volume

Note

1 copy

Warning

This call risks causing additional precision errors

Definition at line 137 of file convolutionfilter_d.h.

References execute.

Referenced by aims::DirectBSplineFilter::execute().

execute() [2/2]

template<typename F >

template<typename OUT , typename IN >

carto::VolumeRef< OUT > aims::ConvolutionFilter< F >::execute	(	const carto::VolumeRef< IN > &	in,
		carto::VolumeRef< OUT > &	out
	)		const

Write result in an existing volume.

If the allocated size differs from the needed resulting size, the volume is reallocated.

Note

1 copy

Warning

This call risks causing additional precision errors

Definition at line 145 of file convolutionfilter_d.h.

References aims::convolutionfilter::at(), carto::VolumeRef< class >::getBorders(), carto::VolumeRef< class >::getSize(), carto::VolumeRef< class >::getSizeT(), carto::VolumeRef< class >::getSizeX(), carto::VolumeRef< class >::getSizeY(), carto::VolumeRef< class >::getSizeZ(), aims::ProgressInfo< class, class >::print(), and carto::toString().

operator=()

template<typename BasisFunction >

ConvolutionFilter< F > & aims::ConvolutionFilter< F >::operator=

(

const ConvolutionFilter< BasisFunction > &

other

)

Definition at line 78 of file convolutionfilter_d.h.

setBasisFunction() [1/2]

template<typename BasisFunction >

void aims::ConvolutionFilter< BasisFunction >::setBasisFunction

(

const BasisFunction &

func

)

Change the basis functions.

setBasisFunction() [2/2]

template<typename BasisFunction >

void aims::ConvolutionFilter< BasisFunction >::setBasisFunction

(

const std::vector< BasisFunction > &

func

)

Change the basis functions.

setDirections() [1/2]

template<typename F >

void aims::ConvolutionFilter< F >::setDirections	(	bool	dirx,
		bool	diry,
		bool	dirz,
		bool	dirt
	)

Set the directions along which the filter is applied.

Definition at line 252 of file convolutionfilter_d.h.

setDirections() [2/2]

template<typename F >

void aims::ConvolutionFilter< F >::setDirections

(

const std::vector< bool > &

dir

)

Set the directions along which the filter is applied.

Definition at line 243 of file convolutionfilter_d.h.

setQuiet()

template<typename F >

void aims::ConvolutionFilter< F >::setQuiet

Equivalent to setVerbose(0)

Definition at line 267 of file convolutionfilter_d.h.

setVerbose()

template<typename F >

void aims::ConvolutionFilter< F >::setVerbose

(

int

verbose = 1

)

Verbosity level.

Definition at line 261 of file convolutionfilter_d.h.

References verbose.

Member Data Documentation

_dir

template<typename BasisFunction >

std::vector<bool> aims::ConvolutionFilter< BasisFunction >::_dir

protected

Definition at line 113 of file convolutionfilter.h.

Referenced by aims::ConvolutionFilter< MovingAverageCascadeKernel >::execute().

_func

template<typename BasisFunction >

std::vector<BasisFunction> aims::ConvolutionFilter< BasisFunction >::_func

protected

Definition at line 111 of file convolutionfilter.h.

Referenced by aims::ConvolutionFilter< MovingAverageCascadeKernel >::execute().

_verbose

template<typename BasisFunction >

int aims::ConvolutionFilter< BasisFunction >::_verbose

protected

Definition at line 112 of file convolutionfilter.h.

Referenced by aims::ConvolutionFilter< MovingAverageCascadeKernel >::execute().

---

The documentation for this class was generated from the following files:

• aims/signalfilter/convolutionfilter.h
• aims/signalfilter/convolutionfilter_d.h
