Geodesic paths or distance maps, using the Dijkstra algorithm. More...

#include <aims/geodesicpath/geodesicPath.h>

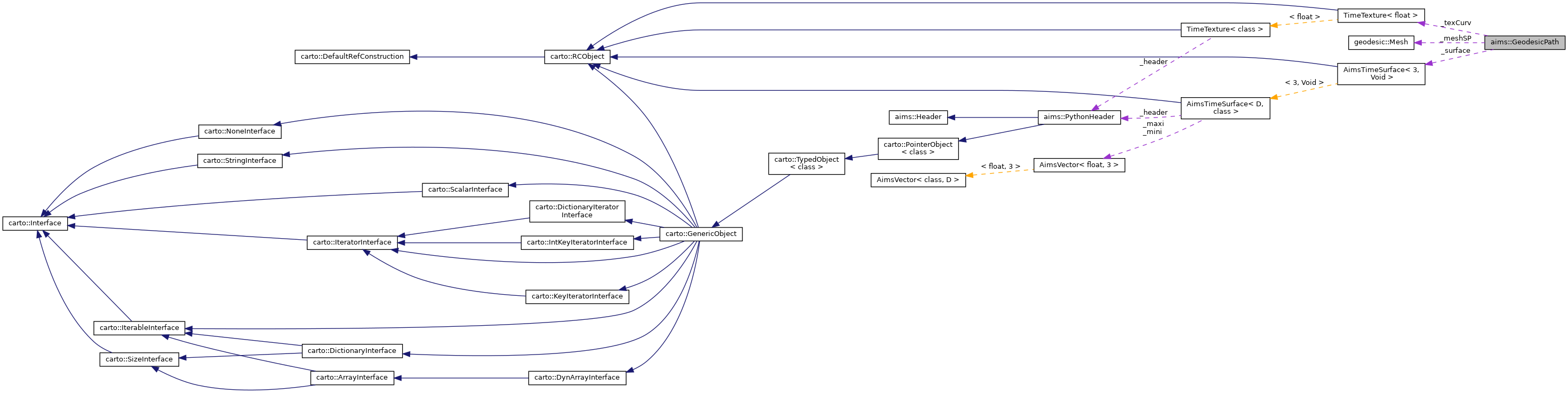

Collaboration diagram for aims::GeodesicPath:

[legend]

Public Types
typedef std::vector< unsigned >	vect_ui

Public Member Functions
	GeodesicPath (const AimsSurfaceTriangle &surface, const TimeTexture< float > &texCurv, int method, int strain)
	Initializes the geodesic path structures for a given mesh geometry, using a constraint map (curvature, typically). More...

	GeodesicPath (const AimsSurfaceTriangle &surface, int method, int strain)
	Same as the above constructor, except that the constraints map is computed internally as the curvature of the mesh. More...

	~GeodesicPath ()

void	computeGraphDijkstra (const AimsSurfaceTriangle &surface, const TimeTexture< float > &texCurv, int method, int strain)
	initialize internal stuctures, should be private. More...

void	updateWeight (const TimeTexture< float > &texCurv, int method, int strain, double sigmo)
	update internal structures, should be private. More...

std::vector< unsigned >	shortestPath_1_1_ind (unsigned source, unsigned target)

std::vector< unsigned >	shortestPath_1_1_ind (unsigned source, unsigned target, TimeTexture< short > subset)

std::vector< unsigned >	shortestPath_1_1_1_ind (unsigned source, unsigned middle, unsigned target)

void	shortestPath_1_N_ind (unsigned source, std::vector< unsigned > targets, unsigned target, double length)

std::vector< Point3df >	shortestPath_1_1_xyz (unsigned source, unsigned target)

void	shortestPath_1_1_ind_xyz (unsigned source, unsigned target, std::vector< unsigned > &indice, std::vector< Point3df > &coord3D)

void	shortestPath_1_1_tex (unsigned source, unsigned target, float texturevalue, TimeTexture< float > &tex)

double	shortestPath_1_1_len (unsigned source, unsigned target)

void	shortestPath_1_N_All_ind (unsigned sources, std::vector< unsigned > targets, std::vector< std::vector< unsigned > > &indices)

void	longestPath_1_N_ind (unsigned source, std::vector< unsigned > targets, unsigned target, double length, int type_distance)

std::vector< vect_ui >	longestPath_1_N_len (unsigned source, std::vector< unsigned > targets, std::vector< double > &length, int type_distance)

std::vector< unsigned >	longestPath_N_N_ind (std::vector< unsigned > points, int s, int d, double *length, int type_distance)

void	distanceMap_1_N_ind (unsigned source, std::vector< float > &distanceMap, double *length, int type_distance)
	Compute a distance map from a given point. More...

Public Attributes
int	_strain

int	_method

AimsSurfaceTriangle	_surface

TimeTexture< float >	_texCurv

geodesic::Mesh	_meshSP

Detailed Description

Geodesic paths or distance maps, using the Dijkstra algorithm.

ex:

GeodesicPath gp( mesh, 0, 0 );
TimeTexture<float>  dmap;
double dmax = 0;
// get a distance map from vertex no 12
gp.distanceMap_1_N_ind( 12, dmap[0].data(), &dmax, 0 );

Definition at line 41 of file geodesicPath.h.

Member Typedef Documentation

◆ vect_ui

typedef std::vector<unsigned> aims::GeodesicPath::vect_ui

Definition at line 44 of file geodesicPath.h.

Constructor & Destructor Documentation

◆ GeodesicPath() [1/2]

aims::GeodesicPath::GeodesicPath	(	const AimsSurfaceTriangle &	surface,
		const TimeTexture< float > &	texCurv,
		int	method,
		int	strain
	)

Initializes the geodesic path structures for a given mesh geometry, using a constraint map (curvature, typically).

Several methods are available.

Parameters

surface	mesh to compute geodesic paths or distances on
texCurv	constraint map texture
method	0: unconstrained, 1: minimize the constraint map, suitable for sulci using the curvature as constraint, 2: maximize constraint map, suitable for gyri using the curvature as constraint, 3: unconstrained
strain	weight factor on the constraints map. In practice we use 3 for sulci and gyri.

◆ GeodesicPath() [2/2]

aims::GeodesicPath::GeodesicPath	(	const AimsSurfaceTriangle &	surface,
		int	method,
		int	strain
	)

Same as the above constructor, except that the constraints map is computed internally as the curvature of the mesh.

◆ ~GeodesicPath()

aims::GeodesicPath::~GeodesicPath ( )

Member Function Documentation

◆ computeGraphDijkstra()

void aims::GeodesicPath::computeGraphDijkstra	(	const AimsSurfaceTriangle &	surface,
		const TimeTexture< float > &	texCurv,
		int	method,
		int	strain
	)

initialize internal stuctures, should be private.

◆ distanceMap_1_N_ind()

void aims::GeodesicPath::distanceMap_1_N_ind	(	unsigned	source,
		std::vector< float > &	distanceMap,
		double *	length,
		int	type_distance
	)

Compute a distance map from a given point.

Parameters

source	index of the starting point (vertex number)
distanceMap	output distance map, the vector can be empty, it will be filled with as many values as the mesh vertices number.
length	output max distance
type_distance	0: weighted distance, 1: euclidean distance

◆ longestPath_1_N_ind()

void aims::GeodesicPath::longestPath_1_N_ind	(	unsigned	source,
		std::vector< unsigned >	targets,
		unsigned *	target,
		double *	length,
		int	type_distance
	)

◆ longestPath_1_N_len()

std::vector<vect_ui> aims::GeodesicPath::longestPath_1_N_len	(	unsigned	source,
		std::vector< unsigned >	targets,
		std::vector< double > &	length,
		int	type_distance
	)

◆ longestPath_N_N_ind()

std::vector<unsigned> aims::GeodesicPath::longestPath_N_N_ind	(	std::vector< unsigned >	points,
		int *	s,
		int *	d,
		double *	length,
		int	type_distance
	)

◆ shortestPath_1_1_1_ind()

std::vector<unsigned> aims::GeodesicPath::shortestPath_1_1_1_ind	(	unsigned	source,
		unsigned	middle,
		unsigned	target
	)

◆ shortestPath_1_1_ind() [1/2]

std::vector<unsigned> aims::GeodesicPath::shortestPath_1_1_ind	(	unsigned	source,
		unsigned	target
	)

◆ shortestPath_1_1_ind() [2/2]

std::vector<unsigned> aims::GeodesicPath::shortestPath_1_1_ind	(	unsigned	source,
		unsigned	target,
		TimeTexture< short >	subset
	)

◆ shortestPath_1_1_ind_xyz()

void aims::GeodesicPath::shortestPath_1_1_ind_xyz	(	unsigned	source,
		unsigned	target,
		std::vector< unsigned > &	indice,
		std::vector< Point3df > &	coord3D
	)

◆ shortestPath_1_1_len()

double aims::GeodesicPath::shortestPath_1_1_len	(	unsigned	source,
		unsigned	target
	)

◆ shortestPath_1_1_tex()

void aims::GeodesicPath::shortestPath_1_1_tex	(	unsigned	source,
		unsigned	target,
		float	texturevalue,
		TimeTexture< float > &	tex
	)

◆ shortestPath_1_1_xyz()

std::vector<Point3df> aims::GeodesicPath::shortestPath_1_1_xyz	(	unsigned	source,
		unsigned	target
	)

◆ shortestPath_1_N_All_ind()

void aims::GeodesicPath::shortestPath_1_N_All_ind	(	unsigned	sources,
		std::vector< unsigned >	targets,
		std::vector< std::vector< unsigned > > &	indices
	)

◆ shortestPath_1_N_ind()

void aims::GeodesicPath::shortestPath_1_N_ind	(	unsigned	source,
		std::vector< unsigned >	targets,
		unsigned *	target,
		double *	length
	)

◆ updateWeight()

void aims::GeodesicPath::updateWeight	(	const TimeTexture< float > &	texCurv,
		int	method,
		int	strain,
		double	sigmo
	)

update internal structures, should be private.

Member Data Documentation

◆ _meshSP

geodesic::Mesh aims::GeodesicPath::_meshSP

Definition at line 49 of file geodesicPath.h.

◆ _method

int aims::GeodesicPath::_method

Definition at line 46 of file geodesicPath.h.

◆ _strain

int aims::GeodesicPath::_strain

Definition at line 45 of file geodesicPath.h.

◆ _surface

AimsSurfaceTriangle aims::GeodesicPath::_surface

Definition at line 47 of file geodesicPath.h.

◆ _texCurv

TimeTexture<float> aims::GeodesicPath::_texCurv

Definition at line 48 of file geodesicPath.h.

The documentation for this class was generated from the following file:

aims/geodesicpath/geodesicPath.h
