aims::SparseMatrix Class Reference

#include <aims/sparsematrix/sparseMatrix.h>

Inheritance diagram for aims::SparseMatrix:
Inheritance graph
[legend]

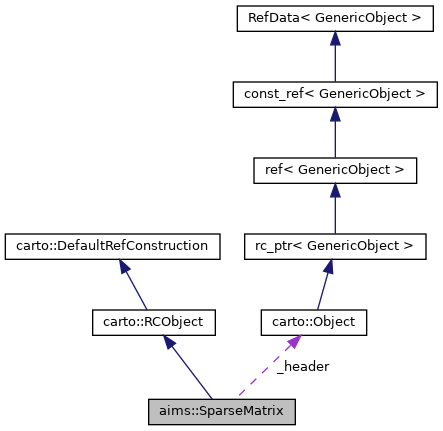

Collaboration diagram for aims::SparseMatrix:
Collaboration graph
[legend]

Public Types

typedef boost_sparse_matrix::reference reference

typedef boost_sparse_matrix::const_reference const_reference

typedef boost_sparse_matrix::iterator1 iterator1

typedef boost_sparse_matrix::iterator2 iterator2

typedef boost_sparse_matrix::const_iterator1 const_iterator1

typedef boost_sparse_matrix::const_iterator2 const_iterator2

- Public Types inherited from carto::RCObject
typedef int RefCounterType


Public Member Functions

 SparseMatrix (int32_t size1=1, int32_t size2=1)

 SparseMatrix (const SparseMatrix &other)

virtual ~SparseMatrix ()

SparseMatrix & operator= (const SparseMatrix &other)

void reallocate (int32_t size1, int32_t size2)

iterator1 begin1 ()

iterator1 end1 ()

const_iterator1 begin1 () const

const_iterator1 end1 () const

iterator2 begin2 ()

iterator2 end2 ()

const_iterator2 begin2 () const

const_iterator2 end2 () const

int32_t getSize1 () const

int32_t getSize2 () const

int32_t getNonZeroElementCount () const

bool hasElement (int32_t i, int32_t j) const

const_reference operator() (int32_t i, int32_t j) const

reference operator() (int32_t i, int32_t j)

bool isSquare () const

void setZero ()

void setIdentity ()

void setRow (int32_t s1, const std::vector< double > &row)

void setColumn (int32_t s2, const std::vector< double > &column)

void fill (const double &value)

void fill (int32_t offset1, int32_t offset2, int32_t size1, int32_t size2, const double &value)

void fill (int32_t offset1, int32_t offset2, const SparseMatrix &other, int32_t size1=0, int32_t size2=0)

void setDiagonal (const double &value)

void transpose ()

double getTrace () const

SparseMatrix getTransposition () const

SparseMatrix getComposition (const SparseMatrix &other) const

std::vector< double > getComposition (const std::vector< double > &other) const

std::vector< double > toVector () const

std::vector< double > getRow (int32_t i) const

std::vector< double > getColumn (int32_t j) const

template<typename VectorType >
VectorType getSparseRow (int32_t i) const

template<typename VectorType >
VectorType getSparseColumn (int32_t i) const

void erase_element (int32_t i, int32_t j)

void read (const std::string &filename, const std::string &openmode="binar", bool bswap=false)
 Avoid using this function, prefer the more standard Reader<SparseMatrix> instead. More...

void write (const std::string &filename, const std::string &openmode="binar", bool bswap=false) const
 Avoid using this function, prefer the more standard Writer<SparseMatrix> instead. More...

aims::SparseMatrix & operator+= (const aims::SparseMatrix &thing)

aims::SparseMatrix & operator-= (const aims::SparseMatrix &thing)

aims::SparseMatrix & operator*= (double x)

aims::SparseMatrix & operator/= (double x)

boost_sparse_matrix & boostMatrix ()
 for low-level boost operations More...

const boost_sparse_matrix & boostMatrix () const

carto::Object header ()

const carto::Object header () const

void setHeader (carto::Object ph)

- Public Member Functions inherited from carto::RCObject
 RCObject ()

 RCObject (const RCObject &)

RCObject & operator= (const RCObject &)

virtual ~RCObject ()


Protected Attributes

boost_sparse_matrix _matrix

carto::Object _header


Detailed Description

Definition at line 57 of file sparseMatrix.h.

Member Typedef Documentation

◆ const_iterator1

typedef boost_sparse_matrix::const_iterator1 aims::SparseMatrix::const_iterator1

Definition at line 71 of file sparseMatrix.h.

◆ const_iterator2

typedef boost_sparse_matrix::const_iterator2 aims::SparseMatrix::const_iterator2

Definition at line 73 of file sparseMatrix.h.

◆ const_reference

typedef boost_sparse_matrix::const_reference aims::SparseMatrix::const_reference

Definition at line 65 of file sparseMatrix.h.

◆ iterator1

typedef boost_sparse_matrix::iterator1 aims::SparseMatrix::iterator1

Definition at line 67 of file sparseMatrix.h.

◆ iterator2

typedef boost_sparse_matrix::iterator2 aims::SparseMatrix::iterator2

Definition at line 68 of file sparseMatrix.h.

◆ reference

typedef boost_sparse_matrix::reference aims::SparseMatrix::reference

Definition at line 63 of file sparseMatrix.h.

Constructor & Destructor Documentation

◆ SparseMatrix() [1/2]

aims::SparseMatrix::SparseMatrix ( int32_t  size1 = 1,
int32_t  size2 = 1
)

◆ SparseMatrix() [2/2]

aims::SparseMatrix::SparseMatrix ( const SparseMatrix &  other)

◆ ~SparseMatrix()

virtual aims::SparseMatrix::~SparseMatrix ( )
virtual

Member Function Documentation

◆ begin1() [1/2]

iterator1 aims::SparseMatrix::begin1 ( )

◆ begin1() [2/2]

const_iterator1 aims::SparseMatrix::begin1 ( ) const

◆ begin2() [1/2]

iterator2 aims::SparseMatrix::begin2 ( )

◆ begin2() [2/2]

const_iterator2 aims::SparseMatrix::begin2 ( ) const

◆ boostMatrix() [1/2]

boost_sparse_matrix& aims::SparseMatrix::boostMatrix ( )
inline

for low-level boost operations

Definition at line 162 of file sparseMatrix.h.

References _matrix.

◆ boostMatrix() [2/2]

const boost_sparse_matrix& aims::SparseMatrix::boostMatrix ( ) const
inline

Definition at line 163 of file sparseMatrix.h.

References _matrix.

◆ end1() [1/2]

iterator1 aims::SparseMatrix::end1 ( )

◆ end1() [2/2]

const_iterator1 aims::SparseMatrix::end1 ( ) const

◆ end2() [1/2]

iterator2 aims::SparseMatrix::end2 ( )

◆ end2() [2/2]

const_iterator2 aims::SparseMatrix::end2 ( ) const

◆ erase_element()

void aims::SparseMatrix::erase_element ( int32_t  i,
int32_t  j
)

◆ fill() [1/3]

void aims::SparseMatrix::fill ( const double &  value)

◆ fill() [2/3]

void aims::SparseMatrix::fill ( int32_t  offset1,
int32_t  offset2,
int32_t  size1,
int32_t  size2,
const double &  value
)

◆ fill() [3/3]

void aims::SparseMatrix::fill ( int32_t  offset1,
int32_t  offset2,
const SparseMatrix &  other,
int32_t  size1 = 0,
int32_t  size2 = 0
)

◆ getColumn()

std::vector<double> aims::SparseMatrix::getColumn ( int32_t  j) const

◆ getComposition() [1/2]

SparseMatrix aims::SparseMatrix::getComposition ( const SparseMatrix &  other) const

◆ getComposition() [2/2]

std::vector<double> aims::SparseMatrix::getComposition ( const std::vector< double > &  other) const

◆ getNonZeroElementCount()

int32_t aims::SparseMatrix::getNonZeroElementCount ( ) const

◆ getRow()

std::vector<double> aims::SparseMatrix::getRow ( int32_t  i) const

◆ getSize1()

int32_t aims::SparseMatrix::getSize1 ( ) const

Referenced by getSparseColumn().

◆ getSize2()

int32_t aims::SparseMatrix::getSize2 ( ) const

Referenced by getSparseRow().

◆ getSparseColumn()

template<typename VectorType >
VectorType aims::SparseMatrix::getSparseColumn ( int32_t  i) const
inline

Definition at line 211 of file sparseMatrix.h.

References getSize1(), aims::operator*(), aims::operator+(), aims::operator-(), aims::operator/(), and aims::operator<<().

◆ getSparseRow()

template<typename VectorType >
VectorType aims::SparseMatrix::getSparseRow ( int32_t  i) const
inline

Definition at line 179 of file sparseMatrix.h.

References _matrix, and getSize2().

◆ getTrace()

double aims::SparseMatrix::getTrace ( ) const

◆ getTransposition()

SparseMatrix aims::SparseMatrix::getTransposition ( ) const

◆ hasElement()

bool aims::SparseMatrix::hasElement ( int32_t  i,
int32_t  j
) const

◆ header() [1/2]

carto::Object aims::SparseMatrix::header ( )
inline

Definition at line 165 of file sparseMatrix.h.

References _header.

◆ header() [2/2]

const carto::Object aims::SparseMatrix::header ( ) const
inline

Definition at line 166 of file sparseMatrix.h.

References _header, and setHeader().

◆ isSquare()

bool aims::SparseMatrix::isSquare ( ) const

◆ operator()() [1/2]

const_reference aims::SparseMatrix::operator() ( int32_t  i,
int32_t  j
) const

◆ operator()() [2/2]

reference aims::SparseMatrix::operator() ( int32_t  i,
int32_t  j
)

◆ operator*=()

aims::SparseMatrix& aims::SparseMatrix::operator*= ( double  x)

◆ operator+=()

aims::SparseMatrix& aims::SparseMatrix::operator+= ( const aims::SparseMatrix &  thing)

◆ operator-=()

aims::SparseMatrix& aims::SparseMatrix::operator-= ( const aims::SparseMatrix &  thing)

◆ operator/=()

aims::SparseMatrix& aims::SparseMatrix::operator/= ( double  x)

◆ operator=()

SparseMatrix& aims::SparseMatrix::operator= ( const SparseMatrix &  other)

◆ read()

void aims::SparseMatrix::read ( const std::string &  filename,
const std::string &  openmode = "binar",
bool  bswap = false
)

Avoid using this function, prefer the more standard Reader<SparseMatrix> instead.

◆ reallocate()

void aims::SparseMatrix::reallocate ( int32_t  size1,
int32_t  size2
)

◆ setColumn()

void aims::SparseMatrix::setColumn ( int32_t  s2,
const std::vector< double > &  column
)

◆ setDiagonal()

void aims::SparseMatrix::setDiagonal ( const double &  value)

◆ setHeader()

void aims::SparseMatrix::setHeader ( carto::Object  ph)

Referenced by header().

◆ setIdentity()

void aims::SparseMatrix::setIdentity ( )

◆ setRow()

void aims::SparseMatrix::setRow ( int32_t  s1,
const std::vector< double > &  row
)

◆ setZero()

void aims::SparseMatrix::setZero ( )

◆ toVector()

std::vector<double> aims::SparseMatrix::toVector ( ) const

◆ transpose()

void aims::SparseMatrix::transpose ( )

◆ write()

void aims::SparseMatrix::write ( const std::string &  filename,
const std::string &  openmode = "binar",
bool  bswap = false
) const

Avoid using this function, prefer the more standard Writer<SparseMatrix> instead.

Member Data Documentation

◆ _header

carto::Object aims::SparseMatrix::_header
protected

Definition at line 172 of file sparseMatrix.h.

Referenced by header().

◆ _matrix

boost_sparse_matrix aims::SparseMatrix::_matrix
protected

Definition at line 171 of file sparseMatrix.h.

Referenced by boostMatrix(), and getSparseRow().

The documentation for this class was generated from the following file:
