aims::TransformationChain3d Class Reference

Container for a composition of multiple transformations. More...

#include <aims/transformation/transformation_chain.h>

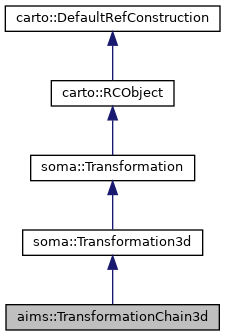

Inheritance diagram for aims::TransformationChain3d:

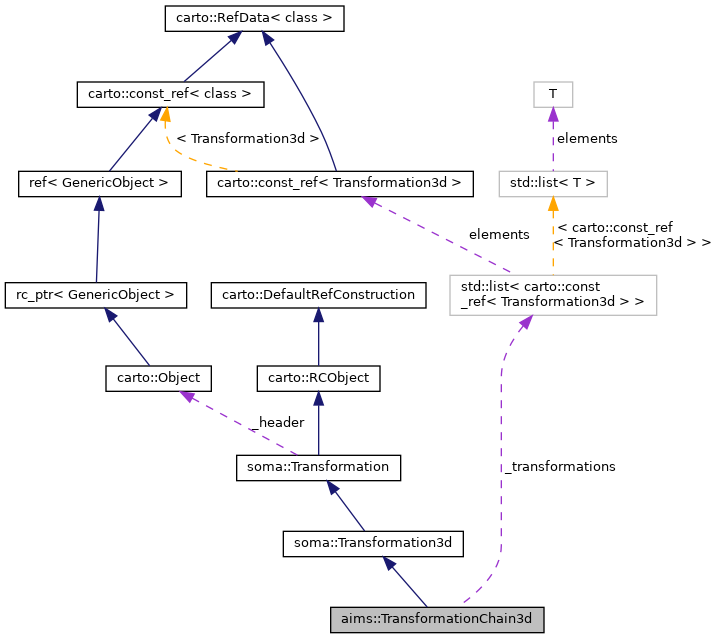

Collaboration diagram for aims::TransformationChain3d:

Public Types
typedef std::list< carto::const_ref< Transformation3d > >	ListType
typedef ListType::iterator	iterator
typedef ListType::const_iterator	const_iterator
Public Types inherited from carto::RCObject
typedef int	RefCounterType

Public Member Functions
	TransformationChain3d ()
virtual	~TransformationChain3d ()
void	push_back (const carto::const_ref< Transformation3d > &transformation)
	Add a transformation to the back of the list (applied last) More...
void	pop_back ()
	Remove the last transformation from the list. More...
void	push_front (const carto::const_ref< Transformation3d > &transformation)
	Add a transformation to the front of the list (applied first) More...
void	pop_front ()
	Remove the first transformation from the list. More...
size_t	size () const
iterator	begin ()
const_iterator	begin () const
iterator	end ()
const_iterator	end () const
bool	isIdentity () const CARTO_OVERRIDE
bool	invertible () const CARTO_OVERRIDE
std::unique_ptr< soma::Transformation3d >	getInverse () const CARTO_OVERRIDE
carto::const_ref< soma::Transformation3d >	simplify () const
	Compute a simpler transformation that is equivalent to the chain. More...
Public Member Functions inherited from soma::Transformation3d
virtual	~Transformation3d ()
Point3dd	transform (double x, double y, double z) const
Point3dd	transform (const Point3dd &pos) const
Point3df	transform (const Point3df &dir) const
Point3df	transform (float x, float y, float z) const
Point3d	transform (const Point3d &p) const
Public Member Functions inherited from soma::Transformation
virtual	~Transformation ()
carto::Object	header ()
const carto::Object	header () const
void	setHeader (carto::Object ph)
Public Member Functions inherited from carto::RCObject
	RCObject ()
	RCObject (const RCObject &)
RCObject &	operator= (const RCObject &)
virtual	~RCObject ()

Protected Member Functions
Point3dd	transformDouble (double x, double y, double z) const CARTO_OVERRIDE
Point3df	transformFloat (float x, float y, float z) const CARTO_OVERRIDE
Point3dd	transformPoint3dd (const Point3dd &pos) const CARTO_OVERRIDE
Point3df	transformPoint3df (const Point3df &dir) const CARTO_OVERRIDE
void	setReferentialsInHeader ()
Protected Member Functions inherited from soma::Transformation3d
	Transformation3d ()
virtual Point3d	transformPoint3d (const Point3d &p) const
Protected Member Functions inherited from soma::Transformation
	Transformation ()

Protected Attributes
ListType	_transformations
Protected Attributes inherited from soma::Transformation
carto::Object	_header

Detailed Description

Container for a composition of multiple transformations.

This container holds a list of transformations, and acts as the composition of all transformations. Transformations are composed from the front to the back of the list:

rc_ptr<TransformationChain3d>(new TransformationChain3d())
chain->push_back(t1)
chain->push_back(t2)
// chain->transform(p) == t2->transform(t1->transform(p))

Warning

{Do not modify the transformations once you have passed them to push_back() or push_front(): it is unspecified if the changes will be noticed by TransformationChain3d (a reference to the same object may be kept internally, or a copy could be made). This behaviour will allow optimizations to be implemented (e.g. composing adjacent affine transformations by multiplying their matrices).

Definition at line 65 of file transformation_chain.h.

Member Typedef Documentation

const_iterator

typedef ListType::const_iterator aims::TransformationChain3d::const_iterator

Definition at line 70 of file transformation_chain.h.

iterator

typedef ListType::iterator aims::TransformationChain3d::iterator

Definition at line 69 of file transformation_chain.h.

ListType

typedef std::list<carto::const_ref<Transformation3d> > aims::TransformationChain3d::ListType

Definition at line 68 of file transformation_chain.h.

Constructor & Destructor Documentation

TransformationChain3d()

aims::TransformationChain3d::TransformationChain3d

(

)

~TransformationChain3d()

virtual aims::TransformationChain3d::~TransformationChain3d ( )

virtual

Member Function Documentation

begin() [1/2]

iterator aims::TransformationChain3d::begin ( )

inline

Definition at line 84 of file transformation_chain.h.

References _transformations.

begin() [2/2]

const_iterator aims::TransformationChain3d::begin ( ) const

inline

Definition at line 85 of file transformation_chain.h.

References _transformations.

end() [1/2]

iterator aims::TransformationChain3d::end ( )

inline

Definition at line 86 of file transformation_chain.h.

References _transformations.

end() [2/2]

const_iterator aims::TransformationChain3d::end ( ) const

inline

Definition at line 87 of file transformation_chain.h.

References _transformations.

getInverse()

std::unique_ptr<soma::Transformation3d> aims::TransformationChain3d::getInverse ( ) const

virtual

Reimplemented from soma::Transformation3d.

invertible()

bool aims::TransformationChain3d::invertible ( ) const

virtual

Reimplemented from soma::Transformation3d.

isIdentity()

bool aims::TransformationChain3d::isIdentity ( ) const

virtual

Reimplemented from soma::Transformation.

pop_back()

void aims::TransformationChain3d::pop_back

(

)

Remove the last transformation from the list.

pop_front()

void aims::TransformationChain3d::pop_front

(

)

Remove the first transformation from the list.

push_back()

void aims::TransformationChain3d::push_back

(

const carto::const_ref< Transformation3d > &

transformation

)

Add a transformation to the back of the list (applied last)

push_front()

void aims::TransformationChain3d::push_front

(

const carto::const_ref< Transformation3d > &

transformation

)

Add a transformation to the front of the list (applied first)

setReferentialsInHeader()

void aims::TransformationChain3d::setReferentialsInHeader ( )

protected

simplify()

carto::const_ref<soma::Transformation3d> aims::TransformationChain3d::simplify

(

)

const

Compute a simpler transformation that is equivalent to the chain.

The transformation chain is simplified by applying the following rules, so that it should provide equivalent results to the original chain, up to numerical precision:

• The simplification is applied recursively to any sub-chain.
• Transformations of the simplified sub-chains are inserted at the top level (i.e. the simplified chain is flat, it contains no sub-chains).
• Consecutive affine transformations are composed using matrix multiplication.
• Identity transforms (i.e. transforms for which Transformation::isIdentity() returns true) are removed from the list.
• If the simplified chain consists of only one transformation, no chain is returned, the contained transformation is returned directly. However, the transformation is not necessarily the same instance that was inserted in the chain (it will be a copy if it is an AffineTransformation3d).
• If the simplified chain is empty, an empty chain is returned.

No deep copy is made, so the result can contain pointers to the same transformations as the original chain.

size()

size_t aims::TransformationChain3d::size

(

)

const

transformDouble()

Point3dd aims::TransformationChain3d::transformDouble ( double  x, double  y, double  z  ) const

protectedvirtual

Implements soma::Transformation3d.

transformFloat()

Point3df aims::TransformationChain3d::transformFloat ( float  x, float  y, float  z  ) const

protectedvirtual

Reimplemented from soma::Transformation3d.

transformPoint3dd()

Point3dd aims::TransformationChain3d::transformPoint3dd ( const Point3dd &  pos ) const

protectedvirtual

Reimplemented from soma::Transformation3d.

transformPoint3df()

Point3df aims::TransformationChain3d::transformPoint3df ( const Point3df &  dir ) const

protectedvirtual

Reimplemented from soma::Transformation3d.

Member Data Documentation

_transformations

ListType aims::TransformationChain3d::_transformations

protected

Definition at line 124 of file transformation_chain.h.

Referenced by begin(), and end().

---

The documentation for this class was generated from the following file:

• aims/transformation/transformation_chain.h
