#include <aims/sparsematrix/sparseordensematrix.h>

Inheritance diagram for aims::SparseOrDenseMatrix:

[legend]

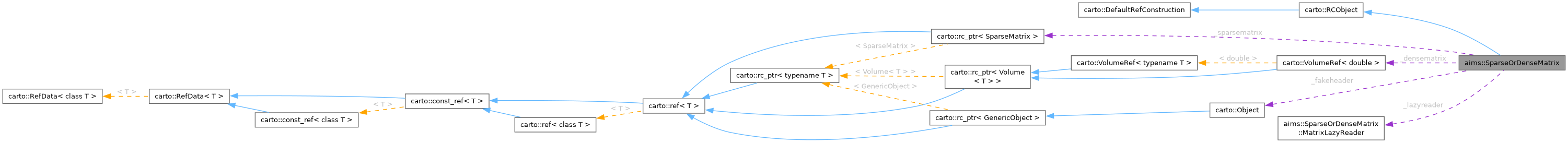

Collaboration diagram for aims::SparseOrDenseMatrix:

[legend]

Classes
class	MatrixLazyReader
	MatrixLazyReader allows to read a row or a column from file, on demand. More...

Public Types
typedef carto::VolumeRef< double >	DenseMatrixType

typedef carto::rc_ptr< SparseMatrix >	SparseMatrixType

Public Types inherited from carto::RCObject
typedef int	RefCounterType

Public Member Functions
	SparseOrDenseMatrix (int32_t size1=1, int32_t size2=1)

	SparseOrDenseMatrix (const SparseOrDenseMatrix &other)

virtual	~SparseOrDenseMatrix ()

SparseOrDenseMatrix &	operator= (const SparseOrDenseMatrix &other)

void	reallocate (int32_t size1, int32_t size2)

int32_t	getSize1 () const

int32_t	getSize2 () const

int32_t	getNonZeroElementCount () const

std::vector< int32_t >	getSize () const

bool	hasElement (int32_t i, int32_t j) const

double	operator() (int32_t i, int32_t j) const

void	erase_element (int32_t i, int32_t j)

void	set_element (int32_t i, int32_t j, double x)

void	setRow (int32_t s1, const std::vector< double > &row)

void	setColumn (int32_t s2, const std::vector< double > &column)

std::vector< double >	getRow (int32_t i) const

std::vector< double >	getColumn (int32_t j) const

void	readRow (int32_t i)
	read a row using lazy reading, using the MatrixLazyReader.

void	readColumn (int32_t i)
	read a column using lazy reading, using the MatrixLazyReader.

std::vector< double > *	getReadRow (int32_t i, bool store=true)
	Get row, read it if it is not in memory, and optionally store it for later access.

std::vector< double > *	getReadColumn (int32_t i, bool store=true)
	Get column, read it if it is not in memory, and optionally store it for later access.

void	readAll ()
	read all rows using lazy reading, using the MatrixLazyReader.

void	freeRow (int32_t i)

void	freeColumn (int32_t i)

template<typename VectorType>
VectorType	getSparseRow (int32_t i) const

template<typename VectorType>
VectorType	getSparseColumn (int32_t i) const

void	read (const std::string &filename)

void	write (const std::string &filename, carto::Object options=carto::none()) const

bool	isDense () const

SparseMatrixType	sparseMatrix ()

const SparseMatrixType	sparseMatrix () const

DenseMatrixType	denseMatrix ()

const DenseMatrixType	denseMatrix () const

void	setMatrix (SparseMatrixType matrix)

void	setMatrix (DenseMatrixType matrix)

carto::Object	header ()

const carto::Object	header () const

void	setHeader (carto::Object ph)

SparseMatrixType	asSparse (bool copy=false) const
	get a shallow or deep copy in sparse shape

DenseMatrixType	asDense (bool copy=false) const
	get a shallow or deep copy in dense shape

void	muteToDense ()

void	muteToSparse ()

void	muteToOptimalShape ()
	mute to sparse or dense according to the less memory consuming

bool	isOptimalShape () const

unsigned long	optimalShapeThreshold () const
	below this number of non-nul elements, the optimal shape is sparse

SparseOrDenseMatrix &	operator+= (const SparseOrDenseMatrix &thing)

SparseOrDenseMatrix &	operator-= (const SparseOrDenseMatrix &thing)

SparseOrDenseMatrix &	operator*= (double x)

SparseOrDenseMatrix &	operator/= (double x)

void	setLazyReader (MatrixLazyReader *reader)

MatrixLazyReader *	lazyReader () const

SparseOrDenseMatrix *	subMatrix (const std::vector< int32_t > &start, const std::vector< int32_t > &size)

SparseOrDenseMatrix *	subMatrix (const std::vector< std::vector< int32_t > > &indices_along_dims)

Public Member Functions inherited from carto::RCObject
	RCObject ()

	RCObject (const RCObject &)

RCObject &	operator= (const RCObject &)

virtual	~RCObject ()

Protected Attributes
SparseMatrixType	_sparsematrix

DenseMatrixType	_densematrix

carto::Object	_fakeheader

MatrixLazyReader *	_lazyreader

Detailed Description

Definition at line 45 of file sparseordensematrix.h.

Member Typedef Documentation

◆ DenseMatrixType

typedef carto::VolumeRef<double> aims::SparseOrDenseMatrix::DenseMatrixType

Definition at line 86 of file sparseordensematrix.h.

◆ SparseMatrixType

typedef carto::rc_ptr<SparseMatrix> aims::SparseOrDenseMatrix::SparseMatrixType

Definition at line 87 of file sparseordensematrix.h.

Constructor & Destructor Documentation

◆ SparseOrDenseMatrix() [1/2]

aims::SparseOrDenseMatrix::SparseOrDenseMatrix	(	int32_t	size1 = 1,
		int32_t	size2 = 1 )

Referenced by operator*=(), operator+=(), operator-=(), operator=(), optimalShapeThreshold(), SparseOrDenseMatrix(), subMatrix(), and subMatrix().

◆ SparseOrDenseMatrix() [2/2]

aims::SparseOrDenseMatrix::SparseOrDenseMatrix ( const SparseOrDenseMatrix & other )

References SparseOrDenseMatrix().

◆ ~SparseOrDenseMatrix()

virtual aims::SparseOrDenseMatrix::~SparseOrDenseMatrix ( )

virtual

Member Function Documentation

◆ asDense()

DenseMatrixType aims::SparseOrDenseMatrix::asDense ( bool copy = false ) const

get a shallow or deep copy in dense shape

◆ asSparse()

SparseMatrixType aims::SparseOrDenseMatrix::asSparse ( bool copy = false ) const

get a shallow or deep copy in sparse shape

◆ denseMatrix() [1/2]

DenseMatrixType aims::SparseOrDenseMatrix::denseMatrix ( )

inline

Definition at line 162 of file sparseordensematrix.h.

References _densematrix.

Referenced by getSparseColumn(), and getSparseRow().

◆ denseMatrix() [2/2]

const DenseMatrixType aims::SparseOrDenseMatrix::denseMatrix ( ) const

inline

Definition at line 163 of file sparseordensematrix.h.

References _densematrix.

◆ erase_element()

void aims::SparseOrDenseMatrix::erase_element	(	int32_t	i,
		int32_t	j )

◆ freeColumn()

void aims::SparseOrDenseMatrix::freeColumn ( int32_t i )

◆ freeRow()

void aims::SparseOrDenseMatrix::freeRow ( int32_t i )

◆ getColumn()

std::vector< double > aims::SparseOrDenseMatrix::getColumn ( int32_t j ) const

◆ getNonZeroElementCount()

int32_t aims::SparseOrDenseMatrix::getNonZeroElementCount ( ) const

◆ getReadColumn()

std::vector< double > * aims::SparseOrDenseMatrix::getReadColumn	(	int32_t	i,
		bool	store = true )

Get column, read it if it is not in memory, and optionally store it for later access.

The returned vector has to be freed after use.

◆ getReadRow()

std::vector< double > * aims::SparseOrDenseMatrix::getReadRow	(	int32_t	i,
		bool	store = true )

Get row, read it if it is not in memory, and optionally store it for later access.

The returned vector has to be freed after use.

◆ getRow()

std::vector< double > aims::SparseOrDenseMatrix::getRow ( int32_t i ) const

◆ getSize()

std::vector< int32_t > aims::SparseOrDenseMatrix::getSize ( ) const

◆ getSize1()

int32_t aims::SparseOrDenseMatrix::getSize1 ( ) const

◆ getSize2()

int32_t aims::SparseOrDenseMatrix::getSize2 ( ) const

◆ getSparseColumn()

template<typename VectorType>

VectorType aims::SparseOrDenseMatrix::getSparseColumn ( int32_t i ) const

inline

Definition at line 237 of file sparseordensematrix.h.

References carto::VolumeRef< typename T >::at(), denseMatrix(), isDense(), and sparseMatrix().

◆ getSparseRow()

template<typename VectorType>

VectorType aims::SparseOrDenseMatrix::getSparseRow ( int32_t i ) const

inline

Definition at line 218 of file sparseordensematrix.h.

References carto::VolumeRef< typename T >::at(), denseMatrix(), isDense(), and sparseMatrix().

◆ hasElement()

bool aims::SparseOrDenseMatrix::hasElement	(	int32_t	i,
		int32_t	j ) const

◆ header() [1/2]

carto::Object aims::SparseOrDenseMatrix::header ( )

◆ header() [2/2]

const carto::Object aims::SparseOrDenseMatrix::header ( ) const

◆ isDense()

bool aims::SparseOrDenseMatrix::isDense ( ) const

inline

Definition at line 158 of file sparseordensematrix.h.

References _densematrix.

Referenced by getSparseColumn(), and getSparseRow().

◆ isOptimalShape()

bool aims::SparseOrDenseMatrix::isOptimalShape ( ) const

◆ lazyReader()

MatrixLazyReader * aims::SparseOrDenseMatrix::lazyReader ( ) const

inline

Definition at line 198 of file sparseordensematrix.h.

References _lazyreader.

◆ muteToDense()

void aims::SparseOrDenseMatrix::muteToDense ( )

◆ muteToOptimalShape()

void aims::SparseOrDenseMatrix::muteToOptimalShape ( )

mute to sparse or dense according to the less memory consuming

◆ muteToSparse()

void aims::SparseOrDenseMatrix::muteToSparse ( )

◆ operator()()

double aims::SparseOrDenseMatrix::operator()	(	int32_t	i,
		int32_t	j ) const

◆ operator*=()

SparseOrDenseMatrix & aims::SparseOrDenseMatrix::operator*= ( double x )

References SparseOrDenseMatrix().

◆ operator+=()

SparseOrDenseMatrix & aims::SparseOrDenseMatrix::operator+= ( const SparseOrDenseMatrix & thing )

References SparseOrDenseMatrix().

◆ operator-=()

SparseOrDenseMatrix & aims::SparseOrDenseMatrix::operator-= ( const SparseOrDenseMatrix & thing )

References SparseOrDenseMatrix().

◆ operator/=()

SparseOrDenseMatrix & aims::SparseOrDenseMatrix::operator/= ( double x )

◆ operator=()

SparseOrDenseMatrix & aims::SparseOrDenseMatrix::operator= ( const SparseOrDenseMatrix & other )

References SparseOrDenseMatrix().

◆ optimalShapeThreshold()

unsigned long aims::SparseOrDenseMatrix::optimalShapeThreshold ( ) const

below this number of non-nul elements, the optimal shape is sparse

References SparseOrDenseMatrix().

◆ read()

void aims::SparseOrDenseMatrix::read ( const std::string & filename )

◆ readAll()

void aims::SparseOrDenseMatrix::readAll ( )

read all rows using lazy reading, using the MatrixLazyReader.

The default implementation does just nothing.

◆ readColumn()

void aims::SparseOrDenseMatrix::readColumn ( int32_t i )

read a column using lazy reading, using the MatrixLazyReader.

The default implementation does just nothing.

If "vector" is not Null, the read vector is "returned" in vector. In such a case, the vector has to be freed after use. If store is false and vector is not null, the vector is read (potentially from disk) but not kept in the matrix.

◆ readRow()

void aims::SparseOrDenseMatrix::readRow ( int32_t i )

read a row using lazy reading, using the MatrixLazyReader.

The default implementation does just nothing.

If "vector" is not Null, the read vector is "returned" in vector. In such a case, the vector has to be freed after use. If store is false and vector is not null, the vector is read (potentially from disk) but not kept in the matrix.

◆ reallocate()

void aims::SparseOrDenseMatrix::reallocate	(	int32_t	size1,
		int32_t	size2 )

◆ set_element()

void aims::SparseOrDenseMatrix::set_element	(	int32_t	i,
		int32_t	j,
		double	x )

◆ setColumn()

void aims::SparseOrDenseMatrix::setColumn	(	int32_t	s2,
		const std::vector< double > &	column )

◆ setHeader()

void aims::SparseOrDenseMatrix::setHeader ( carto::Object ph )

◆ setLazyReader()

void aims::SparseOrDenseMatrix::setLazyReader ( MatrixLazyReader * reader )

inline

Definition at line 193 of file sparseordensematrix.h.

References _lazyreader.

◆ setMatrix() [1/2]

void aims::SparseOrDenseMatrix::setMatrix ( DenseMatrixType matrix )

◆ setMatrix() [2/2]

void aims::SparseOrDenseMatrix::setMatrix ( SparseMatrixType matrix )

◆ setRow()

void aims::SparseOrDenseMatrix::setRow	(	int32_t	s1,
		const std::vector< double > &	row )

◆ sparseMatrix() [1/2]

SparseMatrixType aims::SparseOrDenseMatrix::sparseMatrix ( )

inline

Definition at line 160 of file sparseordensematrix.h.

References _sparsematrix.

Referenced by getSparseColumn(), and getSparseRow().

◆ sparseMatrix() [2/2]

const SparseMatrixType aims::SparseOrDenseMatrix::sparseMatrix ( ) const

inline

Definition at line 161 of file sparseordensematrix.h.

References _sparsematrix.

◆ subMatrix() [1/2]

SparseOrDenseMatrix * aims::SparseOrDenseMatrix::subMatrix	(	const std::vector< int32_t > &	start,
		const std::vector< int32_t > &	size )

References SparseOrDenseMatrix().

◆ subMatrix() [2/2]

SparseOrDenseMatrix * aims::SparseOrDenseMatrix::subMatrix ( const std::vector< std::vector< int32_t > > & indices_along_dims )

References SparseOrDenseMatrix().

◆ write()

void aims::SparseOrDenseMatrix::write	(	const std::string &	filename,
		carto::Object	options = carto::none() ) const

References carto::none().

Member Data Documentation

◆ _densematrix

DenseMatrixType aims::SparseOrDenseMatrix::_densematrix

protected

Definition at line 209 of file sparseordensematrix.h.

Referenced by denseMatrix(), denseMatrix(), and isDense().

◆ _fakeheader

carto::Object aims::SparseOrDenseMatrix::_fakeheader

protected

Definition at line 210 of file sparseordensematrix.h.

◆ _lazyreader

MatrixLazyReader* aims::SparseOrDenseMatrix::_lazyreader

protected

Definition at line 211 of file sparseordensematrix.h.

Referenced by lazyReader(), and setLazyReader().

◆ _sparsematrix

SparseMatrixType aims::SparseOrDenseMatrix::_sparsematrix

protected

Definition at line 208 of file sparseordensematrix.h.

Referenced by sparseMatrix(), and sparseMatrix().

The documentation for this class was generated from the following file:

aims/sparsematrix/sparseordensematrix.h

Classes

Public Types

Public Member Functions

Protected Attributes

Detailed Description

Member Typedef Documentation

◆ DenseMatrixType

◆ SparseMatrixType

Constructor & Destructor Documentation

◆ SparseOrDenseMatrix() [1/2]

◆ SparseOrDenseMatrix() [2/2]

◆ ~SparseOrDenseMatrix()

Member Function Documentation

◆ asDense()

◆ asSparse()

◆ denseMatrix() [1/2]

◆ denseMatrix() [2/2]

◆ erase_element()

◆ freeColumn()

◆ freeRow()

◆ getColumn()

◆ getNonZeroElementCount()

◆ getReadColumn()

◆ getReadRow()

◆ getRow()

◆ getSize()

◆ getSize1()

◆ getSize2()

◆ getSparseColumn()

◆ getSparseRow()

◆ hasElement()

◆ header() [1/2]

◆ header() [2/2]

◆ isDense()

◆ isOptimalShape()

◆ lazyReader()

◆ muteToDense()

◆ muteToOptimalShape()

◆ muteToSparse()

◆ operator()()

◆ operator*=()

◆ operator+=()

◆ operator-=()

◆ operator/=()

◆ operator=()

◆ optimalShapeThreshold()

◆ read()

◆ readAll()

◆ readColumn()

◆ readRow()

◆ reallocate()

◆ set_element()

◆ setColumn()

◆ setHeader()

◆ setLazyReader()

◆ setMatrix() [1/2]

◆ setMatrix() [2/2]

◆ setRow()

◆ sparseMatrix() [1/2]

◆ sparseMatrix() [2/2]

◆ subMatrix() [1/2]

◆ subMatrix() [2/2]

◆ write()

Member Data Documentation

◆ _densematrix

◆ _fakeheader

◆ _lazyreader

◆ _sparsematrix
