aims::CutTexturedMesh< T > Class Template Reference

Textured variant of CutMesh. More...

#include <aims/mesh/cutmesh.h>

Inheritance diagram for aims::CutTexturedMesh< T >:

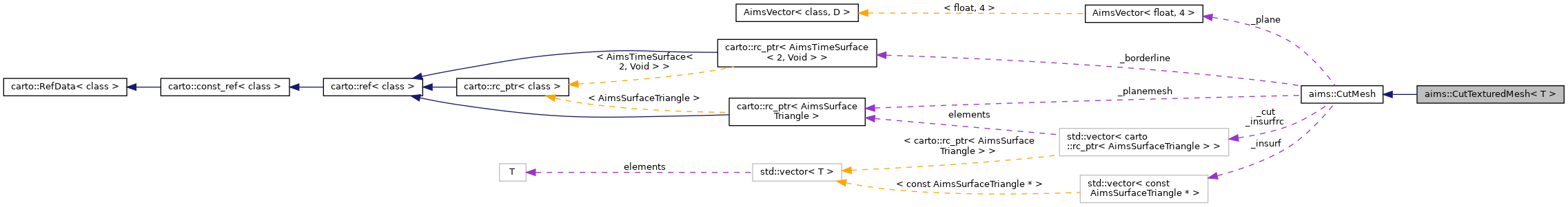

Collaboration diagram for aims::CutTexturedMesh< T >:

Public Member Functions
	CutTexturedMesh (const std::vector< const AimsSurfaceTriangle * > &insurf, const std::vector< std::vector< const TimeTexture< T > * > > &intex, const Point4df &plane)
	CutTexturedMesh (const std::vector< const AimsSurfaceTriangle * > &insurf, const std::vector< std::vector< carto::rc_ptr< TimeTexture< T > > > > &intex, const Point4df &plane)
virtual	~CutTexturedMesh ()
void	setTextures (const std::vector< std::vector< carto::rc_ptr< TimeTexture< T > > > > &intex)
void	setTextures (const std::vector< std::vector< const TimeTexture< T > * > > &intex)
std::vector< std::vector< carto::rc_ptr< TimeTexture< T > > > >	cutTextures () const
	get output More...
Public Member Functions inherited from aims::CutMesh
	CutMesh (const AimsSurfaceTriangle &insurf, const Point4df &plane)
	CutMesh (const std::vector< const AimsSurfaceTriangle * > &insurf, const Point4df &plane)
virtual	~CutMesh ()
void	cut (bool buildborderline=true, bool meshplane=false, bool checkplane=true)
	Perform calculations. More...
void	cutBorder (int timestep=0)
	build border line mesh only More...
std::vector< carto::rc_ptr< AimsSurfaceTriangle > >	cutMeshes () const
	get output More...
carto::rc_ptr< AimsTimeSurface< 2, Void > >	borderLine () const
	get output More...
carto::rc_ptr< AimsSurfaceTriangle >	planeMesh () const
	get output More...

Protected Member Functions
virtual void	initializeOutputTextures ()
virtual void	addTexturePoint (int mesh, uint v)
	this callback is called to handle textures: add tex corresponding to a vertex in the given mesh More...
virtual void	addTextureInterpolPoint (int mesh, uint v, float w1, uint w, float w2)
	this callback is called to handle textures: add tex corresponding to an interpolation between two vertices in the given mesh More...

Additional Inherited Members
Protected Attributes inherited from aims::CutMesh
std::vector< const AimsSurfaceTriangle * >	_insurf
std::vector< carto::rc_ptr< AimsSurfaceTriangle > >	_insurfrc
Point4df	_plane
std::vector< carto::rc_ptr< AimsSurfaceTriangle > >	_cut
carto::rc_ptr< AimsTimeSurface< 2, Void > >	_borderline
carto::rc_ptr< AimsSurfaceTriangle >	_planemesh

Detailed Description

template<typename T>
class aims::CutTexturedMesh< T >

Textured variant of CutMesh.

This specialization also cuts a set of textures mapped on each of the meshes to be cut.

Definition at line 108 of file cutmesh.h.

Constructor & Destructor Documentation

CutTexturedMesh() [1/2]

template<typename T >

aims::CutTexturedMesh< T >::CutTexturedMesh	(	const std::vector< const AimsSurfaceTriangle * > &	insurf,
		const std::vector< std::vector< const TimeTexture< T > * > > &	intex,
		const Point4df &	plane
	)

Definition at line 44 of file cutmesh_d.h.

CutTexturedMesh() [2/2]

template<typename T >

aims::CutTexturedMesh< T >::CutTexturedMesh	(	const std::vector< const AimsSurfaceTriangle * > &	insurf,
		const std::vector< std::vector< carto::rc_ptr< TimeTexture< T > > > > &	intex,
		const Point4df &	plane
	)

Definition at line 54 of file cutmesh_d.h.

References aims::CutTexturedMesh< T >::setTextures().

~CutTexturedMesh()

template<typename T >

aims::CutTexturedMesh< T >::~CutTexturedMesh

virtual

Definition at line 65 of file cutmesh_d.h.

Member Function Documentation

addTextureInterpolPoint()

template<typename T >

void aims::CutTexturedMesh< T >::addTextureInterpolPoint ( int  , uint  , float  , uint  , float    )

protectedvirtual

this callback is called to handle textures: add tex corresponding to an interpolation between two vertices in the given mesh

Reimplemented from aims::CutMesh.

Definition at line 186 of file cutmesh_d.h.

References Texture< T >::push_back().

addTexturePoint()

template<typename T >

void aims::CutTexturedMesh< T >::addTexturePoint ( int  , uint    )

protectedvirtual

this callback is called to handle textures: add tex corresponding to a vertex in the given mesh

Reimplemented from aims::CutMesh.

Definition at line 116 of file cutmesh_d.h.

References Texture< T >::push_back().

cutTextures()

template<typename T >

std::vector<std::vector<carto::rc_ptr<TimeTexture<T> > > > aims::CutTexturedMesh< T >::cutTextures ( ) const

inline

get output

Definition at line 129 of file cutmesh.h.

initializeOutputTextures()

template<typename T >

void aims::CutTexturedMesh< T >::initializeOutputTextures

protectedvirtual

Reimplemented from aims::CutMesh.

Definition at line 101 of file cutmesh_d.h.

setTextures() [1/2]

template<typename T >

void aims::CutTexturedMesh< T >::setTextures

(

const std::vector< std::vector< carto::rc_ptr< TimeTexture< T > > > > &

intex

)

Definition at line 71 of file cutmesh_d.h.

Referenced by aims::CutTexturedMesh< T >::CutTexturedMesh().

setTextures() [2/2]

template<typename T >

void aims::CutTexturedMesh< T >::setTextures

(

const std::vector< std::vector< const TimeTexture< T > * > > &

intex

)

Definition at line 92 of file cutmesh_d.h.

---

The documentation for this class was generated from the following files:

• aims/mesh/cutmesh.h
• aims/mesh/cutmesh_d.h
