til::Box< T, D > Class Template Reference

A 3D box parallel to canonical axes. More...

#include <til/Box.h>

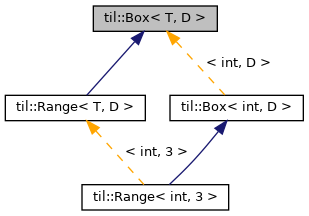

Inheritance diagram for til::Box< T, D >:

Public Types
typedef Box< T, D >	Self

Public Member Functions
	Box ()
	Default constructor. All coordinates are set to zero. More...
	Box (const numeric_array< T, D > &posMin, const numeric_array< T, D > &posMax)
	Set min and max bounds for all dimensions. More...
const numeric_array< T, D > &	min_bounds () const
	Get min bounds. More...
const numeric_array< T, D > &	max_bounds () const
	Get max bounds. More...
void	set_min_bounds (const numeric_array< T, D > &min)
	Set min bounds. More...
void	set_max_bounds (const numeric_array< T, D > &min)
	Set max bounds. More...
void	set_min_bound (std::size_t i, T value)
	Set min bound on axis i. More...
void	set_max_bound (std::size_t i, T value)
	Set max bound on axis i. More...
void	set_bounds (const numeric_array< T, D > &minBounds, const numeric_array< T, D > &maxBounds)
	Set min and max bounds. More...
void	set_bounds (std::size_t i, T min, T max)
	Set min and max bounds for axis i. More...

Detailed Description

template<typename T, std::size_t D>
class til::Box< T, D >

A 3D box parallel to canonical axes.

Definition at line 25 of file Box.h.

Member Typedef Documentation

Self

template<typename T, std::size_t D>

typedef Box<T,D> til::Box< T, D >::Self

Definition at line 28 of file Box.h.

Constructor & Destructor Documentation

Box() [1/2]

template<typename T , std::size_t D>

til::Box< T, D >::Box

(

)

Default constructor. All coordinates are set to zero.

Definition at line 76 of file Box.h.

Box() [2/2]

template<typename T, std::size_t D>

til::Box< T, D >::Box	(	const numeric_array< T, D > &	posMin,
		const numeric_array< T, D > &	posMax
	)

Set min and max bounds for all dimensions.

Definition at line 81 of file Box.h.

Member Function Documentation

max_bounds()

template<typename T, std::size_t D>

const numeric_array<T,D>& til::Box< T, D >::max_bounds ( ) const

inline

Get max bounds.

Definition at line 43 of file Box.h.

Referenced by til::contains(), til::extractSubImage(), til::ConstVolumetricIterator< ImageC< T > >::init(), til::intersection(), til::size(), and til::volume().

min_bounds()

template<typename T, std::size_t D>

const numeric_array<T,D>& til::Box< T, D >::min_bounds ( ) const

inline

Get min bounds.

Definition at line 41 of file Box.h.

Referenced by til::computeAffineTransformBetween(), til::contains(), til::extractSubImage(), til::ConstVolumetricIterator< ImageC< T > >::init(), til::ConstVolumetricIterator< ImageNC< T > >::init(), til::intersection(), til::size(), and til::volume().

set_bounds() [1/2]

template<typename T, std::size_t D>

void til::Box< T, D >::set_bounds	(	const numeric_array< T, D > &	minBounds,
		const numeric_array< T, D > &	maxBounds
	)

Set min and max bounds.

Definition at line 87 of file Box.h.

Referenced by til::Box< int, D >::max_bounds(), til::setCenterAndHalfSizes(), til::setCenterAndSizes(), and til::setSlice().

set_bounds() [2/2]

template<typename T, std::size_t D>

void til::Box< T, D >::set_bounds	(	std::size_t	i,
		T	min,
		T	max
	)

Set min and max bounds for axis i.

Definition at line 95 of file Box.h.

set_max_bound()

template<typename T, std::size_t D>

void til::Box< T, D >::set_max_bound	(	std::size_t	i,
		T	value
	)

Set max bound on axis i.

Definition at line 124 of file Box.h.

Referenced by til::Box< int, D >::max_bounds().

set_max_bounds()

template<typename T, std::size_t D>

void til::Box< T, D >::set_max_bounds

(

const numeric_array< T, D > &

min

)

Set max bounds.

Definition at line 110 of file Box.h.

Referenced by til::Box< int, D >::max_bounds().

set_min_bound()

template<typename T, std::size_t D>

void til::Box< T, D >::set_min_bound	(	std::size_t	i,
		T	value
	)

Set min bound on axis i.

Definition at line 117 of file Box.h.

Referenced by til::Box< int, D >::max_bounds().

set_min_bounds()

template<typename T, std::size_t D>

void til::Box< T, D >::set_min_bounds

(

const numeric_array< T, D > &

min

)

Set min bounds.

Definition at line 103 of file Box.h.

Referenced by til::Box< int, D >::max_bounds().

---

The documentation for this class was generated from the following file:

• til/Box.h
