anatomist::SelfSliceable Class Reference

Self sliceable objects contain a plane (slice) information: slice position and orientation only depend on the object itself. More...

#include <anatomist/object/selfsliceable.h>

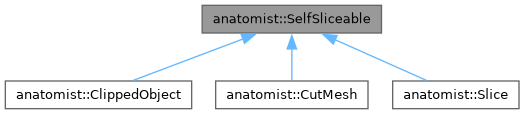

Inheritance diagram for anatomist::SelfSliceable:

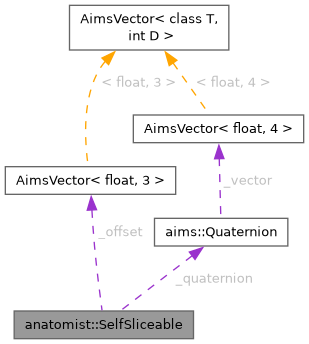

Collaboration diagram for anatomist::SelfSliceable:

Public Member Functions
	SelfSliceable ()
	SelfSliceable (const Point3df &pos, const aims::Quaternion &quat)
virtual	~SelfSliceable ()
void	setOffset (const Point3df &pos)
void	setQuaternion (const aims::Quaternion &quat)
void	setSlice (const Point3df &pos, const aims::Quaternion &quat)
aims::Quaternion	quaternion () const
Point3df	offset () const
void	setPlane (const Point4df &plane)
	alternative to setSlice()
Point4df	plane () const
	another way to get the slice plane
void	invertSlice ()
virtual void	sliceChanged ()
	called when the slice definition has changed
virtual void	setOffsetSilent (const Point3df &pos)
	"silent" functions don't call sliceChanged()
virtual void	setQuaternionSilent (const aims::Quaternion &quat)
	"silent" functions don't call sliceChanged()
virtual void	setSliceSilent (const Point3df &pos, const aims::Quaternion &quat)
	"silent" functions don't call sliceChanged()
void	setPlaneSilent (const Point4df &plane)
	"silent" functions don't call sliceChanged()
void	makeSliceHeaderOptions (carto::Object options) const
	implement a part of AObject::makeHeaderOptions for slice description
void	setSliceProperties (carto::Object options)

Protected Attributes
Point3df	_offset
aims::Quaternion	_quaternion

Detailed Description

Self sliceable objects contain a plane (slice) information: slice position and orientation only depend on the object itself.

Definition at line 46 of file selfsliceable.h.

Constructor & Destructor Documentation

SelfSliceable() [1/2]

anatomist::SelfSliceable::SelfSliceable

(

)

SelfSliceable() [2/2]

anatomist::SelfSliceable::SelfSliceable	(	const Point3df &	pos,
		const aims::Quaternion &	quat )

~SelfSliceable()

virtual anatomist::SelfSliceable::~SelfSliceable ( )

virtual

Member Function Documentation

invertSlice()

void anatomist::SelfSliceable::invertSlice

(

)

makeSliceHeaderOptions()

void anatomist::SelfSliceable::makeSliceHeaderOptions

(

carto::Object

options

)

const

implement a part of AObject::makeHeaderOptions for slice description

offset()

Point3df anatomist::SelfSliceable::offset ( ) const

inline

Definition at line 57 of file selfsliceable.h.

References _offset.

plane()

Point4df anatomist::SelfSliceable::plane

(

)

const

another way to get the slice plane

Referenced by setPlane(), and setPlaneSilent().

quaternion()

aims::Quaternion anatomist::SelfSliceable::quaternion ( ) const

inline

Definition at line 56 of file selfsliceable.h.

References _quaternion.

setOffset()

void anatomist::SelfSliceable::setOffset ( const Point3df & pos )

inline

Definition at line 88 of file selfsliceable.h.

References setOffsetSilent(), and sliceChanged().

setOffsetSilent()

virtual void anatomist::SelfSliceable::setOffsetSilent ( const Point3df & pos )

virtual

"silent" functions don't call sliceChanged()

Referenced by setOffset().

setPlane()

void anatomist::SelfSliceable::setPlane ( const Point4df & plane )

inline

alternative to setSlice()

Definition at line 110 of file selfsliceable.h.

References plane(), setPlaneSilent(), and sliceChanged().

setPlaneSilent()

void anatomist::SelfSliceable::setPlaneSilent

(

const Point4df &

plane

)

"silent" functions don't call sliceChanged()

References plane().

Referenced by setPlane().

setQuaternion()

void anatomist::SelfSliceable::setQuaternion ( const aims::Quaternion & quat )

inline

Definition at line 94 of file selfsliceable.h.

References setQuaternionSilent(), sliceChanged(), and aims::Quaternion::vector().

setQuaternionSilent()

virtual void anatomist::SelfSliceable::setQuaternionSilent ( const aims::Quaternion & quat )

virtual

"silent" functions don't call sliceChanged()

Referenced by setQuaternion().

setSlice()

void anatomist::SelfSliceable::setSlice ( const Point3df & pos, const aims::Quaternion & quat )

inline

Definition at line 103 of file selfsliceable.h.

References setSliceSilent(), and sliceChanged().

setSliceProperties()

void anatomist::SelfSliceable::setSliceProperties

(

carto::Object

options

)

setSliceSilent()

virtual void anatomist::SelfSliceable::setSliceSilent ( const Point3df & pos, const aims::Quaternion & quat )

virtual

"silent" functions don't call sliceChanged()

Referenced by setSlice().

sliceChanged()

virtual void anatomist::SelfSliceable::sliceChanged ( )

inlinevirtual

called when the slice definition has changed

Reimplemented in anatomist::ClippedObject, anatomist::CutMesh, and anatomist::Slice.

Definition at line 65 of file selfsliceable.h.

Referenced by setOffset(), setPlane(), setQuaternion(), and setSlice().

Member Data Documentation

_offset

Point3df anatomist::SelfSliceable::_offset

protected

Definition at line 81 of file selfsliceable.h.

Referenced by offset().

_quaternion

aims::Quaternion anatomist::SelfSliceable::_quaternion

protected

Definition at line 82 of file selfsliceable.h.

Referenced by quaternion().

---

The documentation for this class was generated from the following file:

• anatomist/object/selfsliceable.h
