MaterialWindow Class Reference

Material aspect (color / transparency) tuning window. More...

#include <anatomist/color/wMaterial.h>

Inheritance diagram for MaterialWindow:

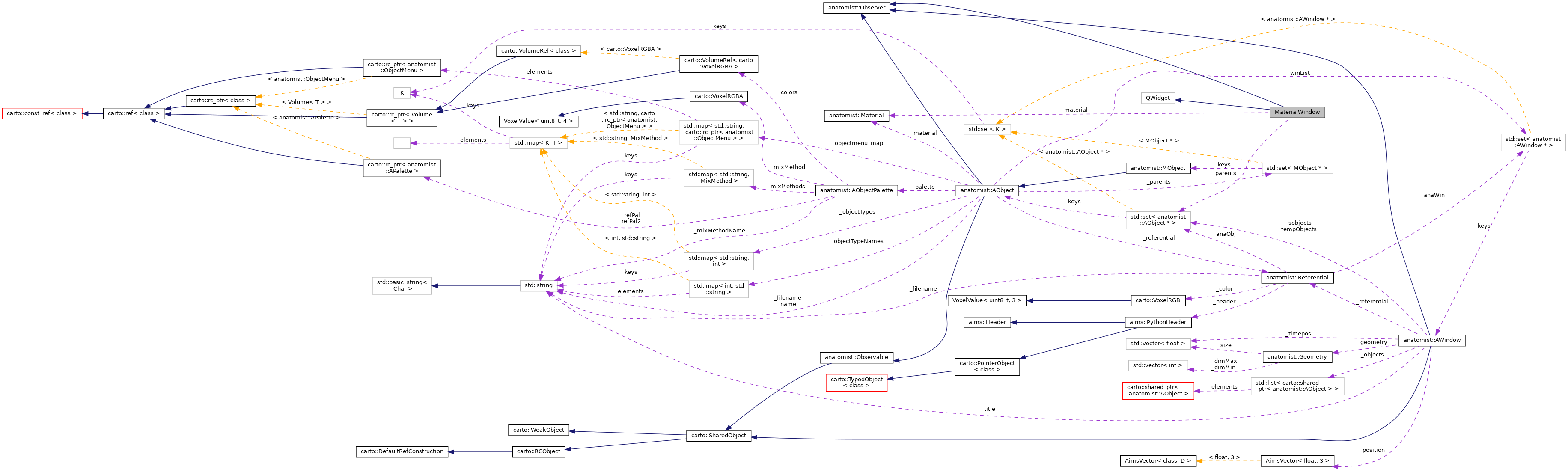

Collaboration diagram for MaterialWindow:

Public Slots
void	enableTab (int)
	called by the QTabBar change More...
void	enableAutoUpdate (bool)

Public Member Functions
	MaterialWindow (const std::set< anatomist::AObject * > &, QWidget *parent=0, const char *name=0, Qt::WindowFlags f=Qt::WindowFlags())
virtual	~MaterialWindow ()
const std::set< anatomist::AObject * > &	objects () const
const anatomist::Material &	getMaterial () const
void	update (const anatomist::Observable *observable, void *arg)
	This method is called whenever the observed object is changed. More...
void	updateObjects ()
void	updateInterface ()
void	runCommand ()
Public Member Functions inherited from anatomist::Observer
virtual	~Observer ()

Protected Slots
void	valueChanged (int panel, int color, int value)
void	shininessChanged (int value)
void	chooseObject ()
void	objectsChosen (const std::set< anatomist::AObject * > &)

Protected Member Functions
virtual void	unregisterObservable (anatomist::Observable *)
	Called when an observable is destroyed, only called by Observable: don't use this function directly. More...
void	drawContents ()
QWidget *	buildRgbaBox (QWidget *parent, int num)
	internal: draws a RGBA widgets group More...
void	updatePanel (unsigned panel)
	internal: updates the sliders / labels positions for one RGBA box More...
Protected Member Functions inherited from anatomist::Observer
virtual void	cleanupObserver ()
	call this function from inherited classes destructors. More...
virtual void	registerObservable (Observable *)
	only called by Observable: don't use this function directly More...
const std::set< Observable * > &	observed () const

Protected Attributes
std::set< anatomist::AObject * >	_parents
anatomist::Material	_material

Detailed Description

Material aspect (color / transparency) tuning window.

Definition at line 52 of file wMaterial.h.

Constructor & Destructor Documentation

MaterialWindow()

MaterialWindow::MaterialWindow	(	const std::set< anatomist::AObject * > &	,
		QWidget *	parent = 0,
		const char *	name = 0,
		Qt::WindowFlags	f = Qt::WindowFlags()
	)

~MaterialWindow()

virtual MaterialWindow::~MaterialWindow ( )

virtual

Member Function Documentation

buildRgbaBox()

QWidget* MaterialWindow::buildRgbaBox ( QWidget *  parent, int  num  )

protected

internal: draws a RGBA widgets group

chooseObject

void MaterialWindow::chooseObject ( )

protectedslot

drawContents()

void MaterialWindow::drawContents ( )

protected

enableAutoUpdate

void MaterialWindow::enableAutoUpdate ( bool  )

slot

References slots.

enableTab

void MaterialWindow::enableTab ( int  )

slot

called by the QTabBar change

getMaterial()

const anatomist::Material& MaterialWindow::getMaterial ( ) const

inline

Definition at line 62 of file wMaterial.h.

References _material.

objects()

const std::set<anatomist::AObject*>& MaterialWindow::objects ( ) const

inline

Definition at line 61 of file wMaterial.h.

References _parents.

objectsChosen

void MaterialWindow::objectsChosen ( const std::set< anatomist::AObject * > &  )

protectedslot

runCommand()

void MaterialWindow::runCommand

(

)

References slots.

shininessChanged

void MaterialWindow::shininessChanged ( int  value )

protectedslot

unregisterObservable()

virtual void MaterialWindow::unregisterObservable ( anatomist::Observable *  )

protectedvirtual

Called when an observable is destroyed, only called by Observable: don't use this function directly.

Reimplemented from anatomist::Observer.

update()

void MaterialWindow::update ( const anatomist::Observable *  observable, void *  arg  )

virtual

This method is called whenever the observed object is changed.

The programmer calls an observable object's notifyObservers method to have all the object's observers notified of the change.

Parameters

observable

the observable object

Implements anatomist::Observer.

updateInterface()

void MaterialWindow::updateInterface

(

)

updateObjects()

void MaterialWindow::updateObjects

(

)

updatePanel()

void MaterialWindow::updatePanel ( unsigned  panel )

protected

internal: updates the sliders / labels positions for one RGBA box

valueChanged

void MaterialWindow::valueChanged ( int  panel, int  color, int  value  )

protectedslot

Member Data Documentation

_material

anatomist::Material MaterialWindow::_material

protected

Definition at line 89 of file wMaterial.h.

Referenced by getMaterial().

_parents

std::set<anatomist::AObject *> MaterialWindow::_parents

protected

Definition at line 88 of file wMaterial.h.

Referenced by objects().

---

The documentation for this class was generated from the following file:

• anatomist/color/wMaterial.h
