Abstract base class Anatomist window. More...

#include <anatomist/window/Window.h>

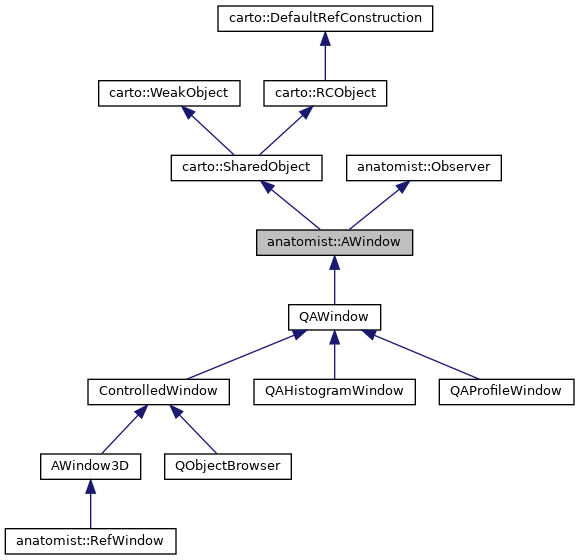

Inheritance diagram for anatomist::AWindow:

[legend]

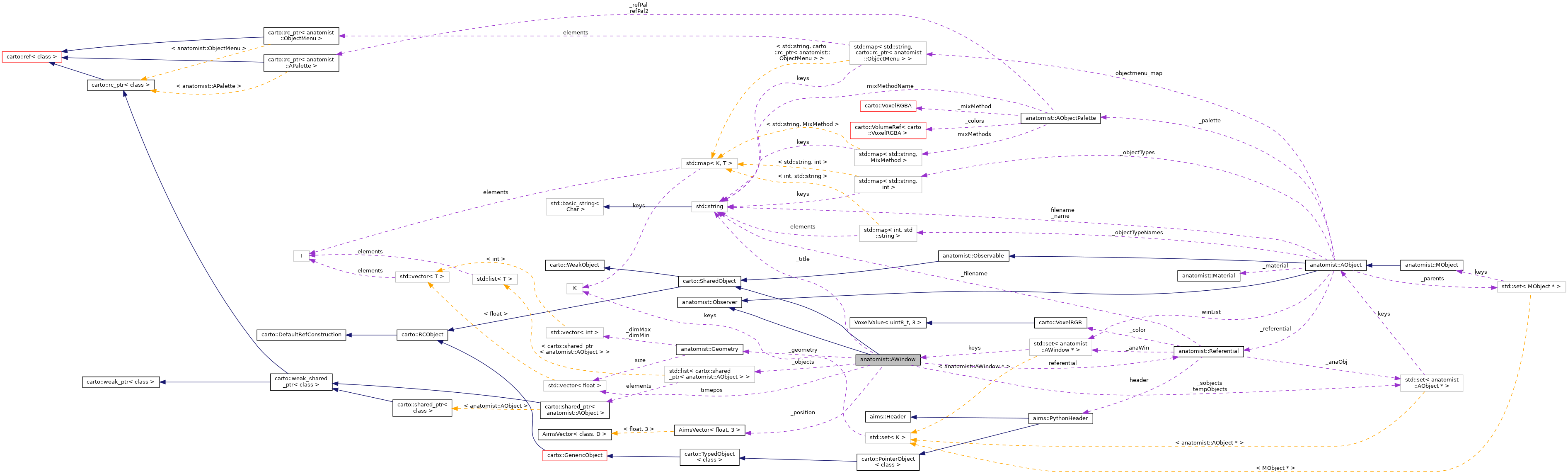

Collaboration diagram for anatomist::AWindow:

[legend]

Public Types
enum	Type { CTRL_WINDOW = 100 , WINDOW_2D = 101 , WINDOW_3D = 102 }

enum	SubType { AXIAL_WINDOW = 200 , SAGITTAL_WINDOW = 201 , CORONAL_WINDOW = 202 , OBLIQUE_WINDOW = 203 , OTHER = 299 }

enum	RecordingState { OFF , ON , DISABLED }

Public Types inherited from carto::RCObject
typedef int	RefCounterType

Public Member Functions
virtual	~AWindow ()
	Unregisters from the application and other objects. More...

Public Member Functions inherited from carto::SharedObject
	SharedObject ()

	SharedObject (const SharedObject &x)

virtual	~SharedObject ()

SharedObject &	operator= (const SharedObject &)

bool	testDeletable ()

bool	tryDelete ()

Public Member Functions inherited from carto::WeakObject
void	attachWeakPtr (weak_ptr< T > &) const

void	detachWeakPtr (weak_ptr< T > &) const

void	attachWeakPtr (weak_shared_ptr< T > &) const

void	detachWeakPtr (weak_shared_ptr< T > &) const

virtual	~WeakObject ()

Public Member Functions inherited from carto::RCObject
	RCObject ()

	RCObject (const RCObject &)

RCObject &	operator= (const RCObject &)

virtual	~RCObject ()

Public Member Functions inherited from anatomist::Observer
virtual	~Observer ()

Usual window operations
int	_id
	Window identificator. More...

bool	_refresh
	Should the window be refreshed? More...

bool	_lookupChanged
	Lookup has changed (title or geometry) More...

std::list< carto::shared_ptr< AObject > >	_objects
	List of the objects contained in the window. More...

std::set< AObject * >	_sobjects
	Same but as a set (for fast search) More...

std::set< AObject * >	_tempObjects

std::vector< float >	_timepos
	Cursor time + next dimensions. More...

Referential *	_referential
	Referentiel. More...

Geometry *	_geometry
	Geometry. More...

std::string	_title
	Title of the window. More...

int	_instNumber
	Number of instance of the window class. More...

int	_group
	Group number, for linked windows. More...

Point3df	_position
	Click position. More...

void	displayTalairach ()
	Affiche les coordonnees de Talairach qui correspondent a la position du curseur lie (window 2D) More...

virtual void	iconify ()

virtual void	unIconify ()

virtual void	show ()

virtual void	hide ()

virtual bool	close ()=0

virtual void	showToolBars (int state=2)
	Shows or hides all tools (menu, toolbars) around the main view area. More...

virtual bool	toolBarsVisible () const

virtual void	setFullScreen (int state=2)

virtual bool	isFullScreen () const

virtual void	setGeometry (int x, int y, unsigned w, unsigned h)=0

virtual void	geometry (int x, int y, unsigned w, unsigned h)=0
	Get position and dimensions of the window. More...

virtual void	Refresh ()

virtual void	showReferential ()

virtual void	setupWindow ()
	Sets correct size and lookup of the window. More...

virtual std::string	Title () const

virtual void	registerObject (AObject *object, bool temporaryObject=false, int position=-1)

virtual void	unregisterObject (AObject *object)

void	setId (int id)
	Set the window identifier. More...

void	SetRefreshFlag ()
	Set the refresh flag on. More...

void	ResetRefreshFlag ()
	Set the refresh flag off. More...

bool	lookupChanged () const

void	setLookupChanged (bool flg=true)

int	id () const
	Get the window identifier. More...

virtual Type	type () const =0
	Get the window type (2D, 3D or control) More...

virtual SubType	subtype () const

bool	RefreshFlag () const
	Get the refresh flag status. More...

std::set< AObject * >	Objects () const
	Get the objects. More...

bool	hasObject (AObject *obj) const

virtual Point3df	getPosition () const
	Get position of cursor. More...

float	getTime () const
	Get time position of cursor. More...

virtual std::vector< float >	getFullPosition () const

virtual void	setPosition (const Point3df &position, const Referential *refdep)
	Set position of cursor. More...

virtual void	setPosition (const std::vector< float > &position, const Referential *refdep=0)

virtual void	setTime (float time)
	Set time position of cursor. More...

virtual void	setTitle (const std::string &title)

Referential *	getReferential () const

virtual void	setReferential (Referential *ref)

Geometry *	windowGeometry () const

void	setWindowGeometry (Geometry *geom)

virtual void	updateWindowGeometry ()
	adapts geometry to the current contents and referential More...

int	Group () const

void	setGroup (int group)

void	setHasCursor (int hasCursor)

bool	hasCursor () const
	takes both the global and own flags into account More...

int	hasSelfCursor () const
	returns the own flag of the window (see hasGlobalCursor) (tri-state) More...

virtual void	displayClickPoint ()

virtual bool	positionFromCursor (int x, int y, Point3df &pos)
	Translates mouse position to Anatomist geometry position. More...

virtual AObject *	objectAt (const std::vector< float > &pos)

virtual void	selectObject (const std::vector< float > &pos, int modifier)
	Selects (highlights) object at a given 4D space position. More...

virtual void	button3clicked (int x, int y)
	handles button3 click (menu) More...

virtual void	findObjectsAt (const std::vector< float > &pos, std::set< AObject * > &shown, std::set< AObject * > &hidden)
	finds objects at given position (internal) More...

virtual void	update (const Observable observable, void arg)
	This method is called whenever the observed object is changed. More...

virtual void	recordImages ()

virtual RecordingState	recordingState () const

virtual void	startRecord ()

virtual void	startRecord (const std::string &filename)

virtual void	stopRecord ()

virtual void	createTitle ()
	Creates a new title for the window. More...

virtual const std::set< unsigned > &	typeCount () const

virtual std::set< unsigned > &	typeCount ()

virtual const std::string &	baseTitle () const

virtual bool	needsRedraw () const
	returns true if a refresh has been triggered and not performed yet (in subclasses: AWindow always returns false) More...

bool	isTemporary (AObject *o) const

const std::set< AObject * > &	temporaryObjects () const

static void	setLeftRightDisplay (bool state)

static int	leftRightDisplay ()

static void	setLeftRightDisplaySize (int size)

static int	leftRightDisplaySize ()

static void	setDisplayedAnnotations (const std::vector< std::string > &annotation_list)

static std::vector< std::string >	displayedAnnotations ()

static void	setGlobalHasCursor (bool hasCursor)

static int	hasGlobalCursor ()

static void	setCursorSize (int cursorSize)

static int	cursorSize ()

static void	setUseDefaultCursorColor (bool state)
	Set the default color cursor flag. More...

static int	useDefaultCursorColor ()
	Give the default color cursor flag. More...

static void	setCursorColor (const AimsRGB &cursCol)
	Set the color cursor. More...

static AimsRGB	cursorColor ()
	Give the color cursor. More...

static float	selectTolerence ()
	Selection tolerence distance. More...

static void	setSelectTolerence (float tol)
	Set the selection tolerence distance. More...

static void	recordCbk (void *clientdata)

	AWindow ()
	AWindow constructor registers itself in the application. More...

void	setWindowTitle ()
	Set the title of the window. More...

virtual void	unregisterObservable (Observable *obs)
	Called when an observable is destroyed, only called by Observable: don't use this function directly. More...

void	manageAutoReferential ()
	automatically set the contained objects referential to the window if it has not been set manually, and if all objetcs share the same referential. More...

Additional Inherited Members
Protected Member Functions inherited from carto::SharedObject
void	disableRefCount ()

Protected Member Functions inherited from carto::WeakObject
	WeakObject ()

	WeakObject (const WeakObject &)

WeakObject &	operator= (const WeakObject &)

Protected Member Functions inherited from anatomist::Observer
virtual void	cleanupObserver ()
	call this function from inherited classes destructors. More...

virtual void	registerObservable (Observable *)
	only called by Observable: don't use this function directly More...

const std::set< Observable * > &	observed () const

Detailed Description

Abstract base class Anatomist window.

Definition at line 57 of file Window.h.

Member Enumeration Documentation

◆ RecordingState

enum anatomist::AWindow::RecordingState

Enumerator
OFF
ON
DISABLED

Definition at line 76 of file Window.h.

◆ SubType

enum anatomist::AWindow::SubType

Enumerator
AXIAL_WINDOW
SAGITTAL_WINDOW
CORONAL_WINDOW
OBLIQUE_WINDOW
OTHER

Definition at line 67 of file Window.h.

◆ Type

enum anatomist::AWindow::Type

Enumerator
CTRL_WINDOW
WINDOW_2D
WINDOW_3D

Definition at line 60 of file Window.h.

Constructor & Destructor Documentation

◆ ~AWindow()

virtual anatomist::AWindow::~AWindow ( )

virtual

Unregisters from the application and other objects.

◆ AWindow()

anatomist::AWindow::AWindow ( )

protected

AWindow constructor registers itself in the application.

Member Function Documentation

◆ baseTitle()

virtual const std::string& anatomist::AWindow::baseTitle ( ) const

virtual

Reimplemented in QAProfileWindow, QAHistogramWindow, AWindow3D, and QObjectBrowser.

◆ button3clicked()

virtual void anatomist::AWindow::button3clicked	(	int	x,
		int	y
	)

virtual

handles button3 click (menu)

◆ close()

virtual bool anatomist::AWindow::close ( )

pure virtual

Implemented in QAWindow.

◆ createTitle()

virtual void anatomist::AWindow::createTitle ( )

inlinevirtual

Creates a new title for the window.

Reimplemented in QAWindow.

Definition at line 232 of file Window.h.

◆ cursorColor()

static AimsRGB anatomist::AWindow::cursorColor ( )

static

Give the color cursor.

◆ cursorSize()

static int anatomist::AWindow::cursorSize ( )

inlinestatic

Definition at line 192 of file Window.h.

◆ displayClickPoint()

virtual void anatomist::AWindow::displayClickPoint ( )

inlinevirtual

Reimplemented in QAProfileWindow, QAHistogramWindow, AWindow3D, and QObjectBrowser.

Definition at line 206 of file Window.h.

◆ displayedAnnotations()

static std::vector<std::string> anatomist::AWindow::displayedAnnotations ( )

inlinestatic

Definition at line 185 of file Window.h.

◆ displayTalairach()

void anatomist::AWindow::displayTalairach ( )

Affiche les coordonnees de Talairach qui correspondent a la position du curseur lie (window 2D)

◆ findObjectsAt()

virtual void anatomist::AWindow::findObjectsAt	(	const std::vector< float > &	pos,
		std::set< AObject * > &	shown,
		std::set< AObject * > &	hidden
	)

virtual

finds objects at given position (internal)

◆ geometry()

virtual void anatomist::AWindow::geometry	(	int *	x,
		int *	y,
		unsigned *	w,
		unsigned *	h
	)

pure virtual

Get position and dimensions of the window.

Implemented in QAWindow.

◆ getFullPosition()

virtual std::vector<float> anatomist::AWindow::getFullPosition ( ) const

virtual

◆ getPosition()

virtual Point3df anatomist::AWindow::getPosition ( ) const

virtual

Get position of cursor.

◆ getReferential()

Referential* anatomist::AWindow::getReferential ( ) const

inline

Definition at line 150 of file Window.h.

◆ getTime()

float anatomist::AWindow::getTime ( ) const

inline

Get time position of cursor.

Definition at line 353 of file Window.h.

References _timepos.

◆ Group()

int anatomist::AWindow::Group ( ) const

inline

Definition at line 156 of file Window.h.

◆ hasCursor()

bool anatomist::AWindow::hasCursor ( ) const

takes both the global and own flags into account

◆ hasGlobalCursor()

static int anatomist::AWindow::hasGlobalCursor ( )

inlinestatic

Definition at line 190 of file Window.h.

◆ hasObject()

bool anatomist::AWindow::hasObject ( AObject * obj ) const

◆ hasSelfCursor()

int anatomist::AWindow::hasSelfCursor ( ) const

returns the own flag of the window (see hasGlobalCursor) (tri-state)

◆ hide()

virtual void anatomist::AWindow::hide ( )

virtual

Reimplemented in QAWindow.

◆ iconify()

virtual void anatomist::AWindow::iconify ( )

virtual

Reimplemented in QAWindow.

◆ id()

int anatomist::AWindow::id ( ) const

inline

Get the window identifier.

Definition at line 334 of file Window.h.

References _id.

Referenced by setId().

◆ isFullScreen()

virtual bool anatomist::AWindow::isFullScreen ( ) const

virtual

Reimplemented in QAWindow.

◆ isTemporary()

bool anatomist::AWindow::isTemporary ( AObject * o ) const

◆ leftRightDisplay()

static int anatomist::AWindow::leftRightDisplay ( )

inlinestatic

Definition at line 168 of file Window.h.

◆ leftRightDisplaySize()

static int anatomist::AWindow::leftRightDisplaySize ( )

inlinestatic

Definition at line 176 of file Window.h.

◆ lookupChanged()

bool anatomist::AWindow::lookupChanged ( ) const

inline

Definition at line 124 of file Window.h.

◆ manageAutoReferential()

void anatomist::AWindow::manageAutoReferential ( )

protected

automatically set the contained objects referential to the window if it has not been set manually, and if all objetcs share the same referential.

◆ needsRedraw()

virtual bool anatomist::AWindow::needsRedraw ( ) const

inlinevirtual

returns true if a refresh has been triggered and not performed yet (in subclasses: AWindow always returns false)

Definition at line 239 of file Window.h.

◆ objectAt()

virtual AObject* anatomist::AWindow::objectAt ( const std::vector< float > & pos )

virtual

◆ Objects()

std::set< AObject * > anatomist::AWindow::Objects ( ) const

inline

Get the objects.

Definition at line 347 of file Window.h.

References _sobjects.

◆ positionFromCursor()

bool anatomist::AWindow::positionFromCursor	(	int	x,
		int	y,
		Point3df &	pos
	)

inlinevirtual

Translates mouse position to Anatomist geometry position.

Returns: false if posision cannot be computed (out of viewport)

Reimplemented in AWindow3D.

Definition at line 371 of file Window.h.

◆ recordCbk()

static void anatomist::AWindow::recordCbk ( void * clientdata )

static

◆ recordImages()

virtual void anatomist::AWindow::recordImages ( )

virtual

◆ recordingState()

virtual RecordingState anatomist::AWindow::recordingState ( ) const

inlinevirtual

Definition at line 227 of file Window.h.

◆ Refresh()

virtual void anatomist::AWindow::Refresh ( )

virtual

Reimplemented in QAWindow.

◆ RefreshFlag()

bool anatomist::AWindow::RefreshFlag ( ) const

inline

Get the refresh flag status.

Definition at line 341 of file Window.h.

References _refresh.

◆ registerObject()

virtual void anatomist::AWindow::registerObject	(	AObject *	object,
		bool	temporaryObject = `false`,
		int	position = `-1`
	)

virtual

Reimplemented in QAProfileWindow, QAHistogramWindow, ControlledWindow, QObjectBrowser, and AWindow3D.

◆ ResetRefreshFlag()

void anatomist::AWindow::ResetRefreshFlag ( )

inline

Set the refresh flag off.

Definition at line 328 of file Window.h.

References _refresh.

◆ selectObject()

virtual void anatomist::AWindow::selectObject	(	const std::vector< float > &	pos,
		int	modifier
	)

virtual

Selects (highlights) object at a given 4D space position.

◆ selectTolerence()

static float anatomist::AWindow::selectTolerence ( )

inlinestatic

Selection tolerence distance.

Definition at line 203 of file Window.h.

◆ setCursorColor()

static void anatomist::AWindow::setCursorColor ( const AimsRGB & cursCol )

static

Set the color cursor.

◆ setCursorSize()

static void anatomist::AWindow::setCursorSize ( int cursorSize )

inlinestatic

Definition at line 191 of file Window.h.

◆ setDisplayedAnnotations()

static void anatomist::AWindow::setDisplayedAnnotations ( const std::vector< std::string > & annotation_list )

inlinestatic

Definition at line 180 of file Window.h.

◆ setFullScreen()

virtual void anatomist::AWindow::setFullScreen ( int state = 2 )

virtual

Reimplemented in QAWindow.

◆ setGeometry()

virtual void anatomist::AWindow::setGeometry	(	int	x,
		int	y,
		unsigned	w,
		unsigned	h
	)

pure virtual

Implemented in QAWindow.

◆ setGlobalHasCursor()

static void anatomist::AWindow::setGlobalHasCursor ( bool hasCursor )

inlinestatic

Definition at line 189 of file Window.h.

◆ setGroup()

void anatomist::AWindow::setGroup ( int group )

inline

Definition at line 157 of file Window.h.

◆ setHasCursor()

void anatomist::AWindow::setHasCursor ( int hasCursor )

◆ setId()

void anatomist::AWindow::setId ( int id )

inline

Set the window identifier.

Definition at line 316 of file Window.h.

References _id, and id().

◆ setLeftRightDisplay()

static void anatomist::AWindow::setLeftRightDisplay ( bool state )

inlinestatic

Definition at line 164 of file Window.h.

◆ setLeftRightDisplaySize()

static void anatomist::AWindow::setLeftRightDisplaySize ( int size )

inlinestatic

Definition at line 172 of file Window.h.

◆ setLookupChanged()

void anatomist::AWindow::setLookupChanged ( bool flg = true )

inline

Definition at line 125 of file Window.h.

◆ setPosition() [1/2]

virtual void anatomist::AWindow::setPosition	(	const Point3df &	position,
		const Referential *	refdep
	)

virtual

Set position of cursor.

Reimplemented in AWindow3D.

◆ setPosition() [2/2]

virtual void anatomist::AWindow::setPosition	(	const std::vector< float > &	position,
		const Referential *	refdep = `0`
	)

virtual

Reimplemented in AWindow3D.

◆ setReferential()

virtual void anatomist::AWindow::setReferential ( Referential * ref )

virtual

Reimplemented in AWindow3D.

◆ SetRefreshFlag()

void anatomist::AWindow::SetRefreshFlag ( )

inline

Set the refresh flag on.

Definition at line 322 of file Window.h.

References _refresh.

◆ setSelectTolerence()

static void anatomist::AWindow::setSelectTolerence ( float tol )

inlinestatic

Set the selection tolerence distance.

Definition at line 205 of file Window.h.

◆ setTime()

virtual void anatomist::AWindow::setTime ( float time )

virtual

Set time position of cursor.

◆ setTitle()

virtual void anatomist::AWindow::setTitle ( const std::string & title )

virtual

Reimplemented in QAWindow.

◆ setupWindow()

virtual void anatomist::AWindow::setupWindow ( )

inlinevirtual

Sets correct size and lookup of the window.

Definition at line 108 of file Window.h.

◆ setUseDefaultCursorColor()

static void anatomist::AWindow::setUseDefaultCursorColor ( bool state )

inlinestatic

Set the default color cursor flag.

Definition at line 194 of file Window.h.

◆ setWindowGeometry()

void anatomist::AWindow::setWindowGeometry ( Geometry * geom )

◆ setWindowTitle()

void anatomist::AWindow::setWindowTitle ( )

protected

Set the title of the window.

◆ show()

virtual void anatomist::AWindow::show ( )

virtual

Reimplemented in QAWindow.

◆ showReferential()

virtual void anatomist::AWindow::showReferential ( )

virtual

Reimplemented in AWindow3D.

◆ showToolBars()

virtual void anatomist::AWindow::showToolBars ( int state = 2 )

virtual

Shows or hides all tools (menu, toolbars) around the main view area.

0: hide, 1: show, 2: toggle

Reimplemented in AWindow3D, and QAWindow.

◆ startRecord() [1/2]

virtual void anatomist::AWindow::startRecord ( )

virtual

◆ startRecord() [2/2]

void anatomist::AWindow::startRecord ( const std::string & filename )

inlinevirtual

Definition at line 377 of file Window.h.

◆ stopRecord()

virtual void anatomist::AWindow::stopRecord ( )

inlinevirtual

Definition at line 230 of file Window.h.

◆ subtype()

virtual SubType anatomist::AWindow::subtype ( ) const

inlinevirtual

Reimplemented in AWindow3D.

Definition at line 131 of file Window.h.

◆ temporaryObjects()

const std::set<AObject *>& anatomist::AWindow::temporaryObjects ( ) const

inline

Definition at line 241 of file Window.h.

◆ Title()

std::string anatomist::AWindow::Title ( ) const

inlinevirtual

Definition at line 359 of file Window.h.

References _title.

◆ toolBarsVisible()

virtual bool anatomist::AWindow::toolBarsVisible ( ) const

virtual

◆ type()

virtual Type anatomist::AWindow::type ( ) const

pure virtual

Get the window type (2D, 3D or control)

Implemented in QAProfileWindow, QAHistogramWindow, AWindow3D, and QObjectBrowser.

◆ typeCount() [1/2]

virtual std::set<unsigned>& anatomist::AWindow::typeCount ( )

virtual

Reimplemented in QAProfileWindow, QAHistogramWindow, AWindow3D, and QObjectBrowser.

◆ typeCount() [2/2]

virtual const std::set<unsigned>& anatomist::AWindow::typeCount ( ) const

virtual

Reimplemented in QAProfileWindow, QAHistogramWindow, AWindow3D, and QObjectBrowser.

◆ unIconify()

virtual void anatomist::AWindow::unIconify ( )

virtual

Reimplemented in QAWindow.

◆ unregisterObject()

virtual void anatomist::AWindow::unregisterObject ( AObject * object )

virtual

Reimplemented in anatomist::RefWindow, QAProfileWindow, QAHistogramWindow, ControlledWindow, QObjectBrowser, and AWindow3D.

◆ unregisterObservable()

virtual void anatomist::AWindow::unregisterObservable ( Observable * )

protectedvirtual

Called when an observable is destroyed, only called by Observable: don't use this function directly.

Reimplemented from anatomist::Observer.

◆ update()

virtual void anatomist::AWindow::update	(	const Observable *	observable,
		void *	arg
	)

virtual

This method is called whenever the observed object is changed.

The programmer calls an observable object's notifyObservers method to have all the object's observers notified of the change.

Parameters

observable the observable object

Implements anatomist::Observer.

Reimplemented in QObjectBrowser.

◆ updateWindowGeometry()

virtual void anatomist::AWindow::updateWindowGeometry ( )

inlinevirtual

adapts geometry to the current contents and referential

Reimplemented in AWindow3D.

Definition at line 155 of file Window.h.

◆ useDefaultCursorColor()

static int anatomist::AWindow::useDefaultCursorColor ( )

inlinestatic

Give the default color cursor flag.

Definition at line 197 of file Window.h.

◆ windowGeometry()

Geometry* anatomist::AWindow::windowGeometry ( ) const

inline

Definition at line 152 of file Window.h.

Member Data Documentation

◆ _geometry

Geometry* anatomist::AWindow::_geometry

protected

Geometry.

Definition at line 273 of file Window.h.

◆ _group

int anatomist::AWindow::_group

protected

Group number, for linked windows.

Definition at line 282 of file Window.h.

◆ _id

int anatomist::AWindow::_id

protected

Window identificator.

Definition at line 258 of file Window.h.

Referenced by id(), and setId().

◆ _instNumber

int anatomist::AWindow::_instNumber

protected

Number of instance of the window class.

\ This counter is used by child non-virtual classes to count instances of each specific class.

Definition at line 280 of file Window.h.

◆ _lookupChanged

bool anatomist::AWindow::_lookupChanged

protected

Lookup has changed (title or geometry)

Definition at line 262 of file Window.h.

◆ _objects

std::list<carto::shared_ptr<AObject> > anatomist::AWindow::_objects

protected

List of the objects contained in the window.

Definition at line 264 of file Window.h.

◆ _position

Point3df anatomist::AWindow::_position

protected

Click position.

Definition at line 284 of file Window.h.

◆ _referential

Referential* anatomist::AWindow::_referential

protected

Referentiel.

Definition at line 271 of file Window.h.

◆ _refresh

bool anatomist::AWindow::_refresh

protected

Should the window be refreshed?

Definition at line 260 of file Window.h.

Referenced by RefreshFlag(), ResetRefreshFlag(), and SetRefreshFlag().

◆ _sobjects

std::set<AObject *> anatomist::AWindow::_sobjects

protected

Same but as a set (for fast search)

Definition at line 266 of file Window.h.

Referenced by Objects().

◆ _tempObjects

std::set<AObject *> anatomist::AWindow::_tempObjects

protected

Definition at line 267 of file Window.h.

◆ _timepos

std::vector<float> anatomist::AWindow::_timepos

protected

Cursor time + next dimensions.

Definition at line 269 of file Window.h.

Referenced by getTime().

◆ _title

std::string anatomist::AWindow::_title

protected

Title of the window.

Definition at line 275 of file Window.h.

Referenced by Title().

The documentation for this class was generated from the following file:

anatomist/window/Window.h

Public Types

Public Member Functions

Usual window operations

Additional Inherited Members

Detailed Description

Member Enumeration Documentation

◆ RecordingState

◆ SubType

◆ Type

Constructor & Destructor Documentation

◆ ~AWindow()

◆ AWindow()

Member Function Documentation

◆ baseTitle()

◆ button3clicked()

◆ close()

◆ createTitle()

◆ cursorColor()

◆ cursorSize()

◆ displayClickPoint()

◆ displayedAnnotations()

◆ displayTalairach()

◆ findObjectsAt()

◆ geometry()

◆ getFullPosition()

◆ getPosition()

◆ getReferential()

◆ getTime()

◆ Group()

◆ hasCursor()

◆ hasGlobalCursor()

◆ hasObject()

◆ hasSelfCursor()

◆ hide()

◆ iconify()

◆ id()

◆ isFullScreen()

◆ isTemporary()

◆ leftRightDisplay()

◆ leftRightDisplaySize()

◆ lookupChanged()

◆ manageAutoReferential()

◆ needsRedraw()

◆ objectAt()

◆ Objects()

◆ positionFromCursor()

◆ recordCbk()

◆ recordImages()

◆ recordingState()

◆ Refresh()

◆ RefreshFlag()

◆ registerObject()

◆ ResetRefreshFlag()

◆ selectObject()

◆ selectTolerence()

◆ setCursorColor()

◆ setCursorSize()

◆ setDisplayedAnnotations()

◆ setFullScreen()

◆ setGeometry()

◆ setGlobalHasCursor()

◆ setGroup()

◆ setHasCursor()

◆ setId()

◆ setLeftRightDisplay()

◆ setLeftRightDisplaySize()

◆ setLookupChanged()

◆ setPosition() [1/2]

◆ setPosition() [2/2]

◆ setReferential()

◆ SetRefreshFlag()

◆ setSelectTolerence()

◆ setTime()

◆ setTitle()

◆ setupWindow()

◆ setUseDefaultCursorColor()

◆ setWindowGeometry()

◆ setWindowTitle()

◆ show()

◆ showReferential()
