Attributed object descriptor. More...

#include <anatomist/browser/attDescr.h>

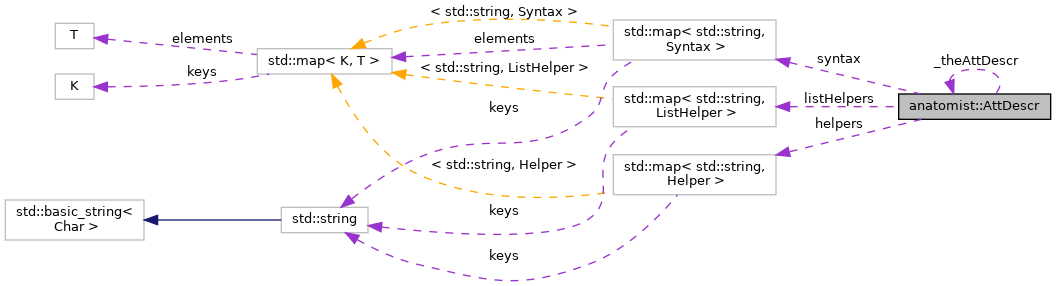

Collaboration diagram for anatomist::AttDescr:

[legend]

Public Types
typedef void(*	Helper) (QObjectBrowserWidget *, const carto::GenericObject &, const std::string &, std::string &output)

typedef void(*	ListHelper) (QObjectBrowserWidget , const carto::GenericObject &, const std::string &, QTreeWidgetItem parent, const AttDescr *ad, bool regist)

typedef std::map< std::string, Helper >	HelperSet

typedef std::map< std::string, ListHelper >	ListHelperSet

Public Member Functions
	AttDescr ()

virtual	~AttDescr ()

void	describeAttributes (QObjectBrowserWidget br, QTreeWidgetItem parent, const carto::GenericObject *ao, bool regist=true, bool checkexisting=true) const

std::string	printAttribute (QObjectBrowserWidget br, const carto::GenericObject ao, const std::string &semantic, const std::string &type) const

void	printAttribute (QObjectBrowserWidget br, const carto::GenericObject ao, const std::string &semantic, const std::string &type, QTreeWidgetItem *parent, bool regist=true, bool checkexisting=true) const

std::string	objectName (const carto::GenericObject *ao) const

void	setSyntax (const carto::SyntaxSet &s)

void	addSyntax (const carto::SyntaxSet &s)

void	setHelpers (const HelperSet &help)

void	addHelpers (const HelperSet &help)

void	setListHelpers (const ListHelperSet &help)

void	addListHelpers (const ListHelperSet &help)

const carto::SyntaxSet &	syntaxSet () const

const HelperSet &	helperSet () const

const ListHelperSet &	listHelperSet () const

void	describeTree (QObjectBrowserWidget br, const Tree tr, QTreeWidgetItem *parent, bool regist=true) const

void	describeTreeInside (QObjectBrowserWidget br, const Tree tr, QTreeWidgetItem *parent, bool regist) const
	does not recreate the base tree More...

void	describeUnregisteredTreeInside (QObjectBrowserWidget br, const Tree tr, QTreeWidgetItem *parent) const
	does not recreate the base tree More...

virtual void	initHelpers ()

Static Public Member Functions
static void	printError (QTreeWidgetItem *parent, const std::string &semantic)

static void	treeListHelper (QObjectBrowserWidget br, const carto::GenericObject &, const std::string &, QTreeWidgetItem parent, const AttDescr *gvw, bool regist=true)

static AttDescr *	descr ()

static QPixmap	rgbPixmap (const QColor &col)

Static Protected Member Functions
static void	printInt (QObjectBrowserWidget *, const carto::GenericObject &, const std::string &, std::string &output)
	Helpers. More...

static void	printFloat (QObjectBrowserWidget *, const carto::GenericObject &, const std::string &, std::string &output)

static void	printDouble (QObjectBrowserWidget *, const carto::GenericObject &, const std::string &, std::string &output)

static void	printString (QObjectBrowserWidget *, const carto::GenericObject &, const std::string &, std::string &output)

static void	printFloatVector (QObjectBrowserWidget *, const carto::GenericObject &, const std::string &, std::string &output)

static void	printDoubleVector (QObjectBrowserWidget *, const carto::GenericObject &, const std::string &, std::string &output)

static void	printIntVector (QObjectBrowserWidget *, const carto::GenericObject &, const std::string &, std::string &output)

static void	printStringVector (QObjectBrowserWidget *, const carto::GenericObject &, const std::string &, std::string &output)

static void	printStringVectorPtr (QObjectBrowserWidget *, const carto::GenericObject &, const std::string &, std::string &output)

Protected Attributes
carto::SyntaxSet	syntax

HelperSet	helpers

ListHelperSet	listHelpers

Static Protected Attributes
static AttDescr *	_theAttDescr

Detailed Description

Attributed object descriptor.

Writes in a tree.

Definition at line 53 of file attDescr.h.

Member Typedef Documentation

◆ Helper

typedef void(* anatomist::AttDescr::Helper) (QObjectBrowserWidget *, const carto::GenericObject &, const std::string &, std::string &output)

Definition at line 56 of file attDescr.h.

◆ HelperSet

typedef std::map<std::string, Helper> anatomist::AttDescr::HelperSet

Definition at line 63 of file attDescr.h.

◆ ListHelper

typedef void(* anatomist::AttDescr::ListHelper) (QObjectBrowserWidget *, const carto::GenericObject &, const std::string &, QTreeWidgetItem *parent, const AttDescr *ad, bool regist)

Definition at line 59 of file attDescr.h.

◆ ListHelperSet

typedef std::map<std::string, ListHelper> anatomist::AttDescr::ListHelperSet

Definition at line 64 of file attDescr.h.

Constructor & Destructor Documentation

◆ AttDescr()

anatomist::AttDescr::AttDescr ( )

◆ ~AttDescr()

virtual anatomist::AttDescr::~AttDescr ( )

virtual

Member Function Documentation

◆ addHelpers()

void anatomist::AttDescr::addHelpers ( const HelperSet & help )

◆ addListHelpers()

void anatomist::AttDescr::addListHelpers ( const ListHelperSet & help )

◆ addSyntax()

void anatomist::AttDescr::addSyntax ( const carto::SyntaxSet & s )

◆ descr()

static AttDescr* anatomist::AttDescr::descr ( )

inlinestatic

Definition at line 114 of file attDescr.h.

References _theAttDescr.

◆ describeAttributes()

void anatomist::AttDescr::describeAttributes	(	QObjectBrowserWidget *	br,
		QTreeWidgetItem *	parent,
		const carto::GenericObject *	ao,
		bool	regist = `true`,
		bool	checkexisting = `true`
	)		const

◆ describeTree()

void anatomist::AttDescr::describeTree	(	QObjectBrowserWidget *	br,
		const Tree *	tr,
		QTreeWidgetItem *	parent,
		bool	regist = `true`
	)		const

◆ describeTreeInside()

void anatomist::AttDescr::describeTreeInside	(	QObjectBrowserWidget *	br,
		const Tree *	tr,
		QTreeWidgetItem *	parent,
		bool	regist
	)		const

does not recreate the base tree

◆ describeUnregisteredTreeInside()

void anatomist::AttDescr::describeUnregisteredTreeInside	(	QObjectBrowserWidget *	br,
		const Tree *	tr,
		QTreeWidgetItem *	parent
	)		const

does not recreate the base tree

◆ helperSet()

const HelperSet& anatomist::AttDescr::helperSet ( ) const

inline

Definition at line 92 of file attDescr.h.

References helpers.

◆ initHelpers()

virtual void anatomist::AttDescr::initHelpers ( )

virtual

◆ listHelperSet()

const ListHelperSet& anatomist::AttDescr::listHelperSet ( ) const

inline

Definition at line 93 of file attDescr.h.

References listHelpers.

◆ objectName()

std::string anatomist::AttDescr::objectName ( const carto::GenericObject * ao ) const

◆ printAttribute() [1/2]

std::string anatomist::AttDescr::printAttribute	(	QObjectBrowserWidget *	br,
		const carto::GenericObject *	ao,
		const std::string &	semantic,
		const std::string &	type
	)		const

◆ printAttribute() [2/2]

void anatomist::AttDescr::printAttribute	(	QObjectBrowserWidget *	br,
		const carto::GenericObject *	ao,
		const std::string &	semantic,
		const std::string &	type,
		QTreeWidgetItem *	parent,
		bool	regist = `true`,
		bool	checkexisting = `true`
	)		const

◆ printDouble()

static void anatomist::AttDescr::printDouble	(	QObjectBrowserWidget *	,
		const carto::GenericObject &	,
		const std::string &	,
		std::string &	output
	)

staticprotected

◆ printDoubleVector()

static void anatomist::AttDescr::printDoubleVector	(	QObjectBrowserWidget *	,
		const carto::GenericObject &	,
		const std::string &	,
		std::string &	output
	)

staticprotected

◆ printError()

static void anatomist::AttDescr::printError	(	QTreeWidgetItem *	parent,
		const std::string &	semantic
	)

static

◆ printFloat()

static void anatomist::AttDescr::printFloat	(	QObjectBrowserWidget *	,
		const carto::GenericObject &	,
		const std::string &	,
		std::string &	output
	)

staticprotected

◆ printFloatVector()

static void anatomist::AttDescr::printFloatVector	(	QObjectBrowserWidget *	,
		const carto::GenericObject &	,
		const std::string &	,
		std::string &	output
	)

staticprotected

◆ printInt()

static void anatomist::AttDescr::printInt	(	QObjectBrowserWidget *	,
		const carto::GenericObject &	,
		const std::string &	,
		std::string &	output
	)

staticprotected

Helpers.

◆ printIntVector()

static void anatomist::AttDescr::printIntVector	(	QObjectBrowserWidget *	,
		const carto::GenericObject &	,
		const std::string &	,
		std::string &	output
	)

staticprotected

◆ printString()

static void anatomist::AttDescr::printString	(	QObjectBrowserWidget *	,
		const carto::GenericObject &	,
		const std::string &	,
		std::string &	output
	)

staticprotected

◆ printStringVector()

static void anatomist::AttDescr::printStringVector	(	QObjectBrowserWidget *	,
		const carto::GenericObject &	,
		const std::string &	,
		std::string &	output
	)

staticprotected

◆ printStringVectorPtr()

static void anatomist::AttDescr::printStringVectorPtr	(	QObjectBrowserWidget *	,
		const carto::GenericObject &	,
		const std::string &	,
		std::string &	output
	)

staticprotected

◆ rgbPixmap()

static QPixmap anatomist::AttDescr::rgbPixmap ( const QColor & col )

static

◆ setHelpers()

void anatomist::AttDescr::setHelpers ( const HelperSet & help )

◆ setListHelpers()

void anatomist::AttDescr::setListHelpers ( const ListHelperSet & help )

◆ setSyntax()

void anatomist::AttDescr::setSyntax ( const carto::SyntaxSet & s )

◆ syntaxSet()

const carto::SyntaxSet& anatomist::AttDescr::syntaxSet ( ) const

inline

Definition at line 91 of file attDescr.h.

References syntax.

◆ treeListHelper()

static void anatomist::AttDescr::treeListHelper	(	QObjectBrowserWidget *	br,
		const carto::GenericObject &	,
		const std::string &	,
		QTreeWidgetItem *	parent,
		const AttDescr *	gvw,
		bool	regist = `true`
	)

static

Member Data Documentation

◆ _theAttDescr

AttDescr* anatomist::AttDescr::_theAttDescr

staticprotected

Definition at line 148 of file attDescr.h.

Referenced by descr().

◆ helpers

HelperSet anatomist::AttDescr::helpers

protected

Definition at line 151 of file attDescr.h.

Referenced by helperSet().

◆ listHelpers

ListHelperSet anatomist::AttDescr::listHelpers

protected

Definition at line 152 of file attDescr.h.

Referenced by listHelperSet().

◆ syntax

carto::SyntaxSet anatomist::AttDescr::syntax

protected

Definition at line 150 of file attDescr.h.

Referenced by syntaxSet().

The documentation for this class was generated from the following file:

anatomist/browser/attDescr.h
