Load a transformation between two referentials. More...

#include <anatomist/commands/cLoadTransformation.h>

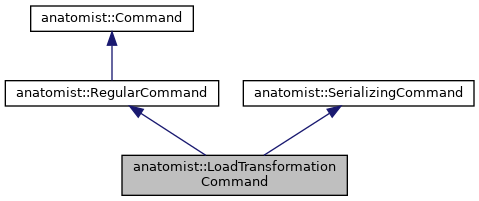

Inheritance diagram for anatomist::LoadTransformationCommand:

[legend]

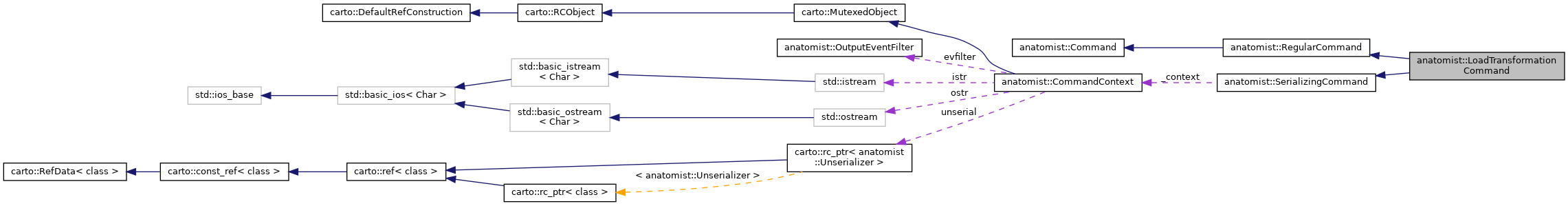

Collaboration diagram for anatomist::LoadTransformationCommand:

[legend]

Public Member Functions
	LoadTransformationCommand (const std::string &filename, Referential org, Referential dst, int res_id=-1, CommandContext *context=&CommandContext::defaultContext())
	Load transformation from file. More...

	LoadTransformationCommand (const float matrix[4][3], Referential org, Referential dst, int res_id=-1, CommandContext *context=&CommandContext::defaultContext())
	Give hard-coded transformation matrix. More...

	LoadTransformationCommand (const std::vector< float > &, Referential org, Referential dst, int res_id=-1, CommandContext *context=&CommandContext::defaultContext())
	Give hard-coded transformation matrix. More...

virtual	~LoadTransformationCommand ()

virtual std::string	name () const
	Return the unique name of a class of commands. More...

virtual void	write (Tree &com, Serializer *ser) const
	Print the guts of a command into a Tree given as parent. More...

Transformation *	trans () const

Public Member Functions inherited from anatomist::RegularCommand
virtual	~RegularCommand ()
	Destructor does nothing. More...

Public Member Functions inherited from anatomist::Command
virtual	~Command ()
	Destructor does nothing. More...

virtual void	execute ()
	Execute the command - may use {\tt doit()}. More...

virtual void	undo ()
	Undo the command - may use {\tt undoit()}. More...

virtual void	redo ()
	Redo the command - may use {\tt doit()}. More...

Public Member Functions inherited from anatomist::SerializingCommand
virtual	~SerializingCommand ()

CommandContext *	context ()

const CommandContext *	context () const

Protected Member Functions
virtual void	doit ()
	Do a command. More...

Protected Member Functions inherited from anatomist::RegularCommand
	RegularCommand ()
	The programmer cannot call the constructor of an abstract base class. More...

Protected Member Functions inherited from anatomist::Command
	Command ()
	The programmer cannot call the constructor of an abstract base class. More...

virtual void	undoit ()
	Undo a command. More...

Protected Member Functions inherited from anatomist::SerializingCommand
	SerializingCommand (CommandContext *)

Friends
class	StdModule

Additional Inherited Members
Public Types inherited from anatomist::Command
typedef Command (	Reader) (const Tree &, CommandContext *)

Protected Attributes inherited from anatomist::SerializingCommand
CommandContext *	_context

Detailed Description

Load a transformation between two referentials.

Definition at line 52 of file cLoadTransformation.h.

Constructor & Destructor Documentation

◆ LoadTransformationCommand() [1/3]

anatomist::LoadTransformationCommand::LoadTransformationCommand	(	const std::string &	filename,
		Referential *	org,
		Referential *	dst,
		int	res_id = `-1`,
		CommandContext *	context = `&CommandContext::defaultContext()`
	)

Load transformation from file.

◆ LoadTransformationCommand() [2/3]

anatomist::LoadTransformationCommand::LoadTransformationCommand	(	const float	matrix[4][3],
		Referential *	org,
		Referential *	dst,
		int	res_id = `-1`,
		CommandContext *	context = `&CommandContext::defaultContext()`
	)

Give hard-coded transformation matrix.

(4 lines, 3 cols, 1st line=translation)

◆ LoadTransformationCommand() [3/3]

anatomist::LoadTransformationCommand::LoadTransformationCommand	(	const std::vector< float > &	,
		Referential *	org,
		Referential *	dst,
		int	res_id = `-1`,
		CommandContext *	context = `&CommandContext::defaultContext()`
	)

Give hard-coded transformation matrix.

(1 line, 1st 3 elementse=translation)

◆ ~LoadTransformationCommand()

virtual anatomist::LoadTransformationCommand::~LoadTransformationCommand ( )

virtual

Member Function Documentation

◆ doit()

virtual void anatomist::LoadTransformationCommand::doit ( )

protectedvirtual

Do a command.

Implements anatomist::Command.

◆ name()

virtual std::string anatomist::LoadTransformationCommand::name ( ) const

inlinevirtual

Return the unique name of a class of commands.

Implements anatomist::Command.

Definition at line 75 of file cLoadTransformation.h.

◆ trans()

Transformation* anatomist::LoadTransformationCommand::trans ( ) const

inline

Definition at line 77 of file cLoadTransformation.h.

◆ write()

virtual void anatomist::LoadTransformationCommand::write	(	Tree &	com,
		Serializer *	ser
	)		const

virtual

Print the guts of a command into a Tree given as parent.

Reimplemented from anatomist::Command.

Friends And Related Function Documentation

◆ StdModule

friend class StdModule

friend

Definition at line 90 of file cLoadTransformation.h.

The documentation for this class was generated from the following file:

anatomist/commands/cLoadTransformation.h
