bio::BaseVertexRef Class Reference

Reference counting pointer to a BaseVertex. More...

#include <bioprocessing/graph/basevertex.h>

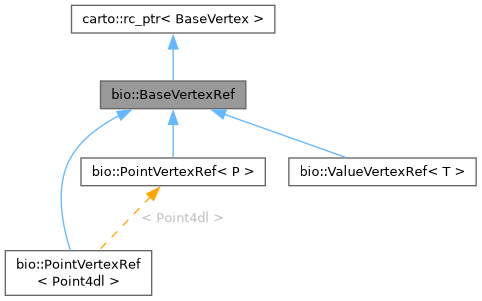

Inheritance diagram for bio::BaseVertexRef:

Collaboration diagram for bio::BaseVertexRef:

Public Types
typedef Pointed::Vertex	Vertex
	Useable type.

Public Member Functions
	BaseVertexRef ()
	Default constructor.
	BaseVertexRef (Pointed *v)
	Constructor from a pointer (the pointer should either be created by new, or be already referenced by a rc_ptr.
	BaseVertexRef (const Base &other)
	Copy constructor (copies the reference, it does not duplicate the pointed object)
virtual	~BaseVertexRef ()
virtual bool	operator== (const This &other) const
	There is equality if both pointers are none, or if both pointed objects are equal.
virtual bool	operator!= (const This &other) const
virtual bool	operator> (const This &other) const
virtual bool	operator< (const This &other) const
virtual bool	operator>= (const This &other) const
virtual bool	operator<= (const This &other) const

Static Public Member Functions
static Vertex	none ()
	Empty pointer factory.

Protected Types
typedef BaseVertexRef	This
	Type of *this.
typedef carto::rc_ptr< BaseVertex >	Base
	Base class type.
typedef BaseVertex	Pointed
	Pointed object type.

Friends
class	BaseVertex

Detailed Description

Reference counting pointer to a BaseVertex.

These objects also have full access to BaseVertex methods (without having to dereference the pointer)

Definition at line 104 of file basevertex.h.

Member Typedef Documentation

Base

typedef carto::rc_ptr<BaseVertex> bio::BaseVertexRef::Base

protected

Base class type.

Definition at line 109 of file basevertex.h.

Pointed

typedef BaseVertex bio::BaseVertexRef::Pointed

protected

Pointed object type.

Definition at line 110 of file basevertex.h.

This

typedef BaseVertexRef bio::BaseVertexRef::This

protected

Type of *this.

Definition at line 108 of file basevertex.h.

Vertex

typedef Pointed::Vertex bio::BaseVertexRef::Vertex

Useable type.

Definition at line 112 of file basevertex.h.

Constructor & Destructor Documentation

BaseVertexRef() [1/3]

bio::BaseVertexRef::BaseVertexRef ( )

inline

Default constructor.

This creates an actual Vertex instance. "Empty" verteices should be created using the none() static method.

Definition at line 119 of file basevertex.h.

BaseVertexRef() [2/3]

bio::BaseVertexRef::BaseVertexRef ( Pointed * v )

inline

Constructor from a pointer (the pointer should either be created by new, or be already referenced by a rc_ptr.

See rc_ptr for more details on reference counting pointers)

Definition at line 123 of file basevertex.h.

BaseVertexRef() [3/3]

bio::BaseVertexRef::BaseVertexRef ( const Base & other )

inline

Copy constructor (copies the reference, it does not duplicate the pointed object)

Definition at line 126 of file basevertex.h.

~BaseVertexRef()

virtual bio::BaseVertexRef::~BaseVertexRef ( )

inlinevirtual

Definition at line 127 of file basevertex.h.

Member Function Documentation

none()

static Vertex bio::BaseVertexRef::none ( )

inlinestatic

Empty pointer factory.

The reference is set to 0

Definition at line 133 of file basevertex.h.

operator!=()

virtual bool bio::BaseVertexRef::operator!= ( const This & other ) const

inlinevirtual

Definition at line 148 of file basevertex.h.

operator<()

virtual bool bio::BaseVertexRef::operator< ( const This & other ) const

inlinevirtual

Definition at line 159 of file basevertex.h.

operator<=()

virtual bool bio::BaseVertexRef::operator<= ( const This & other ) const

inlinevirtual

Definition at line 170 of file basevertex.h.

operator==()

virtual bool bio::BaseVertexRef::operator== ( const This & other ) const

inlinevirtual

There is equality if both pointers are none, or if both pointed objects are equal.

Definition at line 139 of file basevertex.h.

operator>()

virtual bool bio::BaseVertexRef::operator> ( const This & other ) const

inlinevirtual

Definition at line 152 of file basevertex.h.

operator>=()

virtual bool bio::BaseVertexRef::operator>= ( const This & other ) const

inlinevirtual

Definition at line 166 of file basevertex.h.

Friends And Related Symbol Documentation

BaseVertex

friend class BaseVertex

friend

Definition at line 176 of file basevertex.h.

References BaseVertex.

Referenced by BaseVertex.

---

The documentation for this class was generated from the following file:

• bioprocessing/graph/basevertex.h
