RGB Value. More...

#include <cartobase/type/voxelrgb_decl.h>

Inheritance diagram for carto::VoxelRGB:

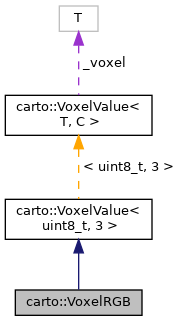

Collaboration diagram for carto::VoxelRGB:

Public Member Functions
	VoxelRGB (const VoxelRGB &other)

	VoxelRGB (const VoxelRGBA &other)

	VoxelRGB (const VoxelValue< uint8_t, 3 > &other)

	VoxelRGB (const uint8_t &r=0, const uint8_t &g=0, const uint8_t &b=0)

	~VoxelRGB ()

VoxelRGB &	operator= (const VoxelRGB &other)

VoxelRGB &	operator= (const VoxelRGBA &other)

VoxelRGB &	operator= (const uint8_t &value)

VoxelRGB &	operator+= (const VoxelRGB &other)

VoxelRGB &	operator+= (const VoxelRGBA &other)

VoxelRGB &	operator-= (const VoxelRGB &other)

VoxelRGB &	operator-= (const VoxelRGBA &other)

VoxelRGB &	operator+= (const uint8_t &value)

VoxelRGB &	operator-= (const uint8_t &value)

VoxelRGB &	operator*= (const uint8_t &value)

VoxelRGB &	operator*= (const uint16_t &value)

VoxelRGB &	operator*= (const uint32_t &value)

VoxelRGB &	operator*= (const uint64_t &value)

VoxelRGB &	operator*= (const float &value)

VoxelRGB &	operator*= (const double &value)

VoxelRGB &	operator/= (const uint8_t &value)

VoxelRGB &	operator/= (const uint16_t &value)

VoxelRGB &	operator/= (const uint32_t &value)

VoxelRGB &	operator/= (const uint64_t &value)

VoxelRGB &	operator/= (const float &value)

VoxelRGB &	operator/= (const double &value)

VoxelRGB &	operator*= (const long &value)

VoxelRGB &	operator/= (const long &value)

const uint8_t &	red () const

const uint8_t &	green () const

const uint8_t &	blue () const

uint8_t &	red ()

uint8_t &	green ()

uint8_t &	blue ()

Public Member Functions inherited from carto::VoxelValue< uint8_t, 3 >
	VoxelValue ()

	VoxelValue (const VoxelValue< uint8_t, C > &other)

	~VoxelValue ()

bool	operator== (const VoxelValue< uint8_t, C > &) const

bool	operator== (const uint8_t &) const

bool	operator!= (const VoxelValue< uint8_t, C > &) const

bool	operator!= (const uint8_t &) const

	operator bool () const

const uint8_t &	operator[] (unsigned int i) const

uint8_t &	operator[] (unsigned int i)

Additional Inherited Members
Public Types inherited from carto::VoxelValue< uint8_t, 3 >
typedef uint8_t	ChannelType

Static Public Attributes inherited from carto::VoxelValue< uint8_t, 3 >
static const unsigned int	channelcount

Protected Attributes inherited from carto::VoxelValue< uint8_t, 3 >
uint8_t	_voxel [C]

Detailed Description

RGB Value.

This class replaces AimsRGB.
All previous operators are implemented.
Read/Write operators are implemented in soma-io/utilities/asciidatasourcetraits.h so you need to include this file for read/write operations.

Warning: Even though declarations are contained in cartobase/type/voxelrgb_decl.h, you need to include cartobase/type/voxelrgb.h in order to use this class (all methods are inline).

Definition at line 71 of file voxelrgb_decl.h.

Constructor & Destructor Documentation

◆ VoxelRGB() [1/4]

carto::VoxelRGB::VoxelRGB ( const VoxelRGB & other )

inline

Definition at line 61 of file voxelrgb_def.h.

◆ VoxelRGB() [2/4]

carto::VoxelRGB::VoxelRGB ( const VoxelRGBA & other )

inline

Definition at line 70 of file voxelrgb_def.h.

References blue(), carto::VoxelRGBA::blue(), green(), carto::VoxelRGBA::green(), red(), and carto::VoxelRGBA::red().

◆ VoxelRGB() [3/4]

carto::VoxelRGB::VoxelRGB ( const VoxelValue< uint8_t, 3 > & other )

inline

Definition at line 81 of file voxelrgb_def.h.

◆ VoxelRGB() [4/4]

carto::VoxelRGB::VoxelRGB	(	const uint8_t &	r = `0`,
		const uint8_t &	g = `0`,
		const uint8_t &	b = `0`
	)

inline

Definition at line 90 of file voxelrgb_def.h.

References blue(), green(), and red().

◆ ~VoxelRGB()

carto::VoxelRGB::~VoxelRGB ( )

inline

Definition at line 101 of file voxelrgb_def.h.

Member Function Documentation

◆ blue() [1/2]

const uint8_t& carto::VoxelRGB::blue ( ) const

inline

Definition at line 115 of file voxelrgb_decl.h.

Referenced by operator*=(), operator+=(), carto::VoxelRGBA::operator+=(), operator-=(), carto::VoxelRGBA::operator-=(), operator/=(), operator=(), carto::VoxelRGBA::operator=(), VoxelRGB(), and carto::VoxelRGBA::VoxelRGBA().

◆ blue() [2/2]

uint8_t& carto::VoxelRGB::blue ( )

inline

Definition at line 118 of file voxelrgb_decl.h.

References carto::operator*(), carto::operator+(), carto::operator-(), and carto::operator/().

◆ green() [1/2]

const uint8_t& carto::VoxelRGB::green ( ) const

inline

Definition at line 114 of file voxelrgb_decl.h.

Referenced by operator*=(), operator+=(), carto::VoxelRGBA::operator+=(), operator-=(), carto::VoxelRGBA::operator-=(), operator/=(), operator=(), carto::VoxelRGBA::operator=(), VoxelRGB(), and carto::VoxelRGBA::VoxelRGBA().

◆ green() [2/2]

uint8_t& carto::VoxelRGB::green ( )

inline

Definition at line 117 of file voxelrgb_decl.h.

◆ operator*=() [1/7]

VoxelRGB & carto::VoxelRGB::operator*= ( const uint8_t & value )

inline

Definition at line 221 of file voxelrgb_def.h.

References blue(), green(), and red().

◆ operator*=() [2/7]

VoxelRGB & carto::VoxelRGB::operator*= ( const uint16_t & value )

inline

Definition at line 233 of file voxelrgb_def.h.

References blue(), green(), and red().

◆ operator*=() [3/7]

VoxelRGB & carto::VoxelRGB::operator*= ( const uint32_t & value )

inline

Definition at line 245 of file voxelrgb_def.h.

References blue(), green(), and red().

◆ operator*=() [4/7]

VoxelRGB & carto::VoxelRGB::operator*= ( const uint64_t & value )

inline

Definition at line 257 of file voxelrgb_def.h.

References blue(), green(), and red().

◆ operator*=() [5/7]

VoxelRGB & carto::VoxelRGB::operator*= ( const float & value )

inline

Definition at line 269 of file voxelrgb_def.h.

References blue(), green(), and red().

◆ operator*=() [6/7]

VoxelRGB & carto::VoxelRGB::operator*= ( const double & value )

inline

Definition at line 282 of file voxelrgb_def.h.

References blue(), green(), and red().

◆ operator*=() [7/7]

VoxelRGB & carto::VoxelRGB::operator*= ( const long & value )

inline

Definition at line 819 of file voxelrgb_def.h.

References blue(), green(), and red().

◆ operator+=() [1/3]

VoxelRGB & carto::VoxelRGB::operator+= ( const VoxelRGB & other )

inline

Definition at line 149 of file voxelrgb_def.h.

References blue(), green(), and red().

◆ operator+=() [2/3]

VoxelRGB & carto::VoxelRGB::operator+= ( const VoxelRGBA & other )

inline

Definition at line 161 of file voxelrgb_def.h.

References blue(), carto::VoxelRGBA::blue(), green(), carto::VoxelRGBA::green(), red(), and carto::VoxelRGBA::red().

◆ operator+=() [3/3]

VoxelRGB & carto::VoxelRGB::operator+= ( const uint8_t & value )

inline

Definition at line 197 of file voxelrgb_def.h.

References blue(), green(), and red().

◆ operator-=() [1/3]

VoxelRGB & carto::VoxelRGB::operator-= ( const VoxelRGB & other )

inline

Definition at line 173 of file voxelrgb_def.h.

References blue(), green(), and red().

◆ operator-=() [2/3]

VoxelRGB & carto::VoxelRGB::operator-= ( const VoxelRGBA & other )

inline

Definition at line 185 of file voxelrgb_def.h.

References blue(), carto::VoxelRGBA::blue(), green(), carto::VoxelRGBA::green(), red(), and carto::VoxelRGBA::red().

◆ operator-=() [3/3]

VoxelRGB & carto::VoxelRGB::operator-= ( const uint8_t & value )

inline

Definition at line 209 of file voxelrgb_def.h.

References blue(), green(), and red().

◆ operator/=() [1/7]

VoxelRGB & carto::VoxelRGB::operator/= ( const uint8_t & value )

inline

Definition at line 295 of file voxelrgb_def.h.

References ASSERT, blue(), green(), and red().

◆ operator/=() [2/7]

VoxelRGB & carto::VoxelRGB::operator/= ( const uint16_t & value )

inline

Definition at line 308 of file voxelrgb_def.h.

References ASSERT, blue(), green(), and red().

◆ operator/=() [3/7]

VoxelRGB & carto::VoxelRGB::operator/= ( const uint32_t & value )

inline

Definition at line 321 of file voxelrgb_def.h.

References ASSERT, blue(), green(), and red().

◆ operator/=() [4/7]

VoxelRGB & carto::VoxelRGB::operator/= ( const uint64_t & value )

inline

Definition at line 334 of file voxelrgb_def.h.

References ASSERT, blue(), green(), and red().

◆ operator/=() [5/7]

VoxelRGB & carto::VoxelRGB::operator/= ( const float & value )

inline

Definition at line 347 of file voxelrgb_def.h.

References ASSERT, blue(), green(), and red().

◆ operator/=() [6/7]

VoxelRGB & carto::VoxelRGB::operator/= ( const double & value )

inline

Definition at line 361 of file voxelrgb_def.h.

References ASSERT, blue(), green(), and red().

◆ operator/=() [7/7]

VoxelRGB & carto::VoxelRGB::operator/= ( const long & value )

inline

Definition at line 831 of file voxelrgb_def.h.

References ASSERT, blue(), green(), and red().

◆ operator=() [1/3]

VoxelRGB & carto::VoxelRGB::operator= ( const VoxelRGB & other )

inline

Definition at line 111 of file voxelrgb_def.h.

References blue(), green(), and red().

◆ operator=() [2/3]

VoxelRGB & carto::VoxelRGB::operator= ( const VoxelRGBA & other )

inline

Definition at line 123 of file voxelrgb_def.h.

References blue(), carto::VoxelRGBA::blue(), green(), carto::VoxelRGBA::green(), red(), and carto::VoxelRGBA::red().

◆ operator=() [3/3]

VoxelRGB & carto::VoxelRGB::operator= ( const uint8_t & value )

inline

Definition at line 135 of file voxelrgb_def.h.

References blue(), green(), and red().

◆ red() [1/2]

const uint8_t& carto::VoxelRGB::red ( ) const

inline

Definition at line 113 of file voxelrgb_decl.h.

Referenced by operator*=(), operator+=(), carto::VoxelRGBA::operator+=(), operator-=(), carto::VoxelRGBA::operator-=(), operator/=(), operator=(), carto::VoxelRGBA::operator=(), VoxelRGB(), and carto::VoxelRGBA::VoxelRGBA().

◆ red() [2/2]

uint8_t& carto::VoxelRGB::red ( )

inline

Definition at line 116 of file voxelrgb_decl.h.

The documentation for this class was generated from the following files:

cartobase/type/voxelrgb_decl.h
cartobase/type/voxelrgb_def.h
