carto::NDIterator< T > Class Template Reference

N-dimensional array iterator. More...

#include <cartobase/containers/nditerator.h>

Inheritance diagram for carto::NDIterator< T >:

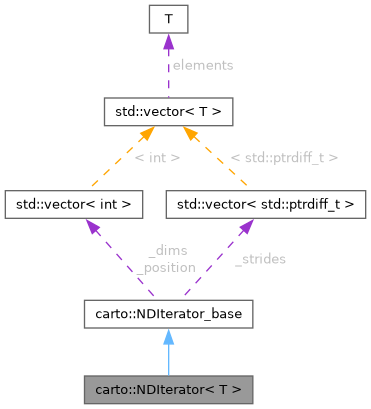

Collaboration diagram for carto::NDIterator< T >:

Public Member Functions
	NDIterator (T *buffer, const std::vector< int > &dims)
	NDIterator (T *buffer, const std::vector< int > &dims, const std::vector< int > &strides)
	NDIterator (T *buffer, const std::vector< int > &dims, const std::vector< std::size_t > &strides)
	NDIterator (T *buffer, const std::vector< int > &dims, const std::vector< std::ptrdiff_t > &strides)
T &	operator* () const
T *	operator-> () const
Public Member Functions inherited from carto::NDIterator_base
	NDIterator_base (const std::vector< int > &dims)
	NDIterator_base (const std::vector< int > &dims, const std::vector< int > &strides)
	NDIterator_base (const std::vector< int > &dims, const std::vector< std::size_t > &strides)
	NDIterator_base (const std::vector< int > &dims, const std::vector< std::ptrdiff_t > &strides)
const std::vector< int > &	position () const
std::ptrdiff_t	offset () const
NDIterator_base &	operator++ ()
bool	ended () const
void	reset ()

Protected Attributes
T *	_buffer
Protected Attributes inherited from carto::NDIterator_base
std::vector< int >	_dims
std::vector< std::ptrdiff_t >	_strides
std::vector< int >	_position
std::ptrdiff_t	_offset
bool	_ended

Additional Inherited Members
Static Protected Member Functions inherited from carto::NDIterator_base
template<typename T>
static std::vector< std::ptrdiff_t >	to_ptrdiff_v (const std::vector< T > &v)

Detailed Description

template<typename T>
class carto::NDIterator< T >

N-dimensional array iterator.

Iterates over every element of a N-D array, using strides. The iterator is used more or less like a pointer:

float *data; // fill it...
std::vector<int> dimensions;
std::vector<std::ptrdiff_t> strdes;
// fill dimensions and strides...
float sum = 0.;
NDIterator<float> it( data, dimensions, strides );
for( ; !it.ended(); ++it )
  sum += *it;

Note that the NDIterator is somewhat sub-optimal since it has to test, at each increment, the bounds of each dimension. In many cases it is possible to lowerage the overhead by implementing an ad-hoc loop for the smallest dimension, and using a line_NDIterator on higher dimensions.

Definition at line 134 of file nditerator.h.

Constructor & Destructor Documentation

NDIterator() [1/4]

template<typename T>

carto::NDIterator< T >::NDIterator ( T * buffer, const std::vector< int > & dims )

inline

Definition at line 491 of file nditerator.h.

References _buffer, and carto::NDIterator_base::NDIterator_base().

NDIterator() [2/4]

template<typename T>

carto::NDIterator< T >::NDIterator ( T * buffer, const std::vector< int > & dims, const std::vector< int > & strides )

inline

Definition at line 498 of file nditerator.h.

References _buffer, and carto::NDIterator_base::NDIterator_base().

NDIterator() [3/4]

template<typename T>

carto::NDIterator< T >::NDIterator ( T * buffer, const std::vector< int > & dims, const std::vector< std::size_t > & strides )

inline

Definition at line 506 of file nditerator.h.

References _buffer, and carto::NDIterator_base::NDIterator_base().

NDIterator() [4/4]

template<typename T>

carto::NDIterator< T >::NDIterator ( T * buffer, const std::vector< int > & dims, const std::vector< std::ptrdiff_t > & strides )

inline

Definition at line 514 of file nditerator.h.

References _buffer, and carto::NDIterator_base::NDIterator_base().

Member Function Documentation

operator*()

template<typename T>

T & carto::NDIterator< T >::operator* ( ) const

inline

Definition at line 521 of file nditerator.h.

References _buffer, and carto::NDIterator_base::_offset.

operator->()

template<typename T>

T * carto::NDIterator< T >::operator-> ( ) const

inline

Definition at line 526 of file nditerator.h.

References _buffer, and carto::NDIterator_base::_offset.

Member Data Documentation

_buffer

template<typename T>

T* carto::NDIterator< T >::_buffer

protected

Definition at line 150 of file nditerator.h.

Referenced by NDIterator(), NDIterator(), NDIterator(), NDIterator(), operator*(), and operator->().

---

The documentation for this class was generated from the following file:

• cartobase/containers/nditerator.h
