carto::VoxelValue< T, C > Class Template Reference

Base class for any multichannel data (RGB, RGBA, HSV, ...) More...

#include <cartobase/type/voxelvalue.h>

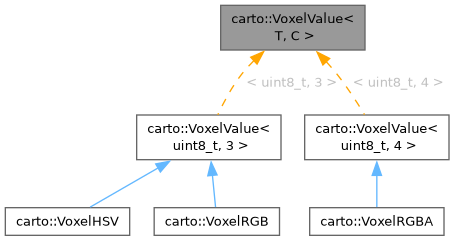

Inheritance diagram for carto::VoxelValue< T, C >:

Collaboration diagram for carto::VoxelValue< T, C >:

Public Types
typedef T	ChannelType

Public Member Functions
	VoxelValue ()
	VoxelValue (const VoxelValue< T, C > &other)
	~VoxelValue ()
bool	operator== (const VoxelValue< T, C > &) const
bool	operator!= (const VoxelValue< T, C > &) const
bool	operator== (const T &) const
bool	operator!= (const T &) const
VoxelValue< T, C > &	operator= (const VoxelValue< T, C > &)=default
	operator bool () const
const T &	operator[] (unsigned int i) const
T &	operator[] (unsigned int i)

Static Public Attributes
static const unsigned int	channelcount = C

Protected Attributes
T	_voxel [C]

Detailed Description

template<typename T, unsigned int C>
class carto::VoxelValue< T, C >

Base class for any multichannel data (RGB, RGBA, HSV, ...)

Template Parameters

T	data type for channel value (uint8_t, ...)
C	number of channels The voxel is stored as an array so that sizeof( VoxelValue<T,C> ) = C * sizeof( T ) Only access, equality and stream operators are implemented here. All math operators must be implemented in specific classes (RGB, HSB, ...)

Definition at line 59 of file voxelvalue.h.

Member Typedef Documentation

ChannelType

template<typename T, unsigned int C>

typedef T carto::VoxelValue< T, C >::ChannelType

Definition at line 63 of file voxelvalue.h.

Constructor & Destructor Documentation

VoxelValue() [1/2]

template<typename T, unsigned int C>

carto::VoxelValue< T, C >::VoxelValue

(

)

Definition at line 49 of file voxelvalue_d.h.

Referenced by operator bool(), operator!=(), operator=(), operator==(), and VoxelValue().

VoxelValue() [2/2]

template<typename T, unsigned int C>

carto::VoxelValue< T, C >::VoxelValue

(

const VoxelValue< T, C > &

other

)

Definition at line 57 of file voxelvalue_d.h.

References VoxelValue().

~VoxelValue()

template<typename T, unsigned int C>

carto::VoxelValue< T, C >::~VoxelValue

(

)

Definition at line 66 of file voxelvalue_d.h.

Member Function Documentation

operator bool()

template<typename T, unsigned int C>

carto::VoxelValue< T, C >::operator bool

(

)

const

Definition at line 123 of file voxelvalue_d.h.

References VoxelValue().

operator!=() [1/2]

template<typename T, unsigned int C>

bool carto::VoxelValue< T, C >::operator!= ( const T & bb ) const

inline

Definition at line 113 of file voxelvalue_d.h.

operator!=() [2/2]

template<typename T, unsigned int C>

bool carto::VoxelValue< T, C >::operator!= ( const VoxelValue< T, C > & aa ) const

inline

Definition at line 91 of file voxelvalue_d.h.

References VoxelValue().

operator=()

template<typename T, unsigned int C>

VoxelValue< T, C > & carto::VoxelValue< T, C >::operator= ( const VoxelValue< T, C > & )

default

References VoxelValue().

operator==() [1/2]

template<typename T, unsigned int C>

bool carto::VoxelValue< T, C >::operator==

(

const T &

bb

)

const

Definition at line 100 of file voxelvalue_d.h.

operator==() [2/2]

template<typename T, unsigned int C>

bool carto::VoxelValue< T, C >::operator== ( const VoxelValue< T, C > & aa ) const

inline

Definition at line 78 of file voxelvalue_d.h.

References VoxelValue().

operator[]() [1/2]

template<typename T, unsigned int C>

T & carto::VoxelValue< T, C >::operator[] ( unsigned int i )

inline

Definition at line 89 of file voxelvalue.h.

References _voxel.

operator[]() [2/2]

template<typename T, unsigned int C>

const T & carto::VoxelValue< T, C >::operator[] ( unsigned int i ) const

inline

Definition at line 87 of file voxelvalue.h.

References _voxel.

Member Data Documentation

_voxel

template<typename T, unsigned int C>

T carto::VoxelValue< T, C >::_voxel[C]

protected

Definition at line 92 of file voxelvalue.h.

Referenced by operator[](), and operator[]().

channelcount

template<typename T, unsigned int C>

const unsigned int carto::VoxelValue< T, C >::channelcount = C

static

Definition at line 66 of file voxelvalue.h.

---

The documentation for this class was generated from the following files:

• cartobase/type/voxelvalue.h
• cartobase/type/voxelvalue_d.h
