#include <cartodata/volume/volumebase.h>

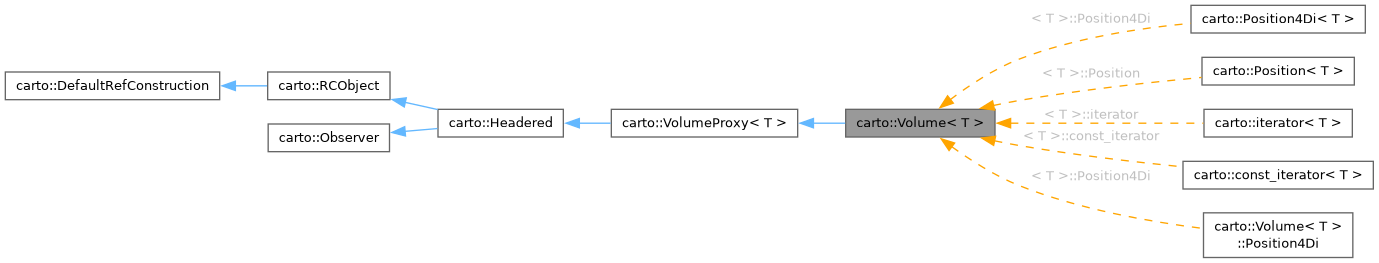

Inheritance diagram for carto::Volume< T >:

[legend]

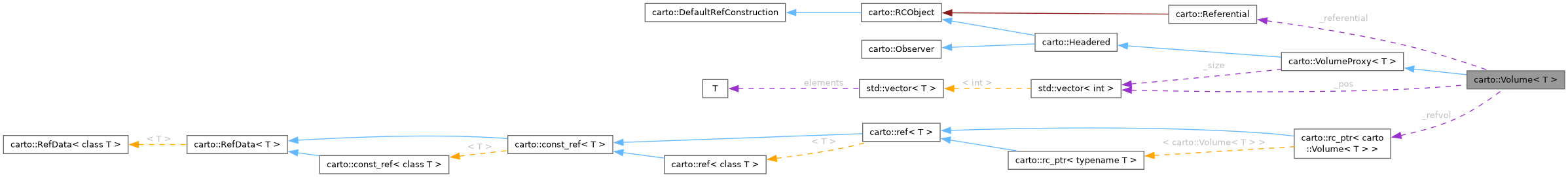

Collaboration diagram for carto::Volume< T >:

[legend]

Classes
class	Position4Di

Public Types
enum	{ DIM_MAX = 8 }
	The most "basic" (and fastest) iterators: they go from the first voxel linerarly in memory, not taking care of offsets when in a Volume view. More...

typedef std::vector< int >	Position

typedef T	datatype
	Access to T type.

typedef blitz::Array< T, Volume< T >::DIM_MAX >::iterator	iterator

typedef blitz::Array< T, Volume< T >::DIM_MAX >::const_iterator	const_iterator

Public Types inherited from carto::RCObject
typedef int	RefCounterType

Public Member Functions
	Volume (int sizeX=1, int sizeY=1, int sizeZ=1, int sizeT=1, const AllocatorContext &allocatorContext=AllocatorContext(), bool allocated=true)
	Volume construction and allocation.

	Volume (const Position4Di &size, const AllocatorContext &allocatorContext=AllocatorContext(), bool allocated=true)
	Volume construction and allocation: Position4Di version.

	Volume (int sizeX, int sizeY, int sizeZ, int sizeT, int bordersize, const AllocatorContext &allocatorContext=AllocatorContext(), bool allocated=true)
	Volume construction and allocation Same as the above constructor, but allows to specify a border size.

	Volume (const Position4Di &size, int bordersize, const AllocatorContext &allocatorContext=AllocatorContext(), bool allocated=true)
	Volume construction and allocation: Position4Di version Same as the above constructor, but allows to specify a border size.

	Volume (int sizeX, int sizeY, int sizeZ, int sizeT, const Position4Di &border, const AllocatorContext &allocatorContext=AllocatorContext(), bool allocated=true)
	Volume construction and allocation Same as the above constructor, but allows to specify a border size in each dimension.

	Volume (const Position4Di &size, const Position4Di &border, const AllocatorContext &allocatorContext=AllocatorContext(), bool allocated=true)
	Volume construction and allocation: Position4Di version Same as the above constructor, but allows to specify a border size in each dimension.

	Volume (const std::vector< int > &size, const AllocatorContext &allocatorContext=AllocatorContext(), bool allocated=true)
	Volume construction and allocation: std::vector version Same as the above constructor, but allows to specify a border size in each dimension.

	Volume (const std::vector< int > &size, const std::vector< int > &border, const AllocatorContext &allocatorContext=AllocatorContext(), bool allocated=true)
	Volume construction and allocation: std::vector version Same as the above constructor, but allows to specify a border size in each dimension.

	Volume (int sizeX, int sizeY, int sizeZ, int sizeT, T buffer, const std::vector< long > strides=0)
	This constructor builds a Volume on an already allocated buffer.

	Volume (const Position4Di &size, T buffer, const std::vector< long > strides=0)
	Position4Di version This constructor builds a Volume on an already allocated buffer.

	Volume (const std::vector< int > &size, T buffer, const std::vector< long > strides=0)

	Volume (rc_ptr< Volume< T > > other, const Position4Di &pos=Position4Di(0, 0, 0, 0), const Position4Di &size=Position4Di(-1, -1, -1, -1), const AllocatorContext &allocContext=AllocatorContext())
	This is the volume view constructor.

	Volume (rc_ptr< Volume< T > > other, const Position &pos, const Position &size=Position(), const AllocatorContext &allocContext=AllocatorContext())
	This is the volume view constructor.

	Volume (rc_ptr< Volume< T > > other, const Position &pos, const Position &size, T *buffer, const std::vector< long > &strides)
	This "very special" constructor should not be used in regular programs.

	Volume (const Volume< T > &other)
	Copy constructor The copy constructors actually duplicates data buffers.

virtual	~Volume ()

Volume< T > &	operator= (const Volume< T > &other)

iterator	begin ()
	Iterators returned here are the most "basic" (and fastest) iterators: they go from the first voxel linerarly in memory, not taking care of offsets when in a Volume view.

iterator	end ()

const_iterator	begin () const

const_iterator	end () const

const T &	operator() (long x, long y=0, long z=0, long t=0) const
	Warning: this operator is not virtual, so may not have the expected result on inherited classes (see old VolumeView)

T &	operator() (long x, long y=0, long z=0, long t=0)

const T &	at (long x, long y=0, long z=0, long t=0) const

T &	at (long x, long y=0, long z=0, long t=0)

const T &	operator() (const Position4Di &position) const

T &	operator() (const Position4Di &position)

const T &	at (const Position4Di &position) const

T &	at (const Position4Di &position)

const T &	at (const std::vector< int > &) const

T &	at (const std::vector< int > &)

const T &	operator() (const std::vector< int > &position) const

T &	operator() (const std::vector< int > &position)

const T &	at (const blitz::TinyVector< int, 1 > &) const

T &	at (const blitz::TinyVector< int, 1 > &)

const T &	at (const blitz::TinyVector< int, 2 > &) const

T &	at (const blitz::TinyVector< int, 2 > &)

const T &	at (const blitz::TinyVector< int, 3 > &) const

T &	at (const blitz::TinyVector< int, 3 > &)

const T &	at (const blitz::TinyVector< int, 4 > &) const

T &	at (const blitz::TinyVector< int, 4 > &)

const T &	at (const blitz::TinyVector< int, Volume< T >::DIM_MAX > &) const

T &	at (const blitz::TinyVector< int, Volume< T >::DIM_MAX > &)

blitz::Array< T, Volume< T >::DIM_MAX >	at (const blitz::RectDomain< Volume< T >::DIM_MAX > &subdomain) const

blitz::Array< T, Volume< T >::DIM_MAX >	at (const blitz::StridedDomain< Volume< T >::DIM_MAX > &subdomain) const

blitz::Array< T, Volume< T >::DIM_MAX >	at (const blitz::Range &r0) const

blitz::Array< T, Volume< T >::DIM_MAX >	at (const blitz::Range &r0, const blitz::Range &r1) const

blitz::Array< T, Volume< T >::DIM_MAX >	at (const blitz::Range &r0, const blitz::Range &r1, const blitz::Range &r2) const

blitz::Array< T, Volume< T >::DIM_MAX >	at (const blitz::Range &r0, const blitz::Range &r1, const blitz::Range &r2, const blitz::Range &r3) const

const T &	at (long x1, long x2, long x3, long x4, long x5, long x6=0, long x7=0, long x8=0) const

T &	at (long x1, long x2, long x3, long x4, long x5, long x6=0, long x7=0, long x8=0)

const T &	operator() (long x1, long x2, long x3, long x4, long x5, long x6=0, long x7=0, long x8=0) const

T &	operator() (long x1, long x2, long x3, long x4, long x5, long x6=0, long x7=0, long x8=0)

virtual void	initialize ()
	Initializes header info.

const AllocatorContext &	allocatorContext () const
	returns volume's AllocatorContext

void	allocate ()
	This function is only useful in the particular context of an unallocated Volume, when the constructor has been used with the `allocated` flag to `false`.

virtual void	reallocate (int sizeX=1, int sizeY=1, int sizeZ=1, int sizeT=1, bool keepcontents=false, const AllocatorContext &allocatorContext=AllocatorContext(), bool allocate=true, const std::vector< long > *strides=0)
	allows resizing and changing allocator

virtual void	reallocate (const Position4Di &size, bool keepcontents=false, const AllocatorContext &allocatorContext=AllocatorContext(), bool allocate=true, const std::vector< long > *strides=0)

virtual void	reallocate (const std::vector< int > &size, bool keepcontents=false, const AllocatorContext &allocatorContext=AllocatorContext(), bool allocate=true, const std::vector< long > *strides=0)

void	allocateBorders (int bsx, int bsy=-1, int bsz=-1)
	reallocate the volume with given borders, keep (copy) the contents.

void	allocateBorders (const std::vector< int > &border)
	reallocate the volume with given borders, keep (copy) the contents.

Volume< T >	copy () const
	Create a volume of same dimension and copy the data.

template<typename OUTP>
Volume< OUTP >	copy () const

Volume< T >	deepcopy () const
	Copy the full data structure.

template<typename OUTP>
Volume< OUTP >	deepcopy () const

Volume< T >	copyStructure () const
	Copy the full data structure without copying the actual data.

template<typename OUTP>
Volume< OUTP >	copyStructure () const
	Copy the full data structure without copying the actual data.

void	copySubVolume (const Volume< T > &source, const std::vector< int > &pos=std::vector< int >())
	Copy voxels values from another volume.

void	copySubVolume (const rc_ptr< Volume< T > > &source, const std::vector< int > &pos=std::vector< int >())
	Copy voxels values from another volume pos is the position into the destination (this) volume, and defaults to 0.

template<typename OUTP>
	operator Volume< OUTP > () const
	Cast to Volume of different datatype.

int	getLevelsCount () const
	Get levels count in volume hierarchy from the current volume to the topmost volume.

int	refLevel (const int level) const
	Transform a level index to a valid level index in the volume hierarchy.

rc_ptr< Volume< T > >	refVolume () const
	Get parent volume.

rc_ptr< Volume< T > >	refVolumeAtLevel (const int level) const
	Get parent volume at a specified level in volume hierarchy.

void	setRefVolume (const rc_ptr< Volume< T > > &refvol)
	Set parent volume.

const Position &	posInRefVolume () const
	Get position in parent volume.

Position	posInRefVolumeAtLevel (const int level) const
	Get position relatively to parent volume at specified level.

void	setPosInRefVolume (const Position4Di &pos)
	Set position in parent volume.

void	setPosInRefVolume (const Position &pos)

std::vector< int >	getBorders () const
	Get borders for the volume.

std::vector< long >	getStrides () const
	Get strides for the volume.

	operator bool () const
	Implicit cast to bool returns all()

bool	all () const
	True if all values compare to true.

bool	any () const
	True if at least one value compares to true.

T	min () const

T	max () const

DataTypeTraits< T >::LongType	sum () const
	To avoid overflow, the biggest possible type (intmax_t, uintmax_t, double...) is used for computation and returned.

void	fill (const T &value)
	Fills the volume with a given value.

void	fillBorder (const T &value)
	Fill border with a constant value.

const Referential &	referential () const
	Referential and orientation information.

Referential &	referential ()
	Referential and orientation information.

Volume< T > &	operator= (const T &value)
	Copy operator.

void	flipToOrientation (const std::string &orient)
	Flip the volume to a given orientation.

void	flipToOrientation (const std::string &orient, const std::string &force_memory_layout)
	Flip the volume to a given orientation.

Object	reorientedHeader (const std::string &orient) const
	used by flipToOrientation(), reorient header information

std::vector< int >	memoryLayoutOrientation () const
	determine the memory layout orientation from strides and current indices orientation.

std::vector< int >	storageLayoutOrientation () const
	determine the storage (disk) layout orientation.

Public Member Functions inherited from carto::VolumeProxy< T >
	VolumeProxy (int sizeX=1, int sizeY=1, int sizeZ=1, int sizeT=1)

	VolumeProxy (const std::vector< int > &size)

	VolumeProxy (const VolumeProxy< T > &other)

virtual	~VolumeProxy ()

int	getSizeX () const

int	getSizeY () const

int	getSizeZ () const

int	getSizeT () const

std::vector< int >	getSize () const
	get the 4 dimensions in a vector

std::vector< float >	getVoxelSize () const
	get the voxel size from the header, with 4 values defaulting to 1.mm if not present

void	setVoxelSize (float vx, float vy=1., float vz=1., float vt=1.)

void	setVoxelSize (const std::vector< float > &vs)

VolumeProxy< T > &	operator= (const VolumeProxy< T > &other)

virtual void	copyHeaderFrom (const PropertySet &other, bool stopOnError=true)
	copy properties from other to this, avoiding forbidden properties like size.

virtual void	copyHeaderFrom (const Object &other, bool stopOnError=true)

Public Member Functions inherited from carto::Headered
	Headered ()

	Headered (const Headered &other)

virtual	~Headered ()

Headered &	operator= (const Headered &other)

const PropertySet &	header () const

PropertySet &	header ()

void	addPropertyFilter (const rc_ptr< PropertyFilter > &propertyFilter)

bool	hasPropertyFilter (const std::string &propertyFilterName) const

bool	connect (const std::string &propertyFilterName, const PropertyFilter::Slot &slot)

bool	disconnect (const std::string &propertyFilterName, const PropertyFilter::Slot &slot)

std::set< rc_ptr< PropertyFilter > >	getPropertyFilters (const std::string &propertyName) const

void	delay ()

void	flush ()

void	blockSignals (bool)

bool	signalsBlocked () const

std::string	uuid ()

bool	copyUuid (const PropertySet &)

bool	copyUuid (const Headered &)

Public Member Functions inherited from carto::RCObject
	RCObject ()

	RCObject (const RCObject &)

RCObject &	operator= (const RCObject &)

virtual	~RCObject ()

Public Member Functions inherited from carto::Observer
virtual	~Observer ()

Protected Member Functions
void	allocate (int oldSizeX, int oldSizeY, int oldSizeZ, int oldSizeT, bool allocate, const AllocatorContext &allocatorContext, const std::vector< long > *strides=0)

void	allocate (const std::vector< int > &oldSize, bool allocate, const AllocatorContext &allocatorContext, const std::vector< long > *strides=0)

void	slotSizeChanged (const PropertyFilter &propertyFilter)

void	updateItemsBuffer ()

void	constructBorders (const Position &bordersize, const AllocatorContext &allocatorContext, bool allocated)

Protected Member Functions inherited from carto::Observer
	Observer ()

Protected Attributes
AllocatedVector< T >	_items

T *	_start

blitz::Array< T, Volume< T >::DIM_MAX >	_blitz

rc_ptr< Volume< T > >	_refvol

std::vector< int >	_pos

Referential	_referential

Protected Attributes inherited from carto::VolumeProxy< T >
std::vector< int >	_size

Detailed Description

template<typename T>
class carto::Volume< T >

N-D Volume main class.

Since 2013 release (version 4.4), Volume and VolumeView are merged into a singleclass. Every Volume can be a view into an other volume. If it is not, its parent volume is NULL. This allows to deal the same way with classic volumes, volumes with borders or partially read volumes.

Volumes should generally be used via reference-counting pointers (rc_ptr): there is a (slightly) specialized rc_ptr for Volume subclasses: VolumeRef.

Since 2016 release (version 4.5), comparison and arithmetic operators are specialized and shipped in volume.h. They can be used as long as the same operation between contained types is well defined. Several helper method (member and non member) are also included.

In version 4.6 Volume has extended support from 4D to N-D, still limited to a fixed max number of dimensions at compilation time (normally set to 8).

See also: Volumes concept philosophy

Iterating on volumes is described in Iterating over volumes

To use Volume classes on "standard" types (numeric types, on which the Volume class has already been compiled in the libraries), just include <cartodata/volume/volume.h>. If you need to use them on other non-standard types (if you get a link error about missing symbols), you will need to recompile the Volume template class on these types: in this case you should include <cartodata/volume/volume_d.h> and force the compilation:

#include <cartodata/volume/volume_d.h>

template class carto::Volume<MyType>;

This should be done only once (in one source file) for each type.

Definition at line 119 of file volumebase.h.

Member Typedef Documentation

◆ const_iterator

template<typename T>

typedef blitz::Array<T,Volume<T>::DIM_MAX>::const_iterator carto::Volume< T >::const_iterator

Definition at line 143 of file volumebase.h.

◆ datatype

template<typename T>

typedef T carto::Volume< T >::datatype

Access to T type.

Definition at line 133 of file volumebase.h.

◆ iterator

template<typename T>

typedef blitz::Array<T,Volume<T>::DIM_MAX>::iterator carto::Volume< T >::iterator

Definition at line 142 of file volumebase.h.

◆ Position

template<typename T>

typedef std::vector<int> carto::Volume< T >::Position

Definition at line 130 of file volumebase.h.

Member Enumeration Documentation

◆ anonymous enum

template<typename T>

anonymous enum

The most "basic" (and fastest) iterators: they go from the first voxel linerarly in memory, not taking care of offsets when in a Volume view.

Taking care of splitting loops line-by-line is the responsability of programmers using such

Enumerator
DIM_MAX

Definition at line 141 of file volumebase.h.

Constructor & Destructor Documentation

◆ Volume() [1/15]

template<typename T>

carto::Volume< T >::Volume	(	int	sizeX = 1,
		int	sizeY = 1,
		int	sizeZ = 1,
		int	sizeT = 1,
		const AllocatorContext &	allocatorContext = AllocatorContext(),
		bool	allocated = true )

explicit

Volume construction and allocation.

Parameters

sizeX	number of voxels
sizeY	number of voxels
sizeZ	number of voxels
sizeT	number of voxels
allocatorContext	information about how to allocate the volume: it can be a bit complex to do really optimal things, but the default value (default constructor of AllocatorContext) is OK in most cases.
allocated	normally left to `true`, it can exceptionnally be set to `false` for "virtual" volumes that must not be actually allocated but are only sources for a view Volume.

Definition at line 72 of file volumebase_d.h.

References _items, _pos, _referential, _start, carto::PropertySet::addBuiltinProperty(), allocate(), allocatorContext(), carto::Headered::header(), and carto::VolumeProxy< T >::VolumeProxy().

Referenced by allocateBorders(), constructBorders(), copy(), copyStructure(), copySubVolume(), copySubVolume(), deepcopy(), getLevelsCount(), operator bool(), operator Volume< OUTP >(), operator=(), operator=(), posInRefVolumeAtLevel(), refVolumeAtLevel(), setRefVolume(), Volume(), Volume(), Volume(), and Volume().

◆ Volume() [2/15]

template<typename T>

carto::Volume< T >::Volume	(	const Position4Di &	size,
		const AllocatorContext &	allocatorContext = AllocatorContext(),
		bool	allocated = true )

explicit

Volume construction and allocation: Position4Di version.

Parameters

size	number of voxels in each dimension
allocatorContext	information about how to allocate the volume: it can be a bit complex to do really optimal things, but the default value (default constructor of AllocatorContext) is OK in most cases.
allocated	normally left to `true`, it can exceptionnally be set to `false` for "virtual" volumes that must not be actually allocated but are only sources for a view Volume.

Definition at line 85 of file volumebase_d.h.

References _items, _pos, _referential, _start, carto::PropertySet::addBuiltinProperty(), allocate(), allocatorContext(), carto::Headered::header(), and carto::VolumeProxy< T >::VolumeProxy().

◆ Volume() [3/15]

template<typename T>

carto::Volume< T >::Volume	(	int	sizeX,
		int	sizeY,
		int	sizeZ,
		int	sizeT,
		int	bordersize,
		const AllocatorContext &	allocatorContext = AllocatorContext(),
		bool	allocated = true )

explicit

Volume construction and allocation Same as the above constructor, but allows to specify a border size.

Border is handled as a larger volume, with a view in it. The current volume is this view.

Definition at line 198 of file volumebase_d.h.

References _items, allocatorContext(), and carto::VolumeProxy< T >::VolumeProxy().

◆ Volume() [4/15]

template<typename T>

carto::Volume< T >::Volume	(	const Position4Di &	size,
		int	bordersize,
		const AllocatorContext &	allocatorContext = AllocatorContext(),
		bool	allocated = true )

explicit

Volume construction and allocation: Position4Di version Same as the above constructor, but allows to specify a border size.

Border is handled as a larger volume, with a view in it. The current volume is this view.

Definition at line 219 of file volumebase_d.h.

References allocatorContext(), and carto::VolumeProxy< T >::VolumeProxy().

◆ Volume() [5/15]

template<typename T>

carto::Volume< T >::Volume	(	int	sizeX,
		int	sizeY,
		int	sizeZ,
		int	sizeT,
		const Position4Di &	border,
		const AllocatorContext &	allocatorContext = AllocatorContext(),
		bool	allocated = true )

explicit

Volume construction and allocation Same as the above constructor, but allows to specify a border size in each dimension.

Definition at line 165 of file volumebase_d.h.

References _items, allocatorContext(), carto::none(), and carto::VolumeProxy< T >::VolumeProxy().

◆ Volume() [6/15]

template<typename T>

carto::Volume< T >::Volume	(	const Position4Di &	size,
		const Position4Di &	border,
		const AllocatorContext &	allocatorContext = AllocatorContext(),
		bool	allocated = true )

explicit

Volume construction and allocation: Position4Di version Same as the above constructor, but allows to specify a border size in each dimension.

Definition at line 180 of file volumebase_d.h.

References _items, allocatorContext(), and carto::VolumeProxy< T >::VolumeProxy().

◆ Volume() [7/15]

template<typename T>

carto::Volume< T >::Volume	(	const std::vector< int > &	size,
		const AllocatorContext &	allocatorContext = AllocatorContext(),
		bool	allocated = true )

explicit

Volume construction and allocation: std::vector version Same as the above constructor, but allows to specify a border size in each dimension.

Definition at line 243 of file volumebase_d.h.

References _items, _start, allocatorContext(), and carto::VolumeProxy< T >::VolumeProxy().

◆ Volume() [8/15]

template<typename T>

carto::Volume< T >::Volume	(	const std::vector< int > &	size,
		const std::vector< int > &	border,
		const AllocatorContext &	allocatorContext = AllocatorContext(),
		bool	allocated = true )

explicit

Volume construction and allocation: std::vector version Same as the above constructor, but allows to specify a border size in each dimension.

Definition at line 257 of file volumebase_d.h.

References _items, allocatorContext(), and carto::VolumeProxy< T >::VolumeProxy().

◆ Volume() [9/15]

template<typename T>

carto::Volume< T >::Volume	(	int	sizeX,
		int	sizeY,
		int	sizeZ,
		int	sizeT,
		T *	buffer,
		const std::vector< long > *	strides = 0 )

This constructor builds a Volume on an already allocated buffer.

The Volume is not owner of the underlying data.

Definition at line 277 of file volumebase_d.h.

◆ Volume() [10/15]

template<typename T>

carto::Volume< T >::Volume	(	const Position4Di &	size,
		T *	buffer,
		const std::vector< long > *	strides = 0 )

Position4Di version This constructor builds a Volume on an already allocated buffer.

The Volume is not owner of the underlying data.

Definition at line 290 of file volumebase_d.h.

References _items, _pos, _referential, carto::PropertySet::addBuiltinProperty(), allocate(), allocatorContext(), carto::Headered::header(), and carto::VolumeProxy< T >::VolumeProxy().

◆ Volume() [11/15]

template<typename T>

carto::Volume< T >::Volume	(	const std::vector< int > &	size,
		T *	buffer,
		const std::vector< long > *	strides = 0 )

Definition at line 308 of file volumebase_d.h.

References _items, _pos, _referential, carto::PropertySet::addBuiltinProperty(), allocate(), allocatorContext(), carto::Headered::header(), and carto::VolumeProxy< T >::VolumeProxy().

◆ Volume() [12/15]

template<typename T>

carto::Volume< T >::Volume	(	rc_ptr< Volume< T > >	other,
		const Position4Di &	pos = Position4Di( 0, 0, 0, 0 ),
		const Position4Di &	size = Position4Di( -1, -1, -1, -1 ),
		const AllocatorContext &	allocContext = AllocatorContext() )

inline

This is the volume view constructor.

Beware not to mix it up with the copy constructor ( it takes a pointer to volume instead of a volume ) If parent volume is allocated, view points to its data and doesn't own it. Else, it allocates size and owns it.

Definition at line 408 of file volumebase_d.h.

References allocatorContext(), carto::VolumeProxy< T >::getSizeX(), carto::VolumeProxy< T >::getSizeY(), Volume(), and carto::VolumeProxy< T >::VolumeProxy().

◆ Volume() [13/15]

template<typename T>

carto::Volume< T >::Volume	(	rc_ptr< Volume< T > >	other,
		const Position &	pos,
		const Position &	size = Position(),
		const AllocatorContext &	allocContext = AllocatorContext() )

inline

This is the volume view constructor.

Beware not to mix it up with the copy constructor ( it takes a pointer to volume instead of a volume ) If parent volume is allocated, view points to its data and doesn't own it. Else, it allocates size and owns it.

Definition at line 467 of file volumebase_d.h.

References _blitz, _items, _pos, _referential, _refvol, carto::VolumeProxy< T >::_size, _start, carto::PropertySet::addBuiltinProperty(), allocate(), DIM_MAX, carto::Headered::header(), referential(), carto::Headered::uuid(), Volume(), and carto::VolumeProxy< T >::VolumeProxy().

◆ Volume() [14/15]

template<typename T>

carto::Volume< T >::Volume	(	rc_ptr< Volume< T > >	other,
		const Position &	pos,
		const Position &	size,
		T *	buffer,
		const std::vector< long > &	strides )

This "very special" constructor should not be used in regular programs.

It is meant for the IO system to map file views into memory views.

Definition at line 524 of file volumebase_d.h.

References _items, _refvol, Volume(), and carto::VolumeProxy< T >::VolumeProxy().

◆ Volume() [15/15]

template<typename T>

carto::Volume< T >::Volume ( const Volume< T > & other )

Copy constructor The copy constructors actually duplicates data buffers.

In the case of a volume view, the underlying volume is also duplicated, so the new volume will be a view in a new duplicate bigger volume.

Definition at line 547 of file volumebase_d.h.

References Volume(), and carto::VolumeProxy< T >::VolumeProxy().

◆ ~Volume()

template<typename T>

carto::Volume< T >::~Volume ( )

virtual

Definition at line 600 of file volumebase_d.h.

Member Function Documentation

◆ all()

template<typename T>

bool carto::Volume< T >::all ( ) const

inline

True if all values compare to true.

Definition at line 143 of file volumebase_d_operators.h.

References carto::volumebaseinternal::select_has_bool_conversion< T, has_bool_conversion >::all().

◆ allocate() [1/3]

template<typename T>

void carto::Volume< T >::allocate ( )

This function is only useful in the particular context of an unallocated Volume, when the constructor has been used with the allocated flag to false.

Calling allocate() afterwards will actually allocate the memory. Otherwise it will do nothing.

Definition at line 1203 of file volumebase_d.h.

References allocate(), allocatorContext(), carto::VolumeProxy< T >::getSize(), and getStrides().

Referenced by allocate(), allocate(), allocate(), constructBorders(), carto::Position4Di< T >::end(), reallocate(), reallocate(), slotSizeChanged(), carto::Position4Di< T >::Volume(), Volume(), Volume(), Volume(), Volume(), and Volume().

◆ allocate() [2/3]

template<typename T>

void carto::Volume< T >::allocate	(	const std::vector< int > &	oldSize,
		bool	allocate,
		const AllocatorContext &	allocatorContext,
		const std::vector< long > *	strides = 0 )

protected

Definition at line 989 of file volumebase_d.h.

References _blitz, _items, _referential, carto::VolumeProxy< T >::_size, _start, allocate(), DIM_MAX, std::numeric_limits< typename _Tp >::max(), and carto::toString().

◆ allocate() [3/3]

template<typename T>

void carto::Volume< T >::allocate	(	int	oldSizeX,
		int	oldSizeY,
		int	oldSizeZ,
		int	oldSizeT,
		bool	allocate,
		const AllocatorContext &	allocatorContext,
		const std::vector< long > *	strides = 0 )

protected

Definition at line 971 of file volumebase_d.h.

References allocate().

◆ allocateBorders() [1/2]

template<typename T>

void carto::Volume< T >::allocateBorders ( const std::vector< int > & border )

reallocate the volume with given borders, keep (copy) the contents.

only 1 value is mandatory.

Definition at line 1350 of file volumebase_d.h.

References _pos, _refvol, constructBorders(), carto::copy(), copySubVolume(), and Volume().

◆ allocateBorders() [2/2]

template<typename T>

void carto::Volume< T >::allocateBorders	(	int	bsx,
		int	bsy = -1,
		int	bsz = -1 )

reallocate the volume with given borders, keep (copy) the contents.

Definition at line 1338 of file volumebase_d.h.

References allocateBorders().

Referenced by allocateBorders().

◆ allocatorContext()

template<typename T>

const AllocatorContext & carto::Volume< T >::allocatorContext ( ) const

inline

returns volume's AllocatorContext

Definition at line 609 of file volumebase_d.h.

References _items.

Referenced by allocate(), constructBorders(), carto::copyStructure(), carto::deepcopy(), carto::Position4Di< T >::end(), operator=(), soma::VolumeFormatReader< T >::read(), soma::VolumeUtilIO< T >::readFull(), carto::setBorders(), carto::setMinBorders(), carto::Creator< Volume< T > >::setup(), slotSizeChanged(), updateItemsBuffer(), Volume(), Volume(), Volume(), Volume(), Volume(), Volume(), Volume(), Volume(), Volume(), Volume(), Volume(), and soma::VolumeFormatWriter< T >::write().

◆ any()

template<typename T>

bool carto::Volume< T >::any ( ) const

inline

True if at least one value compares to true.

Definition at line 150 of file volumebase_d_operators.h.

References carto::volumebaseinternal::select_has_bool_conversion< T, has_bool_conversion >::any().

◆ at() [1/24]

template<typename T>

blitz::Array< T, Volume< T >::DIM_MAX > carto::Volume< T >::at ( const blitz::Range & r0 ) const

inline

Definition at line 540 of file volumebase_d_inline.h.

References _blitz.

◆ at() [2/24]

template<typename T>

blitz::Array< T, Volume< T >::DIM_MAX > carto::Volume< T >::at	(	const blitz::Range &	r0,
		const blitz::Range &	r1 ) const

inline

Definition at line 547 of file volumebase_d_inline.h.

References _blitz.

◆ at() [3/24]

template<typename T>

blitz::Array< T, Volume< T >::DIM_MAX > carto::Volume< T >::at	(	const blitz::Range &	r0,
		const blitz::Range &	r1,
		const blitz::Range &	r2 ) const

inline

Definition at line 554 of file volumebase_d_inline.h.

References _blitz.

◆ at() [4/24]

template<typename T>

blitz::Array< T, Volume< T >::DIM_MAX > carto::Volume< T >::at	(	const blitz::Range &	r0,
		const blitz::Range &	r1,
		const blitz::Range &	r2,
		const blitz::Range &	r3 ) const

inline

Definition at line 562 of file volumebase_d_inline.h.

References _blitz.

◆ at() [5/24]

template<typename T>

blitz::Array< T, Volume< T >::DIM_MAX > carto::Volume< T >::at ( const blitz::RectDomain< Volume< T >::DIM_MAX > & subdomain ) const

inline

Definition at line 526 of file volumebase_d_inline.h.

References _blitz, and DIM_MAX.

◆ at() [6/24]

template<typename T>

blitz::Array< T, Volume< T >::DIM_MAX > carto::Volume< T >::at ( const blitz::StridedDomain< Volume< T >::DIM_MAX > & subdomain ) const

inline

Definition at line 533 of file volumebase_d_inline.h.

References _blitz, and DIM_MAX.

◆ at() [7/24]

template<typename T>

T & carto::Volume< T >::at ( const blitz::TinyVector< int, 1 > & index )

inline

Definition at line 471 of file volumebase_d_inline.h.

References _blitz.

◆ at() [8/24]

template<typename T>

const T & carto::Volume< T >::at ( const blitz::TinyVector< int, 1 > & index ) const

inline

Definition at line 465 of file volumebase_d_inline.h.

References _blitz.

◆ at() [9/24]

template<typename T>

T & carto::Volume< T >::at ( const blitz::TinyVector< int, 2 > & index )

inline

Definition at line 483 of file volumebase_d_inline.h.

References _blitz.

◆ at() [10/24]

template<typename T>

const T & carto::Volume< T >::at ( const blitz::TinyVector< int, 2 > & index ) const

inline

Definition at line 477 of file volumebase_d_inline.h.

References _blitz.

◆ at() [11/24]

template<typename T>

T & carto::Volume< T >::at ( const blitz::TinyVector< int, 3 > & index )

inline

Definition at line 495 of file volumebase_d_inline.h.

◆ at() [12/24]

template<typename T>

const T & carto::Volume< T >::at ( const blitz::TinyVector< int, 3 > & index ) const

inline

Definition at line 489 of file volumebase_d_inline.h.

References _blitz.

◆ at() [13/24]

template<typename T>

T & carto::Volume< T >::at ( const blitz::TinyVector< int, 4 > & index )

inline

Definition at line 507 of file volumebase_d_inline.h.

References _blitz.

◆ at() [14/24]

template<typename T>

const T & carto::Volume< T >::at ( const blitz::TinyVector< int, 4 > & index ) const

inline

Definition at line 501 of file volumebase_d_inline.h.

References _blitz.

◆ at() [15/24]

template<typename T>

T & carto::Volume< T >::at ( const blitz::TinyVector< int, Volume< T >::DIM_MAX > & index )

inline

Definition at line 519 of file volumebase_d_inline.h.

References _blitz, and DIM_MAX.

◆ at() [16/24]

template<typename T>

const T & carto::Volume< T >::at ( const blitz::TinyVector< int, Volume< T >::DIM_MAX > & index ) const

inline

Definition at line 513 of file volumebase_d_inline.h.

References _blitz, and DIM_MAX.

◆ at() [17/24]

template<typename T>

T & carto::Volume< T >::at ( const Position4Di & position )

inline

Definition at line 134 of file volumebase_d_inline.h.

References at().

◆ at() [18/24]

template<typename T>

const T & carto::Volume< T >::at ( const Position4Di & position ) const

inline

Definition at line 118 of file volumebase_d_inline.h.

References at().

◆ at() [19/24]

template<typename T>

T & carto::Volume< T >::at ( const std::vector< int > & index )

inline

Definition at line 301 of file volumebase_d_inline.h.

◆ at() [20/24]

template<typename T>

const T & carto::Volume< T >::at ( const std::vector< int > & index ) const

inline

Definition at line 149 of file volumebase_d_inline.h.

References _blitz.

◆ at() [21/24]

template<typename T>

T & carto::Volume< T >::at	(	long	x,
		long	y = 0,
		long	z = 0,
		long	t = 0 )

inline

Definition at line 76 of file volumebase_d_inline.h.

References _blitz, and _start.

◆ at() [22/24]

template<typename T>

const T & carto::Volume< T >::at	(	long	x,
		long	y = 0,
		long	z = 0,
		long	t = 0 ) const

inline

◆ at() [23/24]

template<typename T>

T & carto::Volume< T >::at	(	long	x1,
		long	x2,
		long	x3,
		long	x4,
		long	x5,
		long	x6 = 0,
		long	x7 = 0,
		long	x8 = 0 )

inline

Definition at line 587 of file volumebase_d_inline.h.

References _blitz.

◆ at() [24/24]

template<typename T>

const T & carto::Volume< T >::at	(	long	x1,
		long	x2,
		long	x3,
		long	x4,
		long	x5,
		long	x6 = 0,
		long	x7 = 0,
		long	x8 = 0 ) const

inline

Definition at line 570 of file volumebase_d_inline.h.

References _blitz.

◆ begin() [1/2]

template<typename T>

Volume< T >::iterator carto::Volume< T >::begin ( )

Iterators returned here are the most "basic" (and fastest) iterators: they go from the first voxel linerarly in memory, not taking care of offsets when in a Volume view.

Taking care of splitting loops line-by-line is the responsability of programmers using such iterators.

Definition at line 910 of file volumebase_d.h.

References _blitz.

Referenced by carto::VolumeRef< T >::begin(), and carto::VolumeRef< T >::begin().

◆ begin() [2/2]

template<typename T>

Volume< T >::const_iterator carto::Volume< T >::begin ( ) const

Definition at line 928 of file volumebase_d.h.

References _blitz.

◆ constructBorders()

template<typename T>

void carto::Volume< T >::constructBorders	(	const Position &	bordersize,
		const AllocatorContext &	allocatorContext,
		bool	allocated )

protected

Definition at line 105 of file volumebase_d.h.

References _blitz, _refvol, carto::VolumeProxy< T >::_size, _start, allocate(), allocatorContext(), and Volume().

Referenced by allocateBorders(), and carto::Position4Di< T >::operator=().

◆ copy() [1/2]

template<typename T>

Volume< T > carto::Volume< T >::copy ( ) const

inline

Create a volume of same dimension and copy the data.

This method does not deal with the underlying view structures, so borders or parent volumes are not copied or transfered.

Definition at line 298 of file volumebase_d_operators.h.

References Volume().

Referenced by flipToOrientation().

◆ copy() [2/2]

template<typename T>

template<typename OUTP>

Volume< OUTP > carto::Volume< T >::copy ( ) const

inline

Definition at line 306 of file volumebase_d_operators.h.

References Volume().

◆ copyStructure() [1/2]

template<typename T>

Volume< T > carto::Volume< T >::copyStructure ( ) const

inline

Copy the full data structure without copying the actual data.

Definition at line 328 of file volumebase_d_operators.h.

References Volume().

◆ copyStructure() [2/2]

template<typename T>

template<typename OUTP>

Volume< OUTP > carto::Volume< T >::copyStructure ( ) const

inline

Copy the full data structure without copying the actual data.

Definition at line 336 of file volumebase_d_operators.h.

References Volume().

◆ copySubVolume() [1/2]

template<typename T>

void carto::Volume< T >::copySubVolume	(	const rc_ptr< Volume< T > > &	source,
		const std::vector< int > &	pos = std::vector<int>() )

Copy voxels values from another volume pos is the position into the destination (this) volume, and defaults to 0.

Contrarily to the = operator, the destination (this) volume is not reallocated or reshaped, and its header is left unchanged.

Definition at line 903 of file volumebase_d.h.

References copySubVolume(), and Volume().

◆ copySubVolume() [2/2]

template<typename T>

void carto::Volume< T >::copySubVolume	(	const Volume< T > &	source,
		const std::vector< int > &	pos = std::vector<int>() )

Copy voxels values from another volume.

pos is the position into the destination (this) volume, and defaults to 0. Contrarily to the = operator, the destination (this) volume is not reallocated or reshaped, and its header is left unchanged.

Definition at line 870 of file volumebase_d.h.

References at(), carto::NDIterator_base::ended(), carto::VolumeProxy< T >::getSize(), getStrides(), carto::const_line_NDIterator< typename T >::inc_line_ptr(), carto::line_NDIterator< typename T >::inc_line_ptr(), carto::line_NDIterator< typename T >::line_length(), and Volume().

Referenced by allocateBorders(), and copySubVolume().

◆ deepcopy() [1/2]

template<typename T>

Volume< T > carto::Volume< T >::deepcopy ( ) const

inline

Copy the full data structure.

This is similar to what the copy constructor does.

Definition at line 313 of file volumebase_d_operators.h.

References Volume().

Referenced by carto::operator++(), and carto::operator--().

◆ deepcopy() [2/2]

template<typename T>

template<typename OUTP>

Volume< OUTP > carto::Volume< T >::deepcopy ( ) const

inline

Definition at line 321 of file volumebase_d_operators.h.

References Volume().

◆ end() [1/2]

template<typename T>

Volume< T >::iterator carto::Volume< T >::end ( )

Definition at line 919 of file volumebase_d.h.

References _blitz.

Referenced by carto::VolumeRef< T >::end(), and carto::VolumeRef< T >::end().

◆ end() [2/2]

template<typename T>

Volume< T >::const_iterator carto::Volume< T >::end ( ) const

Definition at line 937 of file volumebase_d.h.

References _blitz.

◆ fill()

template<typename T>

void carto::Volume< T >::fill ( const T & value )

inline

Fills the volume with a given value.

Definition at line 191 of file volumebase_d_operators.h.

References carto::volumeutil::selfApply().

Referenced by operator=().

◆ fillBorder()

template<typename T>

void carto::Volume< T >::fillBorder ( const T & value )

inline

Fill border with a constant value.

Fill borders with a constant value.

More precisely, fill the surrounding of the volume view in the reference volume (if any) using the given value.

Definition at line 207 of file volumebase_d_operators.h.

References carto::VolumeProxy< T >::getSize(), posInRefVolume(), and refVolume().

◆ flipToOrientation() [1/2]

template<typename T>

void carto::Volume< T >::flipToOrientation ( const std::string & orient )

Flip the volume to a given orientation.

The volume voxels will be reordered to match the given orientation. Using this method, only the strides will be changed, and the data block will remain preserverd. This is different with the other flipToOrientation() method and the additional force_memory_layout argument.

Orientation is given as a 3 char string: "LPI" (the default orientation in AIMS), "RAS", and combinations of these 6 letters. See https://brainvisa.info/aimsdata/user_doc/coordinates_systems.html and http://www.grahamwideman.com/gw/brain/orientation/orientterms.htm.

Definition at line 1377 of file volumebase_d.h.

References _blitz, _items, _referential, _start, at(), carto::Headered::blockSignals(), DIM_MAX, carto::VolumeProxy< T >::getSize(), carto::Headered::header(), soma::AffineTransformationBase::inverse(), referential(), reorientedHeader(), soma::Transformation::transformVector(), and carto::Headered::uuid().

Referenced by carto::Creator< Volume< T > >::create(), and flipToOrientation().

◆ flipToOrientation() [2/2]

template<typename T>

void carto::Volume< T >::flipToOrientation	(	const std::string &	orient,
		const std::string &	force_memory_layout )

Flip the volume to a given orientation.

The volume voxels will be reordered to match the given orientation. Contrarily to the other flipToOrientation method, the voxels data block will be reallocated and flipped to match the given orientation. It is also given as a 3 char string, thus it may specify a different memory layout from the one used for indices.

Definition at line 1454 of file volumebase_d.h.

References at(), carto::copy(), copy(), carto::NDIterator_base::ended(), flipToOrientation(), carto::VolumeProxy< T >::getSize(), getStrides(), carto::Headered::header(), carto::line_NDIterator< typename T >::inc_line_ptr(), soma::AffineTransformationBase::inverse(), carto::line_NDIterator_base::line_direction(), carto::line_NDIterator< typename T >::line_length(), carto::NDIterator_base::position(), referential(), soma::AffineTransformationBase::transform(), and soma::Transformation::transformVector().

◆ getBorders()

template<typename T>

std::vector< int > carto::Volume< T >::getBorders ( ) const

inline

Get borders for the volume.

A volume that can have borders is a volume
that references another volume. It can be understood as a view in the reference volume.

Returns: std::vector<uint16_t> that contains the borders availables for the volume. vector[0]: low border in x direction vector[1]: high border in x direction vector[2]: low border in y direction vector[3]: high border in y direction vector[4]: low border in z direction vector[5]: high border in z direction vector[6]: low border in t direction vector[7]: high border in t direction

Definition at line 796 of file volumebase_d.h.

References _pos, _refvol, and carto::VolumeProxy< T >::_size.

Referenced by carto::matrix_product(), carto::setBorders(), carto::setBorders(), carto::setMinBorders(), carto::setMinBorders(), and carto::transpose().

◆ getLevelsCount()

template<typename T>

int carto::Volume< T >::getLevelsCount ( ) const

inline

Get levels count in volume hierarchy from the current volume to the topmost volume.

Definition at line 628 of file volumebase_d.h.

References carto::const_ref< class T >::isNull(), and Volume().

Referenced by refLevel().

◆ getStrides()

template<typename T>

std::vector< long > carto::Volume< T >::getStrides ( ) const

inline

Get strides for the volume.

Strides contain the number of voxels for
each dimension including.

Definition at line 815 of file volumebase_d.h.

References _blitz, and carto::VolumeProxy< T >::_size.

Referenced by carto::VolumeUtil< T >::accumulate(), carto::volumeutil::accumulate(), allocate(), carto::volumeutil::applyTowards(), carto::volumeutil::applyTowards(), carto::volumeutil::applyTowards(), carto::volumeutil::applyTowards(), carto::volumeutil::applyTowards(), copySubVolume(), flipToOrientation(), memoryLayoutOrientation(), soma::VolumeUtilIO< T >::readPartial(), carto::LightResampler< T >::resampleVolume(), and carto::transpose().

◆ initialize()

template<typename T>

void carto::Volume< T >::initialize ( )

virtual

Initializes header info.

Reimplemented from carto::Headered.

Definition at line 946 of file volumebase_d.h.

References carto::Headered::addPropertyFilter(), carto::Headered::connect(), carto::Headered::initialize(), and slotSizeChanged().

Referenced by operator=().

◆ max()

template<typename T>

T carto::Volume< T >::max ( ) const

inline

Definition at line 171 of file volumebase_d_operators.h.

References carto::volumebaseinternal::select_is_scalar< T, is_scalar >::max().

◆ memoryLayoutOrientation()

template<typename T>

std::vector< int > carto::Volume< T >::memoryLayoutOrientation ( ) const

determine the memory layout orientation from strides and current indices orientation.

Use volume.referential().orientationStr(volume.memoryLayoutOrientation()) to get a more readable string description.

Definition at line 1630 of file volumebase_d.h.

References carto::VolumeProxy< T >::getSize(), getStrides(), and referential().

◆ min()

template<typename T>

T carto::Volume< T >::min ( ) const

inline

Definition at line 164 of file volumebase_d_operators.h.

References carto::volumebaseinternal::select_is_scalar< T, is_scalar >::min().

◆ operator bool()

template<typename T>

carto::Volume< T >::operator bool ( ) const

inline

Implicit cast to bool returns all()

Definition at line 157 of file volumebase_d_operators.h.

References carto::volumebaseinternal::select_has_bool_conversion< T, has_bool_conversion >::all(), and Volume().

◆ operator Volume< OUTP >()

template<typename T>

template<typename OUTP>

carto::Volume< T >::operator Volume< OUTP > ( ) const

inline

Cast to Volume of different datatype.

Definition at line 344 of file volumebase_d_operators.h.

References Volume().

◆ operator()() [1/8]

template<typename T>

T & carto::Volume< T >::operator() ( const Position4Di & position )

inline

Definition at line 142 of file volumebase_d_inline.h.

References at().

◆ operator()() [2/8]

template<typename T>

const T & carto::Volume< T >::operator() ( const Position4Di & position ) const

inline

Definition at line 126 of file volumebase_d_inline.h.

References at().

◆ operator()() [3/8]

template<typename T>

T & carto::Volume< T >::operator() ( const std::vector< int > & position )

inline

Definition at line 459 of file volumebase_d_inline.h.

References at().

◆ operator()() [4/8]

template<typename T>

const T & carto::Volume< T >::operator() ( const std::vector< int > & position ) const

inline

Definition at line 452 of file volumebase_d_inline.h.

References at().

◆ operator()() [5/8]

template<typename T>

T & carto::Volume< T >::operator()	(	long	x,
		long	y = 0,
		long	z = 0,
		long	t = 0 )

inline

Definition at line 110 of file volumebase_d_inline.h.

References at().

◆ operator()() [6/8]

template<typename T>

const T & carto::Volume< T >::operator()	(	long	x,
		long	y = 0,
		long	z = 0,
		long	t = 0 ) const

inline

Warning: this operator is not virtual, so may not have the expected result on inherited classes (see old VolumeView)

Definition at line 68 of file volumebase_d_inline.h.

References at().

◆ operator()() [7/8]

template<typename T>

T & carto::Volume< T >::operator()	(	long	x1,
		long	x2,
		long	x3,
		long	x4,
		long	x5,
		long	x6 = 0,
		long	x7 = 0,
		long	x8 = 0 )

inline

Definition at line 597 of file volumebase_d_inline.h.

References at().

◆ operator()() [8/8]

template<typename T>

const T & carto::Volume< T >::operator()	(	long	x1,
		long	x2,
		long	x3,
		long	x4,
		long	x5,
		long	x6 = 0,
		long	x7 = 0,
		long	x8 = 0 ) const

inline

Definition at line 579 of file volumebase_d_inline.h.

References at().

◆ operator=() [1/2]

template<typename T>

Volume< T > & carto::Volume< T >::operator= ( const T & value )

inline

Copy operator.

Care should be taken regarding the behavior of the copy operator: depending on the allocation mode of the copied volume, and whether it is a view into another volume, different behaviors will be achieved:

if "value" is a "regular" volume, then a full copy is performed: if "this" is modified later, "value" will not be changed.
if "value" is a view into a larger volume (its volumeRef() is not null, and its own data buffer is not actually allocated), then the copied object, "this", will be another view into the same volume, thus resulting in a shallow copy. If "this" is modified later, both "value " and the reference volume from which the view is taken, will be modified.

Definition at line 198 of file volumebase_d_operators.h.

References fill(), and Volume().

◆ operator=() [2/2]

template<typename T>

Volume< T > & carto::Volume< T >::operator= ( const Volume< T > & other )

Definition at line 828 of file volumebase_d.h.

References _blitz, _items, _pos, _referential, _refvol, carto::VolumeProxy< T >::_size, _start, allocatorContext(), carto::Headered::blockSignals(), DIM_MAX, initialize(), carto::VolumeProxy< T >::operator=(), carto::Headered::signalsBlocked(), and Volume().

◆ posInRefVolume()

template<typename T>

const Volume< T >::Position & carto::Volume< T >::posInRefVolume ( ) const

inline

Get position in parent volume.

Definition at line 621 of file volumebase_d.h.

References _pos.

Referenced by carto::Position4Di< T >::allocate(), carto::copyStructure(), carto::deepcopy(), fillBorder(), carto::VolumeRef< T >::posInRefVolume(), soma::VolumeFormatReader< T >::read(), and soma::VolumeFormatWriter< T >::write().

◆ posInRefVolumeAtLevel()

template<typename T>

Volume< T >::Position carto::Volume< T >::posInRefVolumeAtLevel ( const int level ) const

inline

Get position relatively to parent volume at specified level.

Definition at line 673 of file volumebase_d.h.

References carto::VolumeProxy< T >::getSize(), carto::const_ref< class T >::isNull(), refLevel(), and Volume().

Referenced by carto::VolumeRef< T >::posInRefVolumeAtLevel().

◆ reallocate() [1/3]

template<typename T>

void carto::Volume< T >::reallocate	(	const Position4Di &	size,
		bool	keepcontents = false,
		const AllocatorContext &	allocatorContext = AllocatorContext(),
		bool	allocate = true,
		const std::vector< long > *	strides = 0 )

virtual

Definition at line 1294 of file volumebase_d.h.

References reallocate().

◆ reallocate() [2/3]

template<typename T>

void carto::Volume< T >::reallocate	(	const std::vector< int > &	size,
		bool	keepcontents = false,
		const AllocatorContext &	allocatorContext = AllocatorContext(),
		bool	allocate = true,
		const std::vector< long > *	strides = 0 )

virtual

Definition at line 1308 of file volumebase_d.h.

References carto::VolumeProxy< T >::_size, allocate(), carto::PropertySet::changeBuiltinProperty(), and carto::Headered::header().

◆ reallocate() [3/3]

template<typename T>

void carto::Volume< T >::reallocate	(	int	sizeX = 1,
		int	sizeY = 1,
		int	sizeZ = 1,
		int	sizeT = 1,
		bool	keepcontents = false,
		const AllocatorContext &	allocatorContext = AllocatorContext(),
		bool	allocate = true,
		const std::vector< long > *	strides = 0 )

virtual

allows resizing and changing allocator

Definition at line 1267 of file volumebase_d.h.

References carto::VolumeProxy< T >::_size, and allocate().

Referenced by reallocate(), carto::setBorders(), carto::setMinBorders(), and carto::Creator< Volume< T > >::setup().

◆ referential() [1/2]

template<typename T>

Referential & carto::Volume< T >::referential ( )

Referential and orientation information.

Definition at line 774 of file volumebase_d_inline.h.

References _referential.

◆ referential() [2/2]

template<typename T>

const Referential & carto::Volume< T >::referential ( ) const

Referential and orientation information.

Definition at line 767 of file volumebase_d_inline.h.

References _referential.

Referenced by carto::Creator< Volume< T > >::create(), flipToOrientation(), flipToOrientation(), memoryLayoutOrientation(), reorientedHeader(), storageLayoutOrientation(), Volume(), and soma::VolumeFormatWriter< T >::write().

◆ refLevel()

template<typename T>

int carto::Volume< T >::refLevel ( const int level ) const

inline

Transform a level index to a valid level index in the volume hierarchy.

The current volume has level 0, parent volume as level 1, ... Level can also be a negative index from topmost volume. -1 is topmost volume, -2 is the the child volume below topmost volume.

Definition at line 640 of file volumebase_d.h.

References getLevelsCount(), and carto::toString().

Referenced by posInRefVolumeAtLevel(), and refVolumeAtLevel().

◆ refVolume()

template<typename T>

rc_ptr< Volume< T > > carto::Volume< T >::refVolume ( ) const

inline

Get parent volume.

Note: refVolume() returns a rc_ptr<Volume> and not a VolumeRef. Because arithmetic operators are only defined for Volume and VolumeRef objects, this result must be converted to a VolumeRef to be used in arithmetic operations.

Definition at line 615 of file volumebase_d.h.

References _refvol.

Referenced by carto::copyStructure(), carto::deepcopy(), fillBorder(), soma::VolumeFormatReader< T >::read(), and soma::VolumeFormatWriter< T >::write().

◆ refVolumeAtLevel()

template<typename T>

rc_ptr< Volume< T > > carto::Volume< T >::refVolumeAtLevel ( const int level ) const

inline

Get parent volume at a specified level in volume hierarchy.

Note: refVolumeAtLevel() returns a rc_ptr<Volume> and not a VolumeRef. Because arithmetic operators are only defined for Volume and VolumeRef objects, this result must be converted to a VolumeRef to be used in arithmetic operations.

Definition at line 658 of file volumebase_d.h.

References carto::const_ref< class T >::isNull(), refLevel(), and Volume().

◆ reorientedHeader()

template<typename T>

Object carto::Volume< T >::reorientedHeader ( const std::string & orient ) const

used by flipToOrientation(), reorient header information

Definition at line 1536 of file volumebase_d.h.

References _referential, carto::PropertySet::getProperty(), carto::VolumeProxy< T >::getSize(), carto::VolumeProxy< T >::getVoxelSize(), carto::PropertySet::hasProperty(), carto::Headered::header(), soma::AffineTransformationBase::inverse(), soma::AffineTransformationBase::order(), carto::Object::reference(), referential(), soma::AffineTransformationBase::squeezeOrder(), soma::Transformation::transformVector(), and carto::Object::value().

Referenced by flipToOrientation(), and soma::VolumeFormatWriter< T >::write().

◆ setPosInRefVolume() [1/2]

template<typename T>

void carto::Volume< T >::setPosInRefVolume ( const Position & pos )

inline

Definition at line 777 of file volumebase_d.h.

References _pos, and updateItemsBuffer().

◆ setPosInRefVolume() [2/2]

template<typename T>

void carto::Volume< T >::setPosInRefVolume ( const Position4Di & pos )

inline

Set position in parent volume.

Definition at line 766 of file volumebase_d.h.

References _pos, carto::Volume< T >::Position4Di::toVector(), and updateItemsBuffer().

Referenced by carto::copyStructure(), carto::deepcopy(), carto::setBorders(), carto::setMinBorders(), and carto::VolumeRef< T >::setPosInRefVolume().

◆ setRefVolume()

template<typename T>

void carto::Volume< T >::setRefVolume ( const rc_ptr< Volume< T > > & refvol )

inline

Set parent volume.

Definition at line 788 of file volumebase_d.h.

References _refvol, updateItemsBuffer(), and Volume().

Referenced by carto::copyStructure(), carto::deepcopy(), carto::setBorders(), and carto::setMinBorders().

◆ slotSizeChanged()

template<typename T>

void carto::Volume< T >::slotSizeChanged ( const PropertyFilter & propertyFilter )

protected

Definition at line 1215 of file volumebase_d.h.

References _items, carto::VolumeProxy< T >::_size, allocate(), allocatorContext(), carto::PropertyFilter::getOldValue(), and carto::PropertyFilter::hasOldValue().

Referenced by initialize().

◆ storageLayoutOrientation()

template<typename T>

std::vector< int > carto::Volume< T >::storageLayoutOrientation ( ) const

determine the storage (disk) layout orientation.

The storage orientation is optionnally stored int the header "storage_to_memory" matrix. If not, the storage orientation is undefined.

Use volume.referential().orientationStr(volume.storageLayoutOrientation()) to get a more readable string description.

Definition at line 1666 of file volumebase_d.h.

References carto::VolumeProxy< T >::getSize(), carto::Headered::header(), soma::AffineTransformationBase::inverse(), and referential().

◆ sum()

template<typename T>

DataTypeTraits< T >::LongType carto::Volume< T >::sum ( ) const

inline

To avoid overflow, the biggest possible type (intmax_t, uintmax_t, double...) is used for computation and returned.

Definition at line 178 of file volumebase_d_operators.h.

References carto::volumebaseinternal::select_is_scalar< T, is_scalar >::sum().

◆ updateItemsBuffer()

template<typename T>

void carto::Volume< T >::updateItemsBuffer ( )

inlineprotected

Definition at line 694 of file volumebase_d.h.

References _blitz, _items, _pos, _refvol, carto::VolumeProxy< T >::_size, _start, allocatorContext(), DIM_MAX, and carto::Headered::header().

Referenced by setPosInRefVolume(), setPosInRefVolume(), and setRefVolume().

Member Data Documentation

◆ _blitz

template<typename T>

blitz::Array<T, Volume<T>::DIM_MAX> carto::Volume< T >::_blitz

protected

Definition at line 583 of file volumebase.h.

Referenced by allocate(), at(), at(), at(), at(), at(), at(), at(), at(), at(), at(), at(), at(), at(), at(), at(), at(), at(), at(), at(), at(), begin(), begin(), constructBorders(), end(), end(), flipToOrientation(), getStrides(), operator=(), updateItemsBuffer(), and Volume().

◆ _items

template<typename T>

AllocatedVector<T> carto::Volume< T >::_items

protected

Definition at line 580 of file volumebase.h.

Referenced by allocate(), allocatorContext(), flipToOrientation(), operator=(), slotSizeChanged(), updateItemsBuffer(), Volume(), Volume(), Volume(), Volume(), Volume(), Volume(), Volume(), Volume(), Volume(), Volume(), and Volume().

◆ _pos

template<typename T>

std::vector<int> carto::Volume< T >::_pos

protected

Definition at line 585 of file volumebase.h.

Referenced by allocateBorders(), getBorders(), operator=(), posInRefVolume(), setPosInRefVolume(), setPosInRefVolume(), updateItemsBuffer(), Volume(), Volume(), Volume(), Volume(), and Volume().

◆ _referential

template<typename T>

Referential carto::Volume< T >::_referential

protected

Definition at line 586 of file volumebase.h.

Referenced by allocate(), flipToOrientation(), operator=(), referential(), referential(), reorientedHeader(), Volume(), Volume(), Volume(), Volume(), and Volume().

◆ _refvol

template<typename T>

rc_ptr<Volume<T> > carto::Volume< T >::_refvol

protected

Definition at line 584 of file volumebase.h.

Referenced by allocateBorders(), constructBorders(), getBorders(), operator=(), refVolume(), setRefVolume(), updateItemsBuffer(), Volume(), and Volume().

◆ _start

template<typename T>

T* carto::Volume< T >::_start

protected

Definition at line 582 of file volumebase.h.

Referenced by allocate(), at(), at(), constructBorders(), flipToOrientation(), operator=(), updateItemsBuffer(), Volume(), Volume(), Volume(), and Volume().

The documentation for this class was generated from the following files:

cartodata/io/volumeformatreader.h
cartodata/volume/volumebase.h
cartodata/volume/volumebase_d.h
cartodata/volume/volumebase_d_inline.h
cartodata/volume/volumebase_d_operators.h

Classes

Public Types

Public Member Functions

Protected Member Functions

Protected Attributes

Detailed Description

Member Typedef Documentation

◆ const_iterator

◆ datatype

◆ iterator

◆ Position

Member Enumeration Documentation

◆ anonymous enum

Constructor & Destructor Documentation

◆ Volume() [1/15]

◆ Volume() [2/15]

◆ Volume() [3/15]

◆ Volume() [4/15]

◆ Volume() [5/15]

◆ Volume() [6/15]

◆ Volume() [7/15]

◆ Volume() [8/15]

◆ Volume() [9/15]

◆ Volume() [10/15]

◆ Volume() [11/15]

◆ Volume() [12/15]

◆ Volume() [13/15]

◆ Volume() [14/15]

◆ Volume() [15/15]

◆ ~Volume()

Member Function Documentation

◆ all()

◆ allocate() [1/3]

◆ allocate() [2/3]

◆ allocate() [3/3]

◆ allocateBorders() [1/2]

◆ allocateBorders() [2/2]

◆ allocatorContext()

◆ any()

◆ at() [1/24]

◆ at() [2/24]

◆ at() [3/24]

◆ at() [4/24]

◆ at() [5/24]

◆ at() [6/24]

◆ at() [7/24]

◆ at() [8/24]

◆ at() [9/24]

◆ at() [10/24]

◆ at() [11/24]

◆ at() [12/24]

◆ at() [13/24]

◆ at() [14/24]

◆ at() [15/24]

◆ at() [16/24]

◆ at() [17/24]

◆ at() [18/24]

◆ at() [19/24]

◆ at() [20/24]

◆ at() [21/24]

◆ at() [22/24]

◆ at() [23/24]

◆ at() [24/24]

◆ begin() [1/2]

◆ begin() [2/2]

◆ constructBorders()

◆ copy() [1/2]

◆ copy() [2/2]

◆ copyStructure() [1/2]

◆ copyStructure() [2/2]

◆ copySubVolume() [1/2]

◆ copySubVolume() [2/2]

◆ deepcopy() [1/2]

◆ deepcopy() [2/2]

◆ end() [1/2]

◆ end() [2/2]

◆ fill()

◆ fillBorder()

◆ flipToOrientation() [1/2]

◆ flipToOrientation() [2/2]
