Convenient handle for a Volume - this is normally the entry point for all volumes handling. More...

#include <cartodata/volume/volumeref.h>

Inheritance diagram for carto::VolumeRef< T >:

[legend]

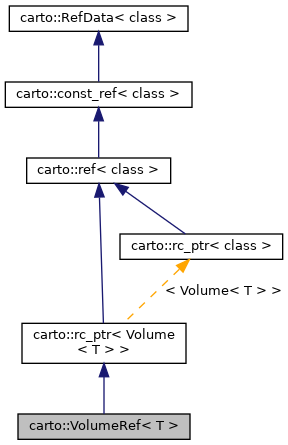

Collaboration diagram for carto::VolumeRef< T >:

[legend]

Public Types
typedef T	datatype

typedef Volume< T >::Position4Di	Position4Di

typedef Volume< T >::Position	Position

typedef Volume< T >::iterator	iterator

typedef Volume< T >::const_iterator	const_iterator

Public Types inherited from carto::ref< T >
typedef T	referenced_type

Public Types inherited from carto::const_ref< T >
typedef T	referenced_type

Public Member Functions
	VolumeRef ()

	VolumeRef (Volume< T > *x)

	VolumeRef (const rc_ptr< Volume< T > > &x)

virtual	~VolumeRef ()

Volume< T > &	operator* ()

const Volume< T > &	operator* () const

	VolumeRef (int sizeX, int sizeY=1, int sizeZ=1, int sizeT=1, const AllocatorContext &allocatorContext=AllocatorContext(), bool allocated=true)

	VolumeRef (const Position4Di &size, const AllocatorContext &allocatorContext=AllocatorContext(), bool allocated=true)

	VolumeRef (int sizeX, int sizeY, int sizeZ, int sizeT, int bordersize, const AllocatorContext &allocatorContext=AllocatorContext(), bool allocated=true)

	VolumeRef (const Position4Di &size, int bordersize, const AllocatorContext &allocatorContext=AllocatorContext(), bool allocated=true)

	VolumeRef (int sizeX, int sizeY, int sizeZ, int sizeT, const Position4Di &border, const AllocatorContext &allocatorContext=AllocatorContext(), bool allocated=true)

	VolumeRef (const Position4Di &size, const Position4Di &border, const AllocatorContext &allocatorContext=AllocatorContext(), bool allocated=true)

	VolumeRef (rc_ptr< Volume< T > > other, const Position4Di &pos, const Position4Di &size=Position4Di(-1, -1, -1, -1), const AllocatorContext &allocContext=AllocatorContext(), bool transToParent=false)

	VolumeRef (rc_ptr< Volume< T > > other, const Position &pos, const Position &size=Position(), const AllocatorContext &allocContext=AllocatorContext(), bool transToParent=false)

std::vector< int >	getSize () const

int	getSizeX () const

int	getSizeY () const

int	getSizeZ () const

int	getSizeT () const

const PropertySet &	header () const

PropertySet &	header ()

const PropertySet &	getPropertySet () const __attribute__((__deprecated__("use header() instead")))

PropertySet &	getPropertySet () __attribute__((__deprecated__("use header() instead")))

std::vector< float >	getVoxelSize () const

void	setVoxelSize (float vx, float vy=1., float vz=1., float vt=1.)

void	setVoxelSize (const std::vector< float > &vs)

virtual void	copyHeaderFrom (const PropertySet &other)

virtual void	copyHeaderFrom (const Object &other)

iterator	begin ()

iterator	end ()

const_iterator	begin () const

const_iterator	end () const

const T &	operator() (long x, long y=0, long z=0, long t=0) const

T &	operator() (long x, long y=0, long z=0, long t=0)

const T &	at (long x, long y=0, long z=0, long t=0) const

T &	at (long x, long y=0, long z=0, long t=0)

const T &	operator() (const Position4Di &position) const

T &	operator() (const Position4Di &position)

const T &	at (const Position4Di &position) const

T &	at (const Position4Di &position)

const T &	operator() (const Position &position) const

T &	operator() (const Position &position)

const T &	at (const Position &position) const

T &	at (const Position &position)

virtual void	initialize ()

const AllocatorContext &	allocatorContext () const

void	allocate ()

virtual void	reallocate (int sizeX=1, int sizeY=1, int sizeZ=1, int sizeT=1, bool keepcontents=false, const AllocatorContext &allocatorContext=AllocatorContext(), bool allocate=true)

VolumeRef< T >	copy () const

template<typename OUTP>
VolumeRef< OUTP >	copy () const

VolumeRef< T >	deepcopy () const

template<typename OUTP>
VolumeRef< OUTP >	deepcopy () const

VolumeRef< T >	copyStructure () const

template<typename OUTP>
VolumeRef< OUTP >	copyStructure () const

template<typename OUTP>
	operator VolumeRef< OUTP > () const

int	getLevelsCount () const

int	refLevel (const int level) const

rc_ptr< Volume< T > >	refVolume () const

rc_ptr< Volume< T > >	refVolumeAtLevel (const int level) const

void	setRefVolume (const rc_ptr< Volume< T > > &refvol)

const Position4Di	posInRefVolume () const

Volume< T >::Position	posInRefVolumeAtLevel (const int level) const

void	setPosInRefVolume (const Position4Di &pos)

void	setPosInRefVolume (const typename Volume< T >::Position &pos)

std::vector< int >	getBorders () const

std::vector< long >	getStrides () const

bool	all () const
	True if all values compare to true.

bool	any () const
	True if at least one value compares to true.

T	min () const

T	max () const

DataTypeTraits< T >::LongType	sum () const
	To avoid overflow, the biggest possible type (intmax_t, uintmax_t, double...) is used for computation and returned.

void	fill (const T &value)
	Fills the volume with a given value.

void	fillBorder (const T &value)
	Fill border with a constant value.

VolumeRef< T > &	operator= (const T &value)

VolumeRef< T >	view (const Position4Di &pos, const Position4Di &size)

const VolumeRef< T >	view (const Position4Di &pos, const Position4Di &size) const

Public Member Functions inherited from carto::rc_ptr< Volume< T > >
	rc_ptr ()

	rc_ptr (T *p)

	rc_ptr (T *p, bool externalowner)

	rc_ptr (std::auto_ptr< U > r)

void	reset (T *p=NULL)

T *	get () const

bool	operator< (const rc_ptr< T > &other) const

	operator insipid * () const

Public Member Functions inherited from carto::ref< T >
	ref ()

	ref (T *pObject)

	ref (T *pObject, bool externalowner)

	ref (std::auto_ptr< U > r)

	ref (const ref< T > &other)

	ref (const ref< R > &other)

	~ref ()

T *	release ()

ref< T > &	operator= (const ref< T > &other)

T *	operator-> () const

T &	operator* () const

T *	pointer () const

Public Member Functions inherited from carto::const_ref< T >
	const_ref ()

	const_ref (const T *pObject)

	const_ref (const T *pObject, bool externalowner)

	const_ref (std::auto_ptr< U > r)

	const_ref (const ref< T > &other)

	const_ref (const const_ref< T > &other)

	const_ref (const ref< R > &o)

	const_ref (const const_ref< R > &other)

	~const_ref ()

const_ref< T > &	operator= (const ref< T > &other)

const_ref< T > &	operator= (const const_ref< T > &other)

bool	isNull () const

bool	operator== (const ref< T > &other) const

bool	operator== (const T *pointer) const

bool	operator== (const const_ref< T > &other) const

bool	operator!= (const ref< T > &other) const

bool	operator!= (const const_ref< T > &other) const

bool	operator!= (const T *pointer) const

const T *	operator-> () const

const T &	operator* () const

const T *	pointer () const

int	refCount () const

Public Member Functions inherited from carto::RefData< T >
int	count () const

Detailed Description

template<typename T>
class carto::VolumeRef< T >

Convenient handle for a Volume - this is normally the entry point for all volumes handling.

See Volume for more documentation

Definition at line 59 of file volumeref.h.

Member Typedef Documentation

◆ const_iterator

template<typename T>

typedef Volume<T>::const_iterator carto::VolumeRef< T >::const_iterator

Definition at line 94 of file volumeref.h.

◆ datatype

template<typename T>

typedef T carto::VolumeRef< T >::datatype

Definition at line 83 of file volumeref.h.

◆ iterator

template<typename T>

typedef Volume<T>::iterator carto::VolumeRef< T >::iterator

Definition at line 93 of file volumeref.h.

◆ Position

template<typename T>

typedef Volume<T>::Position carto::VolumeRef< T >::Position

Definition at line 92 of file volumeref.h.

◆ Position4Di

template<typename T>

typedef Volume<T>::Position4Di carto::VolumeRef< T >::Position4Di

Definition at line 91 of file volumeref.h.

Constructor & Destructor Documentation

◆ VolumeRef() [1/11]

template<typename T>

carto::VolumeRef< T >::VolumeRef ( )

Definition at line 47 of file volumeref_d_inline.h.

References carto::rc_ptr< Volume< T > >::rc_ptr().

Referenced by copy(), copyStructure(), deepcopy(), operator VolumeRef< OUTP >(), operator=(), setPosInRefVolume(), view(), and view().

◆ VolumeRef() [2/11]

template<typename T>

carto::VolumeRef< T >::VolumeRef ( Volume< T > * x )

Definition at line 52 of file volumeref_d_inline.h.

References carto::rc_ptr< Volume< T > >::rc_ptr().

◆ VolumeRef() [3/11]

template<typename T>

carto::VolumeRef< T >::VolumeRef ( const rc_ptr< Volume< T > > & x )

Definition at line 57 of file volumeref_d_inline.h.

References carto::rc_ptr< Volume< T > >::rc_ptr().

◆ ~VolumeRef()

template<typename T>

carto::VolumeRef< T >::~VolumeRef ( )

virtual

Definition at line 62 of file volumeref_d_inline.h.

◆ VolumeRef() [4/11]

template<typename T>

carto::VolumeRef< T >::VolumeRef	(	int	sizeX,
		int	sizeY = 1,
		int	sizeZ = 1,
		int	sizeT = 1,
		const AllocatorContext &	allocatorContext = AllocatorContext(),
		bool	allocated = true )

explicit

Definition at line 71 of file volumeref_d_inline.h.

References allocatorContext(), and carto::rc_ptr< Volume< T > >::rc_ptr().

◆ VolumeRef() [5/11]

template<typename T>

carto::VolumeRef< T >::VolumeRef	(	const Position4Di &	size,
		const AllocatorContext &	allocatorContext = AllocatorContext(),
		bool	allocated = true )

explicit

Definition at line 79 of file volumeref_d_inline.h.

References allocatorContext(), and carto::rc_ptr< Volume< T > >::rc_ptr().

◆ VolumeRef() [6/11]

template<typename T>

carto::VolumeRef< T >::VolumeRef	(	int	sizeX,
		int	sizeY,
		int	sizeZ,
		int	sizeT,
		int	bordersize,
		const AllocatorContext &	allocatorContext = AllocatorContext(),
		bool	allocated = true )

explicit

Definition at line 86 of file volumeref_d_inline.h.

References allocatorContext(), and carto::rc_ptr< Volume< T > >::rc_ptr().

◆ VolumeRef() [7/11]

template<typename T>

carto::VolumeRef< T >::VolumeRef	(	const Position4Di &	size,
		int	bordersize,
		const AllocatorContext &	allocatorContext = AllocatorContext(),
		bool	allocated = true )

explicit

Definition at line 95 of file volumeref_d_inline.h.

References allocatorContext(), and carto::rc_ptr< Volume< T > >::rc_ptr().

◆ VolumeRef() [8/11]

template<typename T>

carto::VolumeRef< T >::VolumeRef	(	int	sizeX,
		int	sizeY,
		int	sizeZ,
		int	sizeT,
		const Position4Di &	border,
		const AllocatorContext &	allocatorContext = AllocatorContext(),
		bool	allocated = true )

explicit

Definition at line 102 of file volumeref_d_inline.h.

References allocatorContext(), and carto::rc_ptr< Volume< T > >::rc_ptr().

◆ VolumeRef() [9/11]

template<typename T>

carto::VolumeRef< T >::VolumeRef	(	const Position4Di &	size,
		const Position4Di &	border,
		const AllocatorContext &	allocatorContext = AllocatorContext(),
		bool	allocated = true )

explicit

Definition at line 111 of file volumeref_d_inline.h.

References allocatorContext(), and carto::rc_ptr< Volume< T > >::rc_ptr().

◆ VolumeRef() [10/11]

template<typename T>

carto::VolumeRef< T >::VolumeRef	(	rc_ptr< Volume< T > >	other,
		const Position4Di &	pos,
		const Position4Di &	size = Position4Di( -1, -1, -1, -1 ),
		const AllocatorContext &	allocContext = AllocatorContext(),
		bool	transToParent = false )

explicit

Definition at line 119 of file volumeref_d_inline.h.

References carto::rc_ptr< Volume< T > >::rc_ptr().

◆ VolumeRef() [11/11]

template<typename T>

carto::VolumeRef< T >::VolumeRef	(	rc_ptr< Volume< T > >	other,
		const Position &	pos,
		const Position &	size = Position(),
		const AllocatorContext &	allocContext = AllocatorContext(),
		bool	transToParent = false )

explicit

Definition at line 129 of file volumeref_d_inline.h.

References carto::rc_ptr< Volume< T > >::rc_ptr().

Member Function Documentation

◆ all()

template<typename T>

bool carto::VolumeRef< T >::all ( ) const

inline

True if all values compare to true.

Definition at line 57 of file volumeref_d_operators.h.

◆ allocate()

template<typename T>

void carto::VolumeRef< T >::allocate ( )

inline

Definition at line 362 of file volumeref_d_inline.h.

Referenced by reallocate().

◆ allocatorContext()

template<typename T>

const AllocatorContext & carto::VolumeRef< T >::allocatorContext ( ) const

inline

Definition at line 355 of file volumeref_d_inline.h.

Referenced by reallocate(), VolumeRef(), VolumeRef(), VolumeRef(), VolumeRef(), VolumeRef(), and VolumeRef().

◆ any()

template<typename T>

bool carto::VolumeRef< T >::any ( ) const

inline

True if at least one value compares to true.

Definition at line 64 of file volumeref_d_operators.h.

◆ at() [1/6]

template<typename T>

T & carto::VolumeRef< T >::at ( const Position & position )

inline

Definition at line 338 of file volumeref_d_inline.h.

◆ at() [2/6]

template<typename T>

const T & carto::VolumeRef< T >::at ( const Position & position ) const

inline

Definition at line 331 of file volumeref_d_inline.h.

◆ at() [3/6]

template<typename T>

T & carto::VolumeRef< T >::at ( const Position4Di & position )

inline

Definition at line 310 of file volumeref_d_inline.h.

◆ at() [4/6]

template<typename T>

const T & carto::VolumeRef< T >::at ( const Position4Di & position ) const

inline

Definition at line 303 of file volumeref_d_inline.h.

◆ at() [5/6]

template<typename T>

T & carto::VolumeRef< T >::at	(	long	x,
		long	y = 0,
		long	z = 0,
		long	t = 0 )

inline

Definition at line 282 of file volumeref_d_inline.h.

◆ at() [6/6]

template<typename T>

const T & carto::VolumeRef< T >::at	(	long	x,
		long	y = 0,
		long	z = 0,
		long	t = 0 ) const

inline

Definition at line 275 of file volumeref_d_inline.h.

References carto::Volume< T >::at().

Referenced by carto::VolumeUtil< T >::apply(), carto::matrix_product(), carto::VolumeUtil< T >::selfApply(), carto::VolumeUtil< T >::selfApply(), and carto::transpose().

◆ begin() [1/2]

template<typename T>

VolumeRef< T >::iterator carto::VolumeRef< T >::begin ( )

inline

Definition at line 230 of file volumeref_d_inline.h.

References carto::Volume< T >::begin().

◆ begin() [2/2]

template<typename T>

VolumeRef< T >::const_iterator carto::VolumeRef< T >::begin ( ) const

inline

Definition at line 244 of file volumeref_d_inline.h.

References carto::Volume< T >::begin().

◆ copy() [1/2]

template<typename T>

VolumeRef< T > carto::VolumeRef< T >::copy ( ) const

inline

Definition at line 133 of file volumeref_d_operators.h.

References VolumeRef().

◆ copy() [2/2]

template<typename T>

template<typename OUTP>

VolumeRef< OUTP > carto::VolumeRef< T >::copy ( ) const

inline

Definition at line 141 of file volumeref_d_operators.h.

References VolumeRef().

◆ copyHeaderFrom() [1/2]

template<typename T>

void carto::VolumeRef< T >::copyHeaderFrom ( const Object & other )

virtual

Definition at line 65 of file volumeref_d.h.

References copyHeaderFrom().

◆ copyHeaderFrom() [2/2]

template<typename T>

void carto::VolumeRef< T >::copyHeaderFrom ( const PropertySet & other )

inlinevirtual

Definition at line 464 of file volumeref_d_inline.h.

Referenced by carto::LightResampler< T >::allocateResampledVolume(), and copyHeaderFrom().

◆ copyStructure() [1/2]

template<typename T>

VolumeRef< T > carto::VolumeRef< T >::copyStructure ( ) const

inline

Definition at line 163 of file volumeref_d_operators.h.

References VolumeRef().

◆ copyStructure() [2/2]

template<typename T>

template<typename OUTP>

VolumeRef< OUTP > carto::VolumeRef< T >::copyStructure ( ) const

inline

Definition at line 171 of file volumeref_d_operators.h.

References VolumeRef().

◆ deepcopy() [1/2]

template<typename T>

VolumeRef< T > carto::VolumeRef< T >::deepcopy ( ) const

inline

Definition at line 148 of file volumeref_d_operators.h.

References VolumeRef().

◆ deepcopy() [2/2]

template<typename T>

template<typename OUTP>

VolumeRef< OUTP > carto::VolumeRef< T >::deepcopy ( ) const

inline

Definition at line 156 of file volumeref_d_operators.h.

References VolumeRef().

◆ end() [1/2]

template<typename T>

VolumeRef< T >::iterator carto::VolumeRef< T >::end ( )

inline

Definition at line 237 of file volumeref_d_inline.h.

References carto::Volume< T >::end().

◆ end() [2/2]

template<typename T>

VolumeRef< T >::const_iterator carto::VolumeRef< T >::end ( ) const

inline

Definition at line 251 of file volumeref_d_inline.h.

References carto::Volume< T >::end().

◆ fill()

template<typename T>

void carto::VolumeRef< T >::fill ( const T & value )

inline

Fills the volume with a given value.

Definition at line 106 of file volumeref_d_operators.h.

◆ fillBorder()

template<typename T>

void carto::VolumeRef< T >::fillBorder ( const T & value )

inline

Fill border with a constant value.

More precisely, fill the surrounding of the volume view in the reference volume (if any) using the given value.

Definition at line 113 of file volumeref_d_operators.h.

◆ getBorders()

template<typename T>

std::vector< int > carto::VolumeRef< T >::getBorders ( ) const

inline

Definition at line 450 of file volumeref_d_inline.h.

◆ getLevelsCount()

template<typename T>

int carto::VolumeRef< T >::getLevelsCount ( ) const

inline

Definition at line 425 of file volumeref_d_inline.h.

◆ getPropertySet() [1/2]

template<typename T>

PropertySet & carto::VolumeRef< T >::getPropertySet ( )

inline

Definition at line 199 of file volumeref_d_inline.h.

◆ getPropertySet() [2/2]

template<typename T>

const PropertySet & carto::VolumeRef< T >::getPropertySet ( ) const

inline

Definition at line 192 of file volumeref_d_inline.h.

◆ getSize()

template<typename T>

std::vector< int > carto::VolumeRef< T >::getSize ( ) const

inline

Definition at line 143 of file volumeref_d_inline.h.

Referenced by carto::VolumeUtil< T >::apply(), soma::VolumeUtilIO< T >::readPartial(), carto::VolumeUtil< T >::selfApply(), and carto::VolumeUtil< T >::selfApply().

◆ getSizeT()

template<typename T>

int carto::VolumeRef< T >::getSizeT ( ) const

inline

Definition at line 171 of file volumeref_d_inline.h.

Referenced by carto::VolumeUtil< T >::selfApply().

◆ getSizeX()

template<typename T>

int carto::VolumeRef< T >::getSizeX ( ) const

inline

Definition at line 150 of file volumeref_d_inline.h.

Referenced by carto::VolumeUtil< T >::selfApply().

◆ getSizeY()

template<typename T>

int carto::VolumeRef< T >::getSizeY ( ) const

inline

Definition at line 157 of file volumeref_d_inline.h.

Referenced by carto::VolumeUtil< T >::selfApply().

◆ getSizeZ()

template<typename T>

int carto::VolumeRef< T >::getSizeZ ( ) const

inline

Definition at line 164 of file volumeref_d_inline.h.

Referenced by carto::VolumeUtil< T >::selfApply().

◆ getStrides()

template<typename T>

std::vector< long > carto::VolumeRef< T >::getStrides ( ) const

inline

Definition at line 457 of file volumeref_d_inline.h.

Referenced by carto::VolumeUtil< T >::apply(), carto::VolumeUtil< T >::selfApply(), and carto::VolumeUtil< T >::selfApply().

◆ getVoxelSize()

template<typename T>

std::vector< float > carto::VolumeRef< T >::getVoxelSize ( ) const

inline

Definition at line 206 of file volumeref_d_inline.h.

◆ header() [1/2]

template<typename T>

PropertySet & carto::VolumeRef< T >::header ( )

inline

Definition at line 185 of file volumeref_d_inline.h.

◆ header() [2/2]

template<typename T>

const PropertySet & carto::VolumeRef< T >::header ( ) const

inline

Definition at line 178 of file volumeref_d_inline.h.

Referenced by carto::VolumeUtil< T >::apply(), carto::getObjectHeader(), soma::VolumeUtilIO< T >::readFull(), and soma::VolumeUtilIO< T >::readPartial().

◆ initialize()

template<typename T>

void carto::VolumeRef< T >::initialize ( )

inlinevirtual

Definition at line 348 of file volumeref_d_inline.h.

◆ max()

template<typename T>

T carto::VolumeRef< T >::max ( ) const

inline

Definition at line 87 of file volumeref_d_operators.h.

◆ min()

template<typename T>

T carto::VolumeRef< T >::min ( ) const

inline

Definition at line 80 of file volumeref_d_operators.h.

References min().

Referenced by min().

◆ operator VolumeRef< OUTP >()

template<typename T>

template<typename OUTP>

carto::VolumeRef< T >::operator VolumeRef< OUTP > ( ) const

inline

Definition at line 179 of file volumeref_d_operators.h.

References VolumeRef().

◆ operator()() [1/6]

template<typename T>

T & carto::VolumeRef< T >::operator() ( const Position & position )

inline

Definition at line 324 of file volumeref_d_inline.h.

◆ operator()() [2/6]

template<typename T>

const T & carto::VolumeRef< T >::operator() ( const Position & position ) const

inline

Definition at line 317 of file volumeref_d_inline.h.

◆ operator()() [3/6]

template<typename T>

T & carto::VolumeRef< T >::operator() ( const Position4Di & position )

inline

Definition at line 296 of file volumeref_d_inline.h.

◆ operator()() [4/6]

template<typename T>

const T & carto::VolumeRef< T >::operator() ( const Position4Di & position ) const

inline

Definition at line 289 of file volumeref_d_inline.h.

◆ operator()() [5/6]

template<typename T>

T & carto::VolumeRef< T >::operator()	(	long	x,
		long	y = 0,
		long	z = 0,
		long	t = 0 )

inline

Definition at line 268 of file volumeref_d_inline.h.

◆ operator()() [6/6]

template<typename T>

const T & carto::VolumeRef< T >::operator()	(	long	x,
		long	y = 0,
		long	z = 0,
		long	t = 0 ) const

inline

Definition at line 261 of file volumeref_d_inline.h.

◆ operator*() [1/2]

template<typename T>

Volume< T > & carto::VolumeRef< T >::operator* ( )

inline

Definition at line 70 of file volumeref.h.

References carto::rc_ptr< Volume< T > >::get().

◆ operator*() [2/2]

template<typename T>

const Volume< T > & carto::VolumeRef< T >::operator* ( ) const

inline

Definition at line 75 of file volumeref.h.

References carto::rc_ptr< Volume< T > >::get().

◆ operator=()

template<typename T>

VolumeRef< T > & carto::VolumeRef< T >::operator= ( const T & value )

inline

Definition at line 120 of file volumeref_d_operators.h.

References VolumeRef().

◆ posInRefVolume()

template<typename T>

const VolumeRef< T >::Position4Di carto::VolumeRef< T >::posInRefVolume ( ) const

inline

Definition at line 410 of file volumeref_d_inline.h.

References carto::Volume< T >::posInRefVolume().

◆ posInRefVolumeAtLevel()

template<typename T>

Volume< T >::Position carto::VolumeRef< T >::posInRefVolumeAtLevel ( const int level ) const

inline

Definition at line 443 of file volumeref_d_inline.h.

References carto::Volume< T >::posInRefVolumeAtLevel().

◆ reallocate()

template<typename T>

void carto::VolumeRef< T >::reallocate	(	int	sizeX = 1,
		int	sizeY = 1,
		int	sizeZ = 1,
		int	sizeT = 1,
		bool	keepcontents = false,
		const AllocatorContext &	allocatorContext = AllocatorContext(),
		bool	allocate = true )

inlinevirtual

Definition at line 369 of file volumeref_d_inline.h.

References allocate(), and allocatorContext().

◆ refLevel()

template<typename T>

int carto::VolumeRef< T >::refLevel ( const int level ) const

inline

Definition at line 431 of file volumeref_d_inline.h.

◆ refVolume()

template<typename T>

rc_ptr< Volume< T > > carto::VolumeRef< T >::refVolume ( ) const

inline

Definition at line 396 of file volumeref_d_inline.h.

References carto::rc_ptr< Volume< T > >::rc_ptr().

◆ refVolumeAtLevel()

template<typename T>

rc_ptr< Volume< T > > carto::VolumeRef< T >::refVolumeAtLevel ( const int level ) const

inline

Definition at line 437 of file volumeref_d_inline.h.

References carto::rc_ptr< Volume< T > >::rc_ptr().

◆ setPosInRefVolume() [1/2]

template<typename T>

void carto::VolumeRef< T >::setPosInRefVolume ( const Position4Di & pos )

inline

Definition at line 417 of file volumeref_d_inline.h.

References carto::Volume< T >::setPosInRefVolume().

◆ setPosInRefVolume() [2/2]

template<typename T>

void carto::VolumeRef< T >::setPosInRefVolume ( const typename Volume< T >::Position & pos )

References VolumeRef().

◆ setRefVolume()

template<typename T>

void carto::VolumeRef< T >::setRefVolume ( const rc_ptr< Volume< T > > & refvol )

inline

Definition at line 403 of file volumeref_d_inline.h.

References carto::rc_ptr< Volume< T > >::rc_ptr().

◆ setVoxelSize() [1/2]

template<typename T>

void carto::VolumeRef< T >::setVoxelSize ( const std::vector< float > & vs )

inline

Definition at line 213 of file volumeref_d_inline.h.

◆ setVoxelSize() [2/2]

template<typename T>

void carto::VolumeRef< T >::setVoxelSize	(	float	vx,
		float	vy = 1.,
		float	vz = 1.,
		float	vt = 1. )

inline

Definition at line 220 of file volumeref_d_inline.h.

Referenced by carto::LightResampler< T >::allocateResampledVolume().

◆ sum()

template<typename T>

DataTypeTraits< T >::LongType carto::VolumeRef< T >::sum ( ) const

inline

To avoid overflow, the biggest possible type (intmax_t, uintmax_t, double...) is used for computation and returned.

Definition at line 94 of file volumeref_d_operators.h.

◆ view() [1/2]

template<typename T>

VolumeRef< T > carto::VolumeRef< T >::view	(	const Position4Di &	pos,
		const Position4Di &	size )

inline

Definition at line 477 of file volumeref_d_inline.h.

References VolumeRef().

◆ view() [2/2]

template<typename T>

const VolumeRef< T > carto::VolumeRef< T >::view	(	const Position4Di &	pos,
		const Position4Di &	size ) const

inline

Definition at line 484 of file volumeref_d_inline.h.

References VolumeRef().

The documentation for this class was generated from the following files:

cartodata/io/volumeformatreader.h
cartodata/volume/volumeref.h
cartodata/volume/volumeref_d.h
cartodata/volume/volumeref_d_inline.h
cartodata/volume/volumeref_d_operators.h

Public Types

Public Member Functions

Detailed Description

Member Typedef Documentation

◆ const_iterator

◆ datatype

◆ iterator

◆ Position

◆ Position4Di

Constructor & Destructor Documentation

◆ VolumeRef() [1/11]

◆ VolumeRef() [2/11]

◆ VolumeRef() [3/11]

◆ ~VolumeRef()

◆ VolumeRef() [4/11]

◆ VolumeRef() [5/11]

◆ VolumeRef() [6/11]

◆ VolumeRef() [7/11]

◆ VolumeRef() [8/11]

◆ VolumeRef() [9/11]

◆ VolumeRef() [10/11]

◆ VolumeRef() [11/11]

Member Function Documentation

◆ all()

◆ allocate()

◆ allocatorContext()

◆ any()

◆ at() [1/6]

◆ at() [2/6]

◆ at() [3/6]

◆ at() [4/6]

◆ at() [5/6]

◆ at() [6/6]

◆ begin() [1/2]

◆ begin() [2/2]

◆ copy() [1/2]

◆ copy() [2/2]

◆ copyHeaderFrom() [1/2]

◆ copyHeaderFrom() [2/2]

◆ copyStructure() [1/2]

◆ copyStructure() [2/2]

◆ deepcopy() [1/2]

◆ deepcopy() [2/2]

◆ end() [1/2]

◆ end() [2/2]

◆ fill()

◆ fillBorder()

◆ getBorders()

◆ getLevelsCount()

◆ getPropertySet() [1/2]

◆ getPropertySet() [2/2]

◆ getSize()

◆ getSizeT()

◆ getSizeX()

◆ getSizeY()

◆ getSizeZ()

◆ getStrides()

◆ getVoxelSize()

◆ header() [1/2]

◆ header() [2/2]

◆ initialize()

◆ max()

◆ min()

◆ operator VolumeRef< OUTP >()

◆ operator()() [1/6]

◆ operator()() [2/6]

◆ operator()() [3/6]

◆ operator()() [4/6]

◆ operator()() [5/6]

◆ operator()() [6/6]

◆ operator*() [1/2]

◆ operator*() [2/2]

◆ operator=()

◆ posInRefVolume()

◆ posInRefVolumeAtLevel()

◆ reallocate()

◆ refLevel()

◆ refVolume()

◆ refVolumeAtLevel()

◆ setPosInRefVolume() [1/2]
