FormatReader specialized for 4D Volume. More...

#include <cartodata/io/volumeformatreader.h>

Inheritance diagram for soma::VolumeFormatReader< T >:

[legend]

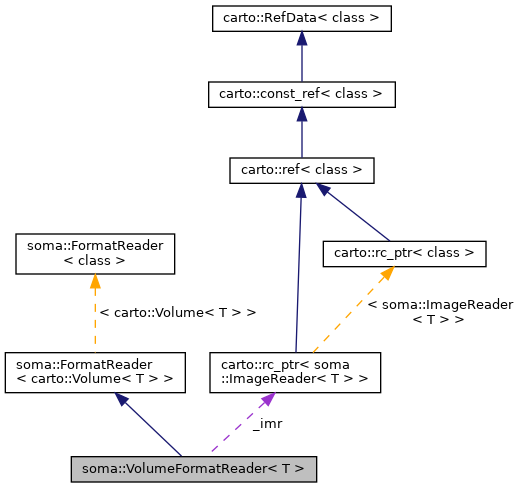

Collaboration diagram for soma::VolumeFormatReader< T >:

[legend]

Public Member Functions
virtual	~VolumeFormatReader ()

virtual void	read (carto::Volume< T > &obj, carto::rc_ptr< DataSourceInfo > dsi, const AllocatorContext &context, carto::Object options=carto::none())
	FormatReader derived function This method understands a volume and calls read( buffer ) with appropriate arguments.

void	attach (carto::rc_ptr< ImageReader< T > > imr)
	Linking to a ImageReader Allows us to declare only once the ImageReader.

virtual Volume< T > *	createAndRead (carto::rc_ptr< DataSourceInfo > dsi, const AllocatorContext &context, carto::Object options)
	Factory mode: creates an object and reads it.

virtual void	setupAndRead (Volume< T > &obj, carto::rc_ptr< DataSourceInfo > dsi, const AllocatorContext &context, carto::Object options)
	Full reading procedure, for an already existing object.

virtual FormatReader< carto::Volume< T > > *	clone () const

virtual std::string	formatID () const

Public Member Functions inherited from soma::FormatReader< carto::Volume< T > >
virtual	~FormatReader ()

virtual void	setupAndRead (T &obj, carto::rc_ptr< DataSourceInfo > dsi, const AllocatorContext &context, carto::Object options)

virtual void	read (T &obj, carto::rc_ptr< DataSourceInfo > dsi, const AllocatorContext &context, carto::Object options)

virtual carto::rc_ptr< DataSourceInfo >	checkDataSourceInfo (carto::rc_ptr< DataSourceInfo > dsi, carto::Object options)

virtual T *	create (carto::Object header, const AllocatorContext &context, carto::Object options)

virtual void	setup (T &obj, carto::Object header, const AllocatorContext &context, carto::Object options)

Protected Attributes
carto::rc_ptr< ImageReader< T > >	_imr

Detailed Description

template<typename T>
class soma::VolumeFormatReader< T >

FormatReader specialized for 4D Volume.

A such VolumeFormatReader needs to be linked to a specialized ImageReader before being registered into a FormatDictionary.
It understands the Volume and detects specific cases (borders, partial reading, ...) before performing the reading through its linked ImageReader.
The parameters for partial reading or borders may be given through the filename, at creation of the Reader.

See also: Reader FileUtil

Note

Parameters currently availables (GIS or OpenSlide) are :

(int) ox, oy, oz, ot : top left position of partial frame.
(int) sx, sy, sz, st : size of partial frame.
(int) bx, by, bz : size of borders.

Is also possible to give any classical option as :

(int) resolution_level : level to read (OpenSlide).
(bool) unallocated : if volume shouldn't be allocated.
(bool) partial_reading : if view is an allocated partial view to an unallocated volume (GIS or OpenSlide).

Definition at line 81 of file volumeformatreader.h.

Constructor & Destructor Documentation

◆ ~VolumeFormatReader()

template<typename T>

soma::VolumeFormatReader< T >::~VolumeFormatReader ( )

virtual

Definition at line 77 of file volumeformatreader_d.h.

Member Function Documentation

◆ attach()

template<typename T>

void soma::VolumeFormatReader< T >::attach ( carto::rc_ptr< ImageReader< T > > imr )

Linking to a ImageReader Allows us to declare only once the ImageReader.

Definition at line 545 of file volumeformatreader_d.h.

References _imr.

Referenced by clone(), soma::VolumeRefFormatReader< T >::createAndRead(), soma::VolumeRefFormatReader< T >::read(), and soma::VolumeRefFormatReader< T >::setupAndRead().

◆ clone()

template<typename T>

FormatReader< carto::Volume< T > > * soma::VolumeFormatReader< T >::clone ( ) const

virtual

Implements soma::FormatReader< carto::Volume< T > >.

Definition at line 534 of file volumeformatreader_d.h.

References _imr, and attach().

◆ createAndRead()

template<typename T>

Volume< T > * soma::VolumeFormatReader< T >::createAndRead	(	carto::rc_ptr< DataSourceInfo >	dsi,
		const AllocatorContext &	context,
		carto::Object	options )

virtual

Factory mode: creates an object and reads it.

The returned object belongs to the calling layer and may be deleted by the standard delete

Reimplemented from soma::FormatReader< carto::Volume< T > >.

Definition at line 146 of file volumeformatreader_d.h.

References createAndRead(), carto::rc_ptr< typename T >::get(), soma::VolumeUtilIO< T >::listReadProperties(), localMsg, soma::VolumeUtilIO< T >::read(), carto::Object::reference(), carto::rc_ptr< typename T >::reset(), carto::Carto2AimsHeaderTranslator::translate(), and carto::Object::value().

Referenced by createAndRead(), and soma::VolumeRefFormatReader< T >::createAndRead().

◆ formatID()

template<typename T>

std::string soma::VolumeFormatReader< T >::formatID ( ) const

virtual

Implements soma::FormatReader< carto::Volume< T > >.

Definition at line 552 of file volumeformatreader_d.h.

References _imr.

◆ read()

template<typename T>

void soma::VolumeFormatReader< T >::read	(	carto::Volume< T > &	obj,
		carto::rc_ptr< DataSourceInfo >	dsi,
		const AllocatorContext &	context,
		carto::Object	options = carto::none() )

virtual

FormatReader derived function This method understands a volume and calls read( buffer ) with appropriate arguments.

Definition at line 216 of file volumeformatreader_d.h.

References _imr, carto::Volume< T >::allocatorContext(), soma::AllocatorContext::allocatorType(), carto::rc_ptr< typename T >::get(), carto::VolumeProxy< T >::getSize(), soma::AllocatorContext::isAllocated(), localMsg, carto::Volume< T >::posInRefVolume(), soma::AllocatorStrategy::ReadOnlyMap, carto::Volume< T >::refVolume(), and carto::toString().

Referenced by soma::VolumeRefFormatReader< T >::read().

◆ setupAndRead()

template<typename T>

void soma::VolumeFormatReader< T >::setupAndRead	(	Volume< T > &	obj,
		carto::rc_ptr< DataSourceInfo >	dsi,
		const AllocatorContext &	context,
		carto::Object	options )
