aims::InterpolatedVolume Class Reference

Spline interpolation of volumes with simple accessors to interpolated values. More...

#include <aims/interpolation/interpolatedvolume.h>

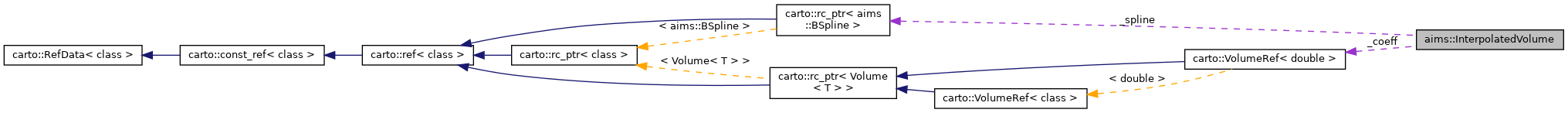

Collaboration diagram for aims::InterpolatedVolume:
Collaboration graph
[legend]

Public Types

typedef Point3dd Vector
 typedefs More...

typedef carto::VolumeRef< double > Matrix


Public Member Functions

 InterpolatedVolume ()
 Constructors / Destructors / CopyDefault constructor: allocates no data. More...

template<typename T >
 InterpolatedVolume (const carto::Volume< T > &vol, unsigned order=3)
 Constructor from Volume. More...

template<typename T >
 InterpolatedVolume (const carto::VolumeRef< T > &vol, unsigned order=3)
 Constructor from VolumeRef. More...

 InterpolatedVolume (const InterpolatedVolume &other)
 Copy constructor (underlying data is fully copied and not shared between the volumes) More...

virtual ~InterpolatedVolume ()
 Destructor. More...

InterpolatedVolume & operator= (const InterpolatedVolume &other)
 Assignment by copy (underlying data is fully copied and not shared between the volumes) More...

double at (double x, double y=0., double z=0., long t=0) const
 Access interpolated values. More...

Vector derivative (double x, double y=0., double z=0., long t=0) const

Matrix nderivative (unsigned n, double x, double y=0., double z=0., long t=0) const

double operator() (double x, double y=0., double z=0., long t=0) const

Vector der (double x, double y=0., double z=0., long t=0) const

Matrix der2 (double x, double y=0., double z=0., long t=0) const

Matrix der3 (double x, double y=0., double z=0., long t=0) const

double atMm (double x, double y=0., double z=0., long t=0) const
 Access interpolated values in mm. More...

Vector derivativeMm (double x, double y=0., double z=0., long t=0) const

Matrix nderivativeMm (unsigned n, double x, double y=0., double z=0., long t=0) const

Vector derMm (double x, double y=0., double z=0., long t=0) const

Matrix der2Mm (double x, double y=0., double z=0., long t=0) const

Matrix der3Mm (double x, double y=0., double z=0., long t=0) const

double getSizeXMm () const

double getSizeYMm () const

double getSizeZMm () const

carto::PropertySet & header ()
 Header / Dimension. More...

const carto::PropertySet & header () const

double getSizeX () const

double getSizeY () const

double getSizeZ () const

long getSizeT () const

template<typename T >
void setVolume (const carto::Volume< T > &vol, int order=-1)
 Change interpolated volume. More...

template<typename T >
void setVolume (const carto::VolumeRef< T > &vol, int order=-1)

template<typename T >
void setCoeff (const carto::Volume< T > &vol, int order=-1)
 Change coefficient volume. More...

template<typename T >
void setCoeff (const carto::VolumeRef< T > &vol, int order=-1)

unsigned order () const
 ParametersInterpolation order. More...

bool empty () const
 Is the volume empty (true if only default constructed) More...

void setRecursiveMode ()
 Recursive/Fast/Tabular mode (default is Fast) More...

void setFastMode ()
 Recursive/Fast/Tabular mode (default is Fast) More...

void setTabularMode ()
 Recursive/Fast/Tabular mode (default is Fast) More...

carto::VolumeRef< double > & coefficients ()
 Access to coefficients. More...

const carto::VolumeRef< double > & coefficients () const


Protected Attributes

unsigned _order

carto::rc_ptr< BSpline > _spline

carto::VolumeRef< double > _coeff


Detailed Description

Spline interpolation of volumes with simple accessors to interpolated values.

Definition at line 55 of file interpolatedvolume.h.

Member Typedef Documentation

◆ Matrix

typedef carto::VolumeRef<double> aims::InterpolatedVolume::Matrix

Definition at line 60 of file interpolatedvolume.h.

◆ Vector

typedef Point3dd aims::InterpolatedVolume::Vector

typedefs

Definition at line 59 of file interpolatedvolume.h.

Constructor & Destructor Documentation

◆ InterpolatedVolume() [1/4]

aims::InterpolatedVolume::InterpolatedVolume ( )

Constructors / Destructors / CopyDefault constructor: allocates no data.

◆ InterpolatedVolume() [2/4]

template<typename T >
aims::InterpolatedVolume::InterpolatedVolume ( const carto::Volume< T > &  vol,
unsigned  order = 3
)

Constructor from Volume.

Warning
This is the most expensive constructor because the volume has to be fully copied.

Definition at line 50 of file interpolatedvolume_d.h.

References setVolume().

◆ InterpolatedVolume() [3/4]

template<typename T >
aims::InterpolatedVolume::InterpolatedVolume ( const carto::VolumeRef< T > &  vol,
unsigned  order = 3
)

Constructor from VolumeRef.

Definition at line 59 of file interpolatedvolume_d.h.

References setVolume().

◆ InterpolatedVolume() [4/4]

aims::InterpolatedVolume::InterpolatedVolume ( const InterpolatedVolume &  other)

Copy constructor (underlying data is fully copied and not shared between the volumes)

◆ ~InterpolatedVolume()

virtual aims::InterpolatedVolume::~InterpolatedVolume ( )
virtual

Destructor.

Member Function Documentation

◆ at()

double aims::InterpolatedVolume::at ( double  x,
double  y = 0.,
double  z = 0.,
long  t = 0
) const

Access interpolated values.

◆ atMm()

double aims::InterpolatedVolume::atMm ( double  x,
double  y = 0.,
double  z = 0.,
long  t = 0
) const

Access interpolated values in mm.

◆ coefficients() [1/2]

carto::VolumeRef<double>& aims::InterpolatedVolume::coefficients ( )

Access to coefficients.

◆ coefficients() [2/2]

const carto::VolumeRef<double>& aims::InterpolatedVolume::coefficients ( ) const

◆ der()

Vector aims::InterpolatedVolume::der ( double  x,
double  y = 0.,
double  z = 0.,
long  t = 0
) const

◆ der2()

Matrix aims::InterpolatedVolume::der2 ( double  x,
double  y = 0.,
double  z = 0.,
long  t = 0
) const

◆ der2Mm()

Matrix aims::InterpolatedVolume::der2Mm ( double  x,
double  y = 0.,
double  z = 0.,
long  t = 0
) const

◆ der3()

Matrix aims::InterpolatedVolume::der3 ( double  x,
double  y = 0.,
double  z = 0.,
long  t = 0
) const

◆ der3Mm()

Matrix aims::InterpolatedVolume::der3Mm ( double  x,
double  y = 0.,
double  z = 0.,
long  t = 0
) const

◆ derivative()

Vector aims::InterpolatedVolume::derivative ( double  x,
double  y = 0.,
double  z = 0.,
long  t = 0
) const

◆ derivativeMm()

Vector aims::InterpolatedVolume::derivativeMm ( double  x,
double  y = 0.,
double  z = 0.,
long  t = 0
) const

◆ derMm()

Vector aims::InterpolatedVolume::derMm ( double  x,
double  y = 0.,
double  z = 0.,
long  t = 0
) const

◆ empty()

bool aims::InterpolatedVolume::empty ( ) const

Is the volume empty (true if only default constructed)

◆ getSizeT()

long aims::InterpolatedVolume::getSizeT ( ) const

◆ getSizeX()

double aims::InterpolatedVolume::getSizeX ( ) const

◆ getSizeXMm()

double aims::InterpolatedVolume::getSizeXMm ( ) const

◆ getSizeY()

double aims::InterpolatedVolume::getSizeY ( ) const

◆ getSizeYMm()

double aims::InterpolatedVolume::getSizeYMm ( ) const

◆ getSizeZ()

double aims::InterpolatedVolume::getSizeZ ( ) const

◆ getSizeZMm()

double aims::InterpolatedVolume::getSizeZMm ( ) const

◆ header() [1/2]

carto::PropertySet& aims::InterpolatedVolume::header ( )

Header / Dimension.

◆ header() [2/2]

const carto::PropertySet& aims::InterpolatedVolume::header ( ) const

◆ nderivative()

Matrix aims::InterpolatedVolume::nderivative ( unsigned  n,
double  x,
double  y = 0.,
double  z = 0.,
long  t = 0
) const

◆ nderivativeMm()

Matrix aims::InterpolatedVolume::nderivativeMm ( unsigned  n,
double  x,
double  y = 0.,
double  z = 0.,
long  t = 0
) const

◆ operator()()

double aims::InterpolatedVolume::operator() ( double  x,
double  y = 0.,
double  z = 0.,
long  t = 0
) const

◆ operator=()

InterpolatedVolume& aims::InterpolatedVolume::operator= ( const InterpolatedVolume &  other)

Assignment by copy (underlying data is fully copied and not shared between the volumes)

◆ order()

unsigned aims::InterpolatedVolume::order ( ) const

ParametersInterpolation order.

Referenced by setCoeff(), and setVolume().

◆ setCoeff() [1/2]

template<typename T >
void aims::InterpolatedVolume::setCoeff ( const carto::Volume< T > &  vol,
int  order = -1
)

Change coefficient volume.

Definition at line 102 of file interpolatedvolume_d.h.

References order().

◆ setCoeff() [2/2]

template<typename T >
void aims::InterpolatedVolume::setCoeff ( const carto::VolumeRef< T > &  vol,
int  order = -1
)

Definition at line 93 of file interpolatedvolume_d.h.

References _coeff, _order, and order().

◆ setFastMode()

void aims::InterpolatedVolume::setFastMode ( )

Recursive/Fast/Tabular mode (default is Fast)

◆ setRecursiveMode()

void aims::InterpolatedVolume::setRecursiveMode ( )

Recursive/Fast/Tabular mode (default is Fast)

◆ setTabularMode()

void aims::InterpolatedVolume::setTabularMode ( )

Recursive/Fast/Tabular mode (default is Fast)

◆ setVolume() [1/2]

template<typename T >
void aims::InterpolatedVolume::setVolume ( const carto::Volume< T > &  vol,
int  order = -1
)

Change interpolated volume.

Definition at line 72 of file interpolatedvolume_d.h.

References order().

Referenced by InterpolatedVolume().

◆ setVolume() [2/2]

template<typename T >
void aims::InterpolatedVolume::setVolume ( const carto::VolumeRef< T > &  vol,
int  order = -1
)

Definition at line 79 of file interpolatedvolume_d.h.

References _coeff, _order, aims::IIRFilterBase::execute(), and order().

Member Data Documentation

◆ _coeff

carto::VolumeRef<double> aims::InterpolatedVolume::_coeff
protected

Definition at line 163 of file interpolatedvolume.h.

Referenced by setCoeff(), and setVolume().

◆ _order

unsigned aims::InterpolatedVolume::_order
protected

Definition at line 161 of file interpolatedvolume.h.

Referenced by setCoeff(), and setVolume().

◆ _spline

carto::rc_ptr<BSpline> aims::InterpolatedVolume::_spline
protected

Definition at line 162 of file interpolatedvolume.h.

The documentation for this class was generated from the following files:
