aims::MovingAverageFilter Class Reference

Separable Moving Average Filter. More...

#include <aims/signalfilter/movingaveragefilter.h>

Inheritance diagram for aims::MovingAverageFilter:

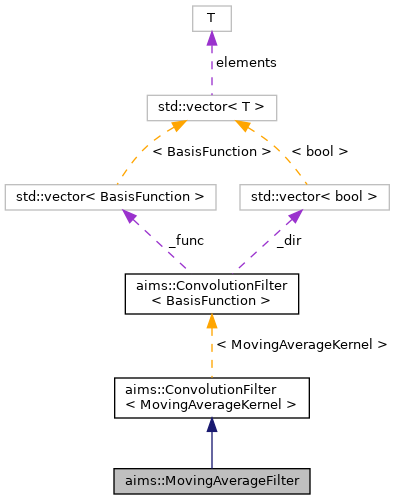

Collaboration diagram for aims::MovingAverageFilter:

Public Member Functions
	MovingAverageFilter (unsigned length=3, FilterType::Direction symtype=FilterType::Symmetrical)
	Constructor / Copy. More...
	MovingAverageFilter (const Point4du &length, FilterType::Direction symtype=FilterType::Symmetrical)
	MovingAverageFilter (const MovingAverageFilter &other)
virtual	~MovingAverageFilter ()
MovingAverageFilter &	operator= (const MovingAverageFilter &other)
void	setLength (unsigned length)
	Set parameters. More...
void	setLength (const Point4du &length)
void	setType (FilterType::Direction symtype)
Point4du	length () const
	Get parameters. More...
FilterType::Direction	type () const
Public Member Functions inherited from aims::ConvolutionFilter< MovingAverageKernel >
	ConvolutionFilter (const MovingAverageKernel &bfunc)
	Constructor / Destructor / Copy. More...
	ConvolutionFilter (const std::vector< MovingAverageKernel > &bfunc=std::vector< MovingAverageKernel >())
	A different basis function is used in each direction. More...
	ConvolutionFilter (const ConvolutionFilter &other)
virtual	~ConvolutionFilter ()
ConvolutionFilter &	operator= (const ConvolutionFilter &other)
carto::VolumeRef< OUT >	execute (const carto::VolumeRef< IN > &in) const
	Execution. More...
carto::VolumeRef< OUT >	execute (const carto::VolumeRef< IN > &in, carto::VolumeRef< OUT > &out) const
	Write result in an existing volume. More...
const std::vector< bool > &	directions () const
	Parameters. More...
void	setBasisFunction (const MovingAverageKernel &func)
	Change the basis functions. More...
void	setBasisFunction (const std::vector< MovingAverageKernel > &func)
	Change the basis functions. More...
void	setDirections (const std::vector< bool > &dir)
	Set the directions along which the filter is applied. More...
void	setDirections (bool dirx, bool diry, bool dirz, bool dirt)
	Set the directions along which the filter is applied. More...
void	setVerbose (int verbose=1)
	Verbosity level. More...
void	setQuiet ()
	Equivalent to setVerbose(0) More...

Additional Inherited Members
Protected Attributes inherited from aims::ConvolutionFilter< MovingAverageKernel >
std::vector< MovingAverageKernel >	_func
int	_verbose
std::vector< bool >	_dir

Detailed Description

Separable Moving Average Filter.

This filter convolves a volume with a Moving Average Kernel

See also

MovingAverageKernel

Definition at line 210 of file movingaveragefilter.h.

Constructor & Destructor Documentation

MovingAverageFilter() [1/3]

aims::MovingAverageFilter::MovingAverageFilter	(	unsigned	length = 3,
		FilterType::Direction	symtype = FilterType::Symmetrical
	)

Constructor / Copy.

MovingAverageFilter() [2/3]

aims::MovingAverageFilter::MovingAverageFilter	(	const Point4du &	length,
		FilterType::Direction	symtype = FilterType::Symmetrical
	)

MovingAverageFilter() [3/3]

aims::MovingAverageFilter::MovingAverageFilter

(

const MovingAverageFilter &

other

)

~MovingAverageFilter()

virtual aims::MovingAverageFilter::~MovingAverageFilter ( )

virtual

Member Function Documentation

length()

Point4du aims::MovingAverageFilter::length

(

)

const

Get parameters.

operator=()

MovingAverageFilter& aims::MovingAverageFilter::operator=

(

const MovingAverageFilter &

other

)

setLength() [1/2]

void aims::MovingAverageFilter::setLength

(

const Point4du &

length

)

setLength() [2/2]

void aims::MovingAverageFilter::setLength

(

unsigned

length

)

Set parameters.

setType()

void aims::MovingAverageFilter::setType

(

FilterType::Direction

symtype

)

type()

FilterType::Direction aims::MovingAverageFilter::type

(

)

const

---

The documentation for this class was generated from the following file:

• aims/signalfilter/movingaveragefilter.h
