aimsalgo 6.0.0
Neuroimaging image processing
Public Member Functions | Protected Member Functions | Protected Attributes | List of all members
AimsPCA Class Reference

#include <aims/math/pca.h>

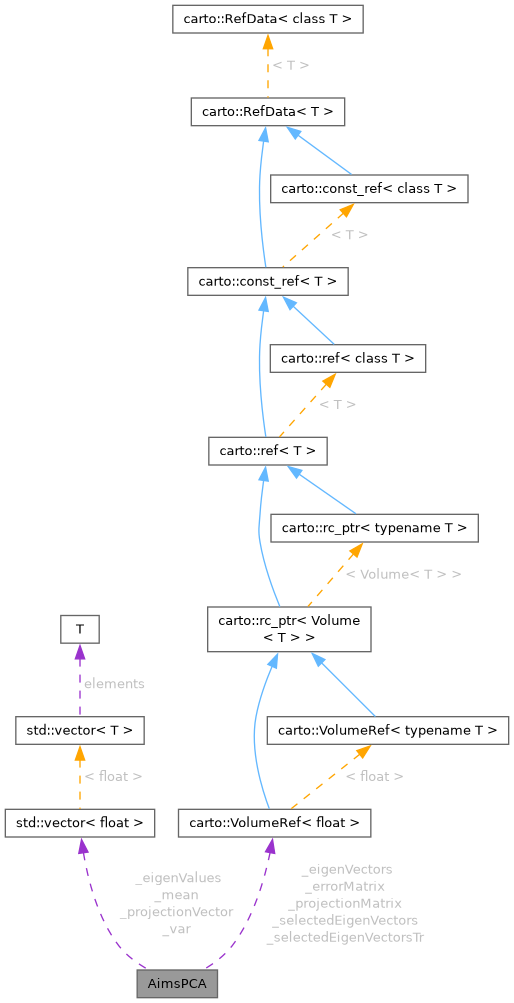

Collaboration diagram for AimsPCA:
Collaboration graph
[legend]

Public Member Functions

 AimsPCA (int significantNumberOfVp, bool normalize=false, bool center=true)

 ~AimsPCA ()

template<class T>
void doIt (const carto::rc_ptr< carto::Volume< T > > &individuals)

template<class T>
void doIt (const std::list< Point3d > &selectedPoints, const carto::rc_ptr< carto::Volume< T > > &data)

float noiseVariance (float &meanNorm)

double totalVariance (float &meanNorm) const

float relativeUnreconstructedVariance (float &meanNorm)

void setSignificantNumberOfVp (int significantNumberOfVp)

void setMinimalInertia (float inertiaLimit)

float minimalInertia () const

float significantNumberOfVp () const

float significantInertia ()

float noiseInertia ()

float unreconstructedVariance ()

float relativeUnreconstructedVariance ()

carto::VolumeRef< float > projection (const carto::rc_ptr< carto::Volume< float > > &individual)

float reconstructionError2 (const carto::rc_ptr< carto::Volume< float > > &individual)

const carto::VolumeRef< float > & projectionMatrix ()

const carto::VolumeRef< float > & reconstructionErrorMatrix ()

const std::vector< float > & eigenValues () const

const carto::VolumeRef< float > & eigenVectors () const

carto::VolumeRef< float > selectedEigenVectors () const

const std::vector< float > & mean () const

const std::vector< float > & var () const

bool valid () const


Protected Member Functions

void computeErrorAndProjMatrices ()


Protected Attributes

bool _validPca

bool _computed

bool _matricesComputed

bool _center

bool _normalize

std::vector< float > _mean

std::vector< float > _var

std::vector< float > _projectionVector

carto::VolumeRef< float > _projectionMatrix

carto::VolumeRef< float > _errorMatrix

std::vector< float > _eigenValues

carto::VolumeRef< float > _eigenVectors

carto::VolumeRef< float > _selectedEigenVectors

carto::VolumeRef< float > _selectedEigenVectorsTr

int _significantNumberOfVp

float _minimalInertia


Detailed Description

Definition at line 43 of file pca.h.

Constructor & Destructor Documentation

◆ AimsPCA()

AimsPCA::AimsPCA ( int significantNumberOfVp,
bool normalize = false,
bool center = true )

References significantNumberOfVp().

◆ ~AimsPCA()

AimsPCA::~AimsPCA ( )
inline

Definition at line 47 of file pca.h.

Member Function Documentation

◆ computeErrorAndProjMatrices()

void AimsPCA::computeErrorAndProjMatrices ( )
protected

◆ doIt() [1/2]

template<typename T>
void AimsPCA::doIt ( const carto::rc_ptr< carto::Volume< T > > & individuals)

Definition at line 60 of file pca_d.h.

References _center, _computed, _eigenValues, _eigenVectors, _matricesComputed, _mean, _normalize, _validPca, _var, carto::VolumeRef< typename T >::at(), AimsSVD< T >::doit(), carto::VolumeRef< typename T >::getSizeX(), carto::VolumeRef< typename T >::getSizeY(), AimsSVD< T >::setReturnType(), AimsSVD< T >::sort(), and AimsSVD< T >::VectorOfSingularValues.

Referenced by doIt().

◆ doIt() [2/2]

template<typename T>
void AimsPCA::doIt ( const std::list< Point3d > & selectedPoints,
const carto::rc_ptr< carto::Volume< T > > & data )

Definition at line 41 of file pca_d.h.

References carto::VolumeRef< typename T >::at(), and doIt().

◆ eigenValues()

const std::vector< float > & AimsPCA::eigenValues ( ) const

◆ eigenVectors()

const carto::VolumeRef< float > & AimsPCA::eigenVectors ( ) const

◆ mean()

const std::vector< float > & AimsPCA::mean ( ) const

◆ minimalInertia()

float AimsPCA::minimalInertia ( ) const

◆ noiseInertia()

float AimsPCA::noiseInertia ( )

◆ noiseVariance()

float AimsPCA::noiseVariance ( float & meanNorm)

◆ projection()

carto::VolumeRef< float > AimsPCA::projection ( const carto::rc_ptr< carto::Volume< float > > & individual)

◆ projectionMatrix()

const carto::VolumeRef< float > & AimsPCA::projectionMatrix ( )

◆ reconstructionError2()

float AimsPCA::reconstructionError2 ( const carto::rc_ptr< carto::Volume< float > > & individual)

◆ reconstructionErrorMatrix()

const carto::VolumeRef< float > & AimsPCA::reconstructionErrorMatrix ( )

◆ relativeUnreconstructedVariance() [1/2]

float AimsPCA::relativeUnreconstructedVariance ( )

◆ relativeUnreconstructedVariance() [2/2]

float AimsPCA::relativeUnreconstructedVariance ( float & meanNorm)

◆ selectedEigenVectors()

carto::VolumeRef< float > AimsPCA::selectedEigenVectors ( ) const

◆ setMinimalInertia()

void AimsPCA::setMinimalInertia ( float inertiaLimit)

◆ setSignificantNumberOfVp()

void AimsPCA::setSignificantNumberOfVp ( int significantNumberOfVp)

References significantNumberOfVp().

◆ significantInertia()

float AimsPCA::significantInertia ( )

◆ significantNumberOfVp()

float AimsPCA::significantNumberOfVp ( ) const

Referenced by AimsPCA(), and setSignificantNumberOfVp().

◆ totalVariance()

double AimsPCA::totalVariance ( float & meanNorm) const

◆ unreconstructedVariance()

float AimsPCA::unreconstructedVariance ( )

◆ valid()

bool AimsPCA::valid ( ) const
inline

Definition at line 85 of file pca.h.

References _validPca.

◆ var()

const std::vector< float > & AimsPCA::var ( ) const

Member Data Documentation

◆ _center

bool AimsPCA::_center
protected

Definition at line 92 of file pca.h.

Referenced by doIt().

◆ _computed

bool AimsPCA::_computed
protected

Definition at line 90 of file pca.h.

Referenced by doIt().

◆ _eigenValues

std::vector<float> AimsPCA::_eigenValues
protected

Definition at line 100 of file pca.h.

Referenced by doIt().

◆ _eigenVectors

carto::VolumeRef<float> AimsPCA::_eigenVectors
protected

Definition at line 101 of file pca.h.

Referenced by doIt().

◆ _errorMatrix

carto::VolumeRef<float> AimsPCA::_errorMatrix
protected

Definition at line 99 of file pca.h.

◆ _matricesComputed

bool AimsPCA::_matricesComputed
protected

Definition at line 91 of file pca.h.

Referenced by doIt().

◆ _mean

std::vector<float> AimsPCA::_mean
protected

Definition at line 94 of file pca.h.

Referenced by doIt().

◆ _minimalInertia

float AimsPCA::_minimalInertia
protected

Definition at line 106 of file pca.h.

◆ _normalize

bool AimsPCA::_normalize
protected

Definition at line 93 of file pca.h.

Referenced by doIt().

◆ _projectionMatrix

carto::VolumeRef<float> AimsPCA::_projectionMatrix
protected

Definition at line 98 of file pca.h.

◆ _projectionVector

std::vector<float> AimsPCA::_projectionVector
protected

Definition at line 97 of file pca.h.

◆ _selectedEigenVectors

carto::VolumeRef<float> AimsPCA::_selectedEigenVectors
protected

Definition at line 102 of file pca.h.

◆ _selectedEigenVectorsTr

carto::VolumeRef<float> AimsPCA::_selectedEigenVectorsTr
protected

Definition at line 103 of file pca.h.

◆ _significantNumberOfVp

int AimsPCA::_significantNumberOfVp
protected

Definition at line 105 of file pca.h.

◆ _validPca

bool AimsPCA::_validPca
protected

Definition at line 89 of file pca.h.

Referenced by doIt(), and valid().

◆ _var

std::vector<float> AimsPCA::_var
protected

Definition at line 95 of file pca.h.

Referenced by doIt().

The documentation for this class was generated from the following files:
