#include <aims/border/borderiterator.h>

Inheritance diagram for aims::BorderIterator< T >::const_iterator:

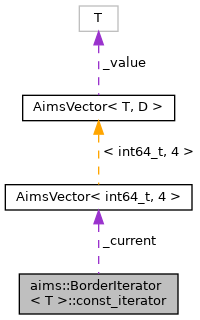

Collaboration diagram for aims::BorderIterator< T >::const_iterator:

Public Member Functions
	const_iterator ()
	Default constructor Create a non initialized iterator than cannot be incremented or accessed. More...

	const_iterator (const const_iterator &other)
	Copy constructor from a const_iterator. More...

	const_iterator (const iterator &other)
	Copy constructor from an iterator. More...

const_iterator &	operator= (const const_iterator &other)
	assignment from const_iterator More...

const_iterator &	operator= (const iterator &other)
	assignment from iterator More...

const_iterator &	operator++ ()
	increment (prefix) More...

const_iterator	operator++ (int)
	increment (suffix) More...

const T &	operator* () const

const T *	operator-> () const

bool	operator== (const const_iterator &other) const

bool	operator== (const iterator &other) const

bool	operator!= (const const_iterator &other) const

bool	operator!= (const iterator &other) const

Point4dl	coordinate () const
	Returns the coordinates of the current point in the linked volume. More...

carto::VolumeRef< T >	volume ()
	Returns a reference to the linked volume. More...

Protected Member Functions
	const_iterator (BorderIterator< T > &b, bool end=false)
	Utility constructor: returns the iterator at position begin() if `end` is false, and end() if `end` is false. More...

	const_iterator (BorderIterator< T > &b, const Point4dl &current)
	Utility constructor: returns the iterator at position `current`. More...

bool	isBorder (const Point4dl &p) const
	returns true if the `p` is in the border described by _border More...

bool	isNonBorderImage (const Point4dl &p) const
	returns true if `p` is in the image but not in the border. More...

Point4dl	reset (const Point4dl &p, const Point4dl &move) const
	Sets the coordinate (in the dimension described by `move`) at its most inferior (i.e. More...

Point4dl	nextMove (const Point4dl &move) const
	Computes the next move. More...

Point4dl	computeNext (const Point4dl &p) const
	computeNext(p) returns the next point in the border. More...

Point4dl	end () const
	Point value for the "end" iterator (which points to no voxel). More...

long	jumpX () const
	Gives the size of the non-border volume in the X dimension. More...

Protected Attributes
BorderIterator< T >	_border

Point4dl	_current

Friends
class	BorderIterator< T >

class	iterator

Detailed Description

template<typename T>
class aims::BorderIterator< T >::const_iterator

Border: const iterator.

Definition at line 125 of file borderiterator.h.

Constructor & Destructor Documentation

◆ const_iterator() [1/5]

template<typename T >

aims::BorderIterator< T >::const_iterator::const_iterator ( )

Default constructor Create a non initialized iterator than cannot be incremented or accessed.

Definition at line 263 of file borderiterator.h.

Referenced by aims::BorderIterator< T >::begin(), aims::BorderIterator< T >::const_iterator::const_iterator(), aims::BorderIterator< T >::end(), and aims::BorderIterator< T >::iterator::iterator().

◆ const_iterator() [2/5]

template<typename T>

aims::BorderIterator< T >::const_iterator::const_iterator ( const const_iterator & other )

Copy constructor from a const_iterator.

◆ const_iterator() [3/5]

template<typename T>

aims::BorderIterator< T >::const_iterator::const_iterator ( const iterator & other )

Copy constructor from an iterator.

◆ const_iterator() [4/5]

template<typename T >

aims::BorderIterator< T >::const_iterator::const_iterator	(	BorderIterator< T > &	b,
		bool	end = `false`
	)

protected

Utility constructor: returns the iterator at position begin() if end is false, and end() if end is false.

Definition at line 269 of file borderiterator.h.

References aims::BorderIterator< T >::const_iterator::_border, aims::BorderIterator< T >::const_iterator::_current, aims::BorderIterator< T >::const_iterator::computeNext(), and aims::BorderIterator< T >::const_iterator::isBorder().

◆ const_iterator() [5/5]

template<typename T >

aims::BorderIterator< T >::const_iterator::const_iterator	(	BorderIterator< T > &	b,
		const Point4dl &	current
	)

protected

Utility constructor: returns the iterator at position current.

Definition at line 283 of file borderiterator.h.

References aims::BorderIterator< T >::const_iterator::_border, aims::BorderIterator< T >::const_iterator::_current, aims::BorderIterator< T >::const_iterator::const_iterator(), and aims::BorderIterator< T >::const_iterator::operator=().

Member Function Documentation

◆ computeNext()

template<typename T >

Point4dl aims::BorderIterator< T >::const_iterator::computeNext ( const Point4dl & p ) const

protected

computeNext(p) returns the next point in the border.

Parameters

p	previous position
move	direction in which to seek the next point. The method is always called with `move` 's default value from the outside, but calls iteself recursively with other values.

Definition at line 493 of file borderiterator.h.

References aims::BorderIterator< T >::const_iterator::end(), aims::BorderIterator< T >::const_iterator::isBorder(), aims::BorderIterator< T >::const_iterator::isNonBorderImage(), aims::BorderIterator< T >::const_iterator::jumpX(), aims::BorderIterator< T >::const_iterator::nextMove(), and aims::BorderIterator< T >::const_iterator::reset().

Referenced by aims::BorderIterator< T >::const_iterator::const_iterator(), aims::BorderIterator< T >::const_iterator::operator++(), and aims::BorderIterator< T >::iterator::operator++().

◆ coordinate()

template<typename T>

Point4dl aims::BorderIterator< T >::const_iterator::coordinate ( ) const

inline

Returns the coordinates of the current point in the linked volume.

Definition at line 163 of file borderiterator.h.

References aims::BorderIterator< T >::const_iterator::_current.

Referenced by aims::BorderFiller< T >::fillMirror(), and aims::BorderFiller< T >::fillNearest().

◆ end()

template<typename T >

Point4dl aims::BorderIterator< T >::const_iterator::end ( ) const

protected

Point value for the "end" iterator (which points to no voxel).

In this implemention, its value is (MAX_LONG,MAX_LONG,MAX_LONG,MAX_LONG)

Definition at line 358 of file borderiterator.h.

Referenced by aims::BorderIterator< T >::const_iterator::computeNext().

◆ isBorder()

template<typename T >

bool aims::BorderIterator< T >::const_iterator::isBorder ( const Point4dl & p ) const

protected

returns true if the p is in the border described by _border

Definition at line 376 of file borderiterator.h.

References aims::BorderIterator< T >::const_iterator::_border.

Referenced by aims::BorderIterator< T >::const_iterator::computeNext(), and aims::BorderIterator< T >::const_iterator::const_iterator().

◆ isNonBorderImage()

template<typename T >

bool aims::BorderIterator< T >::const_iterator::isNonBorderImage ( const Point4dl & p ) const

protected

returns true if p is in the image but not in the border.

Definition at line 425 of file borderiterator.h.

References aims::BorderIterator< T >::const_iterator::_border.

Referenced by aims::BorderIterator< T >::const_iterator::computeNext().

◆ jumpX()

template<typename T >

long aims::BorderIterator< T >::const_iterator::jumpX ( ) const

protected

Gives the size of the non-border volume in the X dimension.

It is used to jump the non border volume when iterating on voxels.

Definition at line 367 of file borderiterator.h.

References aims::BorderIterator< T >::const_iterator::_border.

Referenced by aims::BorderIterator< T >::const_iterator::computeNext().

◆ nextMove()

template<typename T >

Point4dl aims::BorderIterator< T >::const_iterator::nextMove ( const Point4dl & move ) const

protected

Computes the next move.

If move was in the X dimension (move == (1,0,0,0)) the next move is in the Y dimension, and so on. If move was in the T dimension, nextMove() returns (0,0,0,0).

Definition at line 476 of file borderiterator.h.

Referenced by aims::BorderIterator< T >::const_iterator::computeNext().

◆ operator!=() [1/2]

template<typename T >

bool aims::BorderIterator< T >::const_iterator::operator!= ( const const_iterator & other ) const

Definition at line 346 of file borderiterator.h.

◆ operator!=() [2/2]

template<typename T >

bool aims::BorderIterator< T >::const_iterator::operator!= ( const iterator & other ) const

Definition at line 352 of file borderiterator.h.

◆ operator*()

template<typename T >

const T & aims::BorderIterator< T >::const_iterator::operator* ( ) const

Definition at line 322 of file borderiterator.h.

References aims::BorderIterator< T >::const_iterator::_border, and aims::BorderIterator< T >::const_iterator::_current.

◆ operator++() [1/2]

template<typename T >

BorderIterator< T >::const_iterator & aims::BorderIterator< T >::const_iterator::operator++ ( )

increment (prefix)

Definition at line 521 of file borderiterator.h.

References aims::BorderIterator< T >::const_iterator::_current, and aims::BorderIterator< T >::const_iterator::computeNext().

◆ operator++() [2/2]

template<typename T >

BorderIterator< T >::const_iterator aims::BorderIterator< T >::const_iterator::operator++ ( int )

increment (suffix)

Definition at line 528 of file borderiterator.h.

References aims::BorderIterator< T >::const_iterator::_current, and aims::BorderIterator< T >::const_iterator::computeNext().

◆ operator->()

template<typename T >

const T * aims::BorderIterator< T >::const_iterator::operator-> ( ) const

Definition at line 328 of file borderiterator.h.

References aims::BorderIterator< T >::const_iterator::_border, and aims::BorderIterator< T >::const_iterator::_current.

◆ operator=() [1/2]

template<typename T>

const_iterator& aims::BorderIterator< T >::const_iterator::operator= ( const const_iterator & other )

assignment from const_iterator

Referenced by aims::BorderIterator< T >::const_iterator::const_iterator(), and aims::BorderIterator< T >::iterator::operator=().

◆ operator=() [2/2]

template<typename T>

const_iterator& aims::BorderIterator< T >::const_iterator::operator= ( const iterator & other )

assignment from iterator

◆ operator==() [1/2]

template<typename T >

bool aims::BorderIterator< T >::const_iterator::operator== ( const const_iterator & other ) const

Definition at line 334 of file borderiterator.h.

References aims::BorderIterator< T >::const_iterator::_border, and aims::BorderIterator< T >::const_iterator::_current.

◆ operator==() [2/2]

template<typename T >

bool aims::BorderIterator< T >::const_iterator::operator== ( const iterator & other ) const

Definition at line 340 of file borderiterator.h.

References aims::BorderIterator< T >::const_iterator::_border, and aims::BorderIterator< T >::const_iterator::_current.

◆ reset()

template<typename T >

Point4dl aims::BorderIterator< T >::const_iterator::reset	(	const Point4dl &	p,
		const Point4dl &	move
	)		const

protected

Sets the coordinate (in the dimension described by move) at its most inferior (i.e.

left) value.

Definition at line 444 of file borderiterator.h.

References aims::BorderIterator< T >::const_iterator::_border.

Referenced by aims::BorderIterator< T >::const_iterator::computeNext().

◆ volume()

template<typename T>

carto::VolumeRef<T> aims::BorderIterator< T >::const_iterator::volume ( )

inline

Returns a reference to the linked volume.

Definition at line 165 of file borderiterator.h.

References aims::BorderIterator< T >::const_iterator::_border.

Friends And Related Function Documentation

◆ BorderIterator< T >

template<typename T>

friend class BorderIterator< T >

friend

Definition at line 201 of file borderiterator.h.

◆ iterator

template<typename T>

friend class iterator

friend

Definition at line 202 of file borderiterator.h.

Referenced by aims::BorderIterator< T >::begin(), and aims::BorderIterator< T >::end().

Member Data Documentation

◆ _border

template<typename T>

BorderIterator<T> aims::BorderIterator< T >::const_iterator::_border

protected

Definition at line 169 of file borderiterator.h.

◆ _current

template<typename T>

Point4dl aims::BorderIterator< T >::const_iterator::_current

protected

Definition at line 170 of file borderiterator.h.

The documentation for this class was generated from the following file:

aims/border/borderiterator.h
