aims::BundleWriter Class Reference

Writes bundles information to a bundles file. More...

#include <aims/fibers/bundles.h>

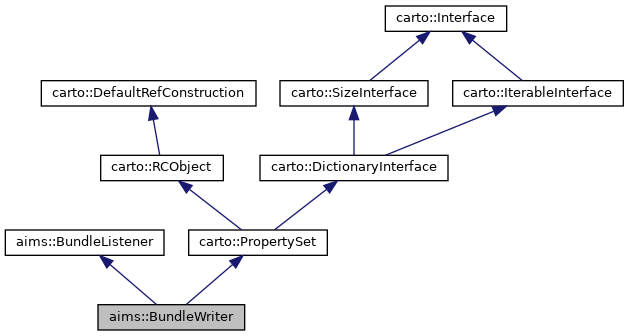

Inheritance diagram for aims::BundleWriter:
Inheritance graph
[legend]

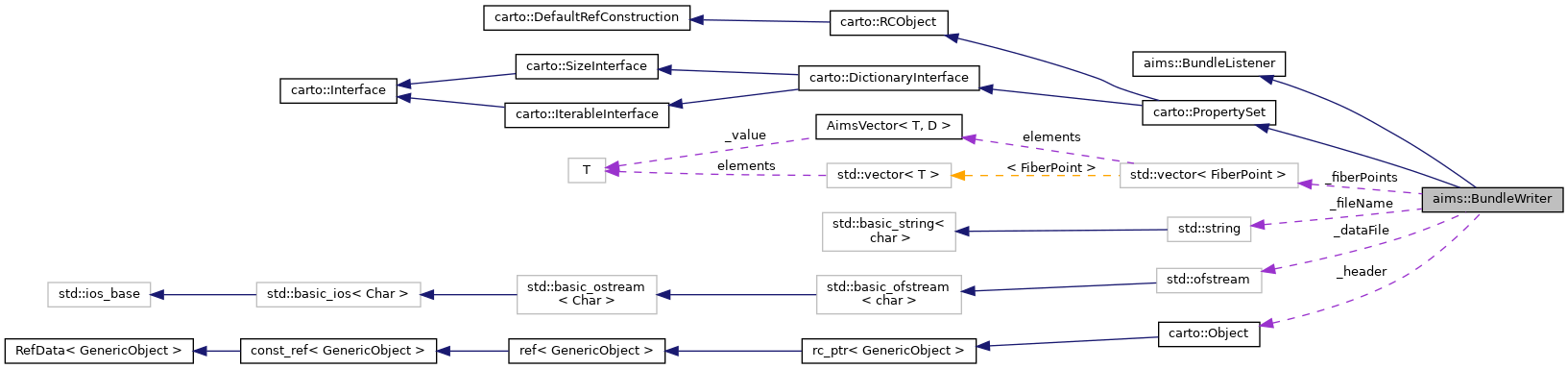

Collaboration diagram for aims::BundleWriter:
Collaboration graph
[legend]

Public Types

typedef std::vector< FiberPoint > FiberPoints

- Public Types inherited from carto::PropertySet
typedef ::sigc::signal3< void, const Object &, const std::string &, const Object & > Signal

- Public Types inherited from carto::RCObject
typedef int RefCounterType


Public Member Functions

 BundleWriter ()

void setFileString (const std::string &fileName)
 set the output file name More...

virtual ~BundleWriter ()

virtual void bundleStarted (const BundleProducer &, const BundleInfo &)

virtual void bundleTerminated (const BundleProducer &, const BundleInfo &)

virtual void fiberStarted (const BundleProducer &, const BundleInfo &, const FiberInfo &)

virtual void fiberTerminated (const BundleProducer &, const BundleInfo &, const FiberInfo &)

virtual void newFiberPoint (const BundleProducer &, const BundleInfo &, const FiberInfo &, const FiberPoint &)

virtual void noMoreBundle (const BundleProducer &)

virtual void checkStreams ()

virtual void addFiber (const BundleProducer &, const BundleInfo &, const FiberInfo &, FiberPoint *, int &)

- Public Member Functions inherited from aims::BundleListener
virtual ~BundleListener ()

- Public Member Functions inherited from carto::PropertySet
 PropertySet ()

 PropertySet (const PropertySet &)

PropertySet & operator= (const PropertySet &)

virtual ~PropertySet ()

Signal & getSignalPropertyChanged ()

void addBuiltinProperty (const std::string &, T &)

void addBuiltinProperty (const std::string &, T &, bool &provided)

bool getProperty (const std::string &, T &) const

void setProperty (const std::string &, const T &)

virtual bool getProperty (const std::string &, Object &) const

virtual void setProperty (const std::string &, Object)

virtual bool removeProperty (const std::string &key)

virtual bool hasProperty (const std::string &) const

virtual size_t size () const

virtual void clearProperties ()

virtual void copyBuiltinProperties (const PropertySet &source)

virtual Object objectIterator () const

iterator getIterator () const

void changeBuiltinProperty (const std::string &, T &)

void changeBuiltinProperty (const std::string &, T &, bool &provided)

- Public Member Functions inherited from carto::RCObject
 RCObject ()

 RCObject (const RCObject &)

RCObject & operator= (const RCObject &)

virtual ~RCObject ()

- Public Member Functions inherited from carto::DictionaryInterface
virtual ~DictionaryInterface ()

virtual bool isDictionary () const

Object getProperty (const std::string &) const

Object getProperty (Object key) const

bool getProperty (const std::string &key, T &value) const

void setProperty (const std::string &, const char *)

void setProperty (const std::string &, const T &)

virtual void copyProperties (Object source)

virtual bool operator== (const DictionaryInterface &other) const

virtual bool operator!= (const DictionaryInterface &other) const

void setProperty (const std::string &key, Object const &value)

bool getProperty (const std::string &key, Object &value) const

- Public Member Functions inherited from carto::SizeInterface
virtual ~SizeInterface ()

- Public Member Functions inherited from carto::Interface
virtual ~Interface ()

- Public Member Functions inherited from carto::IterableInterface
virtual ~IterableInterface ()

virtual bool isIterable () const

virtual bool operator== (const IterableInterface &other) const

virtual bool operator!= (const IterableInterface &other) const


Protected Attributes

int _ascii

std::string _fileName

carto::Object _header

std::ofstream _dataFile

int _firstFiberInBundle

int _writtenFibersCount

FiberPoints _fiberPoints


Additional Inherited Members

Detailed Description

Writes bundles information to a bundles file.

BundleWriter is a BundleListener, thus must be connected to a BundleProducer, and is fed by it.

It will write the .bundles format.

Definition at line 222 of file bundles.h.

Member Typedef Documentation

◆ FiberPoints

typedef std::vector< FiberPoint > aims::BundleWriter::FiberPoints

Definition at line 231 of file bundles.h.

Constructor & Destructor Documentation

◆ BundleWriter()

aims::BundleWriter::BundleWriter ( )

◆ ~BundleWriter()

virtual aims::BundleWriter::~BundleWriter ( )
virtual

Member Function Documentation

◆ addFiber()

virtual void aims::BundleWriter::addFiber ( const BundleProducer &  ,
const BundleInfo &  ,
const FiberInfo &  ,
FiberPoint *  ,
int &
)
virtual

◆ bundleStarted()

virtual void aims::BundleWriter::bundleStarted ( const BundleProducer &  ,
const BundleInfo &
)
virtual

Reimplemented from aims::BundleListener.

◆ bundleTerminated()

virtual void aims::BundleWriter::bundleTerminated ( const BundleProducer &  ,
const BundleInfo &
)
virtual

Reimplemented from aims::BundleListener.

◆ checkStreams()

virtual void aims::BundleWriter::checkStreams ( )
virtual

◆ fiberStarted()

virtual void aims::BundleWriter::fiberStarted ( const BundleProducer &  ,
const BundleInfo &  ,
const FiberInfo &
)
virtual

Reimplemented from aims::BundleListener.

◆ fiberTerminated()

virtual void aims::BundleWriter::fiberTerminated ( const BundleProducer &  ,
const BundleInfo &  ,
const FiberInfo &
)
virtual

Reimplemented from aims::BundleListener.

◆ newFiberPoint()

virtual void aims::BundleWriter::newFiberPoint ( const BundleProducer &  ,
const BundleInfo &  ,
const FiberInfo &  ,
const FiberPoint &
)
virtual

Reimplemented from aims::BundleListener.

◆ noMoreBundle()

virtual void aims::BundleWriter::noMoreBundle ( const BundleProducer &  )
virtual

Reimplemented from aims::BundleListener.

◆ setFileString()

void aims::BundleWriter::setFileString ( const std::string &  fileName)

set the output file name

Member Data Documentation

◆ _ascii

int aims::BundleWriter::_ascii
protected

Definition at line 247 of file bundles.h.

◆ _dataFile

std::ofstream aims::BundleWriter::_dataFile
protected

Definition at line 250 of file bundles.h.

◆ _fiberPoints

FiberPoints aims::BundleWriter::_fiberPoints
protected

Definition at line 253 of file bundles.h.

◆ _fileName

std::string aims::BundleWriter::_fileName
protected

Definition at line 248 of file bundles.h.

◆ _firstFiberInBundle

int aims::BundleWriter::_firstFiberInBundle
protected

Definition at line 251 of file bundles.h.

◆ _header

carto::Object aims::BundleWriter::_header
protected

Definition at line 249 of file bundles.h.

◆ _writtenFibersCount

int aims::BundleWriter::_writtenFibersCount
protected

Definition at line 252 of file bundles.h.

The documentation for this class was generated from the following file:
