aims::Connectivity Class Reference

Topology of a data container. More...

#include <aims/connectivity/connectivity.h>

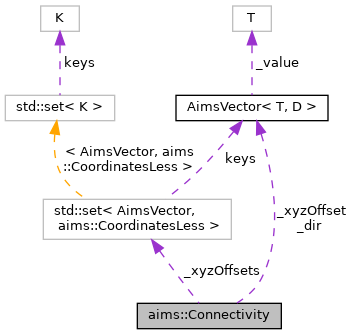

Collaboration diagram for aims::Connectivity:

Public Types
enum	Type {   CONNECTIVITY_4_XY, CONNECTIVITY_4_XZ, CONNECTIVITY_4_YZ, CONNECTIVITY_6_XYZ,   CONNECTIVITY_8_XY, CONNECTIVITY_8_XZ, CONNECTIVITY_8_YZ, CONNECTIVITY_18_XYZ,   CONNECTIVITY_26_XYZ, CONNECTIVITY_9_XY_Zminus, CONNECTIVITY_9_XY_Zplus, CONNECTIVITY_9_XZ_Yminus,   CONNECTIVITY_9_XZ_Yplus, CONNECTIVITY_9_YZ_Xminus, CONNECTIVITY_9_YZ_Xplus, CONNECTIVITY_5_XminusY,   CONNECTIVITY_5_XplusY, CONNECTIVITY_5_XYminus, CONNECTIVITY_5_XYplus, CONNECTIVITY_5_XminusZ,   CONNECTIVITY_5_XplusZ, CONNECTIVITY_5_XZminus, CONNECTIVITY_5_XZplus, CONNECTIVITY_5_YminusZ,   CONNECTIVITY_5_YplusZ, CONNECTIVITY_5_YZminus, CONNECTIVITY_5_YZplus, CONNECTIVITY_8_XYZ,   CONNECTIVITY_4_XYdiag, CONNECTIVITY_4_XZdiag, CONNECTIVITY_4_YZdiag }
	The different kinds of connectivity. More...

Public Member Functions
	Connectivity (int oline, int oslice, Type type)
virtual	~Connectivity ()
Type	type () const
	Get the type of the connectivity. More...
std::string	type_string () const
	Get the type of the connectivity. More...
int	nbNeighbors () const
	Get the number of neighbors for that connectivity. More...
int	offset (int n) const
	Get the linear offset of the nth element. More...
const Point3d &	xyzOffset (int n) const
	Get the X/Y/Z offsets of the nth element. More...
const Point3df &	dir (int n) const
	Get the normalized directive vector of the nth element. More...
bool	isNeighbor (const Point3d &offset)
Connectivity &	operator= (const Connectivity &other)

Static Public Member Functions
static Type	type_from_string (const std::string &)
static std::string	type_to_string (Type)

Protected Member Functions
void	setConnectivity ()
	Set the right connectivity according to the given type. More...
void	setConnectivity_4_XY ()
	4-neighbor connectivity in (xy) plane More...
void	setConnectivity_4_XZ ()
	4-neighbor connectivity in (xz) plane More...
void	setConnectivity_4_YZ ()
	4-neighbor connectivity in (yz) plane More...
void	setConnectivity_6_XYZ ()
	6-neighbor connectivity in (xyz) space More...
void	setConnectivity_8_XY ()
	8-neighbor connectivity in (xy) plane More...
void	setConnectivity_8_XZ ()
	8-neighbor connectivity in (xz) plane More...
void	setConnectivity_8_YZ ()
	8-neighbor connectivity in (yz) plane More...
void	setConnectivity_18_XYZ ()
	18-neighbor connectivity in (xyz) space More...
void	setConnectivity_26_XYZ ()
	26-neighbor connectivity in (xyz) space More...
void	setConnectivity_9_XY_Zminus ()
	9-neighbor connectivity in (xyz) inferior in z space More...
void	setConnectivity_9_XY_Zplus ()
	9-neighbor connectivity in (xyz) superior in z space More...
void	setConnectivity_9_XZ_Yminus ()
	9-neighbor connectivity in (xyz) inferior in y space More...
void	setConnectivity_9_XZ_Yplus ()
	9-neighbor connectivity in (xyz) superior in y space More...
void	setConnectivity_9_YZ_Xminus ()
	9-neighbor connectivity in (xyz) inferior in x space More...
void	setConnectivity_9_YZ_Xplus ()
	9-neighbor connectivity in (xyz) superior in x space More...
void	setConnectivity_5_XminusY ()
	5-neighbor connectivity in (xy) inferior in x plane More...
void	setConnectivity_5_XplusY ()
	5-neighbor connectivity in (xy) superior in x plane More...
void	setConnectivity_5_XYminus ()
	5-neighbor connectivity in (xy) inferior in y plane More...
void	setConnectivity_5_XYplus ()
	5-neighbor connectivity in (xy) superior in y plane More...
void	setConnectivity_5_XminusZ ()
	5-neighbor connectivity in (xz) inferior in x plane More...
void	setConnectivity_5_XplusZ ()
	5-neighbor connectivity in (xz) superior in x plane More...
void	setConnectivity_5_XZminus ()
	5-neighbor connectivity in (xz) inferior in z plane More...
void	setConnectivity_5_XZplus ()
	5-neighbor connectivity in (xz) superior in z plane More...
void	setConnectivity_5_YminusZ ()
	5-neighbor connectivity in (yz) inferior in y plane More...
void	setConnectivity_5_YplusZ ()
	5-neighbor connectivity in (yz) superior in y plane More...
void	setConnectivity_5_YZminus ()
	5-neighbor connectivity in (yz) inferior in z plane More...
void	setConnectivity_5_YZplus ()
	5-neighbor connectivity in (yz) superior in z plane More...

Protected Attributes
int	_xSize
int	_sliceSize
Type	_type
	Type of connectivity. More...
int	_nbNeighbors
	Number of neighbors. More...
int *	_offset
	Linear offset pointer. More...
Point3d *	_xyzOffset
	xyz offset pointer More...
std::set< Point3d, BucketMapLess >	_xyzOffsets
	xyz offsets as a searchcable set More...
Point3df *	_dir
	Normalized vectors for the different directions. More...

Detailed Description

Topology of a data container.

Definition at line 50 of file connectivity.h.

Member Enumeration Documentation

Type

enum aims::Connectivity::Type

The different kinds of connectivity.

Enumerator
CONNECTIVITY_4_XY
CONNECTIVITY_4_XZ
CONNECTIVITY_4_YZ
CONNECTIVITY_6_XYZ
CONNECTIVITY_8_XY
CONNECTIVITY_8_XZ
CONNECTIVITY_8_YZ
CONNECTIVITY_18_XYZ
CONNECTIVITY_26_XYZ
CONNECTIVITY_9_XY_Zminus
CONNECTIVITY_9_XY_Zplus
CONNECTIVITY_9_XZ_Yminus
CONNECTIVITY_9_XZ_Yplus
CONNECTIVITY_9_YZ_Xminus
CONNECTIVITY_9_YZ_Xplus
CONNECTIVITY_5_XminusY
CONNECTIVITY_5_XplusY
CONNECTIVITY_5_XYminus
CONNECTIVITY_5_XYplus
CONNECTIVITY_5_XminusZ
CONNECTIVITY_5_XplusZ
CONNECTIVITY_5_XZminus
CONNECTIVITY_5_XZplus
CONNECTIVITY_5_YminusZ
CONNECTIVITY_5_YplusZ
CONNECTIVITY_5_YZminus
CONNECTIVITY_5_YZplus
CONNECTIVITY_8_XYZ
CONNECTIVITY_4_XYdiag
CONNECTIVITY_4_XZdiag
CONNECTIVITY_4_YZdiag

Definition at line 54 of file connectivity.h.

Constructor & Destructor Documentation

Connectivity()

aims::Connectivity::Connectivity	(	int	oline,
		int	oslice,
		Type	type
	)

~Connectivity()

virtual aims::Connectivity::~Connectivity ( )

virtual

Member Function Documentation

dir()

const Point3df& aims::Connectivity::dir ( int  n ) const

inline

Get the normalized directive vector of the nth element.

Definition at line 106 of file connectivity.h.

References _dir.

isNeighbor()

bool aims::Connectivity::isNeighbor ( const Point3d &  offset )

inline

Definition at line 107 of file connectivity.h.

References _xyzOffsets.

nbNeighbors()

int aims::Connectivity::nbNeighbors ( ) const

inline

Get the number of neighbors for that connectivity.

Definition at line 100 of file connectivity.h.

References _nbNeighbors.

Referenced by aims::AimsConnectedComponent(), and aims::floodFill().

offset()

int aims::Connectivity::offset ( int  n ) const

inline

Get the linear offset of the nth element.

Definition at line 102 of file connectivity.h.

References _offset.

Referenced by aims::floodFill().

operator=()

Connectivity& aims::Connectivity::operator= ( const Connectivity &  other )

inline

Definition at line 111 of file connectivity.h.

References _dir, _offset, _sliceSize, _type, _xSize, _xyzOffset, and setConnectivity().

setConnectivity()

void aims::Connectivity::setConnectivity ( )

protected

Set the right connectivity according to the given type.

Referenced by operator=().

setConnectivity_18_XYZ()

void aims::Connectivity::setConnectivity_18_XYZ ( )

protected

18-neighbor connectivity in (xyz) space

setConnectivity_26_XYZ()

void aims::Connectivity::setConnectivity_26_XYZ ( )

protected

26-neighbor connectivity in (xyz) space

setConnectivity_4_XY()

void aims::Connectivity::setConnectivity_4_XY ( )

protected

4-neighbor connectivity in (xy) plane

setConnectivity_4_XZ()

void aims::Connectivity::setConnectivity_4_XZ ( )

protected

4-neighbor connectivity in (xz) plane

setConnectivity_4_YZ()

void aims::Connectivity::setConnectivity_4_YZ ( )

protected

4-neighbor connectivity in (yz) plane

setConnectivity_5_XminusY()

void aims::Connectivity::setConnectivity_5_XminusY ( )

protected

5-neighbor connectivity in (xy) inferior in x plane

setConnectivity_5_XminusZ()

void aims::Connectivity::setConnectivity_5_XminusZ ( )

protected

5-neighbor connectivity in (xz) inferior in x plane

setConnectivity_5_XplusY()

void aims::Connectivity::setConnectivity_5_XplusY ( )

protected

5-neighbor connectivity in (xy) superior in x plane

setConnectivity_5_XplusZ()

void aims::Connectivity::setConnectivity_5_XplusZ ( )

protected

5-neighbor connectivity in (xz) superior in x plane

setConnectivity_5_XYminus()

void aims::Connectivity::setConnectivity_5_XYminus ( )

protected

5-neighbor connectivity in (xy) inferior in y plane

setConnectivity_5_XYplus()

void aims::Connectivity::setConnectivity_5_XYplus ( )

protected

5-neighbor connectivity in (xy) superior in y plane

setConnectivity_5_XZminus()

void aims::Connectivity::setConnectivity_5_XZminus ( )

protected

5-neighbor connectivity in (xz) inferior in z plane

setConnectivity_5_XZplus()

void aims::Connectivity::setConnectivity_5_XZplus ( )

protected

5-neighbor connectivity in (xz) superior in z plane

setConnectivity_5_YminusZ()

void aims::Connectivity::setConnectivity_5_YminusZ ( )

protected

5-neighbor connectivity in (yz) inferior in y plane

setConnectivity_5_YplusZ()

void aims::Connectivity::setConnectivity_5_YplusZ ( )

protected

5-neighbor connectivity in (yz) superior in y plane

setConnectivity_5_YZminus()

void aims::Connectivity::setConnectivity_5_YZminus ( )

protected

5-neighbor connectivity in (yz) inferior in z plane

setConnectivity_5_YZplus()

void aims::Connectivity::setConnectivity_5_YZplus ( )

protected

5-neighbor connectivity in (yz) superior in z plane

setConnectivity_6_XYZ()

void aims::Connectivity::setConnectivity_6_XYZ ( )

protected

6-neighbor connectivity in (xyz) space

setConnectivity_8_XY()

void aims::Connectivity::setConnectivity_8_XY ( )

protected

8-neighbor connectivity in (xy) plane

setConnectivity_8_XZ()

void aims::Connectivity::setConnectivity_8_XZ ( )

protected

8-neighbor connectivity in (xz) plane

setConnectivity_8_YZ()

void aims::Connectivity::setConnectivity_8_YZ ( )

protected

8-neighbor connectivity in (yz) plane

setConnectivity_9_XY_Zminus()

void aims::Connectivity::setConnectivity_9_XY_Zminus ( )

protected

9-neighbor connectivity in (xyz) inferior in z space

setConnectivity_9_XY_Zplus()

void aims::Connectivity::setConnectivity_9_XY_Zplus ( )

protected

9-neighbor connectivity in (xyz) superior in z space

setConnectivity_9_XZ_Yminus()

void aims::Connectivity::setConnectivity_9_XZ_Yminus ( )

protected

9-neighbor connectivity in (xyz) inferior in y space

setConnectivity_9_XZ_Yplus()

void aims::Connectivity::setConnectivity_9_XZ_Yplus ( )

protected

9-neighbor connectivity in (xyz) superior in y space

setConnectivity_9_YZ_Xminus()

void aims::Connectivity::setConnectivity_9_YZ_Xminus ( )

protected

9-neighbor connectivity in (xyz) inferior in x space

setConnectivity_9_YZ_Xplus()

void aims::Connectivity::setConnectivity_9_YZ_Xplus ( )

protected

9-neighbor connectivity in (xyz) superior in x space

type()

Type aims::Connectivity::type ( ) const

inline

Get the type of the connectivity.

Definition at line 96 of file connectivity.h.

References _type.

type_from_string()

static Type aims::Connectivity::type_from_string ( const std::string &  )

static

type_string()

std::string aims::Connectivity::type_string ( ) const

inline

Get the type of the connectivity.

Definition at line 98 of file connectivity.h.

References _type, and type_to_string().

type_to_string()

static std::string aims::Connectivity::type_to_string ( Type  )

static

Referenced by type_string().

xyzOffset()

const Point3d& aims::Connectivity::xyzOffset ( int  n ) const

inline

Get the X/Y/Z offsets of the nth element.

Definition at line 104 of file connectivity.h.

References _xyzOffset.

Referenced by aims::AimsConnectedComponent(), and aims::floodFill().

Member Data Documentation

_dir

Point3df* aims::Connectivity::_dir

protected

Normalized vectors for the different directions.

Definition at line 152 of file connectivity.h.

Referenced by dir(), and operator=().

_nbNeighbors

int aims::Connectivity::_nbNeighbors

protected

Number of neighbors.

Definition at line 144 of file connectivity.h.

Referenced by nbNeighbors().

_offset

int* aims::Connectivity::_offset

protected

Linear offset pointer.

Definition at line 146 of file connectivity.h.

Referenced by offset(), and operator=().

_sliceSize

int aims::Connectivity::_sliceSize

protected

Definition at line 140 of file connectivity.h.

Referenced by operator=().

_type

Type aims::Connectivity::_type

protected

Type of connectivity.

Definition at line 142 of file connectivity.h.

Referenced by operator=(), type(), and type_string().

_xSize

int aims::Connectivity::_xSize

protected

Definition at line 139 of file connectivity.h.

Referenced by operator=().

_xyzOffset

Point3d* aims::Connectivity::_xyzOffset

protected

xyz offset pointer

Definition at line 148 of file connectivity.h.

Referenced by operator=(), and xyzOffset().

_xyzOffsets

std::set<Point3d, BucketMapLess> aims::Connectivity::_xyzOffsets

protected

xyz offsets as a searchcable set

Definition at line 150 of file connectivity.h.

Referenced by isNeighbor().

---

The documentation for this class was generated from the following file:

• aims/connectivity/connectivity.h
