aims::BorderIterator< T > Class Template Reference

Represents the border of a volume. More...

#include <aims/border/borderiterator.h>

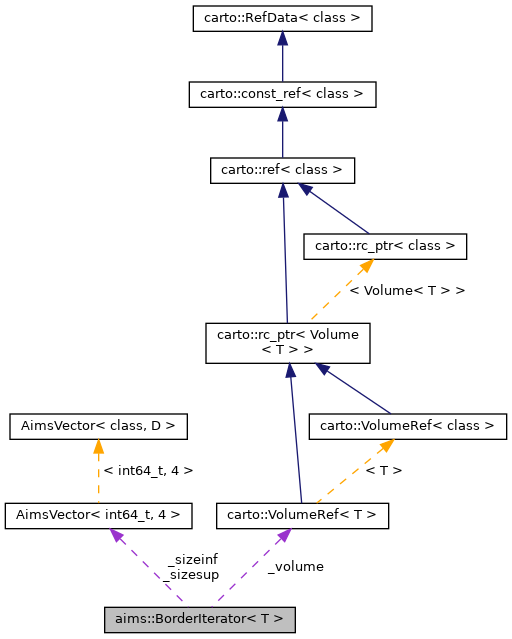

Collaboration diagram for aims::BorderIterator< T >:

Classes
class	const_iterator
	Border: const iterator. More...
class	iterator
	Border: iterator. More...

Public Member Functions
	BorderIterator (carto::VolumeRef< T > in, bool inside=false, const Point4dl &size=Point4dl(-1, -1, -1, -1))
	Border constructor. More...
	BorderIterator (carto::VolumeRef< T > in, bool inside, const Point4dl &sizeinf, const Point4dl &sizesup)
	BorderIterator ()
iterator	begin ()
iterator	end ()
const_iterator	begin () const
const_iterator	end () const
bool	operator== (const BorderIterator< T > &other) const

Protected Attributes
carto::VolumeRef< T >	_volume
bool	_inside
Point4dl	_sizeinf
Point4dl	_sizesup

Friends
class	const_iterator
class	iterator

Detailed Description

template<typename T>
class aims::BorderIterator< T >

Represents the border of a volume.

This border can be outside (if volume with borders are used and enough memory is allocated) or inside. It is defined by a Volume Ref, a border size and its direction (inside or outside)

Iterators (const and non const) are defined for this class. They allow to easily run through all border voxels. Those iterators implement the classic iterator operators (assignment, increment, ...). They also have a coordinates() method that returns the position of the current voxel in the volume.

Definition at line 25 of file borderiterator.h.

Constructor & Destructor Documentation

BorderIterator() [1/3]

template<typename T >

aims::BorderIterator< T >::BorderIterator ( carto::VolumeRef< T >  in, bool  inside = false, const Point4dl &  size = Point4dl( -1, -1, -1, -1 )  )

inline

Border constructor.

Parameters

in	Input volume whise border voxels to iterate
inside	If false consider "outside" border (with coordinates outside the volume dimensions). If true consider "inside" border
size	border size in each dimension. If inside is true, size must be >= 0 in each dim. If inside is false and a size dim has negative value, the maximum possible border in this dimension is computed.

// 1 voxel inside border in a 3D volume:
Border b1( in, true, Point4dl(1,1,1,0) );

// 2 voxels outside border in a 2D volume
Border b2( in, false, Point4dl(2,2,0,0) );

// All existing border in a volume
Border b3( in );

Definition at line 49 of file borderiterator.h.

References aims::BorderIterator< T >::_sizeinf, aims::BorderIterator< T >::_sizesup, aims::BorderIterator< T >::_volume, and carto::VolumeRef< class >::getBorders().

BorderIterator() [2/3]

template<typename T >

aims::BorderIterator< T >::BorderIterator ( carto::VolumeRef< T >  in, bool  inside, const Point4dl &  sizeinf, const Point4dl &  sizesup  )

inline

Definition at line 81 of file borderiterator.h.

References aims::BorderIterator< T >::_sizeinf, aims::BorderIterator< T >::_sizesup, aims::BorderIterator< T >::_volume, and carto::VolumeRef< class >::getBorders().

BorderIterator() [3/3]

template<typename T >

aims::BorderIterator< T >::BorderIterator ( )

inline

Definition at line 114 of file borderiterator.h.

Member Function Documentation

begin() [1/2]

template<typename T >

iterator aims::BorderIterator< T >::begin ( )

inline

Definition at line 238 of file borderiterator.h.

References aims::BorderIterator< T >::iterator.

Referenced by aims::BorderFiller< T >::fillConstant(), aims::BorderFiller< T >::fillMedian(), aims::BorderFiller< T >::fillMirror(), and aims::BorderFiller< T >::fillNearest().

begin() [2/2]

template<typename T >

const_iterator aims::BorderIterator< T >::begin ( ) const

inline

Definition at line 240 of file borderiterator.h.

References aims::BorderIterator< T >::const_iterator.

end() [1/2]

template<typename T >

iterator aims::BorderIterator< T >::end ( )

inline

Definition at line 239 of file borderiterator.h.

References aims::BorderIterator< T >::iterator.

Referenced by aims::BorderIterator< T >::const_iterator::computeNext(), aims::BorderFiller< T >::fillConstant(), aims::BorderFiller< T >::fillMedian(), aims::BorderFiller< T >::fillMirror(), and aims::BorderFiller< T >::fillNearest().

end() [2/2]

template<typename T >

const_iterator aims::BorderIterator< T >::end ( ) const

inline

Definition at line 241 of file borderiterator.h.

References aims::BorderIterator< T >::const_iterator.

operator==()

template<typename T >

bool aims::BorderIterator< T >::operator== ( const BorderIterator< T > &  other ) const

inline

Definition at line 243 of file borderiterator.h.

References aims::BorderIterator< T >::_inside, aims::BorderIterator< T >::_sizeinf, aims::BorderIterator< T >::_sizesup, aims::BorderIterator< T >::_volume, and carto::rc_ptr< class >::get().

Friends And Related Function Documentation

const_iterator

template<typename T >

friend class const_iterator

friend

Definition at line 257 of file borderiterator.h.

Referenced by aims::BorderIterator< T >::begin(), and aims::BorderIterator< T >::end().

iterator

template<typename T >

friend class iterator

friend

Definition at line 258 of file borderiterator.h.

Referenced by aims::BorderIterator< T >::begin(), and aims::BorderIterator< T >::end().

Member Data Documentation

_inside

template<typename T >

bool aims::BorderIterator< T >::_inside

protected

Definition at line 253 of file borderiterator.h.

Referenced by aims::BorderIterator< T >::operator==().

_sizeinf

template<typename T >

Point4dl aims::BorderIterator< T >::_sizeinf

protected

Definition at line 254 of file borderiterator.h.

Referenced by aims::BorderIterator< T >::BorderIterator(), and aims::BorderIterator< T >::operator==().

_sizesup

template<typename T >

Point4dl aims::BorderIterator< T >::_sizesup

protected

Definition at line 255 of file borderiterator.h.

Referenced by aims::BorderIterator< T >::BorderIterator(), and aims::BorderIterator< T >::operator==().

_volume

template<typename T >

carto::VolumeRef<T> aims::BorderIterator< T >::_volume

protected

Definition at line 252 of file borderiterator.h.

Referenced by aims::BorderIterator< T >::BorderIterator(), and aims::BorderIterator< T >::operator==().

---

The documentation for this class was generated from the following file:

• aims/border/borderiterator.h
