anatomist::LoadObjectCommand Class Reference

Command to load an object from a file. More...

#include <anatomist/commands/cLoadObject.h>

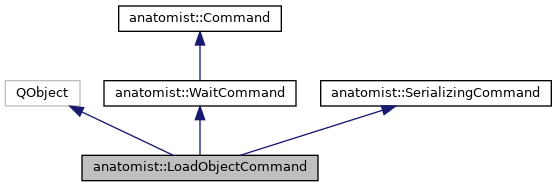

Inheritance diagram for anatomist::LoadObjectCommand:

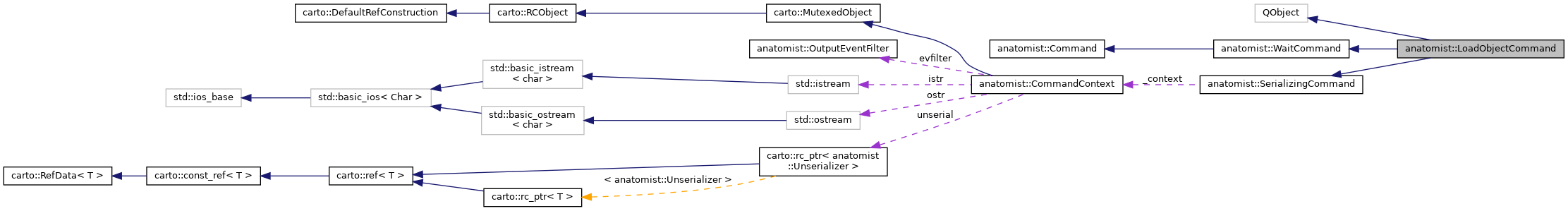

Collaboration diagram for anatomist::LoadObjectCommand:

Signals
void	objectLoaded (anatomist::AObject *, const std::string &)

Public Member Functions
	LoadObjectCommand (const std::string &filename, int id=-1, const std::string &objname="", bool ascursor=false, carto::Object options=carto::none(), CommandContext *context=&CommandContext::defaultContext())
virtual	~LoadObjectCommand ()
virtual std::string	name () const
	Return the unique name of a class of commands. More...
virtual void	write (Tree &com, Serializer *ser) const
	Print the guts of a command into a Tree given as parent. More...
std::list< AObject * >	loadedObjects ()
Public Member Functions inherited from anatomist::WaitCommand
virtual	~WaitCommand ()
	Destructor does nothing. More...
virtual void	execute ()
	Execute the command - may use { doit()}. More...
virtual void	undo ()
	Undo the command - may use { undoit()}. More...
virtual void	redo ()
	Redo the command - may use { doit()}. More...
Public Member Functions inherited from anatomist::Command
virtual	~Command ()
	Destructor does nothing. More...
Public Member Functions inherited from anatomist::SerializingCommand
virtual	~SerializingCommand ()
CommandContext *	context ()
const CommandContext *	context () const

Protected Slots
void	objectLoadDone (AObject *, const ObjectReader::PostRegisterList &, void *, bool)
void	doLoad ()

Protected Member Functions
virtual void	doit ()
	Do a command. More...
Protected Member Functions inherited from anatomist::WaitCommand
	WaitCommand ()
	The programmer cannot call the constructor of an abstract base class. More...
Protected Member Functions inherited from anatomist::Command
	Command ()
	The programmer cannot call the constructor of an abstract base class. More...
virtual void	undoit ()
	Undo a command. More...
Protected Member Functions inherited from anatomist::SerializingCommand
	SerializingCommand (CommandContext *)

Friends
class	StdModule

Additional Inherited Members
Public Types inherited from anatomist::Command
typedef Command *(*	Reader) (const Tree &, CommandContext *)
Protected Attributes inherited from anatomist::SerializingCommand
CommandContext *	_context

Detailed Description

Command to load an object from a file.

Definition at line 57 of file cLoadObject.h.

Constructor & Destructor Documentation

LoadObjectCommand()

anatomist::LoadObjectCommand::LoadObjectCommand	(	const std::string &	filename,
		int	id = -1,
		const std::string &	objname = "",
		bool	ascursor = false,
		carto::Object	options = carto::none(),
		CommandContext *	context = &CommandContext::defaultContext()
	)

~LoadObjectCommand()

virtual anatomist::LoadObjectCommand::~LoadObjectCommand ( )

virtual

Member Function Documentation

doit()

virtual void anatomist::LoadObjectCommand::doit ( )

protectedvirtual

Do a command.

Implements anatomist::Command.

Referenced by loadedObjects().

doLoad

void anatomist::LoadObjectCommand::doLoad ( )

protectedslot

Referenced by loadedObjects().

loadedObjects()

std::list<AObject *> anatomist::LoadObjectCommand::loadedObjects ( )

inline

Definition at line 73 of file cLoadObject.h.

References doit(), doLoad(), objectLoadDone(), objectLoaded(), and slots.

name()

virtual std::string anatomist::LoadObjectCommand::name ( ) const

inlinevirtual

Return the unique name of a class of commands.

Implements anatomist::Command.

Definition at line 71 of file cLoadObject.h.

References write().

objectLoadDone

void anatomist::LoadObjectCommand::objectLoadDone ( AObject *  , const ObjectReader::PostRegisterList &  , void *  , bool    )

protectedslot

Referenced by loadedObjects().

objectLoaded

void anatomist::LoadObjectCommand::objectLoaded ( anatomist::AObject *  , const std::string &    )

signal

Referenced by loadedObjects().

write()

virtual void anatomist::LoadObjectCommand::write ( Tree &  com, Serializer *  ser  ) const

virtual

Print the guts of a command into a Tree given as parent.

Reimplemented from anatomist::Command.

Referenced by name().

Friends And Related Function Documentation

StdModule

friend class StdModule

friend

Definition at line 87 of file cLoadObject.h.

---

The documentation for this class was generated from the following file:

• anatomist/commands/cLoadObject.h
