#include <anatomist/action/paintaction.h>

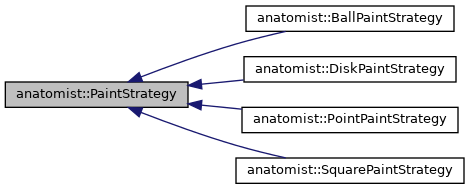

Inheritance diagram for anatomist::PaintStrategy:

[legend]

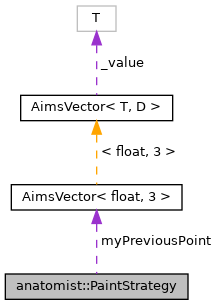

Collaboration diagram for anatomist::PaintStrategy:

Public Types
enum	PaintType { POINT =0, SQUARE, DISK, BALL }

Public Member Functions
	PaintStrategy ()

virtual	~PaintStrategy ()

virtual PaintType	paintType ()=0

virtual void	paint (AWindow3D win, Transformation transf, const Point3df &point, const AObject originalLabel, AObject finalLabel, float brushSize, bool lineMode, AimsData< AObject > volumeOfLabels, const Point3df &vlOffset, aims::BucketMap< Void >::Bucket &deltaModifications, std::list< std::pair< Point3d, ChangesItem > > &changes, const Point3df &voxelSize, bool line, bool replace, bool mm)=0
	Draw. More...

void	reset ()

bool	in (const AimsData< AObject > o, Point3df p, const Point3df &offset)

Static Public Member Functions
static std::list< Point3df >	drawLine (const Point3df &from, const Point3df &dep)

static std::list< Point3d >	drawFastLine (const Point3d &from, const Point3d &dep)

Static Protected Member Functions
static void	brushPainter ()

Protected Attributes
Point3df	myPreviousPoint

bool	myPreviousPointExists

Detailed Description

Definition at line 105 of file paintaction.h.

Member Enumeration Documentation

◆ PaintType

enum anatomist::PaintStrategy::PaintType

Enumerator
POINT
SQUARE
DISK
BALL

Definition at line 108 of file paintaction.h.

Constructor & Destructor Documentation

◆ PaintStrategy()

anatomist::PaintStrategy::PaintStrategy ( )

◆ ~PaintStrategy()

virtual anatomist::PaintStrategy::~PaintStrategy ( )

virtual

Member Function Documentation

◆ brushPainter()

static void anatomist::PaintStrategy::brushPainter ( )

staticprotected

◆ drawFastLine()

static std::list< Point3d > anatomist::PaintStrategy::drawFastLine	(	const Point3d &	from,
		const Point3d &	dep
	)

static

◆ drawLine()

static std::list< Point3df > anatomist::PaintStrategy::drawLine	(	const Point3df &	from,
		const Point3df &	dep
	)

static

◆ in()

bool anatomist::PaintStrategy::in	(	const AimsData< AObject >	o,
		Point3df	p,
		const Point3df &	offset
	)

inline

Definition at line 155 of file paintaction.h.

References AimsData< T >::dimX(), AimsData< T >::dimY(), and AimsData< T >::dimZ().

◆ paint()

virtual void anatomist::PaintStrategy::paint	(	AWindow3D *	win,
		Transformation *	transf,
		const Point3df &	point,
		const AObject *	originalLabel,
		AObject *	finalLabel,
		float	brushSize,
		bool	lineMode,
		AimsData< AObject >	volumeOfLabels,
		const Point3df &	vlOffset,
		aims::BucketMap< Void >::Bucket &	deltaModifications,
		std::list< std::pair< Point3d, ChangesItem > > &	changes,
		const Point3df &	voxelSize,
		bool	line,
		bool	replace,
		bool	mm
	)

pure virtual

Draw.

Parameters

vlOffset offset of the volume of labels (if VL coords don't start at (0,0,0)

Implemented in anatomist::BallPaintStrategy, anatomist::DiskPaintStrategy, anatomist::SquarePaintStrategy, and anatomist::PointPaintStrategy.

◆ paintType()

virtual PaintType anatomist::PaintStrategy::paintType ( )

pure virtual

Implemented in anatomist::BallPaintStrategy, anatomist::DiskPaintStrategy, anatomist::SquarePaintStrategy, and anatomist::PointPaintStrategy.

◆ reset()

void anatomist::PaintStrategy::reset ( )

Member Data Documentation

◆ myPreviousPoint

Point3df anatomist::PaintStrategy::myPreviousPoint

protected

Definition at line 148 of file paintaction.h.

◆ myPreviousPointExists

bool anatomist::PaintStrategy::myPreviousPointExists
