anatomist::Processor Class Reference

The command processor receives commands to manage and execute. More...

#include <anatomist/processor/Processor.h>

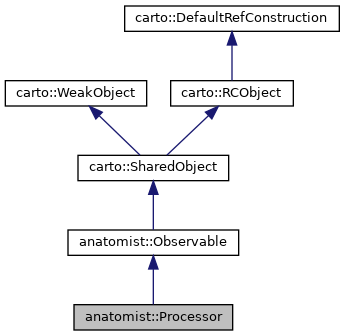

Inheritance diagram for anatomist::Processor:

Collaboration diagram for anatomist::Processor:

Classes
class	Memo

Public Member Functions
	Processor ()
virtual	~Processor ()
void	execute (Command *c)
	Give a command to execute. More...
Command *	execute (const std::string &cname, const std::string &params="", CommandContext *cc=0)
	build and execute a command More...
Command *	execute (const std::string &cname, carto::Object params=carto::none(), CommandContext *cc=0)
	build and execute a command More...
bool	undo ()
	Undo last done command. More...
bool	redo ()
	Redo last undone command. More...
void	allowExecWhileIdle (bool)
bool	execWhileIdle () const
bool	idle () const
Public Member Functions inherited from anatomist::Observable
	Observable ()
	Construct an Observable with zero observers. More...
virtual	~Observable ()
	does nothing More...
void	addObserver (Observer *observer)
	Adds an observer to the set of observers for this object. More...
void	deleteObserver (Observer *observer)
	Deletes an observer from the set of observers of this object. More...
void	deleteObservers ()
	Clears the observer list so that this object no longer has any observers (doesn't call any observer method - see notifyUnregisterObservers() for this ) More...
int	countObservers () const
	Returns the number of observers of this object. More...
virtual void	notifyObservers (void *arg=0)
	If this object has changed, as indicated by the hasChanged method, then notify all of its observers. More...
virtual void	notifyUnregisterObservers ()
	Notifies observable destruction to all observers and unregisters them. More...
bool	hasChanged () const
	Tests if this object has changed. More...
bool	obsHasChanged (int) const
	only valid during an Observer::update() More...
bool	obsHasChanged (const std::string &) const
	only valid during an Observer::update() More...
void	setChanged () const
	Indicates that this object has changed. More...
Public Member Functions inherited from carto::SharedObject
	SharedObject ()
	SharedObject (const SharedObject &x)
virtual	~SharedObject ()
SharedObject &	operator= (const SharedObject &)
bool	testDeletable ()
bool	tryDelete ()
Public Member Functions inherited from carto::WeakObject
void	attachWeakPtr (weak_ptr< T > &) const
void	detachWeakPtr (weak_ptr< T > &) const
void	attachWeakPtr (weak_shared_ptr< T > &) const
void	detachWeakPtr (weak_shared_ptr< T > &) const
virtual	~WeakObject ()
Public Member Functions inherited from carto::RCObject
	RCObject ()
	RCObject (const RCObject &)
RCObject &	operator= (const RCObject &)
virtual	~RCObject ()

Additional Inherited Members
Public Types inherited from carto::RCObject
typedef int	RefCounterType
Protected Member Functions inherited from anatomist::Observable
void	clearChanged () const
	Indicates that this object has no longer changed, or that it has already notified all of its observers of its most recent change. More...
void	obsSetChanged (int, bool=true) const
	int-based change flags (use enums to address them) More...
void	obsSetChanged (const std::string &, bool=true) const
	string-based change flags More...
Protected Member Functions inherited from carto::SharedObject
void	disableRefCount ()
Protected Member Functions inherited from carto::WeakObject
	WeakObject ()
	WeakObject (const WeakObject &)
WeakObject &	operator= (const WeakObject &)

Detailed Description

The command processor receives commands to manage and execute.

\ Commands can be later undone and redone. From the moment a command is pushed to the processor, the processor becomes the owner of the command and manages its lifecycle. \ the Command Processor has no knowledge of the concrete subclasses of Command and accesses them through the standard Command interface.

See also

Command

Definition at line 66 of file Processor.h.

Constructor & Destructor Documentation

Processor()

anatomist::Processor::Processor

(

)

~Processor()

virtual anatomist::Processor::~Processor ( )

virtual

Member Function Documentation

allowExecWhileIdle()

void anatomist::Processor::allowExecWhileIdle

(

bool

)

execute() [1/3]

void anatomist::Processor::execute

(

Command *

c

)

Give a command to execute.

Parameters

c	command to execute

execute() [2/3]

Command* anatomist::Processor::execute	(	const std::string &	cname,
		const std::string &	params = "",
		CommandContext *	cc = 0
	)

build and execute a command

Parameters

cname	is the command type (syntactic attribute)
params	is a string formatted as a python dictionary
cc	IO and ID namespace for command execution

Returns

the executed command

execute() [3/3]

Command* anatomist::Processor::execute	(	const std::string &	cname,
		carto::Object	params = carto::none(),
		CommandContext *	cc = 0
	)

build and execute a command

Parameters

cname	is the command type (syntactic attribute)
params	is a python dictionary carto::Object
cc	IO and ID namespace for command execution

Returns

the executed command

execWhileIdle()

bool anatomist::Processor::execWhileIdle

(

)

const

idle()

bool anatomist::Processor::idle

(

)

const

redo()

bool anatomist::Processor::redo

(

)

Redo last undone command.

undo()

bool anatomist::Processor::undo

(

)

Undo last done command.

---

The documentation for this class was generated from the following file:

• anatomist/processor/Processor.h
