carto::TreeParser_shfj Class Reference

To read a Tree from a file. More...

#include <graph/tree/tparser_shfj.h>

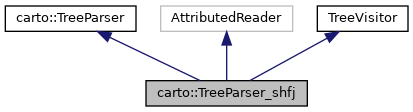

Inheritance diagram for carto::TreeParser_shfj:

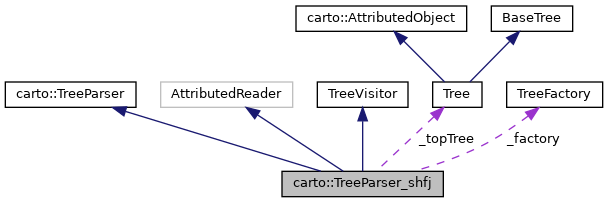

Collaboration diagram for carto::TreeParser_shfj:

Public Member Functions
	TreeParser_shfj (const SyntaxSet &syntax, const HelperSet &helpers=HelperSet())
	configure the parameters More...
	TreeParser_shfj (const TreeFactory &factory, const std::string &filename, const SyntaxSet &syntax, const HelperSet &helpers=HelperSet())
	configure the parametres More...
	TreeParser_shfj (const TreeFactory &factory, const SyntaxSet &syntax, const HelperSet &helpers=HelperSet())
	configure the parametres More...
virtual	~TreeParser_shfj ()
	clean up More...
Visitor methods
virtual void	visitTree (Tree *tree)
	read a Tree from a file More...
IO functions
virtual Tree *	read ()
	creates and reads a tree More...
virtual void	read (Tree &)
virtual void	close ()
virtual void	attach (rc_ptr< DataSource > ds)
virtual void	detach ()
virtual rc_ptr< DataSource >	dataSource ()
std::string	name () const
Public Member Functions inherited from carto::TreeParser
	TreeParser ()
virtual	~TreeParser ()
const_ref< DataSource >	dataSource () const
Public Member Functions inherited from TreeVisitor
virtual	~TreeVisitor ()
virtual void	visitAttributedObject (carto::AttributedObject *ao)

Protected Member Functions
Helpers
virtual void	readTree (Tree *tree)
	read a Tree attributes from a file More...
virtual Tree *	readSubTree ()
Protected Member Functions inherited from TreeVisitor
	TreeVisitor ()

Protected Attributes
TreeFactory *	_factory
	Nodes builder. More...
Tree *	_topTree
	Remind the top-level tree. More...

Detailed Description

To read a Tree from a file.

Definition at line 60 of file tparser_shfj.h.

Constructor & Destructor Documentation

TreeParser_shfj() [1/3]

carto::TreeParser_shfj::TreeParser_shfj	(	const SyntaxSet &	syntax,
		const HelperSet &	helpers = HelperSet()
	)

configure the parameters

Parameters

syntax
helpers

TreeParser_shfj() [2/3]

carto::TreeParser_shfj::TreeParser_shfj	(	const TreeFactory &	factory,
		const std::string &	filename,
		const SyntaxSet &	syntax,
		const HelperSet &	helpers = HelperSet()
	)

configure the parametres

Parameters

factory	factory used to build the tree nodes
filename	name of the file to read from
syntax
helpers

TreeParser_shfj() [3/3]

carto::TreeParser_shfj::TreeParser_shfj	(	const TreeFactory &	factory,
		const SyntaxSet &	syntax,
		const HelperSet &	helpers = HelperSet()
	)

configure the parametres

Parameters

factory	factory used to build the tree nodes
syntax
helpers

~TreeParser_shfj()

virtual carto::TreeParser_shfj::~TreeParser_shfj ( )

virtual

clean up

Member Function Documentation

attach()

virtual void carto::TreeParser_shfj::attach ( rc_ptr< DataSource >  ds )

virtual

Implements carto::TreeParser.

close()

virtual void carto::TreeParser_shfj::close ( )

virtual

Implements carto::TreeParser.

dataSource()

virtual rc_ptr<DataSource> carto::TreeParser_shfj::dataSource ( )

virtual

Implements carto::TreeParser.

detach()

virtual void carto::TreeParser_shfj::detach ( )

virtual

Implements carto::TreeParser.

name()

std::string carto::TreeParser_shfj::name ( ) const

virtual

Reimplemented from carto::TreeParser.

read() [1/2]

virtual Tree* carto::TreeParser_shfj::read ( )

virtual

creates and reads a tree

Implements carto::TreeParser.

read() [2/2]

virtual void carto::TreeParser_shfj::read ( Tree &  )

virtual

Implements carto::TreeParser.

readSubTree()

virtual Tree* carto::TreeParser_shfj::readSubTree ( )

protectedvirtual

readTree()

virtual void carto::TreeParser_shfj::readTree ( Tree *  tree )

protectedvirtual

read a Tree attributes from a file

Parameters

tree	tree to read into

visitTree()

virtual void carto::TreeParser_shfj::visitTree ( Tree *  tree )

virtual

read a Tree from a file

Parameters

tree	tree to read into

Reimplemented from TreeVisitor.

Member Data Documentation

_factory

TreeFactory* carto::TreeParser_shfj::_factory

protected

Nodes builder.

Definition at line 127 of file tparser_shfj.h.

_topTree

Tree* carto::TreeParser_shfj::_topTree

protected

Remind the top-level tree.

Definition at line 129 of file tparser_shfj.h.

---

The documentation for this class was generated from the following file:

• graph/tree/tparser_shfj.h
