aims::GradientDescent< O, L > Class Template Reference

#include <primatologist/optimization/gradient_decl.h>

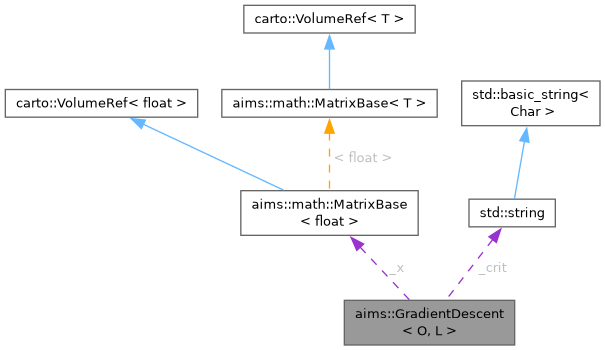

Collaboration diagram for aims::GradientDescent< O, L >:

Public Types
typedef O	Objective
typedef L< O >	LineSearch
typedef math::Matrix	Matrix
typedef math::Vector	Vector

Public Member Functions
	GradientDescent (const Objective &f=Objective(), const Vector &x=Vector())
	GradientDescent (const GradientDescent< O, L > &other)
	~GradientDescent ()
GradientDescent< O, L > &	operator= (const GradientDescent< O, L > &other)
void	setGamma (float gamma=0.1)
void	setStopCriterion (const std::string &crit="absdiff")
	Can take values:
void	setStopValue (float epsilon=1E-5)
void	setLineSearch (const LineSearch &l=LineSearch())
void	setMaximize (bool maximize=false)
void	setMaxIterations (int n=- 1)
void	setVerbose (int v=carto::verbose)
void	setObjectiveFunction (const Objective &f)
void	setPosition (const Vector &x=Vector())
float	gamma () const
const std::string &	stopCriterion () const
float	stopValue () const
LineSearch &	lineSearch ()
bool	maximize () const
int	maxIterations () const
int	verbose () const
const Vector &	position () const
const Objective &	objectiveFunction () const
Vector	execute ()

Protected Attributes
float	_gamma
	Fixed Gamma or initial gamma for line search.
Vector	_x
	position
Objective	_f
	objectiveFunction
LineSearch	_ls
	lineSearch
int	_verbose
	verbosity level
bool	_maximize
	maximize or minimize
int	_max_it
	maximum number of iterations
std::string	_crit
	stop criterion
float	_epsilon
	stop value

Detailed Description

template<typename O, template< typename > class L = NoLineSearch>
class aims::GradientDescent< O, L >

Definition at line 25 of file gradient_decl.h.

Member Typedef Documentation

LineSearch

template<typename O, template< typename > class L = NoLineSearch>

typedef L<O> aims::GradientDescent< O, L >::LineSearch

Definition at line 32 of file gradient_decl.h.

Matrix

template<typename O, template< typename > class L = NoLineSearch>

typedef math::Matrix aims::GradientDescent< O, L >::Matrix

Definition at line 33 of file gradient_decl.h.

Objective

template<typename O, template< typename > class L = NoLineSearch>

typedef O aims::GradientDescent< O, L >::Objective

Definition at line 31 of file gradient_decl.h.

Vector

template<typename O, template< typename > class L = NoLineSearch>

typedef math::Vector aims::GradientDescent< O, L >::Vector

Definition at line 34 of file gradient_decl.h.

Constructor & Destructor Documentation

GradientDescent() [1/2]

template<typename O, template< typename > class L>

aims::GradientDescent< O, L >::GradientDescent	(	const Objective &	f = Objective(),
		const Vector &	x = Vector() )

Warning

the Objective function needs to be copiable and thus needs a copy constructor and an assignment operator

Definition at line 23 of file gradient_d.h.

References _f, _x, setGamma(), setLineSearch(), setMaximize(), setMaxIterations(), setStopCriterion(), setStopValue(), and setVerbose().

Referenced by GradientDescent(), and operator=().

GradientDescent() [2/2]

template<typename O, template< typename > class L>

aims::GradientDescent< O, L >::GradientDescent

(

const GradientDescent< O, L > &

other

)

Definition at line 37 of file gradient_d.h.

References _f, _gamma, _ls, _max_it, _maximize, _verbose, _x, and GradientDescent().

~GradientDescent()

template<typename O, template< typename > class L>

aims::GradientDescent< O, L >::~GradientDescent

(

)

Definition at line 48 of file gradient_d.h.

Member Function Documentation

execute()

template<typename O, template< typename > class L>

GradientDescent< O, L >::Vector aims::GradientDescent< O, L >::execute

(

)

Definition at line 198 of file gradient_d.h.

References gamma(), lineSearch(), maximize(), maxIterations(), objectiveFunction(), position(), stopCriterion(), stopValue(), and verbose().

gamma()

template<typename O, template< typename > class L>

float aims::GradientDescent< O, L >::gamma

(

)

const

Definition at line 137 of file gradient_d.h.

References _gamma.

Referenced by execute(), and setGamma().

lineSearch()

template<typename O, template< typename > class L>

GradientDescent< O, L >::LineSearch & aims::GradientDescent< O, L >::lineSearch

(

)

Definition at line 156 of file gradient_d.h.

References _ls.

Referenced by execute(), setLineSearch(), setMaximize(), setObjectiveFunction(), and setVerbose().

maximize()

template<typename O, template< typename > class L>

bool aims::GradientDescent< O, L >::maximize

(

)

const

Definition at line 162 of file gradient_d.h.

References _maximize.

Referenced by execute(), setLineSearch(), and setMaximize().

maxIterations()

template<typename O, template< typename > class L>

int aims::GradientDescent< O, L >::maxIterations

(

)

const

Definition at line 168 of file gradient_d.h.

References _max_it.

Referenced by execute().

objectiveFunction()

template<typename O, template< typename > class L>

const GradientDescent< O, L >::Objective & aims::GradientDescent< O, L >::objectiveFunction

(

)

const

Definition at line 188 of file gradient_d.h.

References _f.

Referenced by execute(), and setLineSearch().

operator=()

template<typename O, template< typename > class L>

GradientDescent< O, L > & aims::GradientDescent< O, L >::operator=

(

const GradientDescent< O, L > &

other

)

Definition at line 53 of file gradient_d.h.

References _f, _gamma, _ls, _max_it, _maximize, _verbose, _x, and GradientDescent().

position()

template<typename O, template< typename > class L>

const GradientDescent< O, L >::Vector & aims::GradientDescent< O, L >::position

(

)

const

Definition at line 181 of file gradient_d.h.

References _x.

Referenced by execute().

setGamma()

template<typename O, template< typename > class L>

void aims::GradientDescent< O, L >::setGamma

(

float

gamma = 0.1

)

Definition at line 73 of file gradient_d.h.

References _gamma, and gamma().

Referenced by GradientDescent().

setLineSearch()

template<typename O, template< typename > class L>

void aims::GradientDescent< O, L >::setLineSearch

(

const LineSearch &

l = LineSearch()

)

Warning

the LineSearch object needs to be copiable and thus needs a copy constructor and an assignment operator

Definition at line 91 of file gradient_d.h.

References _ls, lineSearch(), maximize(), objectiveFunction(), and verbose().

Referenced by GradientDescent().

setMaximize()

template<typename O, template< typename > class L>

void aims::GradientDescent< O, L >::setMaximize

(

bool

maximize = false

)

Definition at line 100 of file gradient_d.h.

References _maximize, lineSearch(), and maximize().

Referenced by GradientDescent().

setMaxIterations()

template<typename O, template< typename > class L>

void aims::GradientDescent< O, L >::setMaxIterations

(

int

n = - 1

)

Definition at line 107 of file gradient_d.h.

References _max_it.

Referenced by GradientDescent().

setObjectiveFunction()

template<typename O, template< typename > class L>

void aims::GradientDescent< O, L >::setObjectiveFunction

(

const Objective &

f

)

Warning

the Objective function needs to be copiable and thus needs a copy constructor and an assignment operator

Definition at line 120 of file gradient_d.h.

References _f, and lineSearch().

setPosition()

template<typename O, template< typename > class L>

void aims::GradientDescent< O, L >::setPosition

(

const Vector &

x = Vector()

)

Definition at line 127 of file gradient_d.h.

References _x.

setStopCriterion()

template<typename O, template< typename > class L>

void aims::GradientDescent< O, L >::setStopCriterion

(

const std::string &

crit = "absdiff"

)

Can take values:

• absdiff
• gain

Definition at line 79 of file gradient_d.h.

References _crit.

Referenced by GradientDescent().

setStopValue()

template<typename O, template< typename > class L>

void aims::GradientDescent< O, L >::setStopValue

(

float

epsilon = 1E-5

)

Definition at line 85 of file gradient_d.h.

References _epsilon.

Referenced by GradientDescent().

setVerbose()

template<typename O, template< typename > class L>

void aims::GradientDescent< O, L >::setVerbose

(

int

v = carto::verbose

)

Definition at line 113 of file gradient_d.h.

References _verbose, and lineSearch().

Referenced by GradientDescent().

stopCriterion()

template<typename O, template< typename > class L>

const std::string & aims::GradientDescent< O, L >::stopCriterion

(

)

const

Definition at line 143 of file gradient_d.h.

References _crit.

Referenced by execute().

stopValue()

template<typename O, template< typename > class L>

float aims::GradientDescent< O, L >::stopValue

(

)

const

Definition at line 149 of file gradient_d.h.

References _epsilon.

Referenced by execute().

verbose()

template<typename O, template< typename > class L>

int aims::GradientDescent< O, L >::verbose

(

)

const

Definition at line 174 of file gradient_d.h.

References _verbose.

Referenced by execute(), and setLineSearch().

Member Data Documentation

_crit

template<typename O, template< typename > class L = NoLineSearch>

std::string aims::GradientDescent< O, L >::_crit

protected

stop criterion

Definition at line 100 of file gradient_decl.h.

Referenced by setStopCriterion(), and stopCriterion().

_epsilon

template<typename O, template< typename > class L = NoLineSearch>

float aims::GradientDescent< O, L >::_epsilon

protected

stop value

Definition at line 101 of file gradient_decl.h.

Referenced by setStopValue(), and stopValue().

_f

template<typename O, template< typename > class L = NoLineSearch>

Objective aims::GradientDescent< O, L >::_f

protected

objectiveFunction

Definition at line 95 of file gradient_decl.h.

Referenced by GradientDescent(), GradientDescent(), objectiveFunction(), operator=(), and setObjectiveFunction().

_gamma

template<typename O, template< typename > class L = NoLineSearch>

float aims::GradientDescent< O, L >::_gamma

protected

Fixed Gamma or initial gamma for line search.

Definition at line 93 of file gradient_decl.h.

Referenced by gamma(), GradientDescent(), operator=(), and setGamma().

_ls

template<typename O, template< typename > class L = NoLineSearch>

LineSearch aims::GradientDescent< O, L >::_ls

protected

lineSearch

Definition at line 96 of file gradient_decl.h.

Referenced by GradientDescent(), lineSearch(), operator=(), and setLineSearch().

_max_it

template<typename O, template< typename > class L = NoLineSearch>

int aims::GradientDescent< O, L >::_max_it

protected

maximum number of iterations

Definition at line 99 of file gradient_decl.h.

Referenced by GradientDescent(), maxIterations(), operator=(), and setMaxIterations().

_maximize

template<typename O, template< typename > class L = NoLineSearch>

bool aims::GradientDescent< O, L >::_maximize

protected

maximize or minimize

Definition at line 98 of file gradient_decl.h.

Referenced by GradientDescent(), maximize(), operator=(), and setMaximize().

_verbose

template<typename O, template< typename > class L = NoLineSearch>

int aims::GradientDescent< O, L >::_verbose

protected

verbosity level

Definition at line 97 of file gradient_decl.h.

Referenced by GradientDescent(), operator=(), setVerbose(), and verbose().

_x

template<typename O, template< typename > class L = NoLineSearch>

Vector aims::GradientDescent< O, L >::_x

protected

position

Definition at line 94 of file gradient_decl.h.

Referenced by GradientDescent(), GradientDescent(), operator=(), position(), and setPosition().

---

The documentation for this class was generated from the following files:

• primatologist/optimization/gradient_decl.h
• primatologist/optimization/gradient_d.h
