soma::AttributedReader Class Reference

To read GenericObject from a file. More...

#include <soma-io/reader/areader.h>

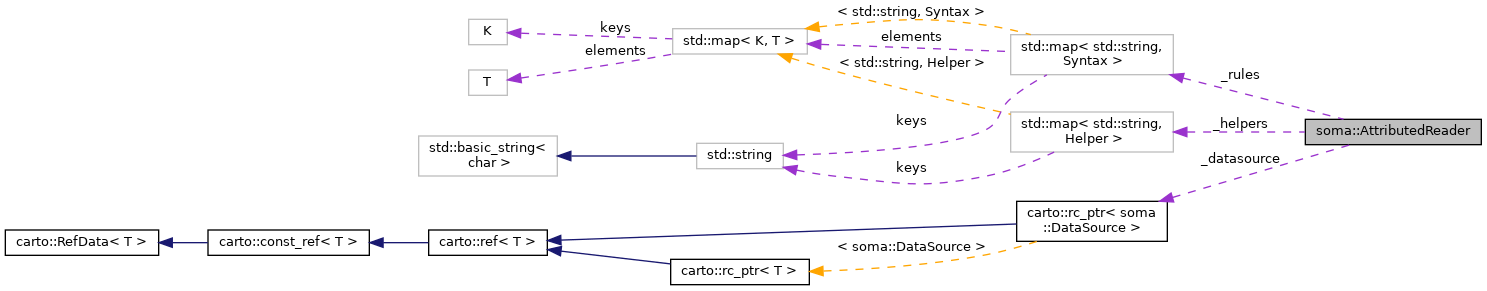

Collaboration diagram for soma::AttributedReader:

Public Types
Associated types
typedef void(*	Helper) (carto::GenericObject &, const std::string &, DataSource &)
typedef std::map< std::string, Helper >	HelperSet

Public Member Functions
Constructors, destructor
	AttributedReader (carto::rc_ptr< DataSource > ds, const carto::SyntaxSet &rules, const HelperSet &helpers=HelperSet())
	AttributedReader (const std::string &filename, const carto::SyntaxSet &rules, const HelperSet &helpers=HelperSet())
	configure the parametres More...
	AttributedReader (const carto::SyntaxSet &rules, const HelperSet &helpers=HelperSet())
	configure the parametres More...
virtual	~AttributedReader ()
	clean up More...
Open, close
void	open (const std::string &filename)
	open a new file More...
void	attach (carto::rc_ptr< DataSource > ds)
void	attach (std::istream &stream, int line_num=1)
	attach to an existing istream More...
void	close ()
	detach or close the stream More...
carto::rc_ptr< DataSource >	dataSource ()
Query
virtual std::string	name () const
	name of the file to read from More...
int	line () const

Protected Attributes
Data
carto::SyntaxSet	_rules
	rules for every syntactic attribute More...
carto::rc_ptr< DataSource >	_datasource
	filtering stream to read from More...
HelperSet	_helpers
	helper functions read basic data type More...

Helpers
bool	operator! () const
	return the status of the stream More...
bool	is_open () const
	is the stream open? More...
bool	eof () const
	have we hit EOF? More...
void	readAttribute (carto::GenericObject &object, const std::string &semantic)
	construct the value of a semantic attribute More...
void	readAttribute (carto::GenericObject *object, const std::string &semantic) __attribute__((__deprecated__))

Detailed Description

To read GenericObject from a file.

Definition at line 55 of file areader.h.

Member Typedef Documentation

Helper

typedef void(* soma::AttributedReader::Helper) (carto::GenericObject &, const std::string &, DataSource &)

Definition at line 65 of file areader.h.

HelperSet

typedef std::map<std::string,Helper> soma::AttributedReader::HelperSet

Definition at line 67 of file areader.h.

Constructor & Destructor Documentation

AttributedReader() [1/3]

soma::AttributedReader::AttributedReader	(	carto::rc_ptr< DataSource >	ds,
		const carto::SyntaxSet &	rules,
		const HelperSet &	helpers = HelperSet()
	)

AttributedReader() [2/3]

soma::AttributedReader::AttributedReader	(	const std::string &	filename,
		const carto::SyntaxSet &	rules,
		const HelperSet &	helpers = HelperSet()
	)

configure the parametres

Parameters

filename	name of the file to read into
rules	list of all possible semantic attributes
helpers	for reading basic data types

AttributedReader() [3/3]

soma::AttributedReader::AttributedReader	(	const carto::SyntaxSet &	rules,
		const HelperSet &	helpers = HelperSet()
	)

configure the parametres

Parameters

rules	list of all possible semantic attributes
helpers	for reading basic data types

~AttributedReader()

virtual soma::AttributedReader::~AttributedReader ( )

virtual

clean up

Member Function Documentation

attach() [1/2]

void soma::AttributedReader::attach

(

carto::rc_ptr< DataSource >

ds

)

attach() [2/2]

void soma::AttributedReader::attach	(	std::istream &	stream,
		int	line_num = 1
	)

attach to an existing istream

close()

void soma::AttributedReader::close

(

)

detach or close the stream

dataSource()

carto::rc_ptr<DataSource> soma::AttributedReader::dataSource ( )

inline

Definition at line 118 of file areader.h.

References __attribute__, and __deprecated__.

eof()

bool soma::AttributedReader::eof

(

)

const

have we hit EOF?

Returns

true if EOF already hit, false otherwise

is_open()

bool soma::AttributedReader::is_open

(

)

const

is the stream open?

Returns

ifstream::is_open()

line()

int soma::AttributedReader::line

(

)

const

name()

virtual std::string soma::AttributedReader::name ( ) const

virtual

name of the file to read from

open()

void soma::AttributedReader::open

(

const std::string &

filename

)

open a new file

Parameters

filename

name of the file to read from

operator!()

bool soma::AttributedReader::operator!

(

)

const

return the status of the stream

Returns

true if ifstream::operator!() returns true

readAttribute() [1/2]

void soma::AttributedReader::readAttribute ( carto::GenericObject &  object, const std::string &  semantic  )

protected

construct the value of a semantic attribute

Parameters

object	GenericObject to attach to
semantic	semantic attribute name

readAttribute() [2/2]

void soma::AttributedReader::readAttribute ( carto::GenericObject *  object, const std::string &  semantic  )

protected

Member Data Documentation

_datasource

carto::rc_ptr<DataSource> soma::AttributedReader::_datasource

protected

filtering stream to read from

Definition at line 187 of file areader.h.

_helpers

HelperSet soma::AttributedReader::_helpers

protected

helper functions read basic data type

Definition at line 190 of file areader.h.

_rules

carto::SyntaxSet soma::AttributedReader::_rules

protected

rules for every syntactic attribute

Definition at line 184 of file areader.h.

---

The documentation for this class was generated from the following file:

• soma-io/reader/areader.h
