#include <soma-io/transformation/affinetransformation3d_base.h>

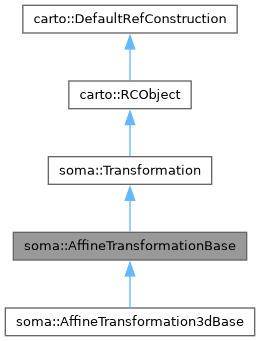

Inheritance diagram for soma::AffineTransformationBase:

[legend]

Collaboration diagram for soma::AffineTransformationBase:

[legend]

Classes
class	Table

Public Member Functions
	AffineTransformationBase (int order=3)

	AffineTransformationBase (const AffineTransformationBase &other)

	AffineTransformationBase (const std::vector< float > &mat)
	Create a AffineTransformation3d from a matrix given as a line vector.

	AffineTransformationBase (const carto::Object mat)
	Create a AffineTransformation from a NxN matrix given as a line vector in an Object.

virtual	~AffineTransformationBase ()

virtual AffineTransformationBase &	operator= (const AffineTransformationBase &other)

virtual AffineTransformationBase &	operator= (const std::vector< float > &mat)

virtual AffineTransformationBase &	operator= (const carto::Object mat)

virtual bool	operator== (const AffineTransformationBase &) const

AffineTransformationBase &	operator*= (const AffineTransformationBase &trans)

AffineTransformationBase	operator- () const

void	negate ()

bool	isIdentity () const CARTO_OVERRIDE
	Test if the transformation can safely be omitted.

virtual void	setToIdentity ()

bool	isDirect () const override
	true if the transformation is direct, false if it changes orientation

bool	invertible () const CARTO_OVERRIDE
	Test if the transformation can be inverted.

std::unique_ptr< AffineTransformationBase >	inverse () const

std::unique_ptr< Transformation >	getInverse () const CARTO_OVERRIDE
	Obtain the inverse transformation.

int	order () const

virtual void	extendOrder (unsigned n)

virtual void	squeezeOrder (unsigned n, bool check=true, bool notify_fail=true)

virtual std::vector< double >	transform (const std::vector< double > &pos) const

virtual std::vector< float >	transform (const std::vector< float > &pos) const

virtual std::vector< int >	transform (const std::vector< int > &pos) const

Table< float > &	matrix ()

const Table< float > &	matrix () const

std::vector< float >	toVector () const
	conversions and IO)

std::vector< float >	toColumnVector () const
	transform AffineTransformation3d to a column vector (useful for conversions to OpenGL matrices)

void	fromColumnVector (const std::vector< float > &vec)
	transform a column vector to an AffineTransformation3d (useful for conversions from OpenGL matrices)

void	fromColumnVector (const float *vec, unsigned size)
	transform a column vector to an AffineTransformation3d (useful for conversions from OpenGL matrices)

Public Member Functions inherited from soma::Transformation
virtual	~Transformation ()

virtual Transformation &	operator= (const Transformation &other)

carto::Object	header ()

const carto::Object	header () const

void	setHeader (carto::Object ph)

virtual std::vector< double >	transformVector (const std::vector< double > &pos) const

virtual std::vector< float >	transformVector (const std::vector< float > &pos) const

virtual std::vector< int >	transformVector (const std::vector< int > &pos) const

Public Member Functions inherited from carto::RCObject
	RCObject ()

	RCObject (const RCObject &)

RCObject &	operator= (const RCObject &)

virtual	~RCObject ()

Static Public Attributes
static float	epsilon
	used to test equality on elements

Protected Attributes
Table< float >	_matrix

Protected Attributes inherited from soma::Transformation
carto::Object	_header

Additional Inherited Members
Public Types inherited from carto::RCObject
typedef int	RefCounterType

Static Public Member Functions inherited from soma::Transformation
template<typename T>
static std::vector< T >	vadd (const std::vector< T > &v1, const std::vector< T > &v2)
	vector arithmetics, as convenience static functions

template<typename T>
static std::vector< T >	vsub (const std::vector< T > &v1, const std::vector< T > &v2)
	vector arithmetics, as convenience static functions

template<typename T>
static std::vector< T >	vadd (const std::vector< T > &v1, const T &v2)
	vector arithmetics, as convenience static functions

template<typename T>
static std::vector< T >	vsub (const std::vector< T > &v1, const T &v2)
	vector arithmetics, as convenience static functions

template<typename T>
static std::vector< T >	vadd (const T &v1, const std::vector< T > &v2)
	vector arithmetics, as convenience static functions

template<typename T>
static std::vector< T >	vsub (const T &v1, const std::vector< T > &v2)
	vector arithmetics, as convenience static functions

Protected Member Functions inherited from soma::Transformation
	Transformation ()

Detailed Description

Definition at line 47 of file affinetransformation3d_base.h.

Constructor & Destructor Documentation

◆ AffineTransformationBase() [1/4]

soma::AffineTransformationBase::AffineTransformationBase ( int order = 3 )

References order().

Referenced by AffineTransformationBase(), inverse(), operator*=(), operator-(), operator=(), operator=(), operator=(), and operator==().

◆ AffineTransformationBase() [2/4]

soma::AffineTransformationBase::AffineTransformationBase ( const AffineTransformationBase & other )

References AffineTransformationBase().

◆ AffineTransformationBase() [3/4]

soma::AffineTransformationBase::AffineTransformationBase ( const std::vector< float > & mat )

Create a AffineTransformation3d from a matrix given as a line vector.

◆ AffineTransformationBase() [4/4]

soma::AffineTransformationBase::AffineTransformationBase ( const carto::Object mat )

Create a AffineTransformation from a NxN matrix given as a line vector in an Object.

◆ ~AffineTransformationBase()

virtual soma::AffineTransformationBase::~AffineTransformationBase ( )

virtual

Member Function Documentation

◆ extendOrder()

virtual void soma::AffineTransformationBase::extendOrder ( unsigned n )

virtual

Reimplemented in soma::AffineTransformation3dBase.

◆ fromColumnVector() [1/2]

void soma::AffineTransformationBase::fromColumnVector	(	const float *	vec,
		unsigned	size )

transform a column vector to an AffineTransformation3d (useful for conversions from OpenGL matrices)

◆ fromColumnVector() [2/2]

void soma::AffineTransformationBase::fromColumnVector ( const std::vector< float > & vec )

inline

transform a column vector to an AffineTransformation3d (useful for conversions from OpenGL matrices)

Definition at line 143 of file affinetransformation3d_base.h.

References fromColumnVector().

Referenced by fromColumnVector().

◆ getInverse()

std::unique_ptr< Transformation > soma::AffineTransformationBase::getInverse ( ) const

virtual

Obtain the inverse transformation.

This method should only be called if invertible() returns true. Otherwise, it will throw an exception if the transformation is not actually invertible.

Reimplemented from soma::Transformation.

References getInverse(), and soma::Transformation::Transformation().

Referenced by getInverse().

◆ inverse()

std::unique_ptr< AffineTransformationBase > soma::AffineTransformationBase::inverse ( ) const

References AffineTransformationBase(), and inverse().

Referenced by inverse().

◆ invertible()

bool soma::AffineTransformationBase::invertible ( ) const

virtual

Test if the transformation can be inverted.

getInverse() can be called if this method returns true, in order to obtain the inverse transformation.

Reimplemented from soma::Transformation.

References invertible().

Referenced by invertible().

◆ isDirect()

bool soma::AffineTransformationBase::isDirect ( ) const

overridevirtual

true if the transformation is direct, false if it changes orientation

Implements soma::Transformation.

References isDirect().

Referenced by isDirect().

◆ isIdentity()

bool soma::AffineTransformationBase::isIdentity ( ) const

virtual

Test if the transformation can safely be omitted.

This method returns true only if the transformation behaves exactly like an identity transformation (notably, the transform methods will always return the input coordinates unchanged).

Note: {Implementors of derived classes may choose to always return false if a test would be difficult to implement or expensive to run. As a result, a false result does not guarantee in general that the transformation is different from identity.}

Reimplemented from soma::Transformation.
