This filter uses a convolution with Spline basis functions. More...

#include <aims/signalfilter/splinefilter.h>

Inheritance diagram for aims::DirectBSplineFilter:

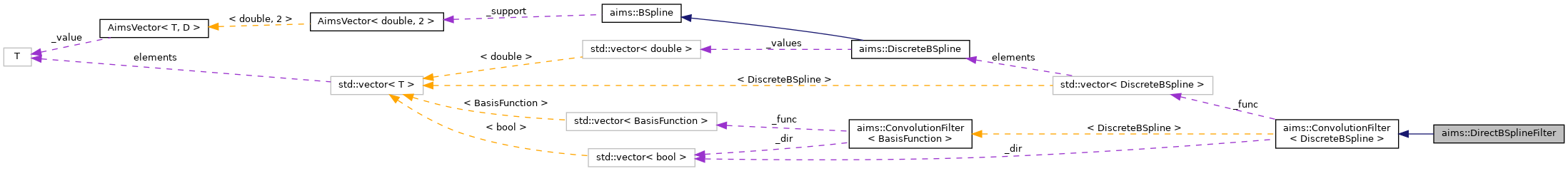

Collaboration diagram for aims::DirectBSplineFilter:

[legend]

Public Member Functions

	DirectBSplineFilter (float scale=1., bool normalize=false, unsigned order=3)
	Constructor / Copy. More...

	DirectBSplineFilter (const Point4df &scale, bool normalize=false, unsigned order=3)

	DirectBSplineFilter (const DirectBSplineFilter &other)

virtual	~DirectBSplineFilter ()

DirectBSplineFilter &	operator= (const DirectBSplineFilter &other)


unsigned	order () const
	Parameters. More...

Point4df	scale () const
	Get spline scaling coefficient. More...

bool	normalize () const
	Get normalization mode. More...

void	setOrder (const unsigned &order)
	Set spline order Updates underlyong basis functions. More...

void	setScale (const float &scale)
	Set scaling coefficient Updates underlyong basis functions. More...

void	setScale (const Point4df &scale)
	Set scaling coefficient Updates underlyong basis functions. More...

void	setNormalize (const bool &normalize=true)
	Set normalization mode. More...


template<typename OUTP , typename INP >
carto::VolumeRef< OUTP >	execute (const carto::VolumeRef< INP > &in, carto::VolumeRef< OUTP > &out) const
	Execution. More...

Public Member Functions inherited from aims::ConvolutionFilter< DiscreteBSpline >
	ConvolutionFilter (const DiscreteBSpline &bfunc)
	Constructor / Destructor / Copy. More...

	ConvolutionFilter (const std::vector< DiscreteBSpline > &bfunc=std::vector< DiscreteBSpline >())
	A different basis function is used in each direction. More...

	ConvolutionFilter (const ConvolutionFilter &other)

virtual	~ConvolutionFilter ()

ConvolutionFilter &	operator= (const ConvolutionFilter &other)

carto::VolumeRef< OUT >	execute (const carto::VolumeRef< IN > &in) const
	Execution. More...

carto::VolumeRef< OUT >	execute (const carto::VolumeRef< IN > &in, carto::VolumeRef< OUT > &out) const
	Write result in an existing volume. More...

const std::vector< bool > &	directions () const
	Parameters. More...

void	setBasisFunction (const DiscreteBSpline &func)
	Change the basis functions. More...

void	setBasisFunction (const std::vector< DiscreteBSpline > &func)
	Change the basis functions. More...

void	setDirections (const std::vector< bool > &dir)
	Set the directions along which the filter is applied. More...

void	setDirections (bool dirx, bool diry, bool dirz, bool dirt)
	Set the directions along which the filter is applied. More...

void	setVerbose (int verbose=1)
	Verbosity level. More...

void	setQuiet ()
	Equivalent to setVerbose(0) More...

Protected Attributes
bool	_normalize

Protected Attributes inherited from aims::ConvolutionFilter< DiscreteBSpline >
std::vector< DiscreteBSpline >	_func

int	_verbose

std::vector< bool >	_dir

Detailed Description

This filter uses a convolution with Spline basis functions.

It can be used to interpolate a signal from its spline representation

See: Unser, Aldroubi & Eden, "B-Spline Signal Processing" in IEEE Transactions on Signal Processing (1993)

Definition at line 129 of file splinefilter.h.

Constructor & Destructor Documentation

◆ DirectBSplineFilter() [1/3]

aims::DirectBSplineFilter::DirectBSplineFilter	(	float	scale = `1.`,
		bool	normalize = `false`,
		unsigned	order = `3`
	)

Constructor / Copy.

◆ DirectBSplineFilter() [2/3]

aims::DirectBSplineFilter::DirectBSplineFilter	(	const Point4df &	scale,
		bool	normalize = `false`,
		unsigned	order = `3`
	)

◆ DirectBSplineFilter() [3/3]

aims::DirectBSplineFilter::DirectBSplineFilter ( const DirectBSplineFilter & other )

◆ ~DirectBSplineFilter()

virtual aims::DirectBSplineFilter::~DirectBSplineFilter ( )

virtual

Member Function Documentation

◆ execute()

template<typename OUTP , typename INP >

carto::VolumeRef< OUTP > aims::DirectBSplineFilter::execute	(	const carto::VolumeRef< INP > &	in,
		carto::VolumeRef< OUTP > &	out
	)		const

Execution.

Function-like operator that filters a given volume

Write result in an existing volume. If the allocated size differs from the needed resulting size, the volume is reallocated.

DirectBSplineFilter overrides the inherited version to add normalization.

Note: 1 copy

Warning: This call risks causing additional precision errors

Definition at line 52 of file splinefilter_d.h.

References aims::ConvolutionFilter< DiscreteBSpline >::_dir, aims::ConvolutionFilter< DiscreteBSpline >::_func, aims::_lambda, aims::ConvolutionFilter< BasisFunction >::execute(), carto::VolumeRef< T >::getSize(), aims::IIRFilterBase::operator=(), and carto::toString().

◆ normalize()

bool aims::DirectBSplineFilter::normalize ( ) const

Get normalization mode.

◆ operator=()

DirectBSplineFilter& aims::DirectBSplineFilter::operator= ( const DirectBSplineFilter & other )

◆ order()

unsigned aims::DirectBSplineFilter::order ( ) const

Parameters.

Get spline order

◆ scale()

Point4df aims::DirectBSplineFilter::scale ( ) const

Get spline scaling coefficient.

◆ setNormalize()

void aims::DirectBSplineFilter::setNormalize ( const bool & normalize = true )

Set normalization mode.

◆ setOrder()

void aims::DirectBSplineFilter::setOrder ( const unsigned & order )

Set spline order Updates underlyong basis functions.

◆ setScale() [1/2]

void aims::DirectBSplineFilter::setScale ( const float & scale )

Set scaling coefficient Updates underlyong basis functions.

◆ setScale() [2/2]

void aims::DirectBSplineFilter::setScale ( const Point4df & scale )
