Base class for separable infinite impulse response filters. More...

#include <aims/signalfilter/iirfilter.h>

Inheritance diagram for aims::IIRFilterBase:

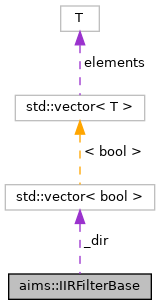

Collaboration diagram for aims::IIRFilterBase:

Public Member Functions

	IIRFilterBase ()
	Constructor / Destructor / Copy. More...

	IIRFilterBase (const IIRFilterBase &other)

virtual	~IIRFilterBase ()

IIRFilterBase &	operator= (const IIRFilterBase &other)


template<typename T >
carto::VolumeRef< double >	execute (const carto::VolumeRef< T > &in) const
	Execution. More...

carto::VolumeRef< double >	execute (carto::VolumeRef< double > &in, bool inplace=false) const

virtual void	filter1d (const carto::VolumeRef< double > in, carto::VolumeRef< double > out, int dir=-1) const =0
	Actual 1d filter that should be implemented by derived classes. More...


virtual const std::vector< bool > &	directions () const
	Parameters. More...

virtual void	setDirections (const std::vector< bool > &dir)

virtual void	setDirections (bool dirx, bool diry, bool dirz, bool dirt)

virtual void	setDirectionX (bool dirx)
	default: true More...

virtual void	setDirectionY (bool diry)
	default: true More...

virtual void	setDirectionZ (bool dirz)
	default: true More...

virtual void	setDirectionT (bool dirt)
	default: false More...

virtual const FilterType::Boundary &	boundary () const
	Because the filter is infinite, the signal must be extended outisde the image domain. More...

virtual void	setBoundary (const FilterType::Boundary &boundary)

virtual void	setVerbose (int verbose=1)
	Verbosity level. More...

virtual void	setQuiet ()
	Set verbosity level to 0 -> Remove all possible traces. More...

Protected Member Functions

virtual void	filter (carto::VolumeRef< double > vol) const
	Helpers. More...

virtual void	filter1d (carto::VolumeRef< double > vol, int dir=-1, carto::VolumeRef< double > tmp=carto::VolumeRef< double >((carto::Volume< double > *) 0)) const
	redirection for in place fitlering More...

virtual double &	at (carto::VolumeRef< double > &vector, long k, int dir) const
	Fast access : k must be in [0, size-1]. More...

virtual const double &	at (const carto::VolumeRef< double > &vector, long k, int dir) const
	Fast access : k must be in [0, size-1]. More...

virtual double	at (const carto::VolumeRef< double > &vector, long k, int dir, long fullsize, int binf) const
	Mirror access : k can be outside [0, size - 1]. More...

virtual long	mirrorCoeff (long i, long size) const
	If i is outside [0, size-1], it is mirrored to fall inside. More...

virtual long	selectCoeff (long i, long fullsize, int binf) const
	If i is outside [binf, fullsize-1], it is mirrored to fall inside. More...

virtual long	computeK0 (double pole, double tolerance=-1.) const
	compute K0 so that pole^K0 < precision More...

Protected Attributes
int	_verbose

std::vector< bool >	_dir

FilterType::Boundary	_boundary

FilterType::CopyType	_copy

Detailed Description

Base class for separable infinite impulse response filters.

This class implements all shared functionalities such as recursive calls to 1D filters, axis of filtering, border strategy, verbosity. Actual IIR implementations should derive from this class and implement the filter1d() method.

See also: CausalIIRFilter, CausalAllPoleIIRFilter, CausalSinglePoleIIRFilter, AntiCausalWarperIIRFilter, SymAllPoleIIRFilter

Definition at line 57 of file iirfilter.h.

Constructor & Destructor Documentation

◆ IIRFilterBase() [1/2]

aims::IIRFilterBase::IIRFilterBase ( )

Constructor / Destructor / Copy.

◆ IIRFilterBase() [2/2]

aims::IIRFilterBase::IIRFilterBase ( const IIRFilterBase & other )

◆ ~IIRFilterBase()

virtual aims::IIRFilterBase::~IIRFilterBase ( )

virtual

Member Function Documentation

◆ at() [1/3]

virtual double& aims::IIRFilterBase::at	(	carto::VolumeRef< double > &	vector,
		long	k,
		int	dir
	)		const

protectedvirtual

Fast access : k must be in [0, size-1].

◆ at() [2/3]

virtual const double& aims::IIRFilterBase::at	(	const carto::VolumeRef< double > &	vector,
		long	k,
		int	dir
	)		const

protectedvirtual

Fast access : k must be in [0, size-1].

◆ at() [3/3]

virtual double aims::IIRFilterBase::at	(	const carto::VolumeRef< double > &	vector,
		long	k,
		int	dir,
		long	fullsize,
		int	binf
	)		const

protectedvirtual

Mirror access : k can be outside [0, size - 1].

If borders are allocated, they will be used, else outside values will be infered according to the border strategy. However, for spline interpolation, note that border values should mirror inside values. It is the caller role to ensure that eventual borders are properly filled.

◆ boundary()

virtual const FilterType::Boundary& aims::IIRFilterBase::boundary ( ) const

virtual

Because the filter is infinite, the signal must be extended outisde the image domain.

This extension can be by mirroring inside voxels about the borders, by using the nearest inside voxels or by using null values.

◆ computeK0()

virtual long aims::IIRFilterBase::computeK0	(	double	pole,
		double	tolerance = `-1.`
	)		const

protectedvirtual

compute K0 so that pole^K0 < precision

◆ directions()

virtual const std::vector<bool>& aims::IIRFilterBase::directions ( ) const

virtual

Parameters.

Axis slong which the fitlering is performed. By default, filtering is performed along the X, Y and Z axes.

◆ execute() [1/2]

template<typename T >

carto::VolumeRef<double> aims::IIRFilterBase::execute ( const carto::VolumeRef< T > & in ) const

Execution.

Apply the filtering process to a volume. Under certain conditions, it can be done in place (the input volume will contain the result). Else an output volume will be created.

Note: 1 copy (+ 1 if the result is assigned to a different volume type)

Referenced by aims::SplinePyramidBuilder::execute(), and aims::InterpolatedVolume::setVolume().

◆ execute() [2/2]

carto::VolumeRef<double> aims::IIRFilterBase::execute	(	carto::VolumeRef< double > &	in,
		bool	inplace = `false`
	)		const

Note

if inplace : 0 copy
else : 1 copy (+ 1 if the result is assigned to a different volume type)

◆ filter()

virtual void aims::IIRFilterBase::filter ( carto::VolumeRef< double > vol ) const

protectedvirtual

Helpers.

Generic multidimensional filter. Calls filter1d successively in each direction.

◆ filter1d() [1/2]

virtual void aims::IIRFilterBase::filter1d	(	const carto::VolumeRef< double >	in,
		carto::VolumeRef< double >	out,
		int	dir = `-1`
	)		const

pure virtual

Actual 1d filter that should be implemented by derived classes.

Implemented in aims::SymAllPoleIIRFilter, and aims::CausalSinglePoleIIRFilter.

◆ filter1d() [2/2]

virtual void aims::IIRFilterBase::filter1d	(	carto::VolumeRef< double >	vol,
		int	dir = `-1`,
		carto::VolumeRef< double >	tmp = `carto::VolumeRef< double >((carto::Volume< double > *) 0)`
	)		const

protectedvirtual

redirection for in place fitlering

◆ mirrorCoeff()

virtual long aims::IIRFilterBase::mirrorCoeff	(	long	i,
		long	size
	)		const

protectedvirtual

If i is outside [0, size-1], it is mirrored to fall inside.

◆ operator=()

IIRFilterBase& aims::IIRFilterBase::operator= ( const IIRFilterBase & other )

Referenced by aims::DirectBSplineFilter::execute().

◆ selectCoeff()

virtual long aims::IIRFilterBase::selectCoeff	(	long	i,
		long	fullsize,
		int	binf
	)		const

protectedvirtual

If i is outside [binf, fullsize-1], it is mirrored to fall inside.

◆ setBoundary()

virtual void aims::IIRFilterBase::setBoundary ( const FilterType::Boundary & boundary )

virtual

◆ setDirections() [1/2]

virtual void aims::IIRFilterBase::setDirections ( const std::vector< bool > & dir )

virtual

Referenced by aims::SplinePyramidBuilder::execute().

◆ setDirections() [2/2]

virtual void aims::IIRFilterBase::setDirections	(	bool	dirx,
		bool	diry,
		bool	dirz,
		bool	dirt
	)

virtual

◆ setDirectionT()

virtual void aims::IIRFilterBase::setDirectionT ( bool dirt )

virtual

default: false

◆ setDirectionX()

virtual void aims::IIRFilterBase::setDirectionX ( bool dirx )

virtual

default: true

◆ setDirectionY()

virtual void aims::IIRFilterBase::setDirectionY ( bool diry )

virtual

default: true

◆ setDirectionZ()

virtual void aims::IIRFilterBase::setDirectionZ ( bool dirz )

virtual

default: true

◆ setQuiet()

virtual void aims::IIRFilterBase::setQuiet ( )

virtual

Set verbosity level to 0 -> Remove all possible traces.

◆ setVerbose()

virtual void aims::IIRFilterBase::setVerbose ( int verbose = 1 )

virtual

Verbosity level.

Default value is carto::verbose that is usually set at the command level.

Referenced by aims::SplinePyramidBuilder::execute().

Member Data Documentation

◆ _boundary

FilterType::Boundary aims::IIRFilterBase::_boundary

protected

Definition at line 151 of file iirfilter.h.

◆ _copy

FilterType::CopyType aims::IIRFilterBase::_copy

protected

Definition at line 152 of file iirfilter.h.

◆ _dir

std::vector<bool> aims::IIRFilterBase::_dir

protected

Definition at line 150 of file iirfilter.h.

◆ _verbose

int aims::IIRFilterBase::_verbose

protected

Definition at line 149 of file iirfilter.h.

The documentation for this class was generated from the following file:

aims/signalfilter/iirfilter.h
