Symmetric, all-pole, infinite impulse response Filter. More...

#include <aims/signalfilter/iirfilter.h>

Inheritance diagram for aims::SymAllPoleIIRFilter:

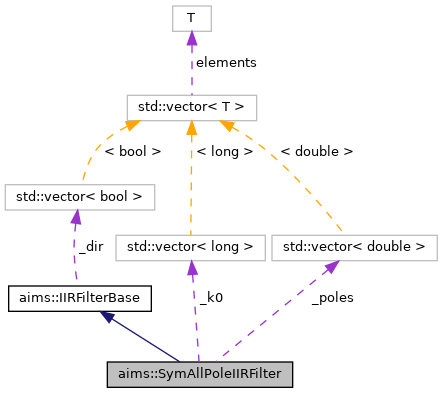

Collaboration diagram for aims::SymAllPoleIIRFilter:

Public Member Functions

	SymAllPoleIIRFilter (const double gain=0., const std::vector< double > &poles=std::vector< double >())
	Constructor / Destructor / Copy. More...

	SymAllPoleIIRFilter (const SymAllPoleIIRFilter &other)

virtual	~SymAllPoleIIRFilter ()

SymAllPoleIIRFilter &	operator= (const SymAllPoleIIRFilter &other)


virtual void	filter1d (const carto::VolumeRef< double > in, carto::VolumeRef< double > out, int dir=-1) const
	Execution. More...


const double &	gain () const
	Parameters. More...

const std::vector< double > &	poles () const

void	setPoles (const std::vector< double > &poles)

void	addPole (const double &pole)

void	setGain (const double &gain)
	Relative to Unser & al, gain = c0. More...

void	setModePreciseGain (bool precise=true)
	If this mode is activated, provided gain should be c * prod(-poles). More...

Public Member Functions inherited from aims::IIRFilterBase
	IIRFilterBase ()
	Constructor / Destructor / Copy. More...

	IIRFilterBase (const IIRFilterBase &other)

virtual	~IIRFilterBase ()

IIRFilterBase &	operator= (const IIRFilterBase &other)

template<typename T >
carto::VolumeRef< double >	execute (const carto::VolumeRef< T > &in) const
	Execution. More...

carto::VolumeRef< double >	execute (carto::VolumeRef< double > &in, bool inplace=false) const

virtual const std::vector< bool > &	directions () const
	Parameters. More...

virtual void	setDirections (const std::vector< bool > &dir)

virtual void	setDirections (bool dirx, bool diry, bool dirz, bool dirt)

virtual void	setDirectionX (bool dirx)
	default: true More...

virtual void	setDirectionY (bool diry)
	default: true More...

virtual void	setDirectionZ (bool dirz)
	default: true More...

virtual void	setDirectionT (bool dirt)
	default: false More...

virtual const FilterType::Boundary &	boundary () const
	Because the filter is infinite, the signal must be extended outisde the image domain. More...

virtual void	setBoundary (const FilterType::Boundary &boundary)

virtual void	setVerbose (int verbose=1)
	Verbosity level. More...

virtual void	setQuiet ()
	Set verbosity level to 0 -> Remove all possible traces. More...

Protected Member Functions

void	computeK0 ()
	Helpers. More...

void	computePreciseGain ()

Protected Member Functions inherited from aims::IIRFilterBase
virtual void	filter (carto::VolumeRef< double > vol) const
	Helpers. More...

virtual void	filter1d (carto::VolumeRef< double > vol, int dir=-1, carto::VolumeRef< double > tmp=carto::VolumeRef< double >((carto::Volume< double > *) 0)) const
	redirection for in place fitlering More...

virtual double &	at (carto::VolumeRef< double > &vector, long k, int dir) const
	Fast access : k must be in [0, size-1]. More...

virtual const double &	at (const carto::VolumeRef< double > &vector, long k, int dir) const
	Fast access : k must be in [0, size-1]. More...

virtual double	at (const carto::VolumeRef< double > &vector, long k, int dir, long fullsize, int binf) const
	Mirror access : k can be outside [0, size - 1]. More...

virtual long	mirrorCoeff (long i, long size) const
	If i is outside [0, size-1], it is mirrored to fall inside. More...

virtual long	selectCoeff (long i, long fullsize, int binf) const
	If i is outside [binf, fullsize-1], it is mirrored to fall inside. More...

virtual long	computeK0 (double pole, double tolerance=-1.) const
	compute K0 so that pole^K0 < precision More...

Protected Attributes
std::vector< double >	_poles

std::vector< long >	_k0

double	_gain

double	_precisegain

bool	_precise

Protected Attributes inherited from aims::IIRFilterBase
int	_verbose

std::vector< bool >	_dir

FilterType::Boundary	_boundary

FilterType::CopyType	_copy

Detailed Description

Symmetric, all-pole, infinite impulse response Filter.

Special case of Infinite Impulse Response filter: Separable filter whose transfer function is of the form H(z) = c / P(z) with the coefficients of P symmetric, i.e. p(k) = p(-k)

This implementation follows that of Unser, Aldroubi & Eden, "B-Spline Signal Processing: Part II - Efficient Design and Applications" in IEEE Transactions on Signal Processing (1993)

To diminish rounding errors, it is possible to give the gain value c * prod( -p(k) ) instead of c, and enable the precise mode with setModePreciseGain().

Note: If borders are allocated, they will be used, else inside values will be mirrored in the outside. However, for spline interpolation, note that border values should mirror inside values. It is the caller role to ensure that eventual borders are properly filled.

Definition at line 417 of file iirfilter.h.

Constructor & Destructor Documentation

◆ SymAllPoleIIRFilter() [1/2]

aims::SymAllPoleIIRFilter::SymAllPoleIIRFilter	(	const double	gain = `0.`,
		const std::vector< double > &	poles = `std::vector< double >()`
	)

Constructor / Destructor / Copy.

◆ SymAllPoleIIRFilter() [2/2]

aims::SymAllPoleIIRFilter::SymAllPoleIIRFilter ( const SymAllPoleIIRFilter & other )

◆ ~SymAllPoleIIRFilter()

virtual aims::SymAllPoleIIRFilter::~SymAllPoleIIRFilter ( )

virtual

Member Function Documentation

◆ addPole()

void aims::SymAllPoleIIRFilter::addPole ( const double & pole )

◆ computeK0()

void aims::SymAllPoleIIRFilter::computeK0 ( )

protected

Helpers.

◆ computePreciseGain()

void aims::SymAllPoleIIRFilter::computePreciseGain ( )

protected

◆ filter1d()

virtual void aims::SymAllPoleIIRFilter::filter1d	(	const carto::VolumeRef< double >	in,
		carto::VolumeRef< double >	out,
		int	dir = `-1`
	)		const

virtual

Execution.

Implements aims::IIRFilterBase.

◆ gain()

const double& aims::SymAllPoleIIRFilter::gain ( ) const

Parameters.

◆ operator=()

SymAllPoleIIRFilter& aims::SymAllPoleIIRFilter::operator= ( const SymAllPoleIIRFilter & other )

◆ poles()

const std::vector<double>& aims::SymAllPoleIIRFilter::poles ( ) const

◆ setGain()

void aims::SymAllPoleIIRFilter::setGain ( const double & gain )

Relative to Unser & al, gain = c0.

◆ setModePreciseGain()

void aims::SymAllPoleIIRFilter::setModePreciseGain ( bool precise = true )

If this mode is activated, provided gain should be c * prod(-poles).

This allows to avoid some floating points operations, which is especially useful at high orders. Default value at construction is false.

◆ setPoles()

void aims::SymAllPoleIIRFilter::setPoles ( const std::vector< double > & poles )

Member Data Documentation

◆ _gain

double aims::SymAllPoleIIRFilter::_gain

protected

Definition at line 468 of file iirfilter.h.

◆ _k0

std::vector<long> aims::SymAllPoleIIRFilter::_k0

protected

Definition at line 467 of file iirfilter.h.

◆ _poles

std::vector<double> aims::SymAllPoleIIRFilter::_poles

protected

Definition at line 466 of file iirfilter.h.

◆ _precise

bool aims::SymAllPoleIIRFilter::_precise

protected

Definition at line 470 of file iirfilter.h.

◆ _precisegain

double aims::SymAllPoleIIRFilter::_precisegain

protected

Definition at line 469 of file iirfilter.h.

The documentation for this class was generated from the following file:

aims/signalfilter/iirfilter.h
