aims::CausalSinglePoleIIRFilter Class Reference

Special case of Infinite Impulse Response filter. More...

#include <aims/signalfilter/iirfilter.h>

Inheritance diagram for aims::CausalSinglePoleIIRFilter:

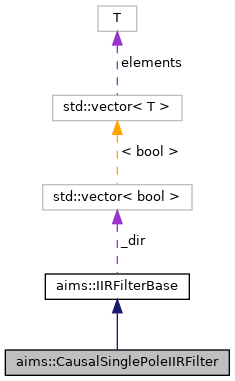

Collaboration diagram for aims::CausalSinglePoleIIRFilter:

Public Member Functions
	CausalSinglePoleIIRFilter (double pole=0., double gain=1.)
	Constructor / Destructor / Copy. More...
	CausalSinglePoleIIRFilter (const CausalSinglePoleIIRFilter &other)
virtual	~CausalSinglePoleIIRFilter ()
CausalSinglePoleIIRFilter &	operator= (const CausalSinglePoleIIRFilter &other)
virtual void	filter1d (const carto::VolumeRef< double > in, carto::VolumeRef< double > out, int dir=-1) const
	Execution. More...
const double &	gain () const
	Parameters. More...
const double &	pole () const
void	setPole (const double &pole)
void	setGain (const double &gain)
Public Member Functions inherited from aims::IIRFilterBase
	IIRFilterBase ()
	Constructor / Destructor / Copy. More...
	IIRFilterBase (const IIRFilterBase &other)
virtual	~IIRFilterBase ()
IIRFilterBase &	operator= (const IIRFilterBase &other)
template<typename T >
carto::VolumeRef< double >	execute (const carto::VolumeRef< T > &in) const
	Execution. More...
carto::VolumeRef< double >	execute (carto::VolumeRef< double > &in, bool inplace=false) const
virtual const std::vector< bool > &	directions () const
	Parameters. More...
virtual void	setDirections (const std::vector< bool > &dir)
virtual void	setDirections (bool dirx, bool diry, bool dirz, bool dirt)
virtual void	setDirectionX (bool dirx)
	default: true More...
virtual void	setDirectionY (bool diry)
	default: true More...
virtual void	setDirectionZ (bool dirz)
	default: true More...
virtual void	setDirectionT (bool dirt)
	default: false More...
virtual const FilterType::Boundary &	boundary () const
	Because the filter is infinite, the signal must be extended outisde the image domain. More...
virtual void	setBoundary (const FilterType::Boundary &boundary)
virtual void	setVerbose (int verbose=1)
	Verbosity level. More...
virtual void	setQuiet ()
	Set verbosity level to 0 -> Remove all possible traces. More...

Protected Member Functions
void	computeK0 ()
	Helpers. More...
Protected Member Functions inherited from aims::IIRFilterBase
virtual void	filter (carto::VolumeRef< double > vol) const
	Helpers. More...
virtual void	filter1d (carto::VolumeRef< double > vol, int dir=-1, carto::VolumeRef< double > tmp=carto::VolumeRef< double >((carto::Volume< double > *) 0)) const
	redirection for in place fitlering More...
virtual double &	at (carto::VolumeRef< double > &vector, long k, int dir) const
	Fast access : k must be in [0, size-1]. More...
virtual const double &	at (const carto::VolumeRef< double > &vector, long k, int dir) const
	Fast access : k must be in [0, size-1]. More...
virtual double	at (const carto::VolumeRef< double > &vector, long k, int dir, long fullsize, int binf) const
	Mirror access : k can be outside [0, size - 1]. More...
virtual long	mirrorCoeff (long i, long size) const
	If i is outside [0, size-1], it is mirrored to fall inside. More...
virtual long	selectCoeff (long i, long fullsize, int binf) const
	If i is outside [binf, fullsize-1], it is mirrored to fall inside. More...
virtual long	computeK0 (double pole, double tolerance=-1.) const
	compute K0 so that pole^K0 < precision More...

Protected Attributes
double	_gain
double	_pole
long	_k0
Protected Attributes inherited from aims::IIRFilterBase
int	_verbose
std::vector< bool >	_dir
FilterType::Boundary	_boundary
FilterType::CopyType	_copy

Detailed Description

Special case of Infinite Impulse Response filter.

Its transfer function is of the form: H(z) = b0 / ( 1 - a1 * z^-1 )

Definition at line 301 of file iirfilter.h.

Constructor & Destructor Documentation

CausalSinglePoleIIRFilter() [1/2]

aims::CausalSinglePoleIIRFilter::CausalSinglePoleIIRFilter	(	double	pole = 0.,
		double	gain = 1.
	)

Constructor / Destructor / Copy.

CausalSinglePoleIIRFilter() [2/2]

aims::CausalSinglePoleIIRFilter::CausalSinglePoleIIRFilter

(

const CausalSinglePoleIIRFilter &

other

)

~CausalSinglePoleIIRFilter()

virtual aims::CausalSinglePoleIIRFilter::~CausalSinglePoleIIRFilter ( )

virtual

Member Function Documentation

computeK0()

void aims::CausalSinglePoleIIRFilter::computeK0 ( )

protected

Helpers.

filter1d()

virtual void aims::CausalSinglePoleIIRFilter::filter1d ( const carto::VolumeRef< double >  in, carto::VolumeRef< double >  out, int  dir = -1  ) const

virtual

Execution.

Implements aims::IIRFilterBase.

gain()

const double& aims::CausalSinglePoleIIRFilter::gain

(

)

const

Parameters.

operator=()

CausalSinglePoleIIRFilter& aims::CausalSinglePoleIIRFilter::operator=

(

const CausalSinglePoleIIRFilter &

other

)

pole()

const double& aims::CausalSinglePoleIIRFilter::pole

(

)

const

setGain()

void aims::CausalSinglePoleIIRFilter::setGain

(

const double &

gain

)

setPole()

void aims::CausalSinglePoleIIRFilter::setPole

(

const double &

pole

)

Member Data Documentation

_gain

double aims::CausalSinglePoleIIRFilter::_gain

protected

Definition at line 340 of file iirfilter.h.

_k0

long aims::CausalSinglePoleIIRFilter::_k0

protected

Definition at line 342 of file iirfilter.h.

_pole

double aims::CausalSinglePoleIIRFilter::_pole

protected

Definition at line 341 of file iirfilter.h.

---

The documentation for this class was generated from the following file:

• aims/signalfilter/iirfilter.h
